5559-12P1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5559-12P1

5559-12P1: Description12 CONTACT(S), MALE, POWER CONNECTOR, PLUG; CategoryThe connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5559-12P1 Overview

12 CONTACT(S), MALE, POWER CONNECTOR, PLUG

5559-12P1 Parametric

Parameter Name	Attribute value
Connector type	RECTANGULAR POWER CONNECTOR
Contact materials	NOT SPECIFIED
Total number of contacts	12
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
body_depth	0.9410 inch
body_diamete	1.04 inch
Shell style	PLUG
contact_desig	STRIP OR LOOSE
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connector male and female	MALE
contact_patte	RECTANGULAR
dielectric_withstanding_voltage__v_	1500VAC
According to DIN	NO
durability	30 Cycles
empty shell	NO
Filter characteristics	NO
Comply with IEC	NO
insertion_force_max__n_	6.672
insulation_diameter_mi	0.0350 inch
insulation_resistance	1.00E9 ohm
insulator_material	NYLON
Manufacturer Series	5559
mating_contact_pitch__inch_	0.165
mating_contact_row_spacing__inch_	0.165
collocation information	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO
hybrid connection	NO
mounting_option_1	POLARIZED LCK
mounting_option_2	PLASTIC
Installation type	CABLE
Number of load rows	2
Minimum operating temperature	-40 Cel
erating_temperature_max__cel_	105
Options	GENERAL PURPOSE
larization_key	CENTER
ed_current__signal_	9 A
eference_standard	UL, CSA
eliability	COMMERCIAL
Shell material	POLYAMIDE66
sub_category	Headers and Edge Type Connectors
UL flammability code	94V-2
wire_size_mi	28 AWG
wire_size_max	16 AWG
withdrawl_force_min__n_	3.1136
dditional_feature	MINI-FIT

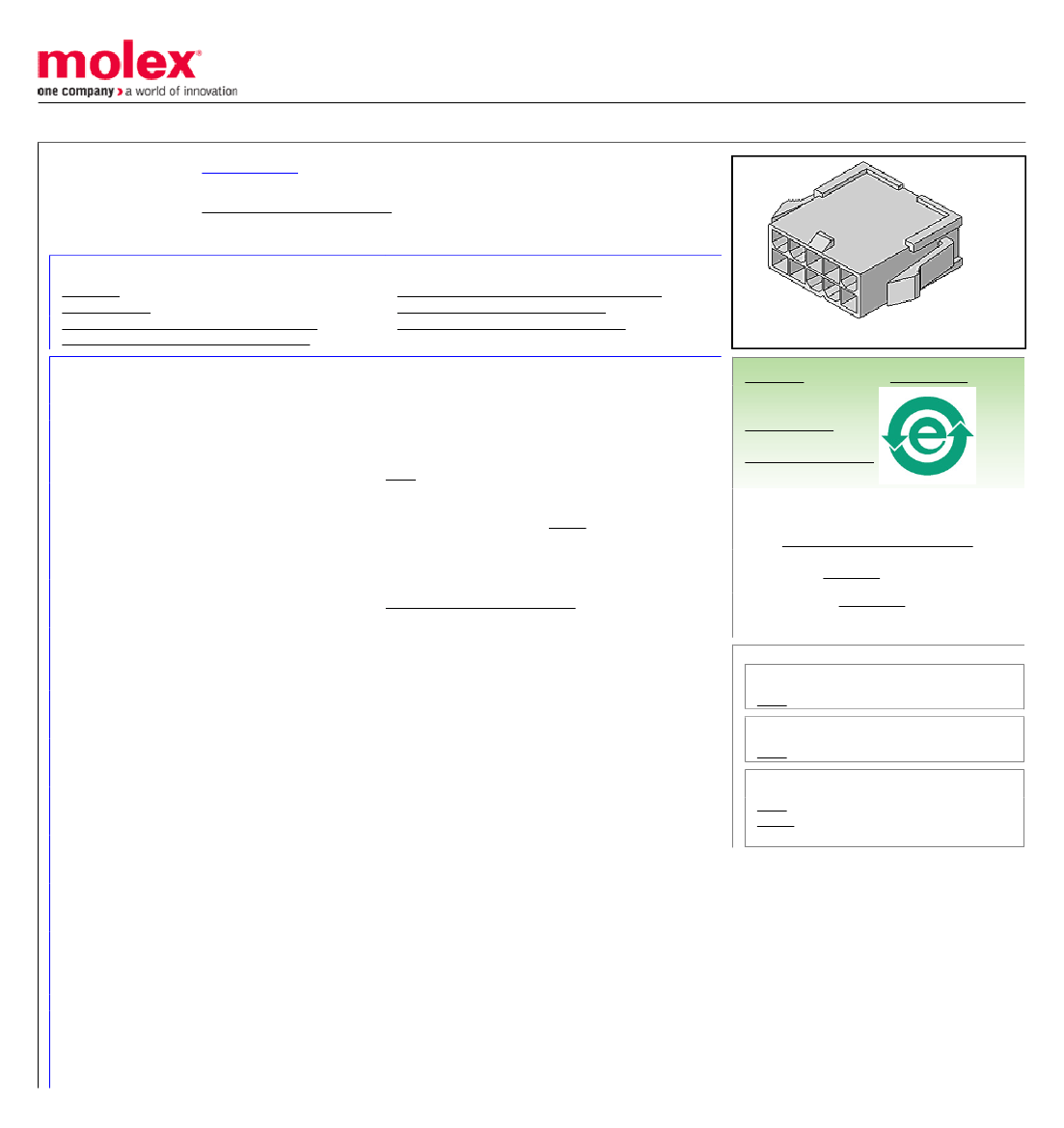

Preview

Download Datasheet

View All

This document was generated on 04/03/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

39-01-3123

Active

Mini-Fit Jr.™ Power Connectors

Mini-Fit Jr.™ Plug Housing, Dual Row without Panel Mount Ears, PA Polyamide Nylon

6/6, UL 94V-2, 12 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001 (PDF)

Product Specification PS-5556-001 (PDF)

Packaging Specification PK-5559-002 (PDF)

Test Summary TS-5556-002 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Series

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Crimp Housings

5559

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.

Yes

Mini-Fit Jr.™ Power Connectors

Mini-Fit Jr.™

800754204071

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

MolexKits

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Plug

None

Yes

Nylon

3.279/g

Bag

4.20mm

Yes

-40°C to +105°C

Search Parts in this Series

5559Series

Mates With

5557 Receptacle Housing

Use With

5558 Mini-Fit Jr.™ Male Crimp Terminals.

30490 Mini-Fit® Male Grounding Crimp

Terminals

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

5559-12P1

Reference - Drawing Numbers

Recommended Resources
