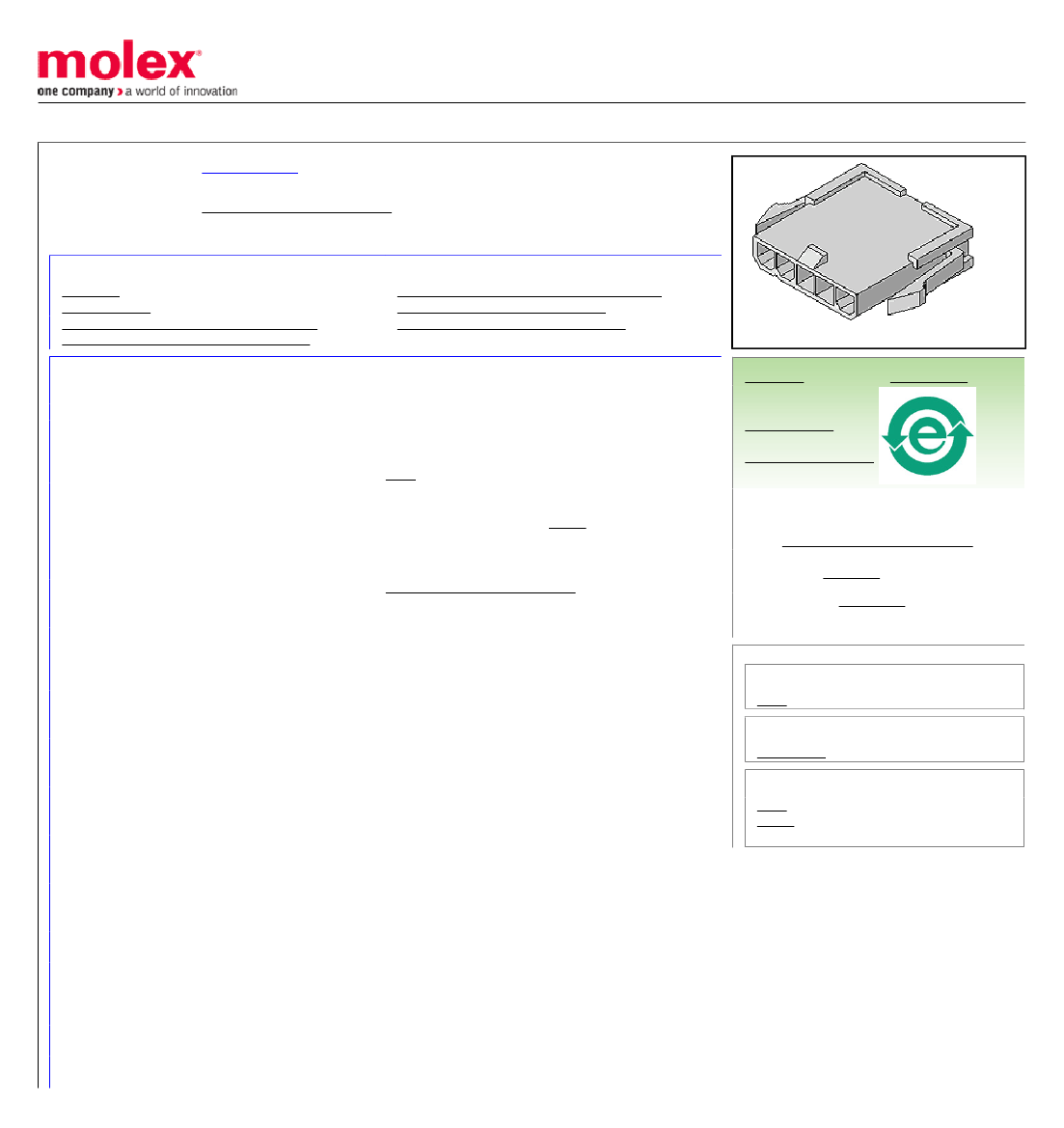

5559-20P1: Description20 CONTACT(S), MALE, POWER CONNECTOR, PLUG; Categorysemiconductor Other integrated circuit (IC); File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

5559-20P1 Overview

20 CONTACT(S), MALE, POWER CONNECTOR, PLUG

Preview

Download Datasheet

View All

This document was generated on 04/03/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

39-01-3203

Active

Mini-Fit Jr.™ Power Connectors

Mini-Fit Jr.™ Plug Housing, Dual Row without Panel Mount Ears, PA Polyamide Nylon

6/6, UL 94V-2, 20 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001 (PDF)

Product Specification PS-5556-001 (PDF)

Packaging Specification PK-5559-002 (PDF)

Test Summary TS-5556-002 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Series

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Crimp Housings

5559

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.. Glow Wire Equivalent Part.

Mini-Fit Jr.™ Power Connectors

Mini-Fit Jr.™

884982006201

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Plug

None

Yes

Nylon

5.320/g

Bag

4.20mm

Yes

-40°C to +105°C

Search Parts in this Series

5559Series

Mates With

39-01-2180 Receptacle Housing

Use With

5558 Mini-Fit Jr.™ Male Crimp Terminals.

30490 Mini-Fit® Male Grounding Crimp

Terminals

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

5559-20P1

Reference - Drawing Numbers

Packaging Specification

Product Specification

PK-5559-002

PS-45750-001, PS-5556-001
