MK-20028X05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MK-20028X05

MK-20028X05: Description1-OUTPUT 100W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10; CategoryPower/power management The power supply circuit; File Size126KB，2 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric Compare View All

MK-20028X05 Overview

1-OUTPUT 100W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10

MK-20028X05 Parametric

Parameter Name	Attribute value
Maker	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE
package instruction	,
Contacts	10
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	84%
Maximum input voltage	40 V
Minimum input voltage	16 V
Nominal input voltage	28 V
JESD-30 code	R-MDMA-P10
Maximum grid adjustment rate	0.4%
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	5.5 V
Minimum output voltage	3 V
Nominal output voltage	5 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	100 W
Fine-tuning/adjustable output	YES

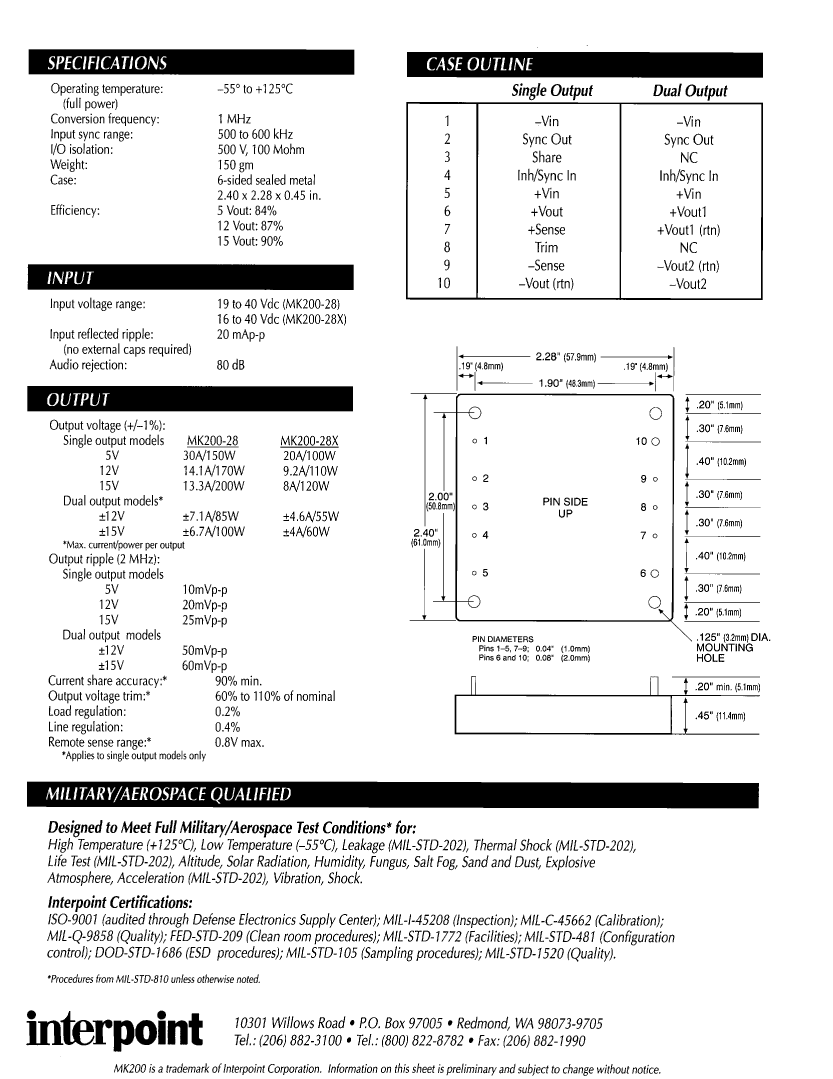

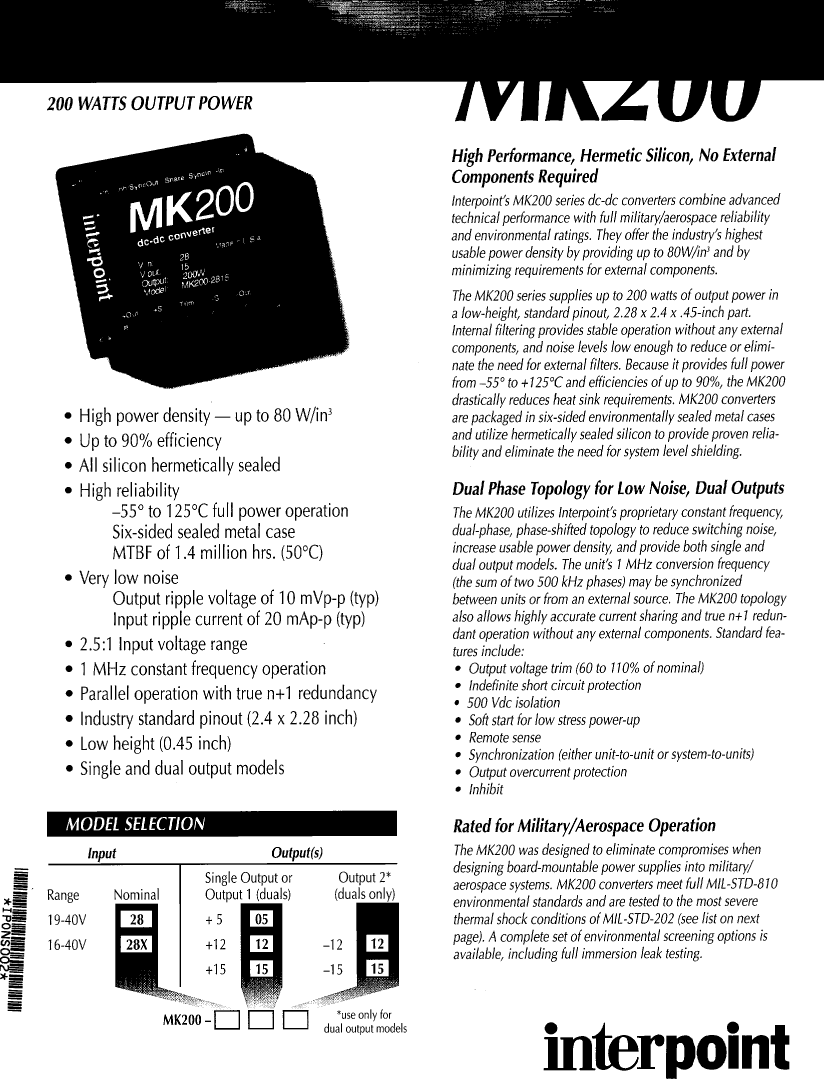

Preview

Download Datasheet

View All

MK-20028X05 Related Products

	MK-20028X05	MK-200281515	MK-2002805	MK-20028X15	MK-2002812	MK-200281212	MK-20028X1515	MK-2002815	MK-20028X12	MK-20028X1212
Description	1-OUTPUT 100W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	2-OUTPUT 100W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	1-OUTPUT 150W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	1-OUTPUT 120W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	1-OUTPUT 170W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	2-OUTPUT 85W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	2-OUTPUT 60W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	1-OUTPUT 200W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	1-OUTPUT 110W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10	2-OUTPUT 55W DC-DC REG PWR SUPPLY MODULE, 2.400 X 2.280 INCH, 0.450 INCH HEIGHT, HERMETIC SEALED, METAL, PACKAGE-10
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Contacts	10	10	10	10	10	10	10	10	10	10
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant	unknown	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	84%	90%	84%	90%	87%	87%	90%	90%	87%	87%
Maximum input voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
Minimum input voltage	16 V	19 V	19 V	16 V	19 V	19 V	16 V	19 V	16 V	16 V
Nominal input voltage	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
JESD-30 code	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10	R-MDMA-P10
Maximum grid adjustment rate	0.4%	0.4%	0.4%	0.4%	0.4%	0.4%	0.4%	0.4%	0.4%	0.4%
Maximum load regulation	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	2	1	1	1	2	2	1	1	2
Number of terminals	10	10	10	10	10	10	10	10	10	10
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output voltage	5.5 V	15.15 V	5.5 V	16.5 V	13.2 V	12.12 V	15.15 V	16.5 V	13.2 V	12.12 V
Minimum output voltage	3 V	14.85 V	3 V	9 V	7.2 V	11.88 V	14.85 V	9 V	7.2 V	11.88 V
Nominal output voltage	5 V	15 V	5 V	15 V	12 V	12 V	15 V	15 V	12 V	12 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Protect	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	100 W	100 W	150 W	120 W	170 W	85 W	60 W	200 W	110 W	55 W
Fine-tuning/adjustable output	YES	NO	YES	YES	YES	NO	NO	YES	YES	NO
Maker	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	-	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）
