HFM202-L-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HFM202-L-H

HFM202-L-H: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN; CategoryDiscrete semiconductor diode; File Size91KB，7 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HFM202-L-H Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN

HFM202-L-H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FORMOSA
package instruction	R-PDSO-F2
Reach Compliance Code	unknown
ECCN code	EAR99
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL

Preview

Download Datasheet

View All

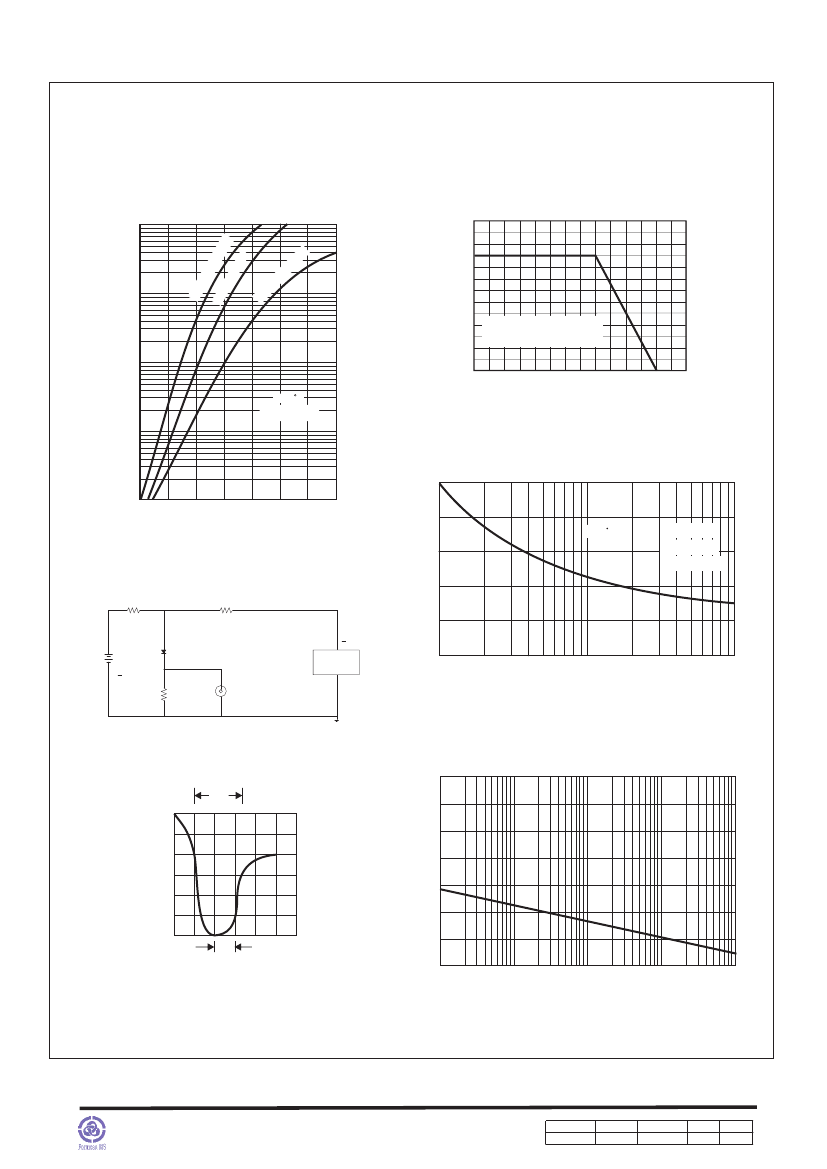

Chip High Effciency Rectifiers

HFM201-L THRU HFM207-L

List

Formosa MS

List................................................................................................. 1

Package outline............................................................................... 2

Features.......................................................................................... 2

Mechanical data............................................................................... 2

Maximum ratings ............................................................................. 2

Rating and characteristic curves........................................................ 3

Pinning information........................................................................... 4

Marking........................................................................................... 4

Suggested solder pad layout............................................................. 4

Packing information.......................................................................... 5

Reel packing.................................................................................... 6

Suggested thermal profiles for soldering processes............................. 6

High reliability test capabilities........................................................... 7

http://www.formosams.com/

TEL:886-2-22696661

FAX:886-2-22696141

Document ID

Issued Date

2008/02/10

Revised Date

2010/03/10

Revision

Page.

Page 1

DS-121321

HFM202-L-H Related Products

	HFM202-L-H	HFM205-L-H	HFM201-L-H	HFM203-L-H	HFM206-L-H	HFM207-L-H	HFM204-L-H
Description	Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 1000V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-214AC, HALOGEN FREE, PLASTIC, SMA-L, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA
package instruction	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1.7 V	1 V	1 V	1.7 V	1.7 V	1.3 V
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	100 V	600 V	50 V	200 V	800 V	1000 V	400 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.05 µs	0.075 µs	0.05 µs	0.05 µs	0.075 µs	0.075 µs	0.05 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
