CAT24C21J-TE13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CAT24C21J-TE13

CAT24C21J-TE13: Description128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOIC-8; Categorystorage storage; File Size148KB，14 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

CAT24C21J-TE13 Overview

128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOIC-8

CAT24C21J-TE13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	SOIC
package instruction	SOIC-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum clock frequency (fCLK)	0.4 MHz
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
Maximum write cycle time (tWC)	5 ms

Preview

Download Datasheet

View All

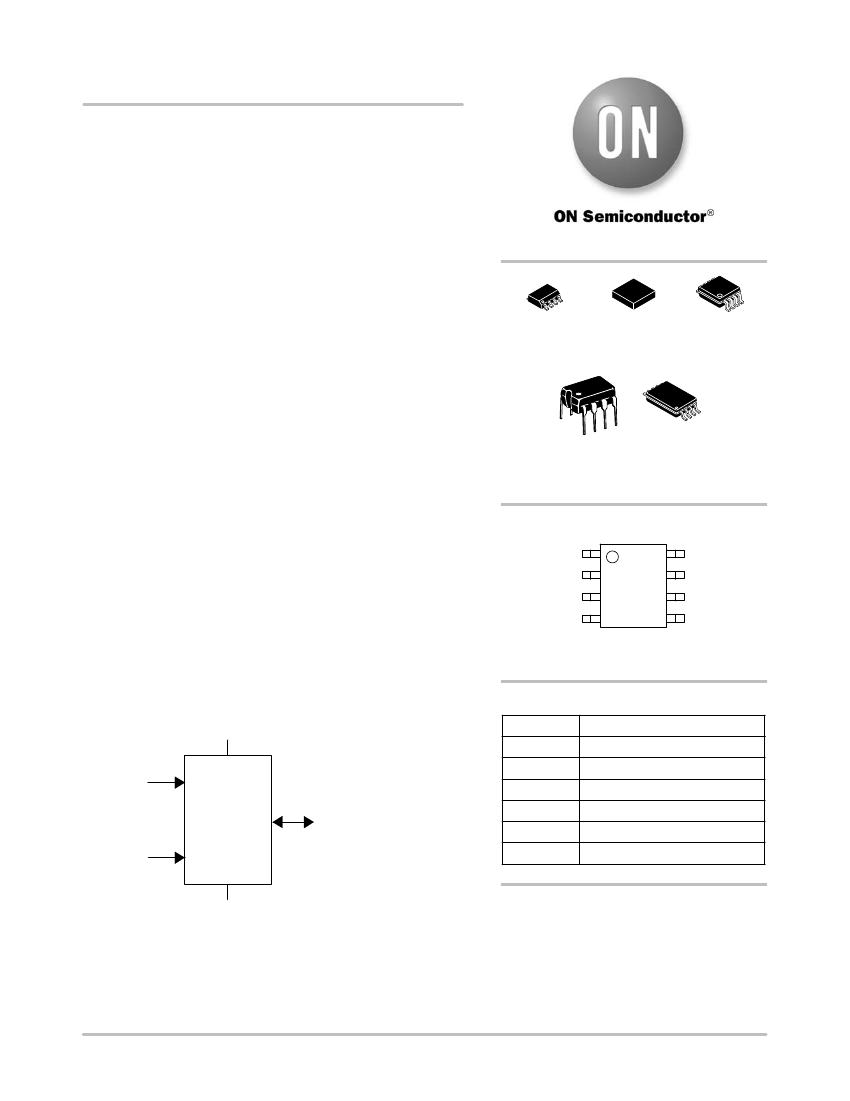

CAT24C21

1 kb Dual Mode Serial

EEPROM for VESAt

“Plug-and-Play”

Description

The CAT24C21 is a 1 kb Serial CMOS EEPROM internally

organized as 128 words of 8 bits each. The device complies with the

Video Electronics Standard Association’s (VESA™), Display Data

Channel (DDC™) standards for “Plug−and−Play” monitors. The

“transmit−only” mode (DDC1™) is controlled by the VCLK clock

input and the “bi−directional” mode (DDC2™) is controlled by the

SCL clock input, with both modes sharing a common SDA

input/output (I/O). The transmit−only mode is a read−only mode,

while the bi−directional mode is a read and write mode following the

C protocol. In write mode the CAT24C21 features a 16−byte page

write buffer. The device is available in 8−lead DIP, SOIC, TSSOP,

MSOP and TDFN packages.

Features

http://onsemi.com

SOIC−8

W SUFFIX

CASE 751BD

TDFN−8

ZD4 SUFFIX

CASE 511AL

MSOP−8

Z SUFFIX

CASE 846AD

•

DDC1t/DDC2t Interface Compliant for Monitor Identification

400 kHz I

C Bus Compatible

2.5 to 5.5 Volt Operation

16−byte Page Write Buffer

Hardware Write Protect

Low Power CMOS Technology

1,000,000 Program/Erase Cycles

100 Year Data Retention

Industrial Temperature Range

8−lead DIP, SOIC, TSSOP, MSOP or TDFN Packages

This Device is Pb−Free, Halogen Free/BFR Free, and RoHS

Compliant

PDIP−8

L SUFFIX

CASE 646AA

TSSOP−8

Y SUFFIX

CASE 948AL

PIN CONFIGURATION

VCLK

SCL

SDA

PDIP (L), SOIC (W), TSSOP (Y),

TDFN (ZD4), MSOP (Z)

PIN FUNCTION

Pin Name

Function

No Connect

Serial Data / Address

Serial Clock (bi−directional mode)

Serial Clock (transmit−only mode)

Power Supply

Ground

SCL

CAT24C21

VCLK

SDA

SCL

VCLK

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 14 of this data sheet.

Figure 1. Functional Symbol

Semiconductor Components Industries, LLC, 2009

September, 2009

−

Rev. 16

Publication Order Number:

CAT24C21/D
