9.2mmX1.9mm SIDE VIEW
Part Number: KA-9219/2SRC
Super Bright Red
Features
Low power consumption.
Ideal for backlighting.
RoHS compliant.
Description
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAD0354
APPROVED: WYNEC
REV NO: V.10
CHECKED: Allen Liu
DATE: NOV/26/2010
DRAWN: C.H.HAN
PAGE: 1 OF 4
ERP: 1201000590
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
KA-9219/2SRC
Super Bright Red (GaAlAs)
Water Clear
120
Typ.
250
Viewing
Angle [1]
2θ1/2
100
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Typ.
660
640
20
45
3.7
5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Super Bright Red
150
30
155
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAD0354
APPROVED: WYNEC
REV NO: V.10
CHECKED: Allen Liu
DATE: NOV/26/2010
DRAWN: C.H.HAN
PAGE: 2 OF 4
ERP: 1201000590

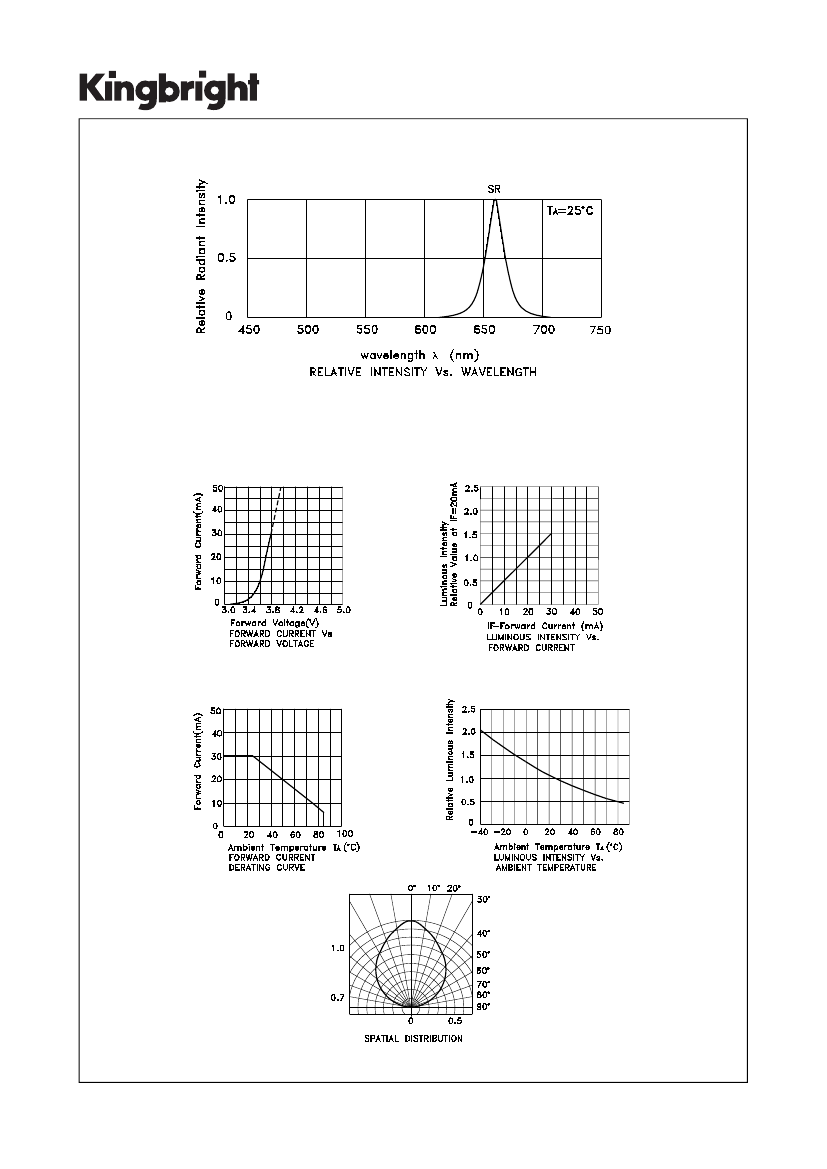

Super Bright Red
KA-9219/2SRC
SPEC NO: DSAD0354
APPROVED: WYNEC
REV NO: V.10
CHECKED: Allen Liu
DATE: NOV/26/2010
DRAWN: C.H.HAN
PAGE: 3 OF 4
ERP: 1201000590

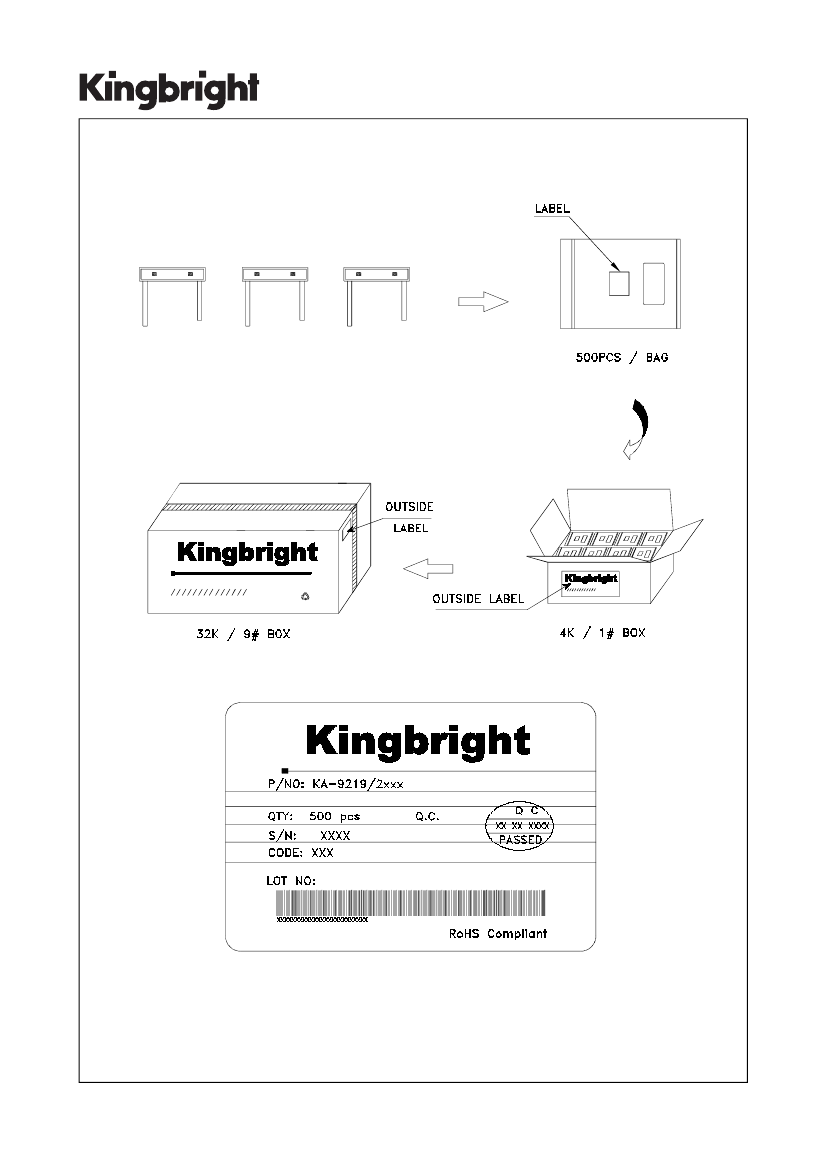

PACKING & LABEL SPECIFICATIONS
KA-9219/2SRC
SPEC NO: DSAD0354
APPROVED: WYNEC
REV NO: V.10
CHECKED: Allen Liu
DATE: NOV/26/2010
DRAWN: C.H.HAN
PAGE: 4 OF 4
ERP: 1201000590
