FO4663R-B3SM-100 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> FO4663R-B3SM-100

FO4663R-B3SM-100: DescriptionSwitch, 1270nm Min, 1380nm Max, 2X2 Port, SMA Connector; CategoryWireless rf/communication Optical fiber; File Size361KB，2 Pages; ManufacturerMoog Components Group

Download Datasheet Parametric View All

FO4663R-B3SM-100 Overview

Switch, 1270nm Min, 1380nm Max, 2X2 Port, SMA Connector

FO4663R-B3SM-100 Parametric

Parameter Name	Attribute value
Maker	Moog Components Group
Reach Compliance Code	unknown
Other features	SAFENET COMPATIBLE
body width	38.1 mm
body height	25.4 mm
Body length or diameter	78.74 mm
Connection Type	SMA CONNECTOR
Crosstalk	60 dB
Fiber optic equipment types	SWITCH
Fiber type	62.5/125
Maximum operating wavelength	1380 nm
Minimum operating wavelength	1270 nm
Nominal operating wavelength	1320 nm
optical life	1 Cycle(s)
Port configuration	2X2
switching speed	15 ms
switching voltage	5 V

Preview

Download Datasheet

View All

Ruggedized Multimode

Fiber Optic Switch

TYPICAL APPLICATIONS

• FDDI LANs

• Local area network (LAN) bypass switching

• Loopback diagnostic testing

• Ring networks

• Test sets

• Tactical platforms (ships, aircraft, etc.)

FO4663R

FEATURES

•

FDDI compatible

SAFENET compatible

Fail-safe operation

Built-in loss for loopback testing

High reliability

Bidirectional

Low insertion loss

MIL-S-901D (Hard or shock mounted)

MIL-S-1344A vibration

Low power: 5 Vdc, 70mA nominal

Switching time <15 ms

62.5/125 µm ﬁber standard

Low weight: 3.2 oz.

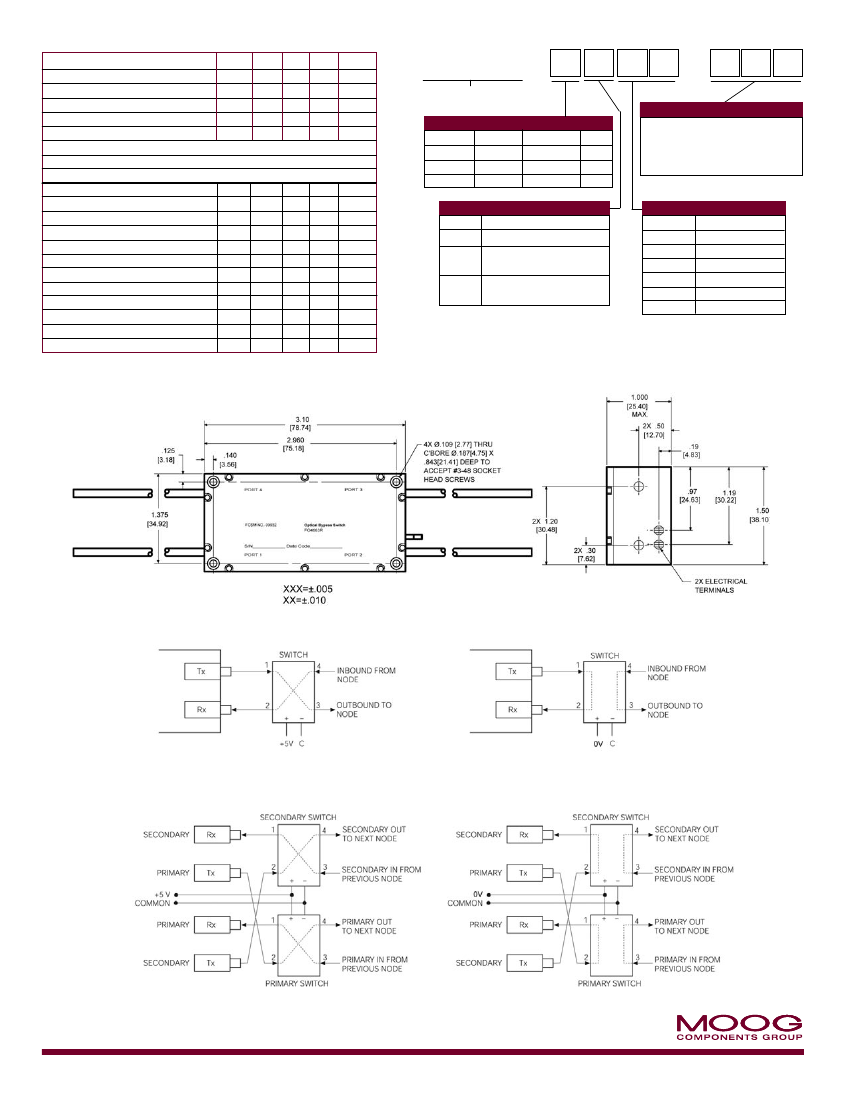

Stand alone package (see back for details)

Variety of cable and connector options

The multimode 2x2 moving-mirror optical bypass switch

meets all the requirements of the FDDI Physical Medium

Dependent (PMD) standard and SAFENET speciﬁcations

for ﬁber optic data network applications. The highly reliable

performance of the device is made possible by its unique

silicon micromachine based switch design. A sealed,

ruggedized housing isolates the optical components from

external shock and vibration effects.

The standard switch has 62.5/125 µm multimode ﬁber

pigtails that can be ordered with various customer option

cables and connectors. Other ﬁber core sizes are also

available.

For more information about our entire line of ﬁber optic

products, please visit our web site at

www.moog.com.

1213 North Main Street • Blacksburg, VA 24060-3127

800-336-2112

• FAX 540-557-6400

www.moog.com/components • e-mail: mcg@moog.com
