NRWA472M16V16X31TRF

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size51KB,3 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric Compare View All

NRWA472M16V16X31TRF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

NRWA472M16V16X31TRF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNichicon
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance4700 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter16 mm
dielectric materialsALUMINUM (WET)
ESR78 mΩ
JESD-609 codee3
leakage current2.26 mA
length31 mm
Manufacturer's serial numberNRWA
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formRadial
method of packingTR
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)16 V
ripple current1490 mA
seriesNRWA
surface mountNO
Delta tangent0.22
Terminal surfaceMatte Tin (Sn)
Terminal shapeWIRE

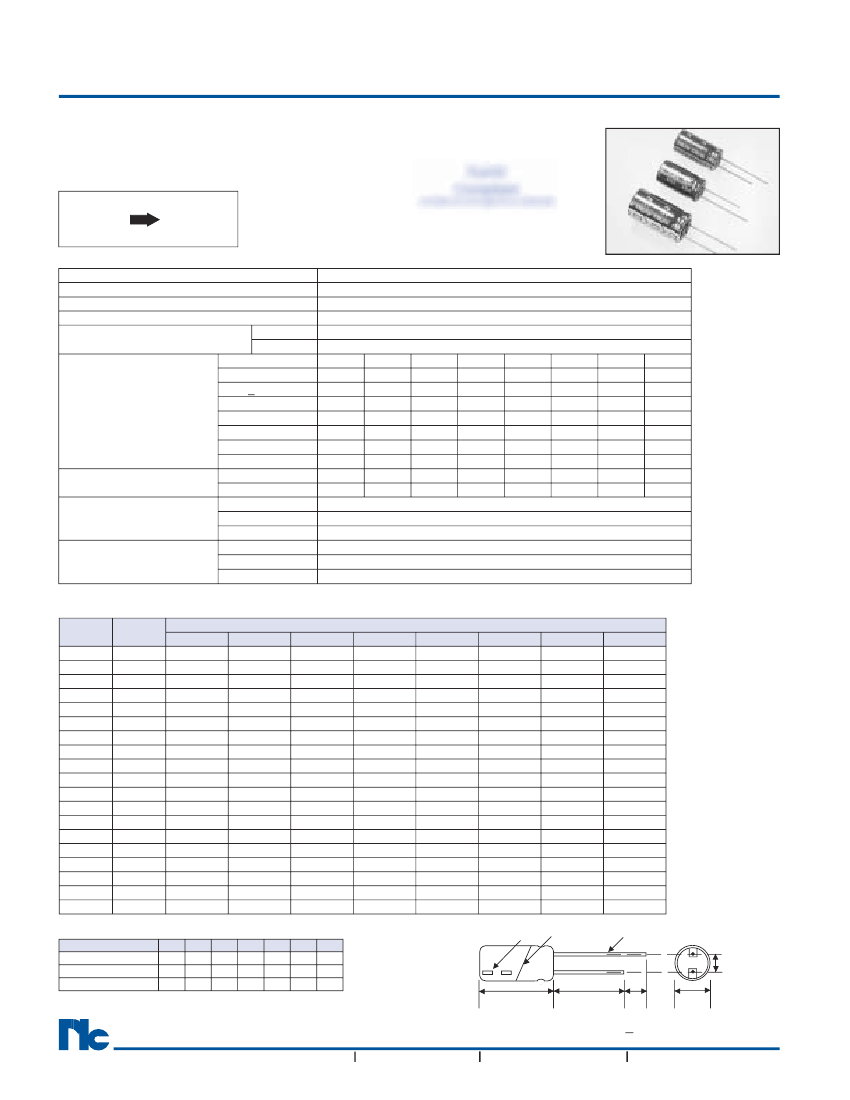

NRWA472M16V16X31TRF Preview

Miniature Aluminum Electrolytic Capacitors
RADIAL LEADS, POLARIZED, STANDARD SIZE, EXTENDED TEMPERATURE
FEATURES
• REDUCED CASE SIZING
• -55°C ~ +105°C OPERATING TEMPERATURE
• HIGH STABILITY OVER LONG LIFE
EX TEND ED TEM PER ATURE
NRWA Series
RoHS
Compliant
includes all homogeneous materials
NRWA
(today’s standard)
NRWS
(reduced sizes)
*See Part Number System for Details
CHARACTERISTICS
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Capacitance Tolerance
After 1 min.
Maximum Leakage Current @ +20°c
After 2 min.
W.V. (Vdc)
S.V. (Vdc)
C < 1,000µF
C = 2,200µF
Max. Tan
δ
at 120Hz/20°C
C = 3,300µF
C = 4,700µF
C = 6,800µF
C = 10,000µF
Z-25°C/Z+20°C
Low Temperature Stability
Impedance Ratio @ 120Hz
Z-40°C/Z+20°C
Capacitance
Load Life Test at Rated W.V
+105°C 1,000 Hours: 5~12.5φ
Tan
δ
2,000 Hours: 16φ
LC
Capacitance
Shelf Life Test
+105°C 1,000 Hours
Tan
δ
No Load
LC
6.3 ~ 100VDC
0.47 ~ 10,000µF
-55°C ~ +105°C
±20% (M)
0.03CV or 4µA whichever is greater
0.01CV or 3µA whichever is greater
16
25
35
50
20
32
44
63
0.16
0.14
0.12
0.10
0.18
0.16
0.14
0.12
0.20
0.18
0.16
-
0.22
0.20
-
-
0.26
-
-
-
-
-
-
-
2
2
2
2
4
3
3
3
Within ±20% of initial measured value
Less than 200% of specified value
Less than specified value
Within ±20% of initial measured value
Less than 200% of specified value
Less than specified value
6.3
8
0.22
0.24
0.26
0.28
0.32
0.40
4
8
10
13
0.19
0.21
0.23
0.25
0.29
0.37
3
6
63
79
0.09
-
-
-
-
-
2
3
100
125
0.08
-
-
-
-
-
2
3
STANDARD PRODUCT AND CASE SIZE TABLE D
φ
x L (mm)
Cap.
(µF)
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
6,800
10,000
Code
R47
1R0
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
332
472
682
103
6.3
-
-
-
-
-
-
-
5x11
5x11
5x11
-
6.3x11
8x11.5
10x12.5
12.5x20
12.5x20
16x25
16x25
16x31
10
-
-
-
-
-
-
5x11
5x11
5x11
5x11
6.3x11
-
8x11.5
10x16
12.5x20
12.5x25
16x25
16x31
18x36
16
-
-
-
-
-
5x11
5x11
5x11
5x11
6.3x11
8x11.5
8x11.5
10x12.5
10x20
12.5x25
16x25
16x31
18x36
-
Working Voltage (Vdc)
25
35
-
-
-
-
-
-
-
-
5x11
5x11
5x11
5x11
5x11
5x11
5x11
5x11
5x11
6.3x11
6.3x11
8x11.5
8x11.5
10x12.5
10x12.5
10x16
10x16
10x20
12.5x20
12.5x25
16x25
16x31
16x31
18x36
18x36
-
-
-
-
-
50
5x11
5x11
5x11
5x11
5x11
5x11
5x11
6.3x11
6.3x11
8x11.5
10x16
10x20
12.5x20
16x25
18x36
-
-
-
-
Polarity Marking
63
-
-
-
5x11
5x11
5x11
6.3x11
6.3x11
8x11.5
10x12.5
10x20
12.5x20
12.5x25
16x31
-
-
-
-
-
Insulation Sleeve
100
5x11
5x11
5x11
5x11
5x11
6.3x11
8x11.5
10x12.5
10x16
12.5x20
16x25
16x25
16x31
-
-
-
-
-
-
dφ ± 0.05
LEAD SPACING AND DIAMETER (mm)
Case Dia. (Dφ)
Lead Dia. (Dφ)
Lead Spacing (F)
Dim.
α
®
5
0.5
2.0
0.5
6.3 8
10 12.5
0.5 0.6 0.6 0.6
2.5 3.5 5.0 5.0
0.5 0.5 0.5 0.5
16 18
0.8 0.8
7.5 7.5
0.5 0.5
F ± 0.5
L +
β
max.
15mm Min.
4mm
Min.
Dφ ±
α
β
= L < 20mm = 1.5mm, L > 20mm = 2.0mm
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
89
NIC COMPONENTS CORP.
www.niccomp.com
Miniature Aluminum Electrolytic Capacitors
STANDARD VALUES, SPECIFICATIONS AND CASE SIZES (mm)
Part Number
NRWA330M6.3V5x11F
NRWA470M6.3V5x11F
NRWA101M6.3V5x11F
NRWA331M6.3V6.3x11F
NRWA471M6.3V8x11.5F
NRWA102M6.3V10x12.5F
NRWA222M6.3V12.5x20F
NRWA332M6.3V12.5x20F
NRWA472M6.3V16x25F
NRWA682M6.3V16x25F
NRWA103M6.3V16x31F
NRWA220M10V5x11F
NRWA330M10V5x11F
NRWA470M10V5x11F
NRWA101M10V5x11F
NRWA221M10V6.3x11F
NRWA471M10V8x11.5F
NRWA102M10V10x16F
NRWA222M10V12.5x20F
NRWA332M10V12.5x25F
NRWA472M10V16x25F
NRWA682M10V16x31F
NRWA103M10V18x36F
NRWA100M16V5x11F
NRWA220M16V5x11F
NRWA330M16V5x11F
NRWA470M16V5x11F
NRWA101M16V6.3x11F
NRWA221M16V8x11.5F
NRWA331M16V8x11.5F
NRWA471M16V10x12.5F
NRWA102M16V10x20F
NRWA222M16V12.5x25F
NRWA332M16V16x25F
NRWA472M16V16x31F
NRWA682M16V18x36F
NRWA4R7M25V5x11F
NRWA100M25V5x11F
NRWA220M25V5x11F
NRWA330M25V5x11F
NRWA470M25V5x11F
NRWA101M25V6.3x11F
NRWA221M25V8x11.5F
NRWA331M25V10x12.5F
NRWA471M25V10x16F
NRWA102M25V12.5x20F
NRWA222M25V16x25F
NRWA332M25V16x31F
NRWA472M25V18x36F
NRWA4R7M35V5x11F
NRWA100M35V5x11F
NRWA220M35V5x11F
NRWA330M35V5x11F
NRWA470M35V6.3x11F
NRWA101M35V8x11.5F
NRWA221M35V10x12.5F
NRWA331M35V10x16F
NRWA471M35V10x20F
NRWA102M35V12.5x25F
NRWA222M35V16x31F
NRWA332M35V18x36F
®
Cap.
(µF)
33
47
100
330
470
1,000
2,200
3,300
4,700
6,800
10,000
22
33
47
100
220
470
1,000
2,200
3,300
4,700
6,800
10,000
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
6,800
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3,300
W.V.
(Vdc)
Dissipation Factor
+20°C/120Hz
0.22
0.22
0.22
0.22
0.22
0.22
0.24
0.26
0.28
0.32
0.40
0.19
0.19
0.19
0.19
0.19
0.19
0.19
0.21
0.23
0.25
0.29
0.37
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.18
0.20
0.22
0.26
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.16
0.18
0.20
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.14
0.16
Ripple Current Rating (mA)
+105°C/120Hz
47
57
82
170
230
400
760
890
1230
1340
1610
42
51
61
89
150
250
470
790
1000
1270
1540
1770
31
45
55
68
110
190
230
320
560
950
1220
1490
1770
22
33
49
59
71
120
200
290
380
670
1110
1380
1670
24
35
52
64
87
150
260
350
450
780
1280
1570
NRWA Series
Max. ESR (Ω)
+20°C/120Hz
11.1
7.8
3.7
1.11
0.78
0.36
0.181
0.131
0.099
0.078
0.063
14.3
9.6
6.7
3.2
1.43
0.67
0.32
0.158
0.166
0.088
0.071
0.058
26.5
12.1
8.0
5.8
2.7
1.21
0.80
0.66
0.27
0.136
0.101
0.078
0.063
49
23
10.8
7.0
4.9
2.3
1.1
0.70
0.49
0.23
0.121
0.090
0.071
42
19.9
9.0
6.0
4.2
2.0
0.90
0.60
0.42
0.20
0.106
0.081
Load Life Hours
@+105°C
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
6.3
10
16
25
35
90
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Miniature Aluminum Electrolytic Capacitors
STANDARD VALUES, SPECIFICATIONS AND CASE SIZES (mm)
Part Number
NRWAR47M50V5x11F
NRWA1R0M50V5x11F
NRWA2R2M50V5x11F
NRWA3R3M50V5x11F
NRWA4R7M50V5x11F
NRWA100M50V5x11F
NRWA220M50V5x11F
NRWA330M50V6.3x11F
NRWA470M50V6.3x11F
NRWA101M50V8x11.5F
NRWA221M50V10x16F
NRWA331M50V10x20F
NRWA471M50V12.5x20F
NRWA102M50V16x25F
NRWA222M50V18x36F
NRWA3R3M63V5x11F
NRWA4R7M63V5x11F
NRWA100M63V5x11F
NRWA220M63V6.3x11F
NRWA330M63V6.3x11F
NRWA470M63V8x11.5F
NRWA101M63V10x12.5F
NRWA221M63V10x20F
NRWA331M63V12.5x20F
NRWA471M63V12.5x25F
NRWA102M63V16x31F
NRWAR47M100V5x11F
NRWA1R0M100V5x11F
NRWA2R2M100V5x11F
NRWA3R3M100V5x11F
NRWA4R7M100V5x11F
NRWA100M100V6.3x11F
NRWA220M100V8x11.5F
NRWA330M100V10x12.5F
NRWA470M100V10x16F
NRWA101M100V12.5x20F
NRWA221M100V16x25F
NRWA331M100V16x25F
NRWA471M100V16x31F
Cap.
(µF)
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3.3
4.7
10
22
33
47
100
220
330
470
1,000
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
W.V.
(Vdc)
Dissipation Factor
+20°C/120Hz
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.12
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
Ripple Current Rating (mA)
+105°C/120Hz
8.3
12
18
22
26
38
57
80
96
160
310
410
540
950
1480
23
28
41
69
85
120
200
350
480
620
1080
8.8
13
19
23
30
49
84
120
160
280
500
610
780
NRWA Series
Max. ESR (Ω)
+20°C/120Hz
353
168
75
50
35
16.6
7.5
5.0
3.5
1.66
0.75
0.50
0.35
0.166
0.091
40
32
15.0
6.8
4.5
3.2
1.49
0.68
0.45
0.32
0.149
282
133
60
40
28
13.3
6.0
4.0
2.8
1.33
0.60
0.40
0.28
Load Life Hours
@+105°C
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
50
63
100
RIPPLE CURRENT CORRECTION FACTOR
1. Temperature Factor
Ambient Temperature (°C)
Correction Factor
2. Frequency Factor
Frequency (Hz)
50
0.65
0.47 ~ 3.3µF
0.75
4.7 ~ 33µF
0.80
47 ~ 1000µF
2200 ~ 10000µF 0.85
<+65
0.45
+75
0.75
+85
0.9
+105
1.0
PART NUMBERING SYSTEM
NRWA 221 M 50V 10x16 TR F
RoHS Compliant
Tape and Reel*
Size (D∅ x L)
Rated Voltage
Tolerance Code
Capacitance Code
Series
120
1.00
1.00
1.00
1.00
300
1.35
1.25
1.15
1.03
1K
1.75
1.50
1.30
1.05
10K
2.30
1.75
1.40
1.08
100K
2.50
1.80
1.50
1.08
*see tape specification for details
®
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
91

NRWA472M16V16X31TRF Related Products

NRWA472M16V16X31TRF NRWA102M63V16X31TRF
Description Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker Nichicon Nichicon
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
capacitance 4700 µF 1000 µF
Capacitor type ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR
diameter 16 mm 16 mm
dielectric materials ALUMINUM (WET) ALUMINUM (WET)
ESR 78 mΩ 149 mΩ
JESD-609 code e3 e3
leakage current 2.26 mA 1.894 mA
length 31 mm 31 mm
Manufacturer's serial number NRWA NRWA
Installation features THROUGH HOLE MOUNT THROUGH HOLE MOUNT
negative tolerance 20% 20%
Number of terminals 2 2
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Package shape CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE
Package form Radial Radial
method of packing TR TR
polarity POLARIZED POLARIZED
positive tolerance 20% 20%
Rated (DC) voltage (URdc) 16 V 63 V
ripple current 1490 mA 1080 mA
series NRWA NRWA
surface mount NO NO
Delta tangent 0.22 0.09
Terminal surface Matte Tin (Sn) Matte Tin (Sn)
Terminal shape WIRE WIRE
The source code of the microcontroller operating the 2.4-inch TFT color screen is shared with everyone! Including SD driver!
On New Year's Day, I spent 39 silver coins on Taobao and bought a 2.4-inch TFT color screen module. I used the code provided by the store owner and STC's 51 single-chip microcomputer to drive it and i...
vitadesign MCU
[GD32L233C-START Evaluation] 3. Porting FreeRTOS to GD32L233
[i=s]This post was last edited by hehung on 2022-1-18 21:45[/i]As an open source embedded real-time operating system, FreeRTOS is widely used in the embedded industry. It is also necessary to integrat...
hehung GD32 MCU
After changing the LCD, the WinCE startup BIOS picture appears abnormal
After the LCD was replaced, it was changed from the original 320*240 to 640*480. The BIOS startup picture can be displayed normally at first, but when it starts to read NANDFLASH, the lower part of th...
zzwwjj Embedded System
“Full Scale” Thinking vs. Q Format
When I first used a multimeter, my teacher told me that choosing the appropriate range would achieve the best accuracy. For example, a multimeter has ranges of 1V, 5V, 10V, and 50V. The target voltage...
dontium Microcontroller MCU
Double 11 is coming soon, I would like to share with you three cases of preventing telecommunications fraud
The Double 11 Shopping Festival is coming soon. At the request of relevant departments, I would like to share three short videos on how to prevent telecommunication fraud. I hope that the cases in the...
eric_wang Talking
Introduction of EMC protection device TVS
[size=4] Transient interference of voltage and current is the main cause of damage to electronic circuits and equipment, often causing immeasurable losses to people. These interferences usually come f...
qwqwqw2088 Analogue and Mixed Signal

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 130  1747  1060  1273  110  3  36  22  26  19
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
