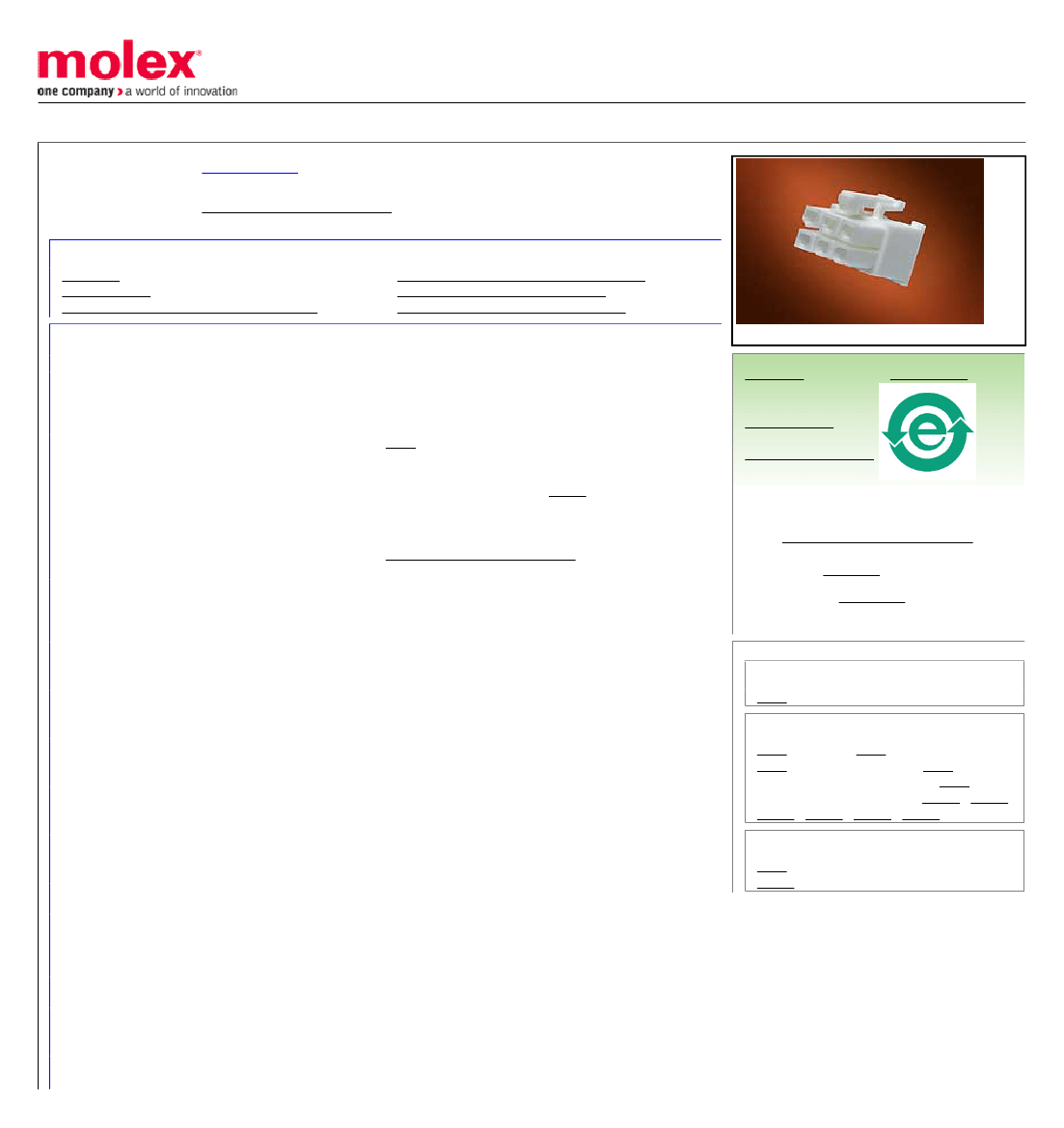

This document was generated on 04/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
39-01-2225
Active
Mini-Fit Jr.™ Power Connectors
Mini-Fit Jr.™ Receptacle Housing, Dual Row, UL 94V-0, 22 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-45750-001 (PDF)
Product Specification PS-5556-001 (PDF)
Test Summary TS-5556-002 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Series
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Crimp Housings
5557
Power, Wire-to-Board, Wire-to-Wire
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 series terminals
crimped to 16 AWG wire. . See Molex product
specification PS-45750-001 for additional current
derating information.
Mini-Fit Jr.™ Power Connectors
Mini-Fit Jr.™
800753584044
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Overview
Product Name
UPC
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
No
22
Natural
94V-0
Receptacle
No
Nylon
4.372/g
2
Bag
No
4.20mm
4.20mm
Yes
No
-40°C to +105°C
Search Parts in this Series
5557Series
Mates With
5559 Dual Row, 5566 Vertical with Pegs,
5566 Vertical without Pegs, 5569 Right
Angle Dual Row with Flanges, 5569 Right
Angle Dual Row with Pegs, 43810 , 44068 ,
44281 , 87427 , 42404 , 42440
Use With
5556 Mini-Fit® Female Crimp Terminals,
45750 Mini-Fit® Plus HCS Crimp Terminal
Electrical
Current - Maximum per Contact
13A
Material Info
Old Part Number
5557-22R-210
Reference - Drawing Numbers
Product Specification
PS-45750-001, PS-5556-001, RPS-5557-004,
RPS-5557-024, RPS-5557-031, RPS-5557-036,
RPS-5557-050, RPS-5557-058
SD-5557-003
TS-5556-002
Sales Drawing
Test Summary
