SMAJ20A-E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ20A-E3

SMAJ20A-E3: DescriptionDIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor; CategoryDiscrete semiconductor diode; File Size392KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

SMAJ20A-E3 Overview

DIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor

SMAJ20A-E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum breakdown voltage	24.5 V
Minimum breakdown voltage	22.2 V
Breakdown voltage nominal value	23.35 V
Maximum clamping voltage	32.4 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

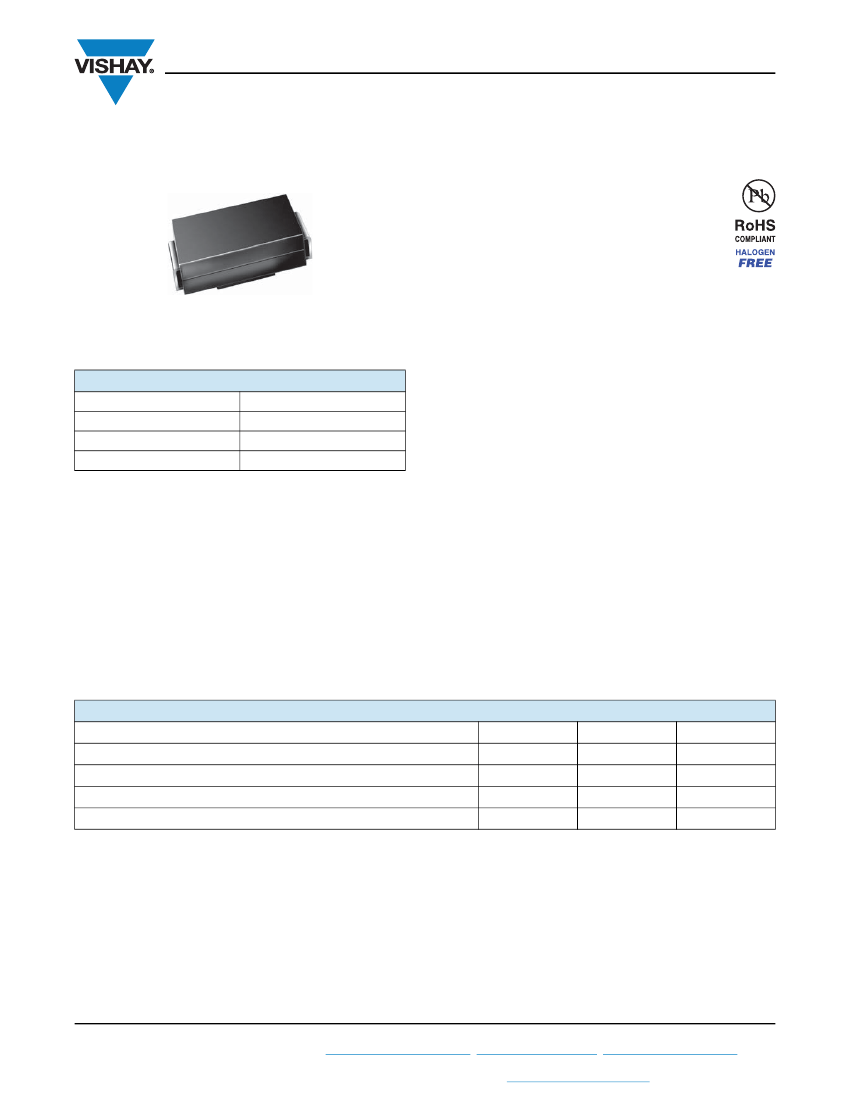

SMAJ5.0A thru SMAJ188CA

www.vishay.com

Vishay General Semiconductor

Surface Mount TransZorb

Transient Voltage Suppressors

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated chip junction

• Available in uni-directional and bi-directional

• 400 W peak pulse power capability with a 10/1000 μs

waveform, repetitive rate (duty cycle): 0.01 % (300 W

above 78 V)

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

•

Halogen-free according to IEC 61249-2-21 definition

DO-214AC (SMA)

PRIMARY CHARACTERISTICS

PPM

FSM

max.

5.0 V to 188 V

400 W, 300 W

40 A

150 °C

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, and telecommunication.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS compliant, and

commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 1A whisker test

per

DEVICES FOR BI-DIRECTION APPLICATIONS

For bi-directional use CA suffix (e.g. SMAJ10CA).

Electrical characteristics apply in both directions.

Polarity:

For uni-directional types the band denotes

cathode end, no marking on bi-directional types

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak pulse power dissipation with a 10/1000 μs waveform (fig. 1)

Peak pulse current with a waveform

Peak forward surge current 8.3 ms single half sine-wave uni-directional only

Operating junction and storage temperature range

SYMBOL

PPM (1)(2)

PPM (1)

FSM (2)

, T

STG

VALUE

400

See next table

- 55 to + 150

UNIT

°C

Notes

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2, rating is 300 W above 78 V

(2)

Mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pads to each terminal

Revision: 26-Jan-12

Document Number: 89277

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Revision: 12-Mar-12

Document Number: 91000
