DIGITRON SEMICONDUCTORS
1N6356-1N6372
1500W TRANSIENT VOLTAGE SUPPRESSOR
Available Non-RoHS (standard) or RoHS compliant (add PBF suffix).
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
1500 Watts for 10/1000µs with repetition rate of 0.01% or less at lead temperature T
L
= 25°C.
MAXIMUM RATINGS
Characteristics
Thermal resistance
DC power dissipation
Forward surge current
Solder temperature
Operating and storage temperature
Value
50°C/W junction to lead at 0.375” from body or 110°C/W junction to ambient when
mounted on FR4 PC board with 4 mm
2
copper pads and track width of 1mm, length
25mm
1 Watt at T
L
≤
125°C 3/8” or 10 mm from body
200 Amps for 8.3ms half-sine wave at T
A
= 25°C for unidirectional only (1N6356-
1N6364)
260°C for 10 sec maximum
-65° to 175°C
ELECTRICAL CHARACTERISTICS - UNIDIRECIONAL
(T
A
= 25°C)
Standoff
voltage
(1)
V
WM
Volts
1N6356
1N6357
1N6358
1N6359
1N6360
1N6361
1N6362
1N6363
1N6364
5.0
8.0
10.0
12.0
15.0
18.0
22.0
36.0
45.0
Maximum
reverse
leakage @ V
WM
I
D
µA
300
25
2
2
2
2
2
2
2
Minimum
breakdown
voltage @
1.0mA
V
(BR)
Volts
6.0
9.4
11.7
14.1
17.6
21.2
25.9
42.4
52.9
Maximum
clamping
voltage @
I
PP1
= 1A
V
C
Volts
7.1
11.3
13.7
16.1
20.1
24.2
29.8
50.6
63.3
Maximum
clamping
voltage @
I
PP2
= 10A
V
C
Volts
7.5
11.5
14.1
16.5
20.6
25.2
32.0
54.3
70.0
Maximum
peak pulse
current
I
PP3
Amps
160
100
90
70
60
50
40
23
19
Part number
VF at 100 amps peak is 3.5 volts maximum at 8.3 ms half-sine wave
ELECTRICAL CHARACTERISTICS - BIDIRECIONAL
(T
A
= 25°C)
Standoff
voltage
(1)
V
WM
Volts
1N6365
1N6366
1N6367
1N6368
1N6369
1N6370
1N6371
1N6372
8.0
10.0
12.0
15.0
18.0
22.0
36.0
45.0
Maximum
reverse
leakage @ V
WM
I
D
µA
25
2
2
2
2
2
2
2
Minimum
breakdown
voltage @
1.0mA
V
(BR)
Volts
9.4
11.7
14.1
17.6
21.2
25.9
42.4
52.9
Maximum
clamping
voltage @
I
PP1
= 1A
V
C
Volts
11.4
14.1
16.7
20.8
24.8
30.8
50.6
63.3
Maximum
clamping
voltage @
I
PP2
= 10A
V
C
Volts
11.6
14.5
17.1
21.4
25.5
32.0
54.3
70.0
Maximum
peak pulse
current
I
PP3
Amps
100
90
70
60
50
40
23
19
Part number
Note 1: TVS devices are normally selected according to the reverse standoff voltage (V
WM
) which should be equal to or greater than the DC or continuous peak operating voltage
level.
144 Market Street
Kenilworth NJ 07033 USA
phone +1.908.245-7200
fax +1.908.245-0555
sales@digitroncorp.com
www.digitroncorp.com
Rev. 20121016
DIGITRON SEMICONDUCTORS
1N6356-1N6372
1500W TRANSIENT VOLTAGE SUPPRESSOR

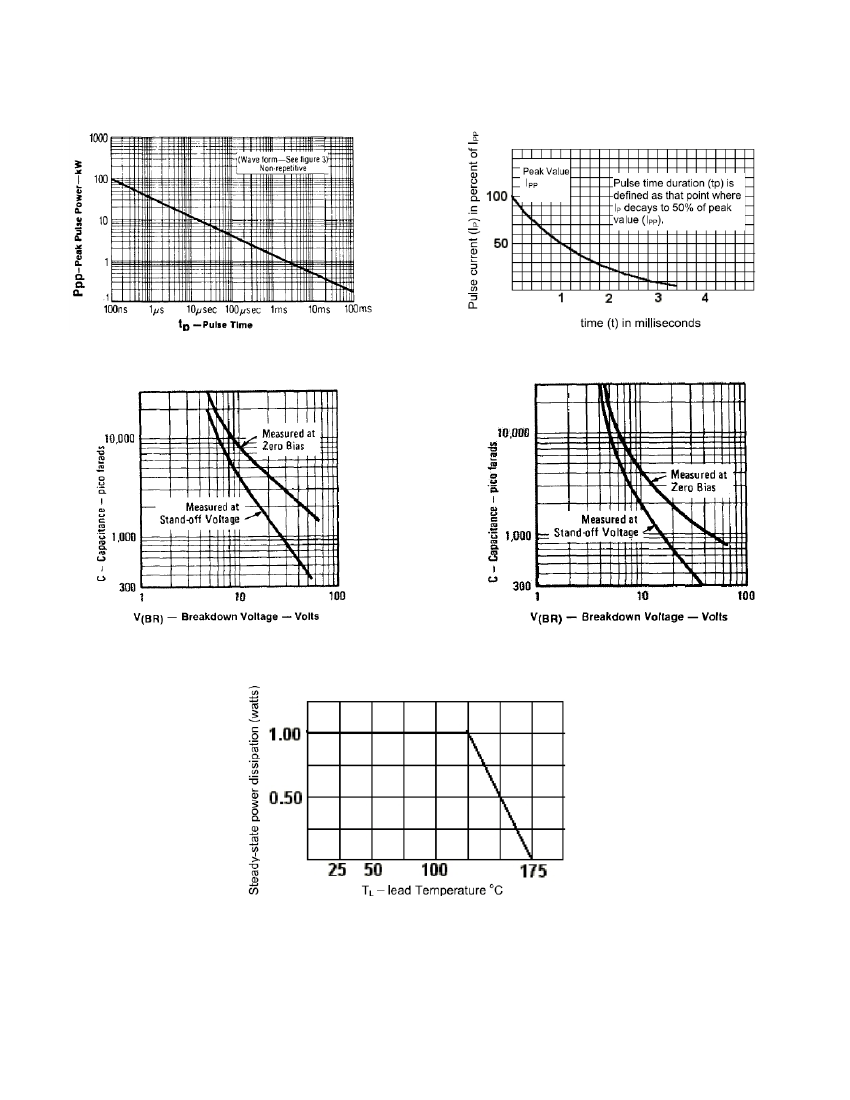

PEAK PULSE POWER VS. PULSE TIME
PULSE WAVE FORM FOR EXPONENTIAL SURGE
TYPICAL CAPACITANCE VS. BREAKDOWN VOLTAGE
(UNIDIRECTIONAL)
TYPICAL CAPACITANCE VS. BREKADOWN VOLTAGE
(BIDIRECTIONAL)
STEADY STATE POWER DERATING CURVE
144 Market Street
Kenilworth NJ 07033 USA
phone +1.908.245-7200
fax +1.908.245-0555
sales@digitroncorp.com
www.digitroncorp.com
Rev. 20121016
DIGITRON SEMICONDUCTORS
1N6356-1N6372

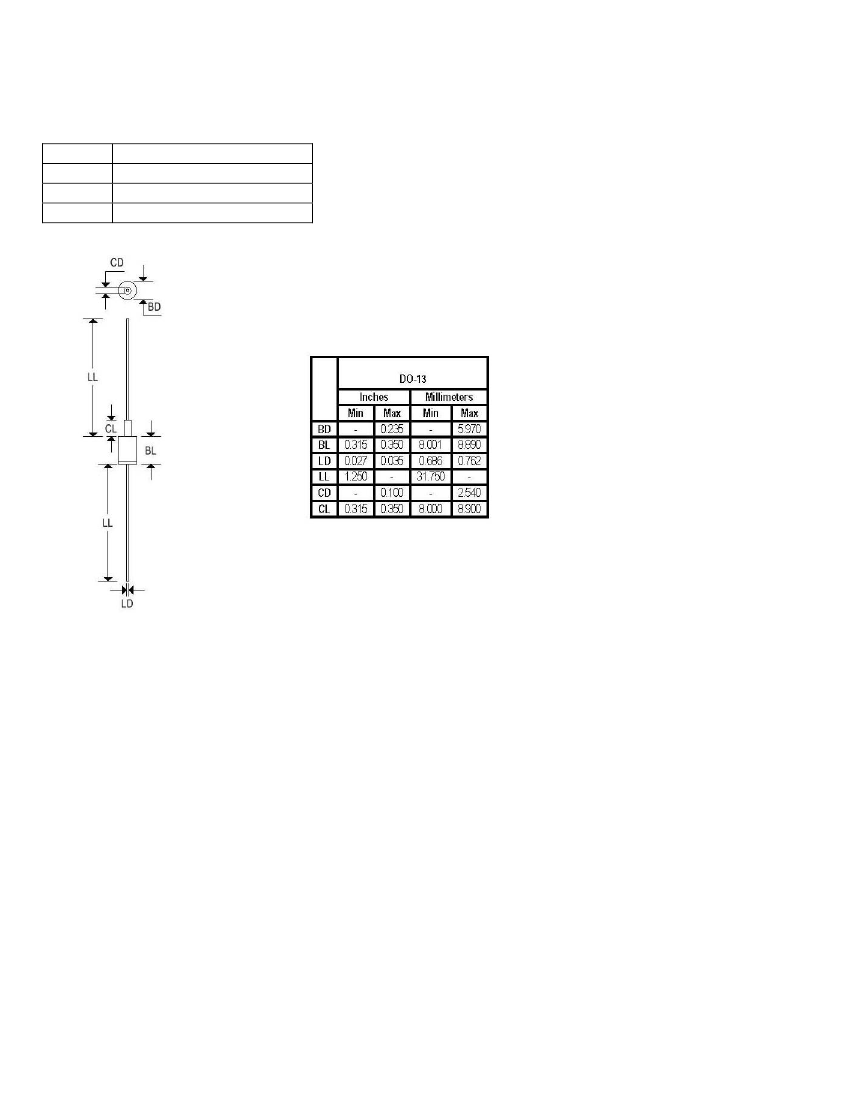

MECHANICAL CHARACTERISTICS
Case
Marking
Polarity
Weight
DO-13
Body-painted, alpha numeric
Cathode band
1.4 grams (approx.)
1500W TRANSIENT VOLTAGE SUPPRESSOR
144 Market Street
Kenilworth NJ 07033 USA
phone +1.908.245-7200
fax +1.908.245-0555
sales@digitroncorp.com
www.digitroncorp.com
Rev. 20121016
