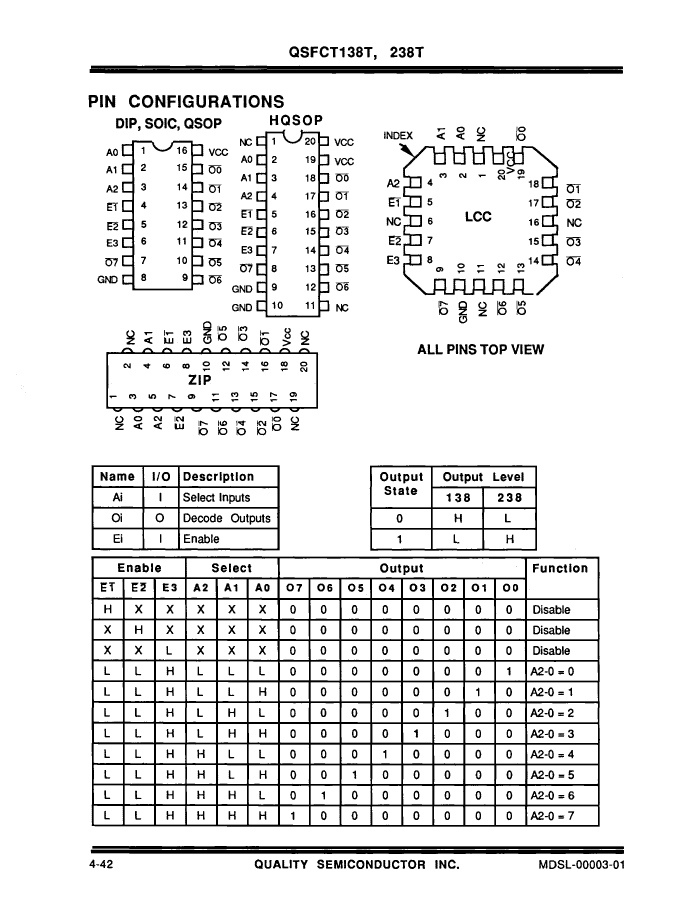

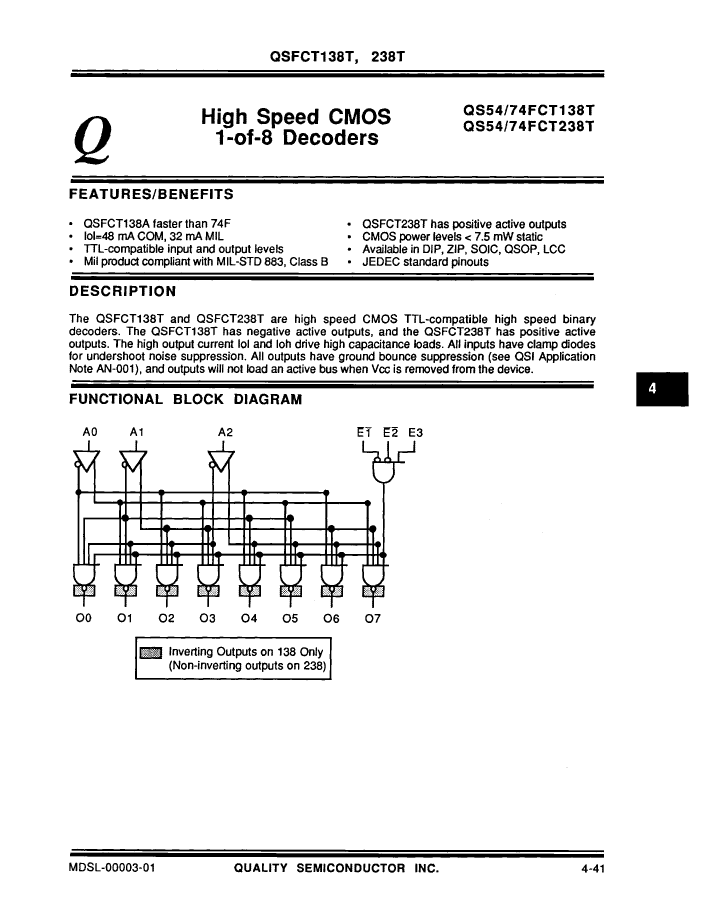

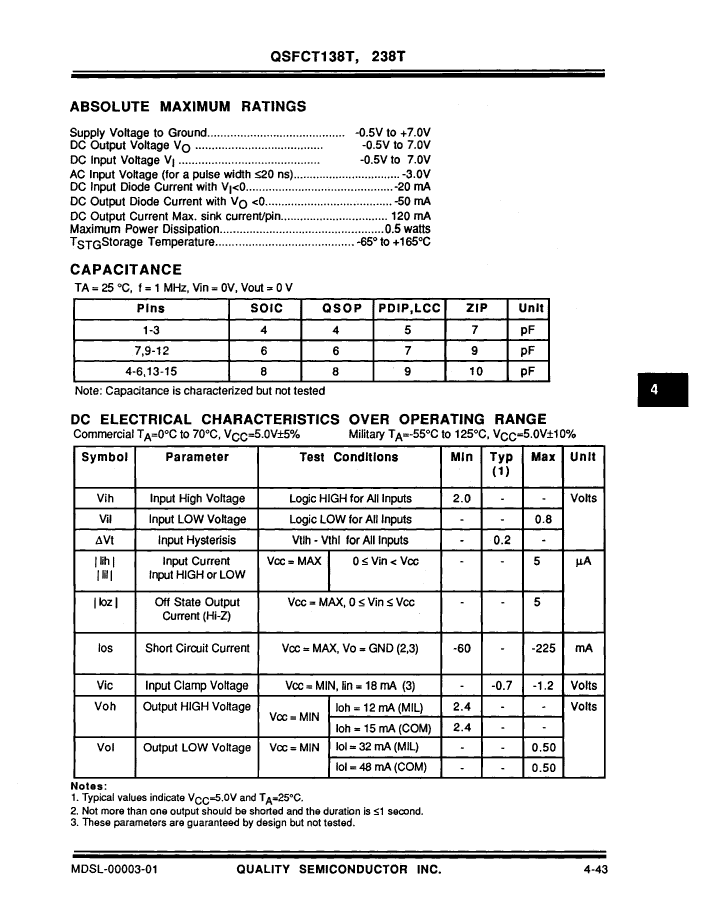

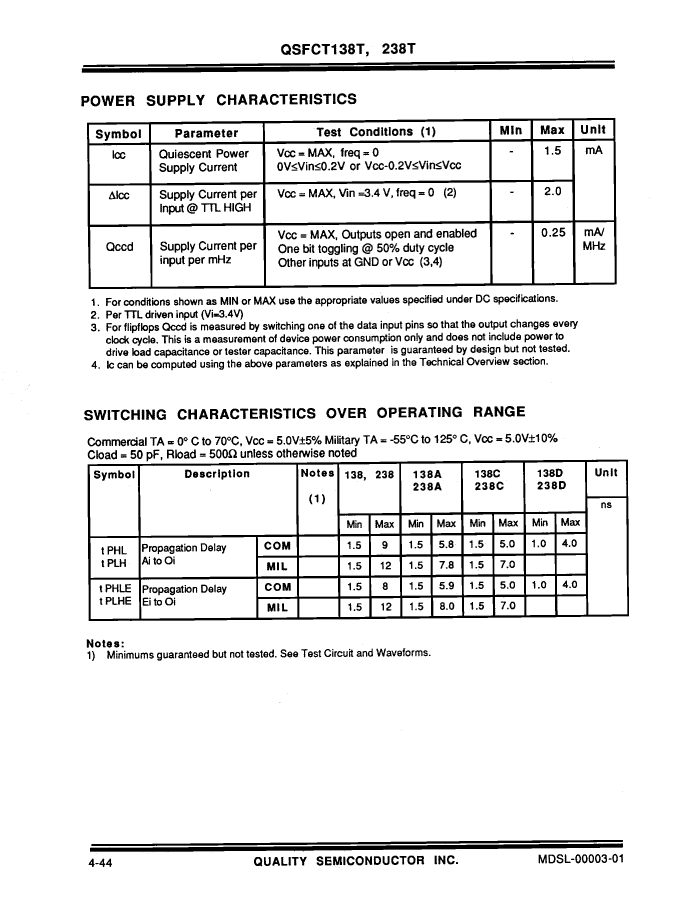

Decoder/Driver, FCT Series, True Output, CMOS, PDSO16,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Quality Semiconductor Inc |
| package instruction | SOP, SOP16,.25 |
| Reach Compliance Code | unknown |
| Other features | 3 ENABLE INPUTS |
| series | FCT |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | OTHER DECODER/DRIVER |
| MaximumI(ol) | 0.048 A |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 4 ns |
| propagation delay (tpd) | 4 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| QS74FCT238DTS1 | QS54FCT138ATLB | QS54FCT238TDB | QS54FCT138CTLB | QS74FCT238TS1 | QS54FCT238ATLB | QS54FCT238CTLB | QS54FCT138TLB | QS54FCT238TLB | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Decoder/Driver, FCT Series, True Output, CMOS, PDSO16, | Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, | Decoder/Driver, FCT Series, True Output, CMOS, CDIP16, | Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, | Decoder/Driver, FCT Series, True Output, CMOS, PDSO16, | Decoder/Driver, FCT Series, True Output, CMOS, CQCC20, | Decoder/Driver, FCT Series, True Output, CMOS, CQCC20, | Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, | Decoder/Driver, FCT Series, True Output, CMOS, CQCC20, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | SOP, SOP16,.25 | QCCN, LCC20,.35SQ | DIP, DIP16,.3 | QCCN, LCC20,.35SQ | SOP, SOP16,.25 | QCCN, LCC20,.35SQ | QCCN, LCC20,.35SQ | QCCN, LCC20,.35SQ | QCCN, LCC20,.35SQ |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| Other features | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS | 3 ENABLE INPUTS |
| series | FCT | FCT | FCT | FCT | FCT | FCT | FCT | FCT | FCT |
| JESD-30 code | R-PDSO-G16 | S-CQCC-N20 | R-GDIP-T16 | S-CQCC-N20 | R-PDSO-G16 | S-CQCC-N20 | S-CQCC-N20 | S-CQCC-N20 | S-CQCC-N20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER |
| MaximumI(ol) | 0.048 A | 0.032 A | 0.032 A | 0.032 A | 0.048 A | 0.032 A | 0.032 A | 0.032 A | 0.032 A |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 20 | 16 | 20 | 16 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 125 °C | 125 °C | 125 °C | 70 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | - | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | TRUE | INVERTED | TRUE | INVERTED | TRUE | TRUE | TRUE | INVERTED | TRUE |
| Package body material | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | SOP | QCCN | DIP | QCCN | SOP | QCCN | QCCN | QCCN | QCCN |
| Encapsulate equivalent code | SOP16,.25 | LCC20,.35SQ | DIP16,.3 | LCC20,.35SQ | SOP16,.25 | LCC20,.35SQ | LCC20,.35SQ | LCC20,.35SQ | LCC20,.35SQ |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | SMALL OUTLINE | CHIP CARRIER | IN-LINE | CHIP CARRIER | SMALL OUTLINE | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| propagation delay (tpd) | 4 ns | 7.8 ns | 12 ns | 7 ns | 9 ns | 7.8 ns | 7 ns | 12 ns | 12 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.5 V | 5.5 V | 5.5 V | 5.25 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.5 V | 4.5 V | 4.5 V | 4.75 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | MILITARY | MILITARY | MILITARY | COMMERCIAL | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | NO LEAD | THROUGH-HOLE | NO LEAD | GULL WING | NO LEAD | NO LEAD | NO LEAD | NO LEAD |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | QUAD | DUAL | QUAD | DUAL | QUAD | QUAD | QUAD | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | Quality Semiconductor Inc | - | Quality Semiconductor Inc | Quality Semiconductor Inc | Quality Semiconductor Inc | Quality Semiconductor Inc | Quality Semiconductor Inc | Quality Semiconductor Inc | Quality Semiconductor Inc |
| Prop。Delay @ Nom-Sup | 4 ns | 7.8 ns | 12 ns | 7 ns | 9 ns | 7.8 ns | 7 ns | 12 ns | - |
| Filter level | - | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | - | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
