TSOP59256SS1BS12Z

Description
Photo IC, TRANSISTOR-STAGE OUTPUT PHOTO IC,LED-7B
CategoryLED optoelectronic/LED    photoelectric
File Size133KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

TSOP59256SS1BS12Z Overview

Photo IC, TRANSISTOR-STAGE OUTPUT PHOTO IC,LED-7B

TSOP59256SS1BS12Z Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
Installation featuresTHROUGH HOLE MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum slew rate0.0015 mA
Nominal supply voltage5 V
surface mountNO
New TSOP592.., TSOP594..
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
FEATURES
• Low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against EMI
• Supply voltage: 2.7 V to 5.5 V
• Improved immunity against ambient light
19026
• Insensitive to supply voltage ripple and noise
• Compliant to RoHS directive 2002/95/EC
accordance to WEEE 2002/96/EC
and
in
MECHANICAL DATA
Pinning:
1 = OUT, 2 = V
S
, 3 = GND
DESCRIPTION
The TSOP592.., TSOP594.. series are miniaturized
receivers for infrared remote control systems. A PIN diode
and a preamplifier are assembled on a lead frame, the epoxy
package acts as an IR filter.
The demodulated output signal can be directly decoded by a
microprocessor. The TSOP592.. is compatible with all
common IR remote control data formats. The TSOP594.. is
optimized to suppress almost all spurious pulses from
energy saving fluorescent lamps but will also suppress some
data signals.
This component has not been qualified according to
automotive specifications.
PARTS TABLE
CARRIER FREQUENCY
30 kHz
33 kHz
36 kHz
36.7 kHz
38 kHz
40 kHz
56 kHz
STANDARD APPLICATIONS (AGC2/AGC8)
TSOP59230
TSOP59233
TSOP59236
TSOP59237
TSOP59238
TSOP59240
TSOP59256
VERY NOISY ENVIRONMENT (AGC4)
TSOP59430
TSOP59433
TSOP59436
TSOP59437
TSOP59438
TSOP59440
TSOP59456

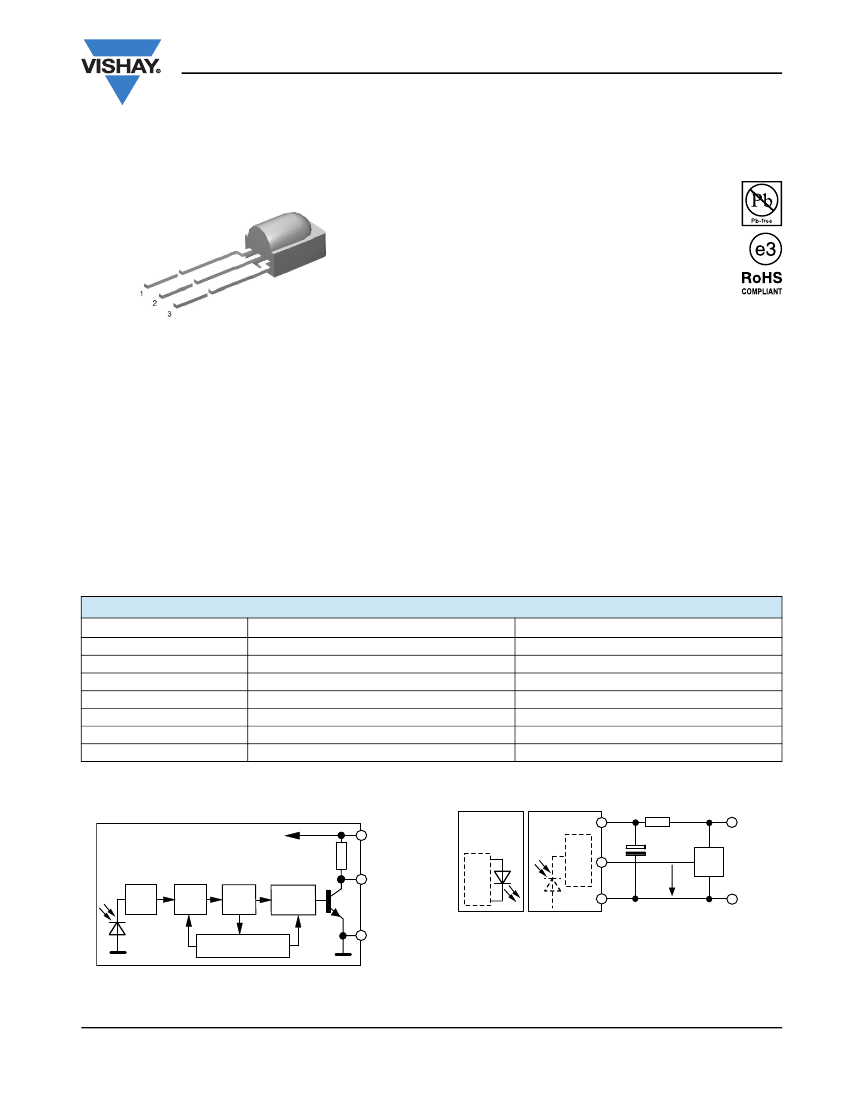

BLOCK DIAGRAM
16833_7
APPLICATION CIRCUIT
17170_7
R
1
IR receiver
V
S
+
V
S
C
1
OUT
GND
V
O
µC
GND
2
33 kΩ
V
S
1
Input
AGC
Band
pass
Demo-
dulator
OUT
Transmitter
with
TSALxxxx
3
PIN
Control circuit
GND
The external components R
1
and C
1
are optional
to improve the robustnes against electrical overstress
(typical
values
are R
1
= 100
Ω,
C
1
= 0.1 µF).
The output
voltage V
O
should not
be
pulled down to a level
below
1
V by
the external circuit.
The capacitive load at the output should
be
less than 2 nF.

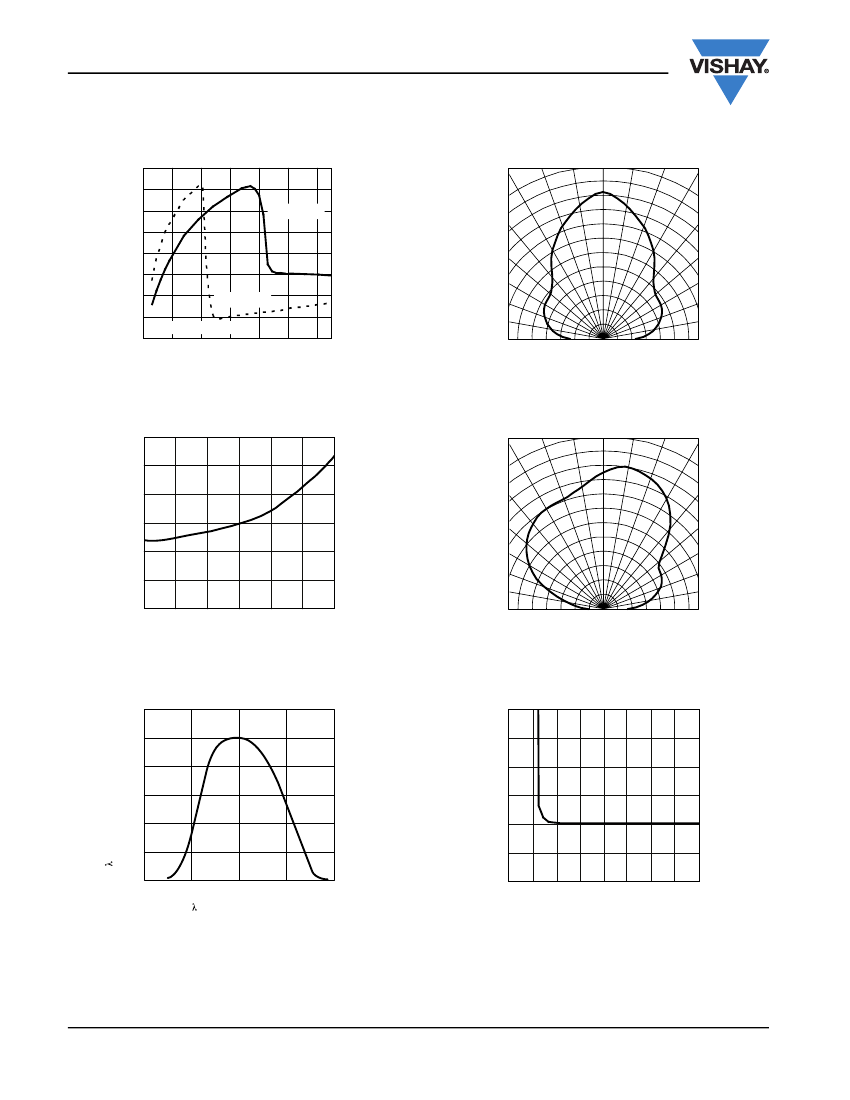

Document Number: 81222
Rev. 1.5, 12-Nov-09
Circuit
www.vishay.com
1
