工程文件
█½訂／□變更 通知單
Engineer document formulated or modified Notice
文件名稱：
(Model No.)
264-7SUGC/S400-A4
文件制訂／變更內容描敘：(篇幅不足，請以另紙附上):
document workout / revise content
版次
REV.
原 1 版變更為--版
raw edition change
日期
date
文件編號:
(Device Number)
ECN#
2005年9月19日
CDLE-026-597
共6頁
total 6
頁數 page
½訂項目 Workout Item:
變更項目 Revise Item:
處理方式 Disposition:
□ 新產品
□ 材料變更
change material
□ 舊材料處理方式
New product
□ ½程變更
change process
Old material
□ 衍生機種
□ 設備、治具
fixture
、tool
□ WIP
WIP
規格變更
change specification
□ 舊庫存
old storage
Serial device
□ 新制訂規格
New specification
文件½訂／變更理由：(請詳細說明): File formulating/modifying reasons:(Please detailed explain)
規格依據(Specification basis):
此規格依據客戶需求制½(Specification basis formulate on the customer
sheweichile
工程編號(Engineer Number)
業務編號(Sales umber):
0
品保審核
chqa
check
台北研一部 台北品保 維護審核 資材部 業務部 人資部 制一部 制二部 制三部
rd1
confirm
qp
confirm
R/M
check
chpc
cm
check
Chpn
chpd1 chpd2 chpd3
复印
c o p y
生技 資材 工程一 工程二
chie chpc chrd1 chrd2
1
品保 維護 業務
chqa
1
R/M
CM
人資
chpn
制一
制二
制三
制六
chpd1 chpd2 chpd3 chpd6
擬 案人
Designer
部門主管
Department
Charger
工程一
chrd1
check
工程二
chrd2
check
生技
chie
制六部
chie
台北
TP
1
廣
州
恆 光 電 子 有 限 公 司
GUANG ZHOU EVERLIGHT ELECTRONICS CO.,LTD
EVERLIGHT ELECTRONICS CO.,LTD.
DATA SHEET
1.1000PCS/1PART NO. ：
DATE
：
264-7SUGC/S400-A4
2005/9/19
CHR&D1
DEPARTMENT ：
.
REVISION
：
2
RECEIVED
■ MASS PRODUCTION
□ PRELIMINARY
□ CUSTOMER DESIGN
DEVICE NUMBER :
PAGE :
6
CUSTOMER
DESIGNER
CDLE-026-597
CHECKER
APPROVER
REV.
DESCRIPTION
RELEASE DATE
OFFICE: 7C BUILDING, LIAN HUA PORT INDUSTRIAL DISTRICT, LIAN HUA SHAN
BONDED PRICESSING ZONE PAN YU, GUANG ZHU, CHINA
TEL. : (020)84860913,84860914
FAX : (020)84860600
http : //www.everlight.com

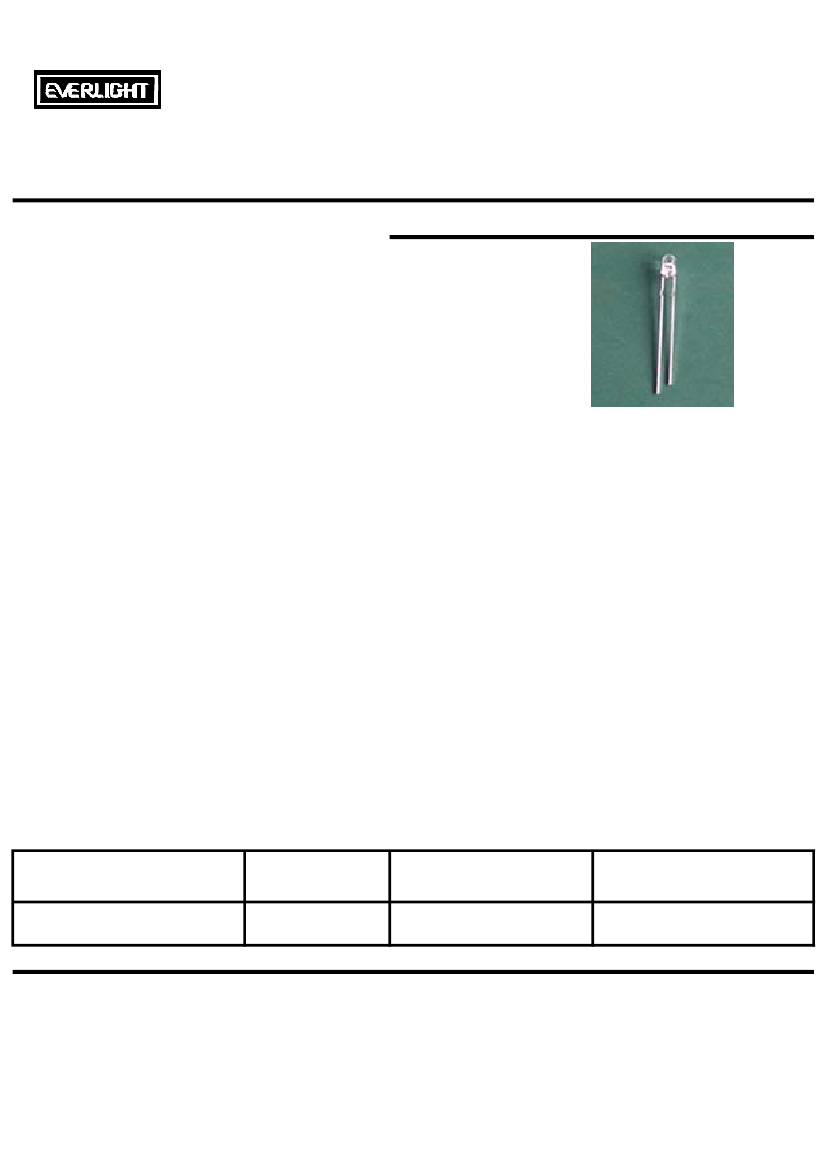

Technical Data Sheet
3.0mm Round Type LED Lamps
264-7SUGC/S400-A4
█
Features :
●
●
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
Pb free
The product itself will remain within RoHS compliant version.
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
264-7SUGC/S400-A4
Material
InGaN
Emitted Color
Super Green
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-026-597
http : //www.everlight.com
Prepared date: 2005/9/19
Rev.:
2
Page: 1 of 6
LinYang
Prepared by:
Technical Data Sheet
3.0mm Round Type LED Lamps
264-7SUGC/S400-A4
Package Dimensions
Notes:
1. All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
V
R
Rating
30
-40 to +85
-40 to +100
260
±
5
150
110
5
Unit
mA
℃
℃
℃
V
mW
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-026-597
http : //www.everlight.com
Prepared date:
2005/9/19
Rev.:
2
Page: 2 of 6
LinYang
Prepared by:
Technical Data Sheet
3.0mm Round Type LED Lamps
264-7SUGC/S400-A4
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
VF
IR
Iv
2θ1/2
λp
λd
△λ
Condition
I
F
=
V
R
=
I
F
=
I
F
=
I
F
=
I
F
=
I
F
=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
Min.
／
／
1600
／
／
／
／
Typ.
3.4
／
3200
30
525
530
20
Max.
4.0
50
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-026-597
http : //www.everlight.com
Prepared date:
2005/9/19
Rev.:
2
Page: 3 of 6
LinYang
Prepared by:
