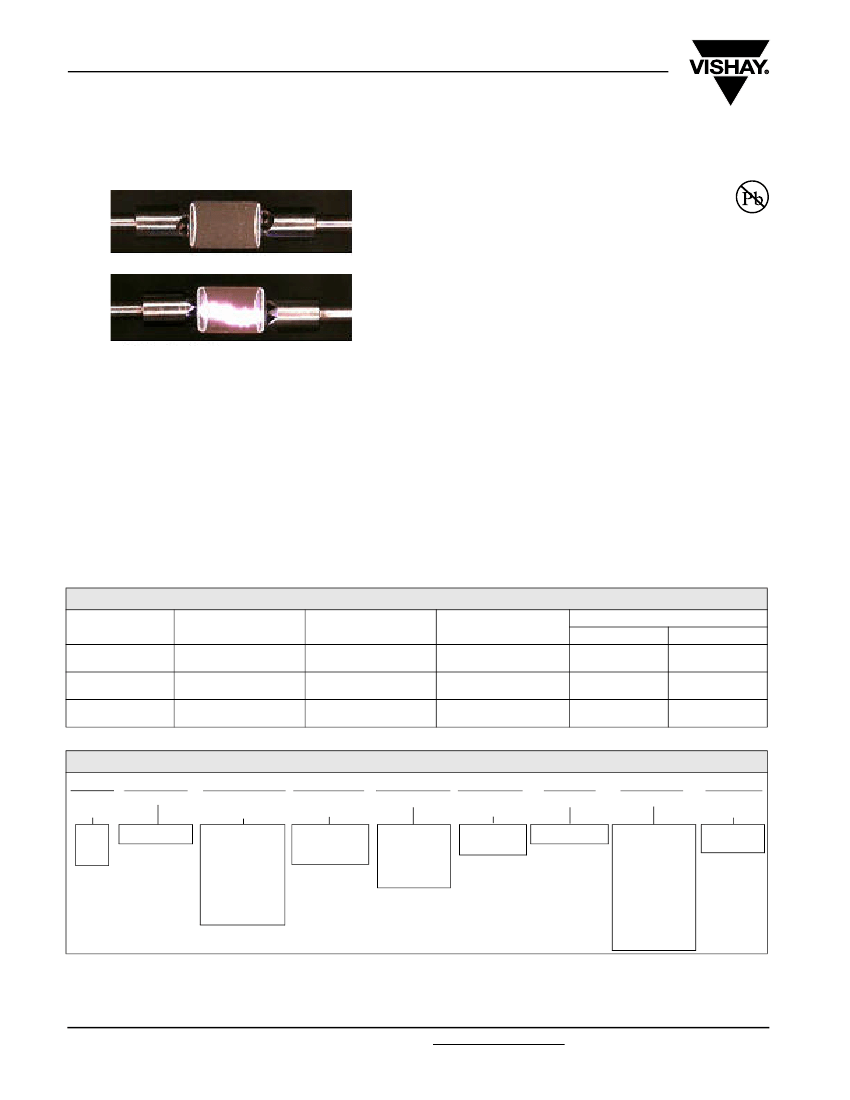

VJ HVArc Guard
TM
C0G (NP0)
Vishay Vitramon
Multilayer Ceramic Capacitors that
Prohibit Surface Arc-over in High Voltage Applications
FEATURES
For this Worldwide Patent-Pending Technology
•
Surface-mountable, multilayer ceramic
capacitors, that protect against surface arc-over
RoHS
•
Higher capacitances and smaller case sizes that
COMPLIANT
save board space, as compared to standard high
voltage MLCCs
•
Voltage breakdowns are twice that of some competitor
products
•
Excellent reliability and high voltage performance
HVArc Guard
TM
Capacitor with no Surface Arc-over
APPLICATIONS
Standard Capacitor with Surface Arc-over
ELECTRICAL SPECIFICATIONS
NOTE:
Electrical characteristics at + 25 °C unless otherwise
specified.
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
10 pF to 2700 pF
Voltage Rating:
1000 Vdc to 1500 Vdc
Temperature Coefficient of Capacitance (TCC):
C0G: 0 ± 30 ppm/°C from - 55 °C to + 125 °C
Dissipation Factor:
0.1 % max. at 1.0 Vrms and 1 MHz for values
≤
1000 pF
0.1 % max. at 1.0 Vrms and 1 kHz for values
>
1000 pF
Aging Rate:
0 % maximum per decade
•
DC-to-DC converters (Buck and Boost)
•
Voltage multipliers for flyback converters
•
Lighting ballast circuits
•
Power Supplies
Insulation Resistance (IR):
At + 25 °C and rated voltage 100 000 MΩ minimum or
1000
ΩF,
whichever is less
At + 125 °C and rated voltage 10 000 MΩ minimum or
100
ΩF,
whichever is less
Dielectric Withstanding Voltage (DWV):
This is the maximum voltage the capacitors are tested for a
1 to 5 second period, and the charge/discharge current does
not exceed 50 mA.
1000 Vdc: DWV at 150 % of rated voltage
1500 Vdc: DWV at 120 % of rated voltage
DIMENSIONS
in inches [millimeters]
PART ORDERING
NUMBER
VJ0805
VJ1206
VJ1210
LENGTH
0.079 ± 0.008
[2.00 ± 0.20]
0.126 ± 0.008
[3.20 ± 0.20]
0.126 ± 0.008
[3.20 ± 0.20]
WIDTH
0.049 ± 0.008
[1.25 ± 0.020]
0.063 ± 0.008
[1.60 ± 0.20]
0.098 ± 0.008
[2.50 ± 0.20]
MAXIMUM
THICKNESS (T)
0.057 [1.45]
0.067 [1.86]
0.067 [1.86]
TERMINATION PAD
MINIMUM
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
MAXIMUM
0.028 [0.71]
0.030 [0.76]
0.030 [0.76]
ORDERING INFORMATION
VJ0805
CASE
CODE
0805
1206
1210
A
DIELECTRIC
A = C0G
102
J
X
G
CAPACITANCE CAPACITANCE TERMINATION DC VOLTAGE
NOMINAL CODE TOLERANCE
RATING
1)
Expressed in
picofarads (pF).
The first two
digits are
significant, the
third is a
multiplier.
Examples:
102 = 1000 pF
J=±5%
K = ± 10 %
M = ± 20 %
X = Ni barrier
100 % tin
plated
matte finish
F = AgPd
G = 1000 V
R = 1500 V
A
MARKING
T
PACKAGING
5Z
PROCESS
CODE
A = Unmarked C = 7" reel/ paper 5Z = HVArc
Guard
TM
tape
T = 7" reel/ plastic
tape
P = 11 1/4" reel/
paper tape
B = Bulk
R = 11 1/4" reel/
plastic tape
W = Waffle tray
Notes:
1. DC voltage rating should not be exceeded in application
2. Process code with 2 digits has to be added
www.vishay.com
36
For technical questions, contact: mlcc.specials@vishay.com
Document Number 45056
Revision: 22-Feb-07
VJ HVArc Guard
TM
C0G (NP0)
Multilayer Ceramic Capacitors that
Prohibit Surface Arc-over in High Voltage Applications
Vishay Vitramon
TYPICAL C0G (NP0) VOLTAGE BREAKDOWN
(n = 50, 500 V/sec. applied)
3000
AVERAGE VOLTAGE
BREAKDOWN (VDC)
2900
2800
2700
2600
2500
2400
2300
2200
2100
2000
1000 V
1500 V
PART RATED VOLTAGE
HVARC GUARD
TM
C0G (NP0) CAPACITANCE RANGE
EIA CODE
VOLTAGE (Vdc)
VOLTAGE CODE
CAP. CODE
CAP.
100
10
120
12
150
15
180
18
220
22 pF
270
27 pF
330
33 pF
390
39 pF
470
47 pF
560
56 pF
680
68 pF
820
82 pF
101
100 pF
121
120 pF
151
150 pF
181
180 pF
221
220 pF
271
270 pF
331
330 pF
391
390 pF
471
470 pF
561
560 pF
681
680 pF
821
820 pF
102
1000 pF
122
1200 pF
152
1500 pF
182
1800 pF
222
2200 pF
272
2700 pF
332
3300 pF
0805
1000
G
•
•
•
•
••
••
••
••
••
••
••
••
••
•
•
•
•
•
•
•
1500
R
•
•
•
•
••
••
••
••
••
••
••
••
••
•
•
•
•
•
•
•
1000
G
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1206
1500
R
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1000
G
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1210
1500
R
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Note
3. See soldering recommendations within this data book, or visit www.vishay.com/doc?45034
• Available in plastic carrier tape only
•• Available in paper carrier tape only
Document Number 45056
Revision 22-Feb-07
For technical questions, contact: mlcc.specials@vishay.com
www.vishay.com
37
VJ HVArc Guard
TM
C0G (NP0)
Vishay Vitramon
Multilayer Ceramic Capacitors that
Prohibit Surface Arc-over in High Voltage Applications
C0G (NPO) DIELECTRIC - TYPICAL PARAMETERS
TEMPERATURE COEFFICIENT OF CAPACITANCE
2.0
MINIMUM INSULATION
RESISTANCE vs. TEMPERATURE
10 000
% CAPACITANCE CHANGE
1.5
1.0
0.5
0.0
- 0.5
- 1.0
- 1.5
- 2.0
- 75 - 50
- 25
0
25
50
75
100 125
TEMPERATURE
°
C
NP0
INSULATION RESISTANCE
(Ω FARADS)
1000
100
10
10
25
TEMPERATURE
°
C
100 125
AGING RATE - NP0
0.2
% CAPACITANCE CHANGE
VOLTAGE COEFFICIENT OF CAPACITANCE - 1000 V RATED
30
% CAPACITANCE CHANGE
20
10
0
- 10
- 20
- 30
0.1
0.0
- 0.1
- 0.2
1
10
100
HOURS
1000
10 000
0
100 200 300
400 500
600 700
800
900 1000
DC VOLTS APPLIED
IMPEDANCE vs. FREQUENCY OF 1206 NP0 HVArc Guard
TM
1000.0000
100.0000
10.0000
1.0000
0.1000
0.0100
TEMPERATURE (C)
1 MHz RIPPLE CURRENT OF 1812 NP0 HVArc Guard
TM
CAPACITOR
60.00
50.00
40.00
30.00
20.00
10.00
1812, 3.3 nF
IMPEDANCE (Ω)
20 Celsius rise above
Ambient
1
10
100
FREQUENCY (MHz)
1000
0.00
0.000
0.500
1.000
1.500 2.000 2.500
CURRENT (Amps rms)
3.000
3.500
www.vishay.com
38
For technical questions, contact: mlcc.specials@vishay.com
Document Number 45056
Revision 22-Feb-07
VJ HVArc Guard
TM
C0G (NP0)
Multilayer Ceramic Capacitors that
Prohibit Surface Arc-over in High Voltage Applications
Vishay Vitramon

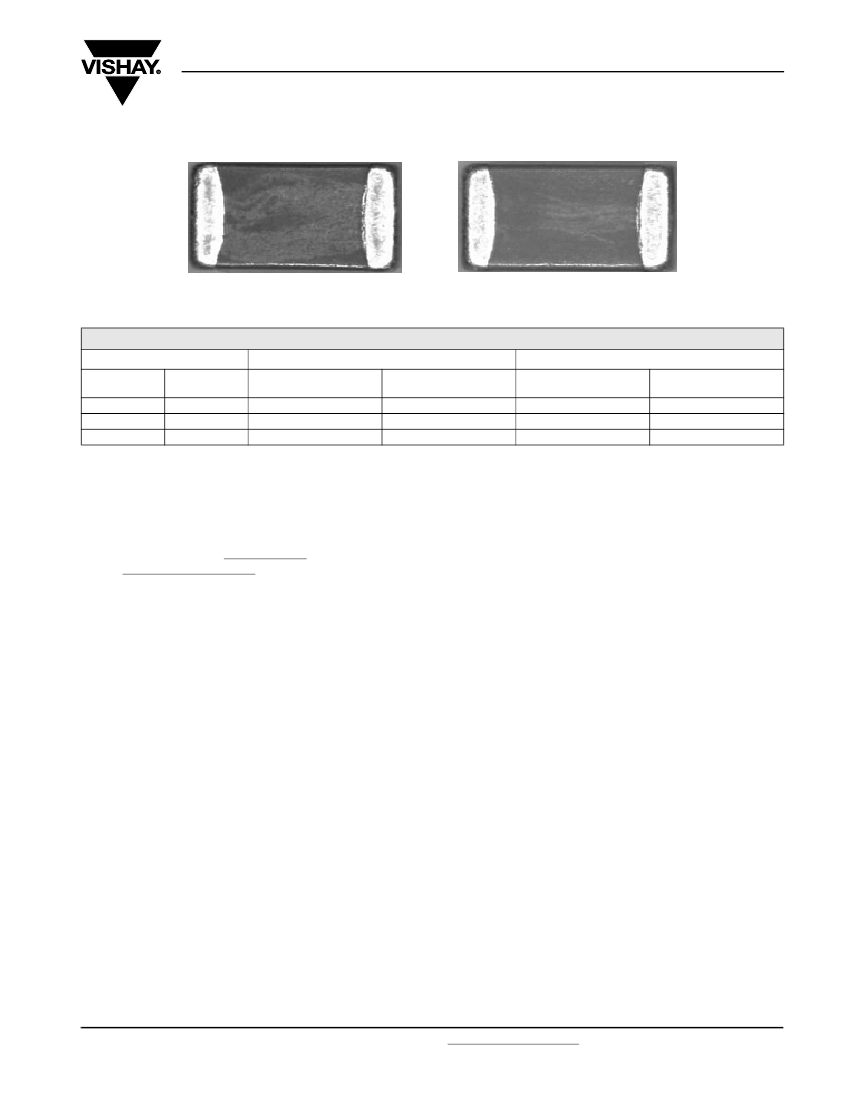

Typical termination to termination surface arcing on MLCCs (shown in polarized light)
STANDARD PACKAGING QUANTITIES
7" REEL QUANTITIES
BODY SIZE
0805
1206
1210
TAPE SIZE
8 mm
8 mm
8 mm
PAPER TAPE
PACKAGING CODE
C: 3000
N/A
N/A
PLASTIC TAPE
PACKAGING CODE
T: 3000
T: 3000
T: 3000
11 1/4" AND 13" REEL QUANTITIES
PAPER TAPE
PACKAGING CODE
P: 10 000
N/A
N/A
PLASTIC TAPE
PACKAGING CODE
R: 10 000
R: 10 000
R: 10 000
Notes
1. Vishay Vitramon uses embossed plastic carrier tape and punch paper carrier tape.
2. Paper tape is not available for case sizes > 1206 or for component thickness > 0.035" [0.89 mm]
3. 11 1/4" reel is standard for large quantities. 13" is maybe used for large “T” dimension parts.
4. REFERENCE: EIA Standard RS 481 - “Taping of Surface Mount Components for Automatic Placement”.
5. N/A = Not available.
Please visit Vishay Website (www.vishay.com) for the following documents:
Contact mlcc.specials@vishay.com with respect to specific part number requirements.
Document Number 45056
Revision 22-Feb-07
For technical questions, contact: mlcc.specials@vishay.com
www.vishay.com
39
