LL5248 datasheet, PDF - EEWORLD Datasheet

LL5248: DescriptionZener Diode, 18V V(Z), 20%, 0.5W, Silicon, Unidirectional, DO-213AA,; CategoryDiscrete semiconductor diode; File Size118KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

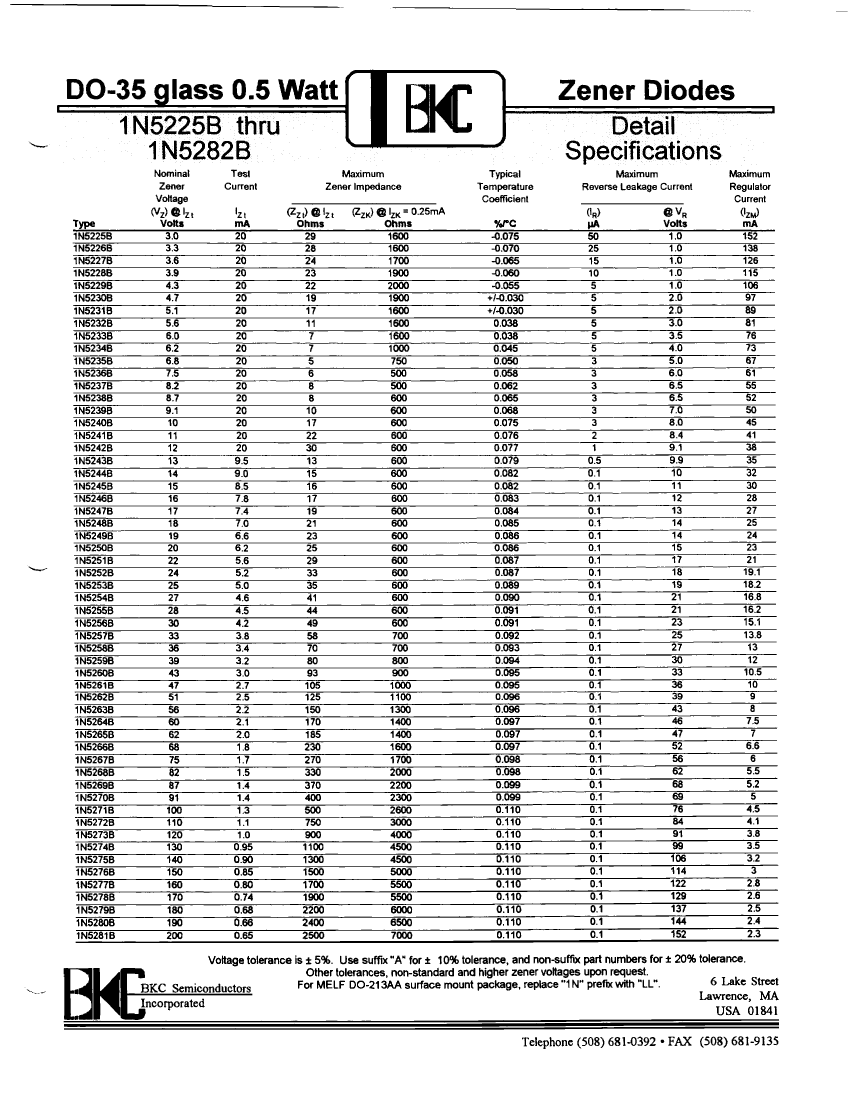

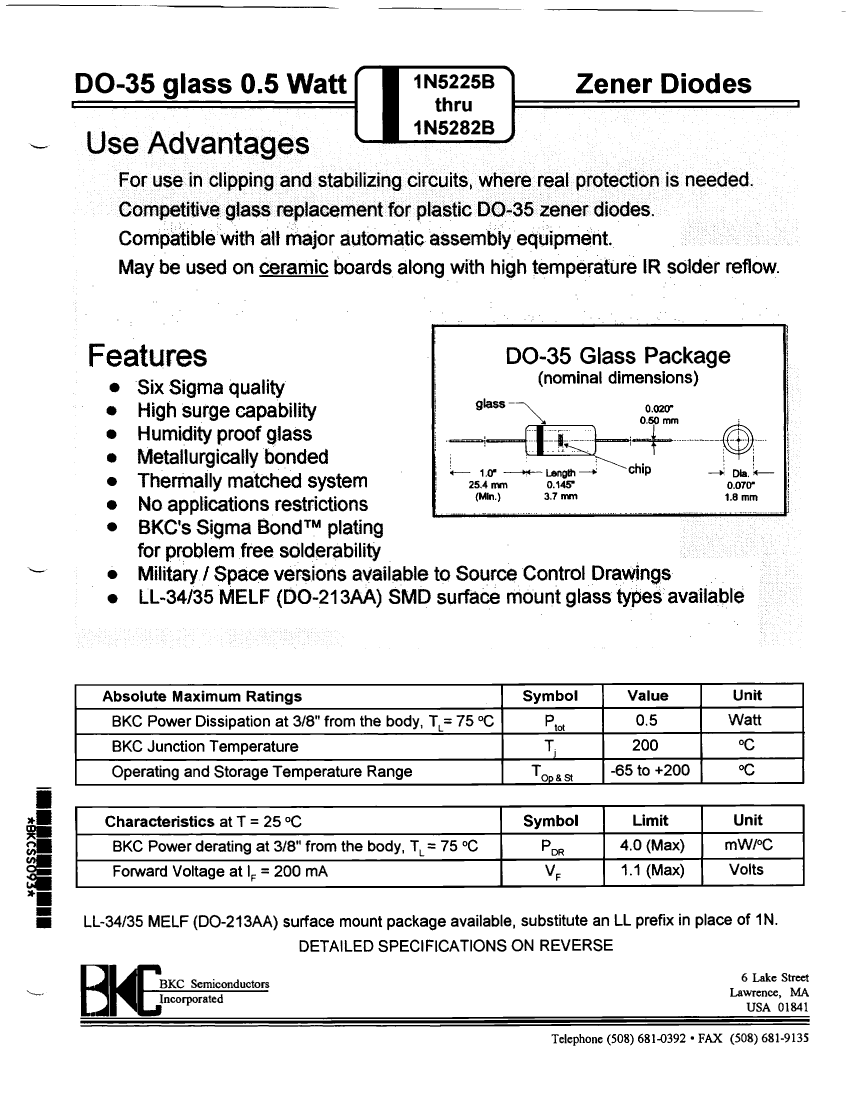

LL5248 Overview

Zener Diode, 18V V(Z), 20%, 0.5W, Silicon, Unidirectional, DO-213AA,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH SURGE CAPABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-LELF-R2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	18 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	20%
Working test current	7 mA
