SLN04G72G2BF2HY-CCRT Overview

4096MB DDR3L – SDRAM ECC SO-DIMM

preliminary
Data Sheet
Rev.0.9
26.07.2013
4096MB DDR3L
– SDRAM ECC SO-DIMM
204 Pin ECC SO-UDIMM
SLN04G72G2BF2HY-xxRT
4GByte in FBGA Technology
RoHS compliant
Features:
204-pin 72-bit DDR3 Small Outline, Dual-In-Line Double
Data Rate synchronous DRAM Module

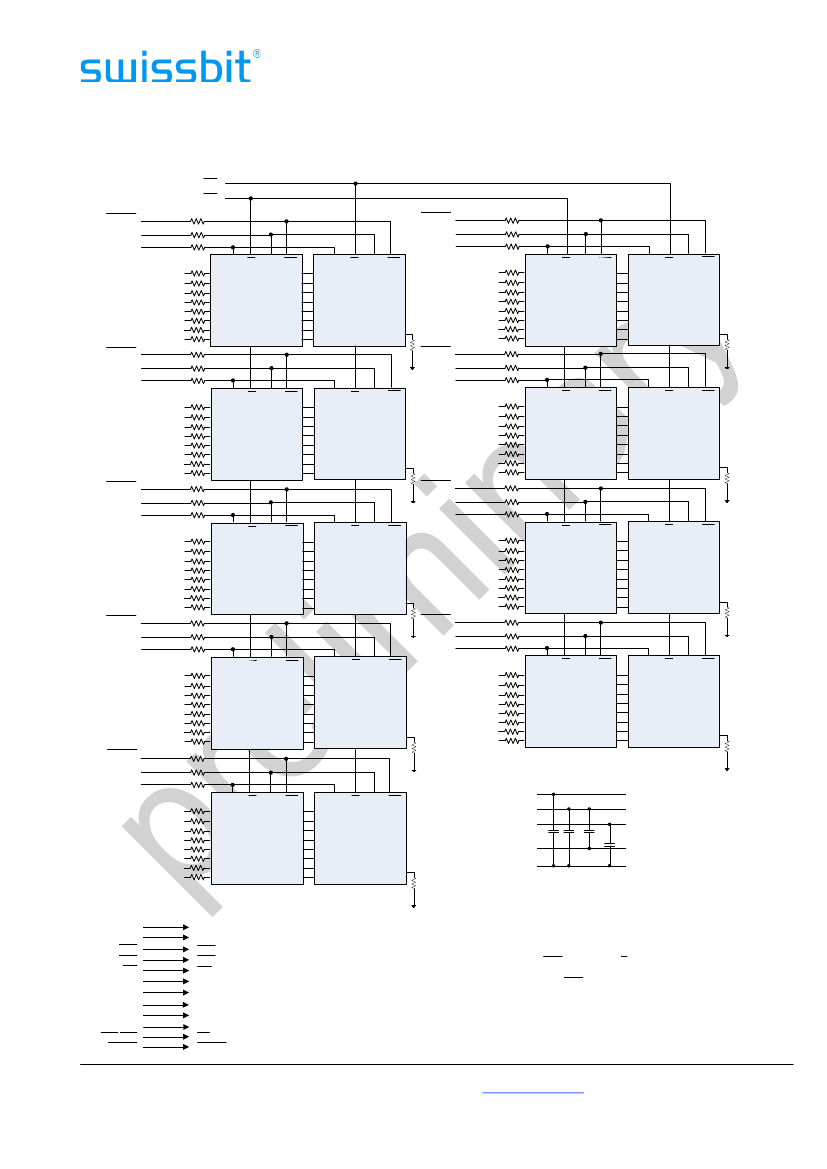

Module organization: dual rank 512M x 72
V
DD
= 1.35V and 1.5V
V
DDQ
= 1.35V and 1.5V
SSTL_15 compatible
Fly-by-bus with termination for C/A & CLK bus
2
On-board I C temperature sensor with integrated serial
presence-detect (SPD) EEPROM
Gold-contact pad
This module is fully pin and functional compatible to the
JEDEC EP3-12800 DDR3 SDRAM 72bit-SO-DIMM
design spec. and JEDEC- Standard MO-268. (see
www.jedec.org)
The pcb and all components are manufactured according
to the RoHS compliance specification
[EU Directive 2002/95/EC Restriction of Hazardous
Substances (RoHS)]
DDR3 - SDRAM component Hynix
H5TC2G83FFR-PBA
256Mx8 DDR3 SDRAM in PG-TFBGA-78 package
8-bit prefetch architecture
Programmable CAS Latency, CAS Write Latency, Additive
Latency, Burst Length and Burst Type.
On-Die-Termination (ODT) and Dynamic ODT for
improved signal integrity.
Refresh, Self Refresh and Power Down Modes.
ZQ Calibration for output driver and ODT.
System Level Timing Calibration Support via Write
Leveling and Multi Purpose Register (MPR) Read Pattern.
Options:
Data Rate / Latency
DDR3 1333 MT/s CL9
DDR3 1600 MT/s CL11
Module density
4096MB with 18 dies and 2 ranks
Standard Grade
(T
A
)
(T
C
)
0°C to 70°C
0°C to 85°C
Marking
-CC
-DC
*) The refresh rate has to be doubled when 85°C<T
C
<95°C
Environmental Requirements:
Operating temperature (ambient)
Standard Grade
0°C to 70°C
Operating Humidity
10% to 90% relative humidity, noncondensing
Operating Pressure
105 to 69 kPa (up to 10000 ft.)
Storage Temperature
-55°C to 100°C
Storage Humidity
5% to 95% relative humidity, noncondensing
Storage Pressure
1682 PSI (up to 5000 ft.) at 50°C
Figure:

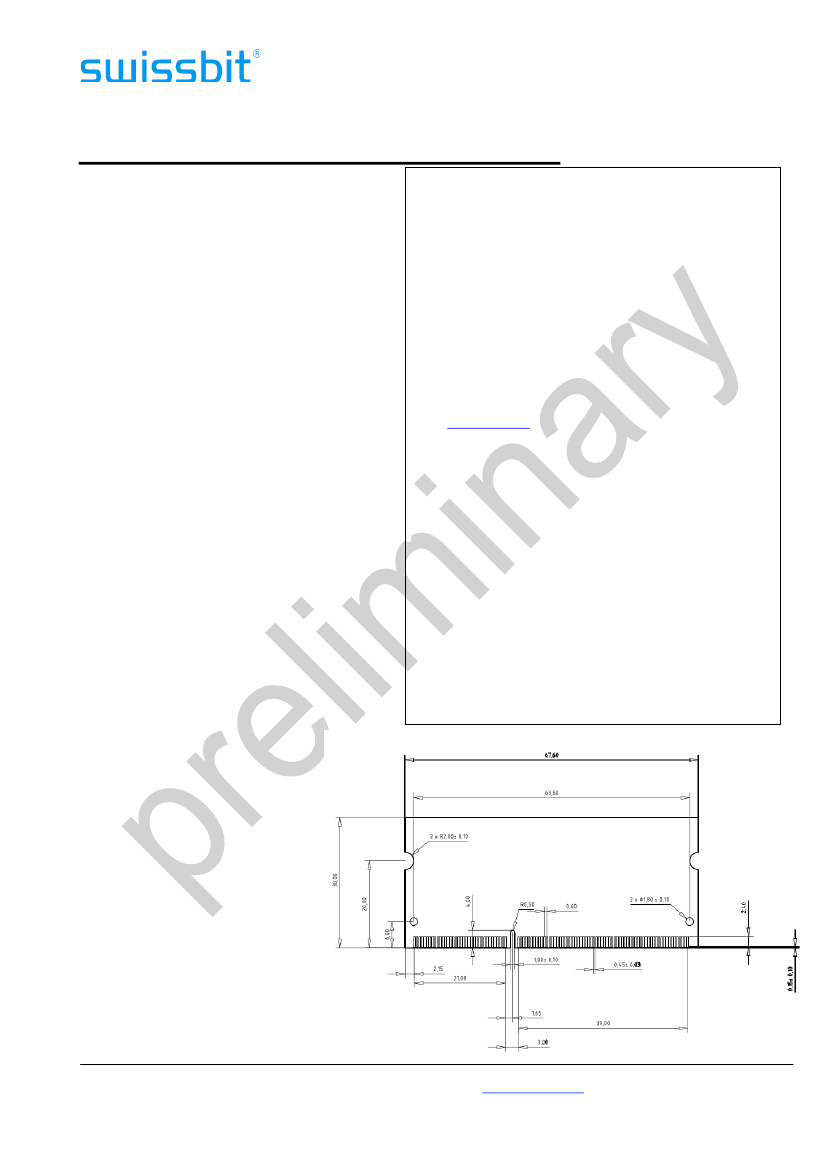

mechanical dimensions
1
1
if no tolerances specified ± 0.15mm
Page 1
of 17
Swissbit AG
Industriestrasse 4
CH – 9552 Bronschhofen
Fon: +41 (0) 71 913 03 03
Fax: +41 (0) 71 913 03 15
www.swissbit.com
eMail: info@swissbit.com
