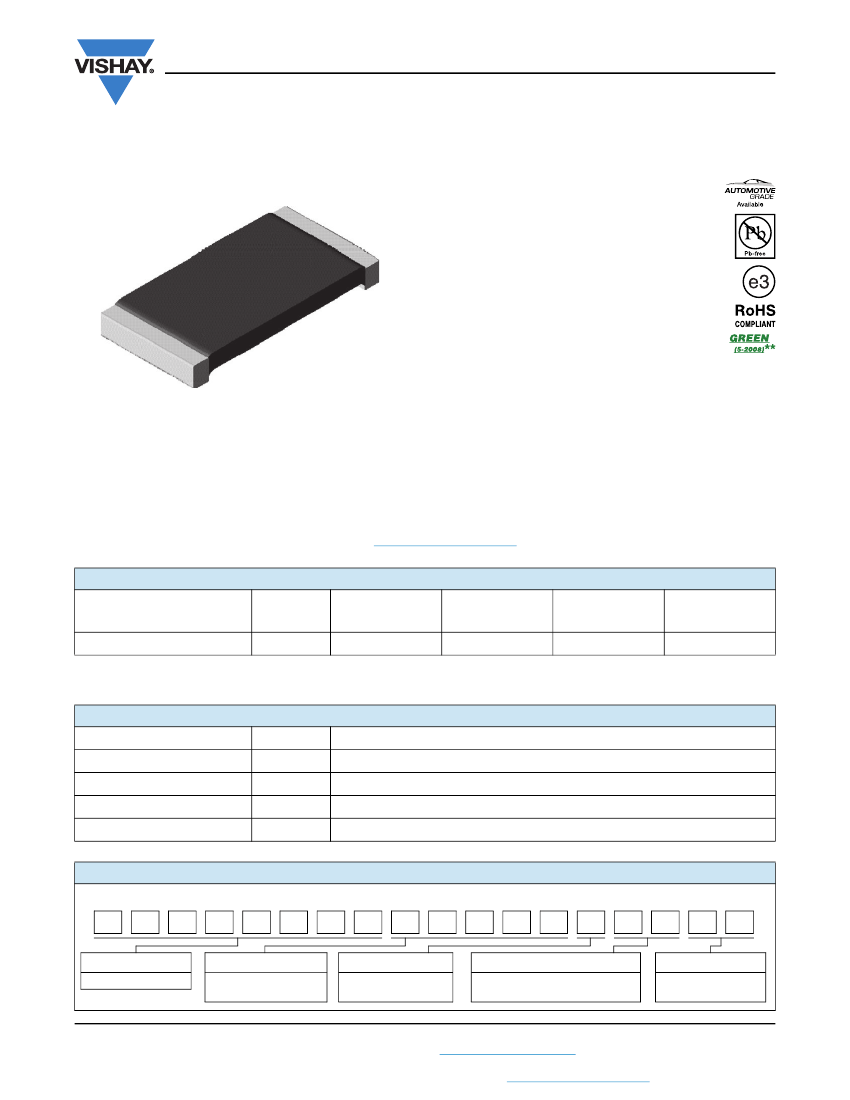

WSLT2512
www.vishay.com
Vishay Dale
Power Metal Strip
®
Resistors, High Temperature (275 °C),
Low Value (down to 0.01 Ohm), Surface Mount
FEATURES
• Ideal for all types of current sensing, voltage
division and pulse applications including
switching
and
linear
power
supplies,
instruments and power amplifiers
• Proprietary processing technique produces
extremely low resistance values
• All welded construction
• Specially selected and stabilized materials allow
for high temperature derating (to + 275 °C)
• Solid metal nickel-chrome alloy
element with low TCR (< 20 ppm/°C)
• Very low inductance (< 5 nH)
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 μV/°C)
• Compliant to RoHS Directive 2002/95/EC
• AEC-Q200 qualified available
(1)
Note
(1)
Flame retardance test may not be applicable to some resistor
technologies.
Note
**
Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
resistive
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL MODEL
WSLT2512
SIZE
2512
POWER RATING
P
70 °C
W
1.0
TOLERANCE
±%
0.5, 1.0
RESISTANCE
VALUE RANGE
0.01 to 0.50
WEIGHT
(typical)
g/1000 pieces
63.6
Note
• Part marking: DALE, value, tolerance code.
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature coefficient
Inductance
Operating temperature range
Maximum continuous current
UNIT
ppm/°C
nH
°C
A
RESISTOR CHARACTERISTICS
± 75
<5
- 65 to + 275
(P/R)
1/2
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: WSLT2512R0100FEA
W
S
L
T
2
5
1
2
R
0
1
0
0
F
E
A
SPECIAL
Reserved for
future specials
GLOBAL MODEL
WSLT2512
RESISTANCE VALUE
R
= Decimal
R0100
= 0.01
TOLERANCE CODE
D
= ± 0.5 %
F
= ± 1.0 %
PACKAGING CODE
EA
= Lead (Pb)-free, tape/reel
EK
= Lead (Pb)-free, bulk
Revision: 09-Nov-11
Document Number: 30121
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSLT2512
www.vishay.com
DIMENSIONS
in inches (millimeters)
H
l
W
T
L
a
b
Vishay Dale
MODEL
WSLT2512
DIMENSIONS
L
0.250 ± 0.010
(6.35 ± 0.254)
W
0.125 ± 0.010
(3.18 ± 0.254)
H
0.025 ± 0.010
(0.635 ± 0.254)
T
0.030 ± 0.010
(0.762 ± 0.254)
a
0.065
(1.65)
SOLDER PAD DIMENSIONS
b
0.145
(3.68)
l
0.160
(4.06)
DERATING
Rated Power in %
120
100
80
60
40
20
0
- 65
- 25
25
75
70
125
175
225
275
Ambient Temperature in °C
PERFORMANCE
TEST
Thermal shock
Short time overload
Low temperature operation
High temperature exposure
Bias humidity
Mechanical shock
Vibration
Load life at 70 °C
Load life at 150 °C
Resistance to solder heat
Moisture resistance
CONDITIONS OF TEST
- 55 °C to + 150 °C, 1000 cycles, 15 min at each extreme
5 x rated power for 5 s
- 65 °C for 45 min
1000 h at + 275 °C
+ 85 °C, 85 % RH, 10 % bias, 1000 h
100
g’s
for 6 ms, 5 pulses
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h, 1.5 h “ON”, 0.5 h “OFF”
1000 h, 1.5 h “ON”, 0.5 h “OFF”
260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7b not required
TEST LIMITS
± 0.5 %
R
± 0.5 %
R
± 0.5 %
R
± 1.0 %
R
± 0.5 %
R
± 0.5 %
R
± 0.5 %
R
± 1.0 %
R
± 1.0 %
R
± 0.5 %
R
± 1.0 %
R
PACKAGING
MODEL
WSLT2512
Note
• Embossed Carrier Tape per EIA-481.
REEL
TAPE WIDTH
12 mm/embossed plastic
DIAMETER
178 mm/7"
PIECES/REEL
2000
CODE
EA
Revision: 09-Nov-11
Document Number: 30121
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
