WVL
Vishay Dale
Inductors, Variable, Subminiature, Shielded, Radial Leaded
FEATURES
•
•
•
•
•
•
•
Classification is grade 3, class A
Subminiature shielded adjustable inductor
High Q values
Vertical or horizontal mounting
Inductance range is 0.10 µH to 1000 µH
0.300" [7.62 mm] diameter by 0.400" [10.16 mm] length
Printed board mounting facilitated by 0.200" [5.08 mm] grid
spacing
•
Unit has shield construction to allow maximum density
packaging
•
Accommodates close inductance adjustments in high
density circuits that demand exceptional stability and high
“Q” in the smallest size available
•
Compliant to RoHS directive 2002/95/EC
ELECTRICAL SPECIFICATIONS
Adjustable Inductance Range:
Tunable range; ± 5 % for
0.10 µH to 1 µH. ± 10 % for 1.2 µH to 1000 µH
Dielectic Strength:
840 V
RMS
at sea level
Working Voltage:
300 V
DC
Maximum Current:
Based on temperature rise not to
exceed 15 °C at + 90 °C ambient
Incremental Current:
The DC current required to cause a
five percent reduction in the nominal inductance value
Operating Temperature:
- 55 °C to + 105 °C
MECHANICAL SPECIFICATIONS
Tuning Tool:
Use number WVL-T or equal
Torque:
0.40 to 6 inch-ounces
Terminal Pull:
3 pounds
DENSITY SPECIFICATIONS
Weight:
1.5 g maximum
Shielding:
3 % coupling maximum when two units are tested
side by side

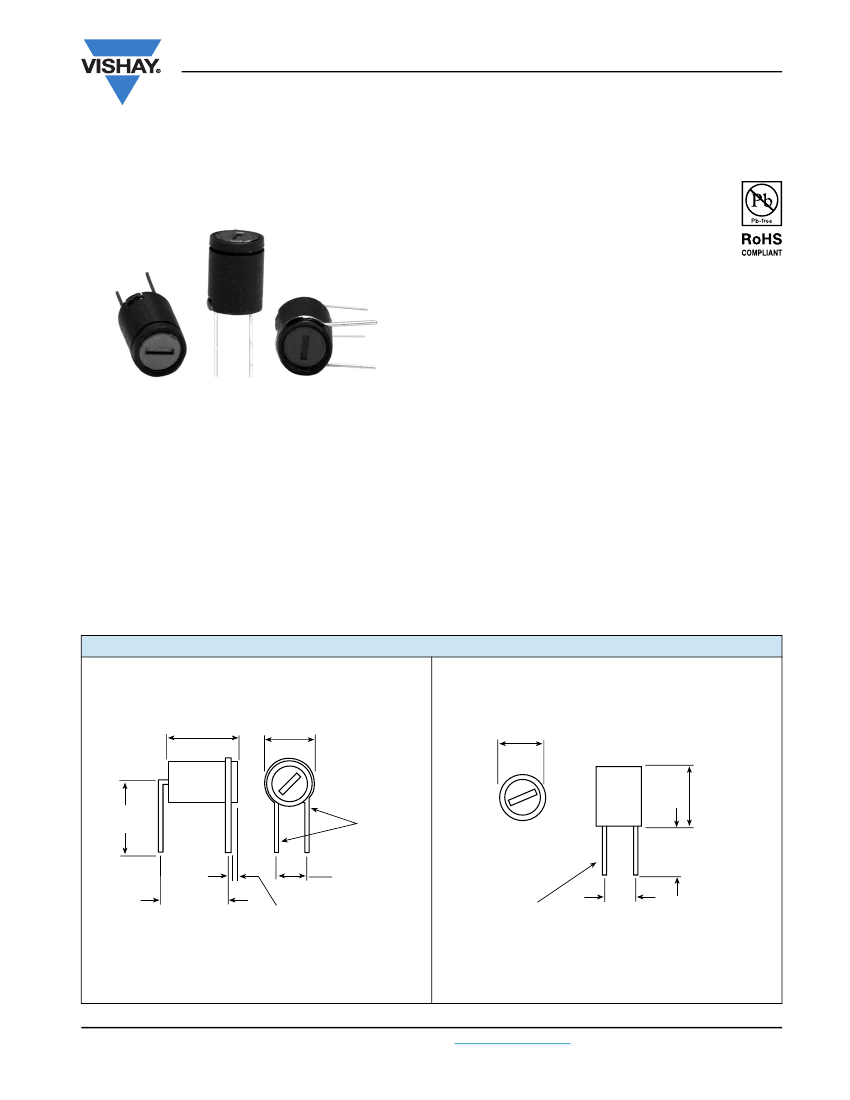

DIMENSIONS
in inches [millimeters]
Horizontal Style
Vertical Style
0.400 [10.16]
0.320 [8.13]
0.300 ± 0.020
[7.62 ± 0.508]
3/8 ± 1/16
[9.52 ± 1.59]
0.020
[0.508]
Dia.
Wire
Phosphor-Bronze
0.200 ± 0.010
[5.08 ± 0.254]
0.375 [9.53]
0.050 [1.27]
#24 0.020 ± 0.002
[0.508 ± 0.051] TCW
0.200 ± 0.010
[5.08 ± 0.254]
0.400 ± 0.030
[10.16 ± 0.762]
3/8 ± 1/16
[9.52 ± 1.59]
Horizontal Mounting Clip Part Number ACS-57
(One required per unit.)
Document Number: 34086
Revision: 25-Jun-09
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
WVL
Vishay Dale
Inductors, Variable, Subminiature, Shielded,
Radial Leaded
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
WVL
INDUCTANCE
NOM.
(µH)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
TURNABLE
RANGE
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
Q
MINIMUM
56
56
56
56
56
64
64
64
64
64
64
68
68
72
80
92
88
88
77
72
76
76
68
76
72
96
96
92
100
92
96
96
88
92
84
84
76
76
72
76
76
80
80
80
80
76
80
72
80
TEST
FREQ.
(MHz)
25
25
25
25
25
25
25
25
25
25
25
25
25
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
SELF-RESONANT
FREQ. NOM.
(MHz)
200
200
200
200
200
200
200
200
184
176
150
144
128
136
124
108
96
83
74
70
63
58
50
48
43
30
23
19
17
16
15
14
12
11
10
9
8.4
4.5
4.0
3.9
3.7
3.4
2.8
2.7
2.6
2.3
2.2
2.0
1.9
DCR
MAXIMUM
(Ω)
0.030
0.030
0.030
0.035
0.038
0.040
0.040
0.045
0.045
0.050
0.055
0.060
0.070
0.085
0.100
0.110
0.120
0.125
0.165
0.180
0.245
0.265
0.330
0.460
0.640
0.800
0.865
0.940
1.03
1.18
1.30
1.41
1.61
2.08
2.20
2.42
2.15
2.38
2.52
2.88
3.18
3.50
4.80
5.44
5.90
6.30
7.20
8
12
RATED DC
CURRENT
(mA)
1510
1450
1400
1370
1340
1300
1260
1240
1200
1160
1100
1040
986
968
893
853
817
800
696
659
571
550
493
417
359
316
301
292
267
243
231
223
203
191
185
174
333
316
306
288
273
260
222
209
201
194
181
172
141
INCREMENTAL
CURRENT
(mA)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
333
190
175
150
125
120
110
105
100
90
80
70
65
MARKING
- Manufacturer data printed
www.vishay.com
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34086
Revision: 25-Jun-09
WVL
Inductors, Variable, Subminiature, Shielded,
Radial Leaded
ORDERING INFORMATION
WVL
MODEL
0.10 µH
INDUCTANCE VALUE
5%
INDUCTANCE TOLERANCE
EB
PACKAGE CODE
e2
JEDEC LEAD (Pb)-FREE
STANDARD
Vishay Dale
GLOBAL PART NUMBER
W
V
L
MODEL
9
E
B
R
1
0
K
INDUCTANCE
TOLERANCE
PACKAGE CODE
INDUCTANCE
VALUE
Document Number: 34086
Revision: 25-Jun-09
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
3
