5536587-1 datasheet, PDF - EEWORLD Datasheet

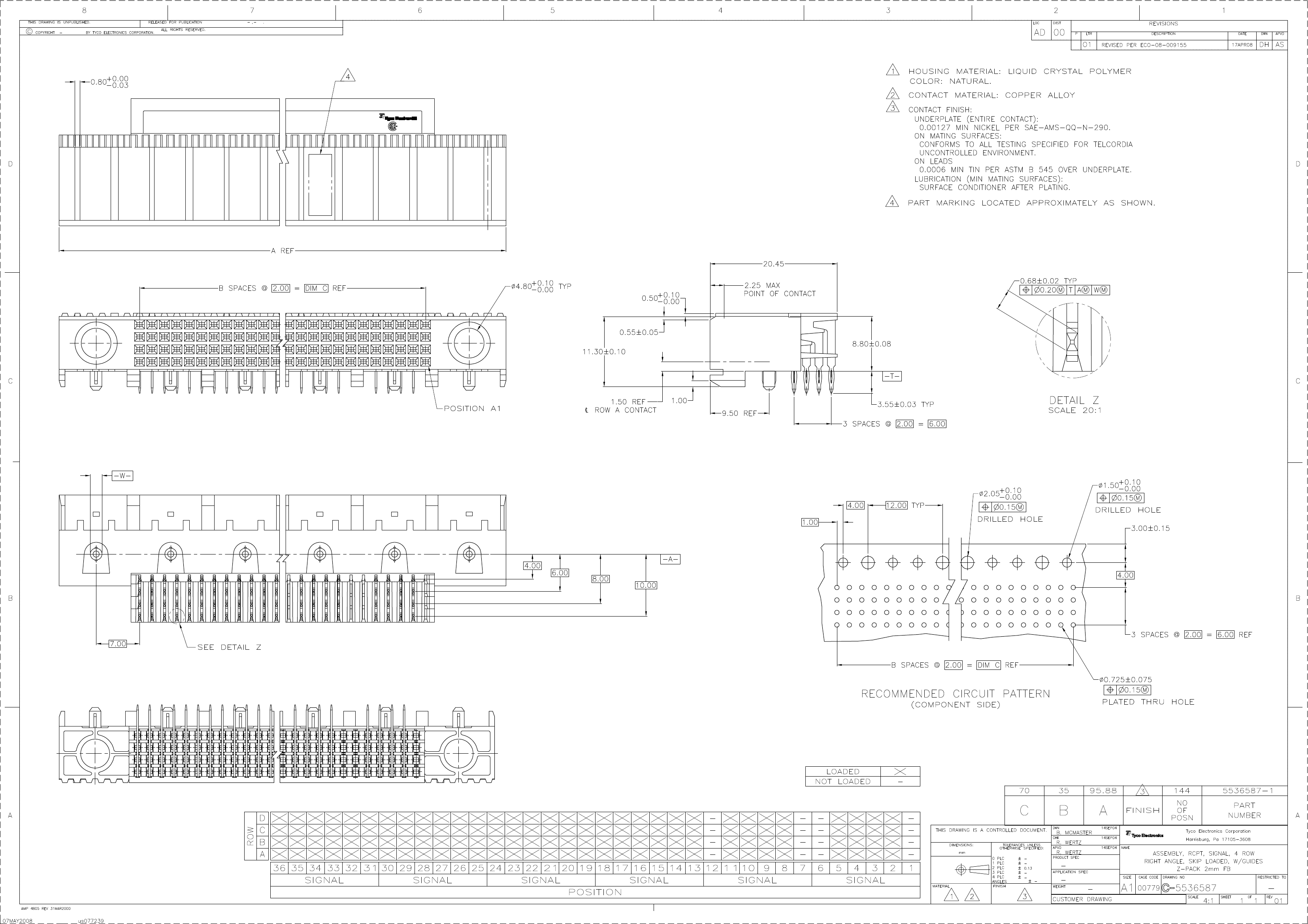

5536587-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,144 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,HOLE .164-.189,NATURAL; CategoryThe connector; File Size188KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

5536587-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5536587-1	-	-	View	Buy Now

HEADER CONNECTOR,PCB MNT,RECEPT,144 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,HOLE .164-.189,NATURAL

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	PHOSPHOR BRONZE
Terminal spacing	2.01 mm
Total number of contacts	144
EU RoHS regulations	Yes
state	Active
board_mounting_opti	PEG
width	0.4450 inch
body_depth	0.8050 inch
body_diamete	3.38 inch
Shell style	RECEPTACLE
Contact coated terminals	TIN OVER NICKEL
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_style	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1000VAC
durability	100 Cycles
insertion_force_max__n_	.695
insulation_resistance	1.00E8 ohm
insulator_col	NATURAL
insulator_material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer Series	5536587
mating_contact_pitch__inch_	0.079
mating_contact_row_spacing__inch_	0.079
mounting_option_1	HOLE .164-.189
mounting_option_2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	4
Number of load rows	4
Minimum operating temperature	-55 Cel
erating_temperature_max__cel_	125
cb_contact_patte	RECTANGULAR
cb_contact_row_spacing__mm_	2.0066
larization_key	POLARIZED HOUSING
eference_standard	UL, CSA
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
erminal_length	0.1400 inch
Terminal type	PRESS FIT
withdrawl_force_min__n_	.1112
