XOVC-23B-2FREQ2 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> XOVC-23B-2FREQ2

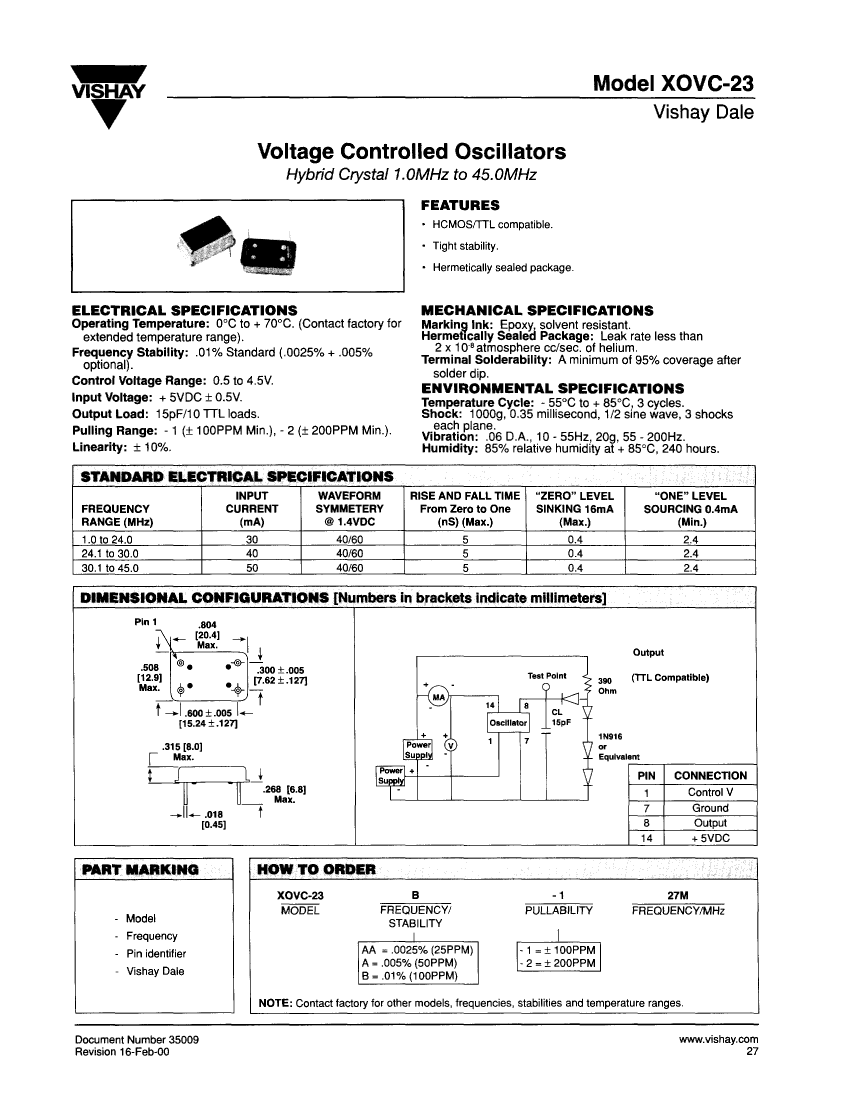

XOVC-23B-2FREQ2: DescriptionHCMOS/TTL Output Clock Oscillator, 24.1MHz Min, 30MHz Max; CategoryPassive components oscillator; File Size60KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

XOVC-23B-2FREQ2 Overview

HCMOS/TTL Output Clock Oscillator, 24.1MHz Min, 30MHz Max

XOVC-23B-2FREQ2 Parametric

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	200 ppm
frequency stability	100%
JESD-609 code	e2
linearity	10%
Manufacturer's serial number	XOVC-23
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	24.1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	20.4mm x 12.9mm x 8mm
longest rise time	5 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %
Terminal surface	TIN COPPER

Preview

Download Datasheet

View All

XOVC-23B-2FREQ2 Related Products

	XOVC-23B-2FREQ2	XOVC-23A-2FREQ3	XOVC-23A-2FREQ1	XOVC-23A-2FREQ2	XOVC-23A-1FREQ2	XOVC-23A-1FREQ3	XOVC-23A-1FREQ1	XOVC-23B-2FREQ3	XOVC-23AA-2FREQ3	XOVC-23B-2FREQ1
Description	HCMOS/TTL Output Clock Oscillator, 24.1MHz Min, 30MHz Max	HCMOS/TTL Output Clock Oscillator, 30.1MHz Min, 45MHz Max	HCMOS/TTL Output Clock Oscillator, 1MHz Min, 24MHz Max	HCMOS/TTL Output Clock Oscillator, 24.1MHz Min, 30MHz Max	HCMOS/TTL Output Clock Oscillator, 24.1MHz Min, 30MHz Max	HCMOS/TTL Output Clock Oscillator, 30.1MHz Min, 45MHz Max	HCMOS/TTL Output Clock Oscillator, 1MHz Min, 24MHz Max	HCMOS/TTL Output Clock Oscillator, 30.1MHz Min, 45MHz Max	HCMOS/TTL Output Clock Oscillator, 30.1MHz Min, 45MHz Max	HCMOS/TTL Output Clock Oscillator, 1MHz Min, 24MHz Max
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum control voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
maximum descent time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	200 ppm	200 ppm	200 ppm	200 ppm	100 ppm	100 ppm	100 ppm	200 ppm	200 ppm	200 ppm
frequency stability	100%	50%	50%	50%	50%	50%	50%	100%	25%	100%
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	e2	e2	e2
linearity	10%	10%	10%	10%	10%	10%	10%	10%	10%	10%
Manufacturer's serial number	XOVC-23	XOVC-23	XOVC-23	XOVC-23	XOVC-23	XOVC-23	XOVC-23	XOVC-23	XOVC-23	XOVC-23
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	30 MHz	45 MHz	24 MHz	30 MHz	30 MHz	45 MHz	24 MHz	45 MHz	45 MHz	24 MHz
Minimum operating frequency	24.1 MHz	30.1 MHz	1 MHz	24.1 MHz	24.1 MHz	30.1 MHz	1 MHz	30.1 MHz	30.1 MHz	1 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Oscillator type	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL
Output load	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF
physical size	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm	20.4mm x 12.9mm x 8mm
longest rise time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum symmetry	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %
Terminal surface	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER
Base Number Matches	-	1	1	1	1	1	1	-	-	-
