ISSUED DATE :2003/11/27
REVISED DATE :2005/05/04C
G M P S A9 4
Description
Features
P N P E P I TA X I A L P L A N A R T R A N S I S T O R
The GMPSA94 is designed for application that requires high voltage.
*High Breakdown Voltage:-400(Min) at IC=-1mA
*High current .Gain :IC=-300mA at 25 :
*Complementary to GMPSA44
Package Dimensions
D
E
S1
TO-92
A
b1
S E A T IN G
PLANE
REF.
L
e1
e
b
C
A
S
1
b
b
1
C
Millimeter
Min.
Max.
4.45
4.7
1.02
-
0.36
0.51
0.36
0.76
0.36
0.51
REF.
D
E
L
e1
e
Millimeter
Min.
Max.
4.44
4.7
3.30
3.81
12.70
-
1.150 1.390
2.42
2.66
Absolute Maximum Ratings
(Ta = 25 :
Parameter
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collect Current(DC)
Junction Temperature
Storage Temperature Range
Total Power Dissipation
Symbol
BVCBO
BVCEO
BVEBO
ICBO
IEBO
ICES
VCE(sat)1
VCE(sat)2
VCE(sat)3
VBE(sat)
hFE1
hFE2
hFE3
hFE4
Min.
-400
-400
-6
-
-
-
-
-
-
-
40
50
45
40
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
,unless otherwise specified)
Ratings
Unit
V
CBO
V
CEO
V
EBO
I
C
Tj
Ts
TG
P
D
Max.
-
-
-
-100
-100
-500
-350
-500
-750
-750
-
300
-
-
Unit
V
V
V
nA
nA
nA
mV
mV
mV
mV
-400
-400
-6
-300
+150
-55 ~ +150
625
Test Conditions
IC=-100uA,IE=0
IC=-1mA ,IB=0
IE=-10uA ,IC=0
VCB=-400V,IE=0
VEB=-4V,IC=0
VCE=-400V,VBE=0
IC=-1.0mA, IB= -0.1mA
IC=-10mA, IB=-1mA
IC=-50mA, IB=-5mA
IC=-10mA, IB=-1mA
VCE=-10V, IC=-1mA
VCE=-10V, IC=-10mA
VCE=-10V, IC=-50mA
VCE=-10V, IC=-100mA
V
V
V
mA
mW
Electrical Characteristics
(Ta = 25 : ,unless otherwise specified)
Classification of h
FE
2
Rank
Range
VCE(sat)2:IC=-10mA, IB=-1mA
hFE: VCE=3V,IC=100mA
N
50-300
-
-
NS
70-300
-
>50
SD
70-210
<200mV
-
SUM
120-300
-
-
1/2
ISSUED DATE :2003/11/27
REVISED DATE :2005/05/04C

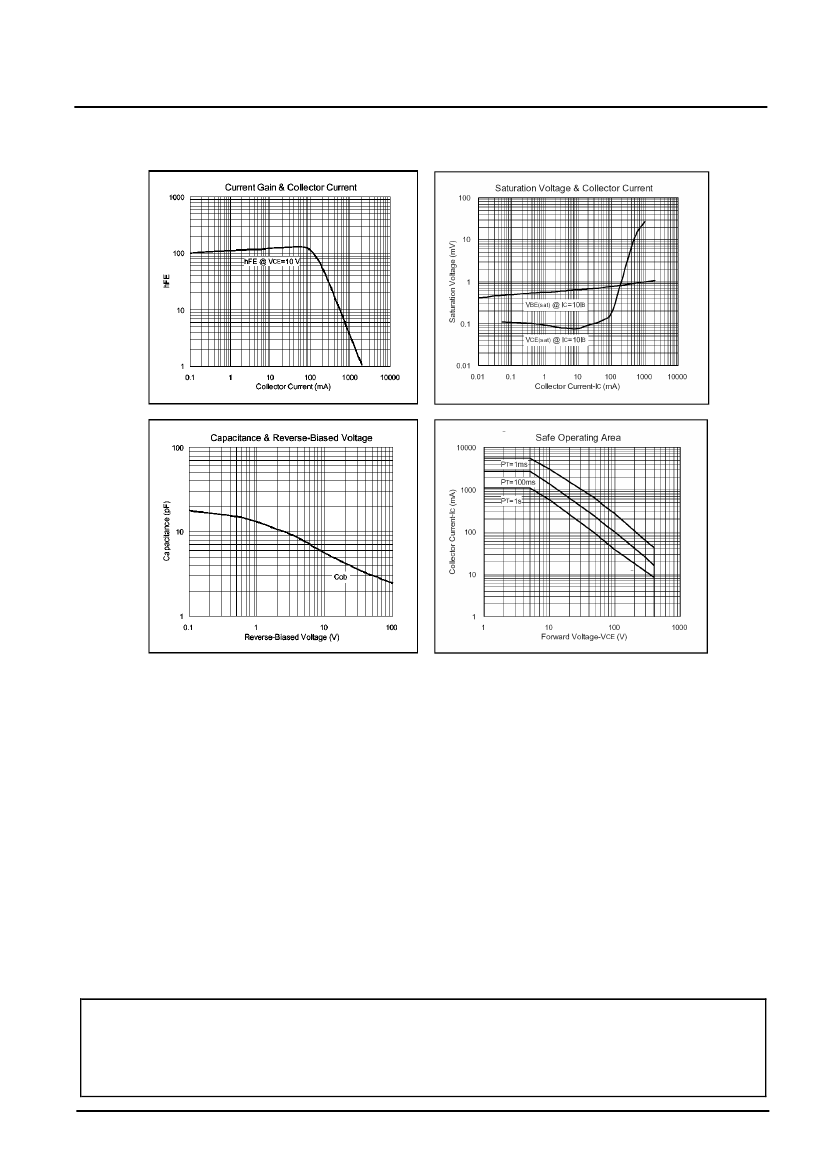

Characteristics Curve
Important Notice:
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of GTM.
GTM reserves the right to make changes to its products without notice.
GTM semiconductor products are not warranted to be suitable for use in life-support Applications, or systems.
GTM assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
Taiwan:
No. 17-1 Tatung Rd. Fu Kou Hsin-Chu Industrial Park, Hsin-Chu, Taiwan, R. O. C.
TEL : 886-3-597-7061 FAX : 886-3-597-9220, 597-0785
China:
(201203) No.255, Jang-Jiang Tsai-Lueng RD. , Pu-Dung-Hsin District, Shang-Hai City, China
TEL : 86-21-5895-7671 ~ 4 FAX : 86-21-38950165
2/2
