ET60S-03-00-02-L-RT1-GP

Description
Rectangular Power Connector, 5 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT
CategoryThe connector    The connector
File Size698KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

ET60S-03-00-02-L-RT1-GP Overview

Rectangular Power Connector, 5 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT

ET60S-03-00-02-L-RT1-GP Parametric

Parameter NameAttribute value
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTEN60POWER
Body/casing typeSOCKET
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationGOLD (10) OVER NICKEL (50)
Contact completed and terminatedMATTE TIN OVER NICKEL (50)
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberET60S
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialLIQUID CRYSTAL POLYMER
Termination typeSOLDER
Total number of contacts5

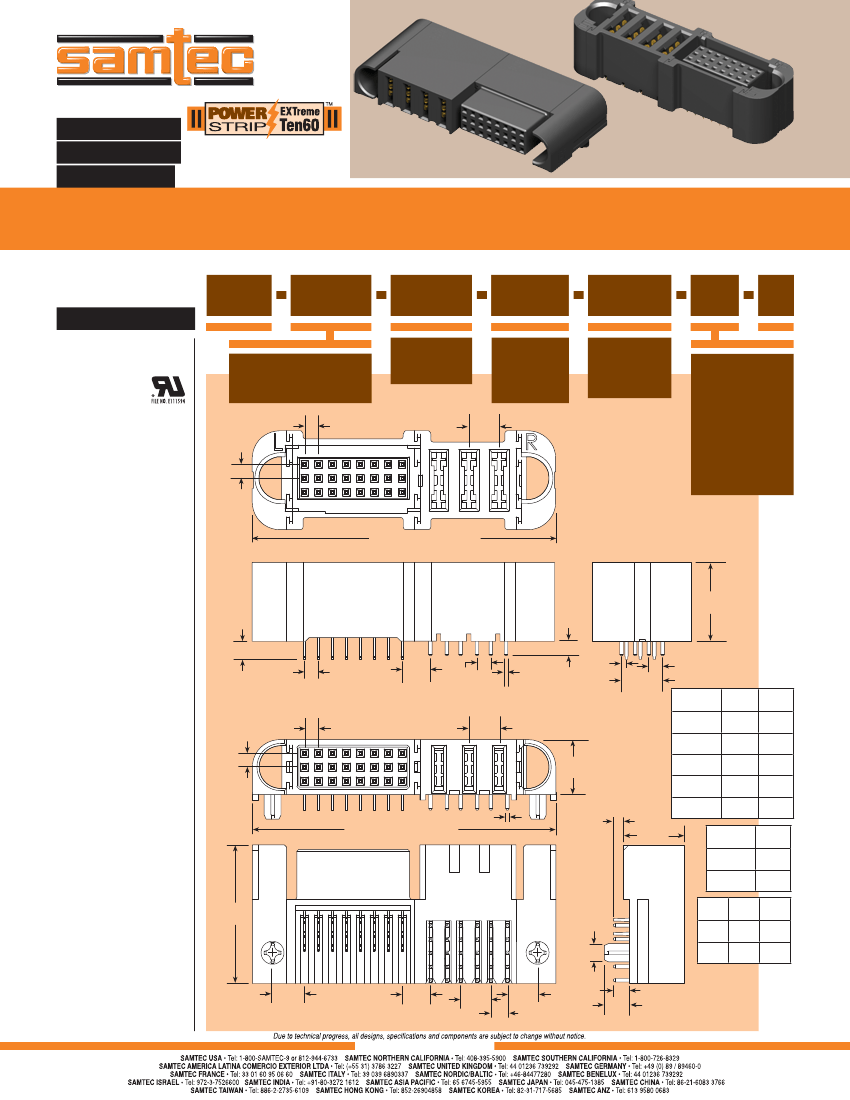

ET60S-03-00-02-L-RT1-GP Preview

F-213-1
(2,54 mm) .100"
(5,50 mm) .217"
ET60S SERIES
ET60S–00–24–04–L–RT1
ET60S–00–24–04–L–VT1
EXTreme Ten60Power SOCKET
Mates with:
ET60T
ET60S
POWER
POS. RIGHT
SIGNAL
POSITIONS
POWER
POS. LEFT
PLATING
TAIL
GP
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?ET60S
Insulator Material:
Black LCP
Terminal Material:
Signal: Copper Alloy
Power: Copper Alloy
Plating:
Au or Sn over
50µ" (1,27 µm) Ni
Current Rating:
Power: 60A max per blade
(2 pins powered @ 95°C;
30°C temperature rise)
Signal: 2.8A max
(6 pins powered @ 95°C;
30°C temperature rise)
Operating Temp Range:
-40°C to +125°C
Voltage Rating:
250 V max
RoHS Compliant:
Yes
–00, –02,
–03, –04, –06
(2,54)
.100
(2,54)
.100
–00,
–24
–00,
–02, –03,
–04, –06
(5,50)
.217
–L
= 10µ" (0,25 µm)
Gold on contact,
Matte Tin on tail
–VT1
= Vertical
Through-hole
(Use with (1,60 mm)
.062" thick card)
–RT1
= Right Angle
Through-hole
(Use with (1,60 mm)
.062" thick card)
A
+
C
+
B
+ (13,50) .531
Processing:
Lead–Free Solderable:
Yes
(14,38)
.566
D
(2,54)
.100
(3,00)
.118
ET60S–03–24–00–L–VT1
(2,54)
.100
(5,50)
.217
(5,17)
.204
(0,64)
.025
SQ
E
(0,91)
.036
(7,50)
.295
(2,50)
.098
POWER
A
POSITIONS (Right)
B
(Left)
(2,54)
.100
–00
–02
(10,00)
.394
–03
–04
(0,64) .025 SQ
A
+
C
+
B
+ (13,50) .531
–06
D
(11,00)
.433
(00,00)
.000
(13,00)
.512
(18,50)
.728
(24,00)
.945
(35,00)
1.378
SIGNAL
POSITIONS
(00,00)
.000
(13,00)
.512
(18,50)
.728
(24,00)
.945
(35,00)
1.378
C
(00,00)
.000
(23,26)
.916
–00
–24
(25,22)
.993
(3,33)
.131
DIA
TAIL
D
E
–VT1
(3,28) (2,60)
.129 .102
–RT1
(2,84) (2,84)
.112 .112
Note:
*EXTreme Ten60Power
is a trademark of Molex
Incorporated and is dual
sourced by Molex
®
(5,81)
.229
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
(5,17)
.204
ET60S–03–24–00–L–RT1
(5,50)
.217
(5,50)
.217
(3,00) .118
E
(4,48)
.176
WWW.SAMTEC.COM
