M28F101-12XP1 datasheet, PDF - EEWORLD Datasheet

M28F101-12XP1: Description128KX8 FLASH 12V PROM, 120ns, PDIP32, PLASTIC, DIP-32; Categorystorage storage; File Size466KB，16 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

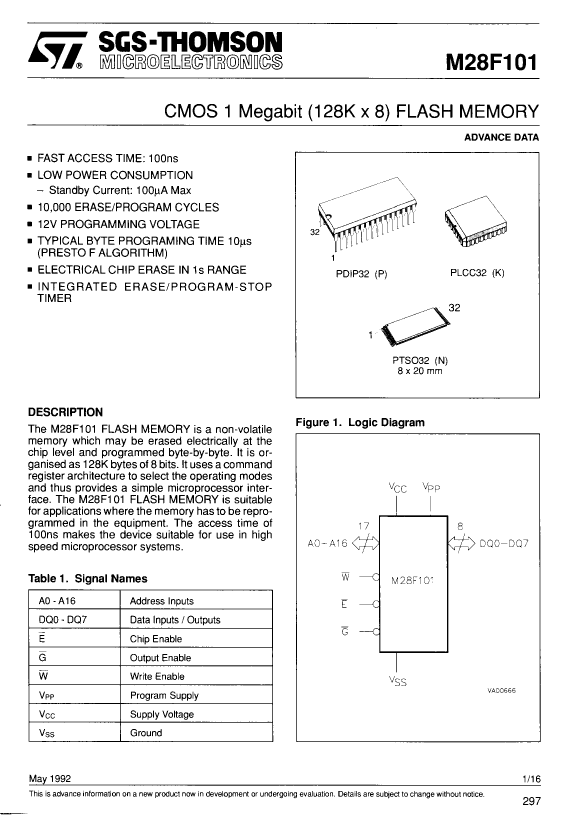

M28F101-12XP1 Overview

128KX8 FLASH 12V PROM, 120ns, PDIP32, PLASTIC, DIP-32

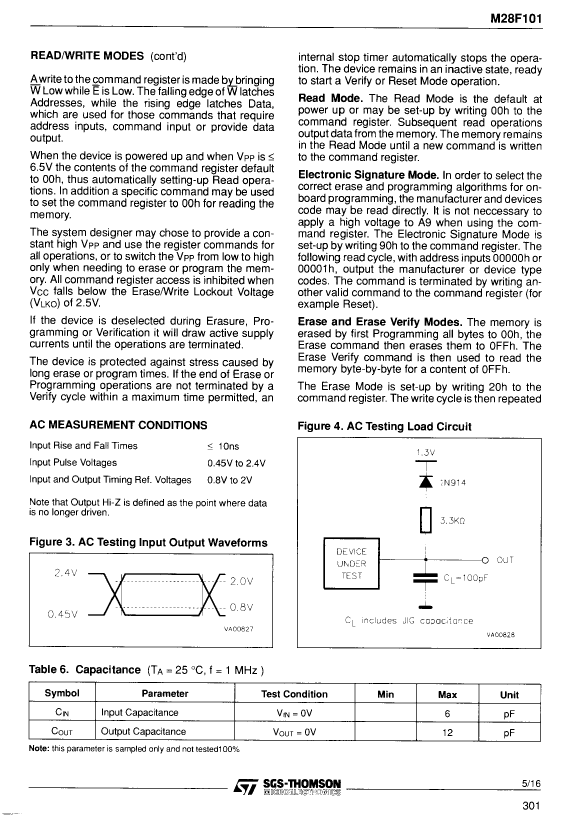

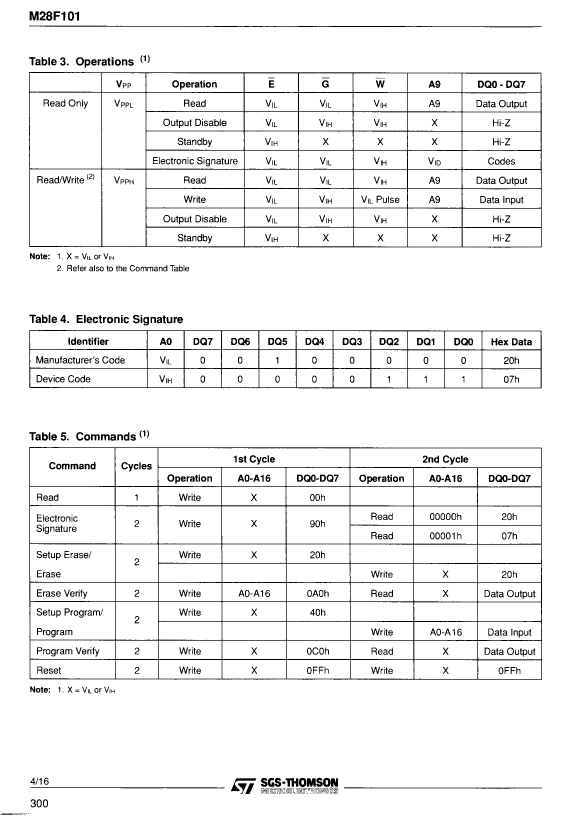

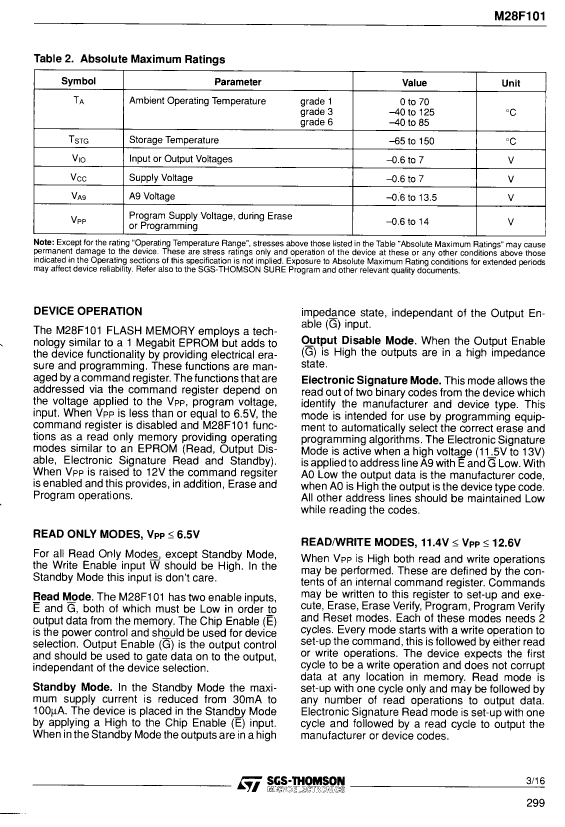

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	PLASTIC, DIP-32

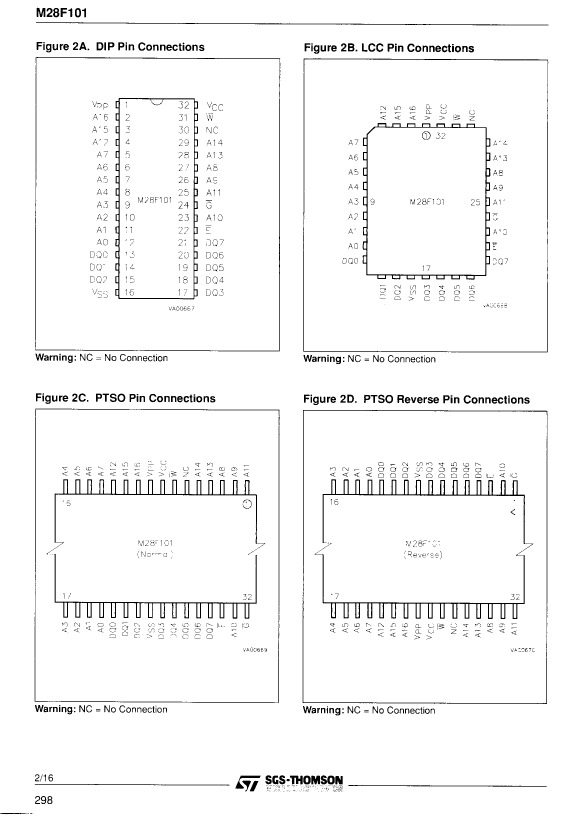

Contacts	32
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	120 ns
Other features	BULK ERASE
command user interface	YES
Data polling	NO
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
length	41.91 mm
memory density	1048576 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum standby current	0.0001 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
type	NOR TYPE
width	15.24 mm
