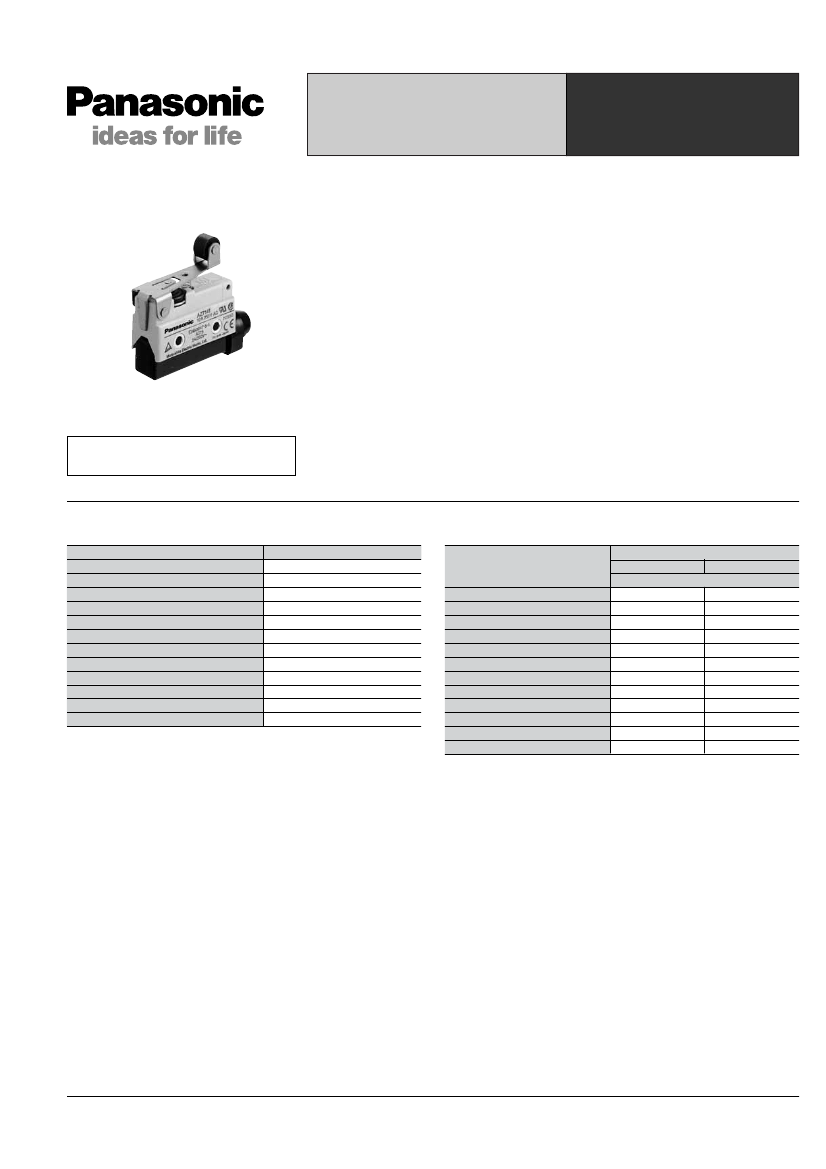

COMPACT SIZE
LIMIT SWITCHES
ML (AZ7)
Limit Switches
Terminal mold types (epoxy-sealed terminal type) also available.
FEATURES
1. Long life
High efficiency coil spring switching
mechanism for long life: More than 10
7
mechanical operations.
2. Great mechanical strength while
being compact and lightweight
The attachment pitch is 25.4mm
(1.000inch),
same as for the Z basic
model microswitch. Also, the outer cover
cap uses a strong plastic with excellent
mechanical characteristics. An M4 bolt
can be used for the attachment.
3. The overtravel (O.T.) is large with
great shock absorption
4. The switch itself is constructed to
be dust-proof and oil resistant
The switch itself is closed flush with the
diaphragm and the compressed rubber
ring, so that the terminal mold type
(epoxy-sealed terminal type) is perfectly
flush with the terminal parts.
TYPICAL APPLICATIONS
Used in sequence control of food pro-
cessing machines, automatic packaging
machines, conveyers, and processors.
Ideal for light industry machinery when
installation pace is limited and a protec-
tive construction is sought.
Standard type
(Short roller lever)
RoHS Directive compatibility information
http://www.nais-e.com/
PRODUCT TYPE
1. Standard type
Actuator
Short push plunger
Push plunger
Hinge lever
Roller lever
One-way roller lever
Hinge short lever
Short roller lever
One-way short roller lever
Panel mount push plunger
Panel mount roller plunger
Panel mount cross roller plunger
Flexible rod
Part No.
AZ7100
AZ7110
AZ7120
AZ7121
AZ7124
AZ7140
AZ7141
AZ7144
AZ7310
AZ7311
AZ7312
AZ7166
2. Terminal mold type (epoxy-sealed terminal type)
Actuator
Short push plunger
Push plunger
Hinge lever
Roller lever
One-way roller lever
Hinge short lever
Short roller lever
One-way short roller lever
Panel mount push plunger
Panel mount roller plunger
Panel mount cross roller plunger
Flexible rod
Cord outlet direction
N.C.
COM
Part No.
AZ7400
AZ7401
AZ7405
AZ7406
AZ7410
AZ7411
AZ7415
AZ7416
AZ7420
AZ7421
AZ7425
AZ7426
AZ7430
AZ7431
AZ7435
AZ7436
AZ7440
AZ7441
AZ7445
AZ7446
AZ7450
AZ7451
AZ7460
AZ7461
Notes) 1. When ordering an overseas-specified product,refer to the foreign
standards overview.
2. Cadmium free contact types are available on a custom-made basis.
Please add an “F” to the end of the part number when ordering.
33
ML (AZ7)
FOREIGN STANDARDS
Standards
UL
Applicable product
File No.
: E122222
Ratings
: 10A 250V AC
Product type : Standard type only
File No.
: E122222
Ratings
: 10A 250V AC
Product type : Standard type only
File No.
: J9551204
Ratings
: AC-15 2A/250V~
Product type : Standard type only
Part No.
C-UL
Order by standard part No.
TÜV
SPECIFICATIONS
1. Rating
Rated control voltage
125V AC
250V AC
115V DC
Load
Resistive load (cos
φ
]1)
10A
10A
0.4A
Inductive load (cos
φ
]0.4)
6A
4A
0.05A
Motor or lamp load
N.C. contact
N.O. contact
3A
1.5A
1.5A
1A
–
–
2.Characteristics
Contact arrangement
Initial contact resistance, max.
Contact material
Initial insulation resistance (At 500V DC)
Initial breakdown voltage
Shock resistance
Vibration resistance
Mechanical
Electrical
Ambient temperature/Ambient humidity
Max. operating speed
Expected life
(Min. operation)
* The resistance of a copper wire is not included.
In the free position
In the full operating position
1 Form C
15mΩ* (By voltage drop 6 to 8V DC at rated current)
AgCdO contact
Min. 100 MΩ
1,500 Vrms for 1 min Between non-consecutive terminals
2,000 Vrms for 1 min Between dead metal parts and each terminal
2,000 Vrms for 1 min Between ground and each terminal
Max. 98m/s
2
{10G}
Max. 294m/s
2
{30G}
55 Hz, double amplitude of 1.5 mm
10
7
(at 50 cpm)
2
10
5
(at 20 cpm)
–20 to +60°C
–4 to +140°F/Max.
95% R.H. (at 20°C
68°F)
120 cpm
3.EN60947-5-1 performance
Item
Rated insulation voltage (Ui)
Rated impulse withstand voltage (Uimp)
Switching over voltage
Rated enclosed thermal current (Ithe)
Conditional short-circuit current
Short-circuit protection device
Protective construction
Pollution degree
Rating
250VAC
2.5kV
2.5kV
10A
100A
10A fuse
IP64 (switch)
3
DATA
1. Life curve
10
8
Operations (
10
4
)
10
7
10
6
1
2
5V
AC
cos
φ
1
4. Operating characteristics
Movement
Pretravel
Overtravel
Differential
O.F. (N{gf}) R.F. (N{gf})
(P.T.), max.
(O.T.), min.
(M.D.), max.
max.
min.
mm
inch
mm
inch
Actuator
mm
inch
5.88 {600}
0.98 {100}
2.0
.079
0.8
.031
0.8
.031
Short push plunger
Push plunger
5.88 {600}
0.98 {100}
2.0
.079
0.8
.031
5.0
.197
Hinge lever
1.47 {150}
0.39 {40}
13.5
.531
3.2
.126
4.0
.157
Roller lever
1.77 {180}
0.49 {50}
11.0
.433
2.4
.094
3.0
.118
One-way roller lever
1.96 {200}
0.59 {60}
11.0
.433
2.4
.094
3.0
.118
Hinge short lever
2.16 {200}
0.59 {60}
8.5
.335
2.0
.079
2.5
.098
Short roller lever
2.35 {240}
0.78 {80}
6.5
.256
1.5
.059
2.0
.079
One-way short roller lever
2.75 {280}
0.98 {100}
6.5
.256
1.5
.059
2.0
.079
Panel mount push plunger
5.88 {600}
0.98 {100}
2.0
.079
0.8
.031
6.0
.236
Panel mount roller plunger
5.88 {600}
0.98 {100}
2.0
.079
0.8
.031
6.0
.236
Panel mount cross roller plunger 5.88 {600}
0.98 {100}
2.0
.079
0.8
.031
6.0
.236
Flexible rod
1.18 {120}
–
25
.984
–
11
.433
Characteristics
Note) For the operating characteristics, refer to the TECHNICAL INFORMATION.
Operating Position
(O.P.) mm
inch
30±0.8
1.181±.031
44±1.2
1.732±.047
25±2.0
.984±.079
40±1.9
1.575±.75
50±2.0
1.969±.079
25±1.3
.984±.051
40±1.6
1.575±.063
50±1.6
1.969±.063
21.8±0.8
.858±.031
33.3±1.2
1.311±.047
33.3±1.2
1.311±.047
36
1.417
(T.T.)
10
5
5
10
Load current (A)
WIRING DIAGRAM
Circuit
ML
COM
N.C.
N.O.
Terminal
5. Protective characteristics
Protective construction
IEC
IP60
IP64
Standard type
Terminal mold type
(Epoxy-sealed terminal type)
COM
N.O.
N.C.
–
Standard type
34
ML (AZ7)
DIMENSIONS

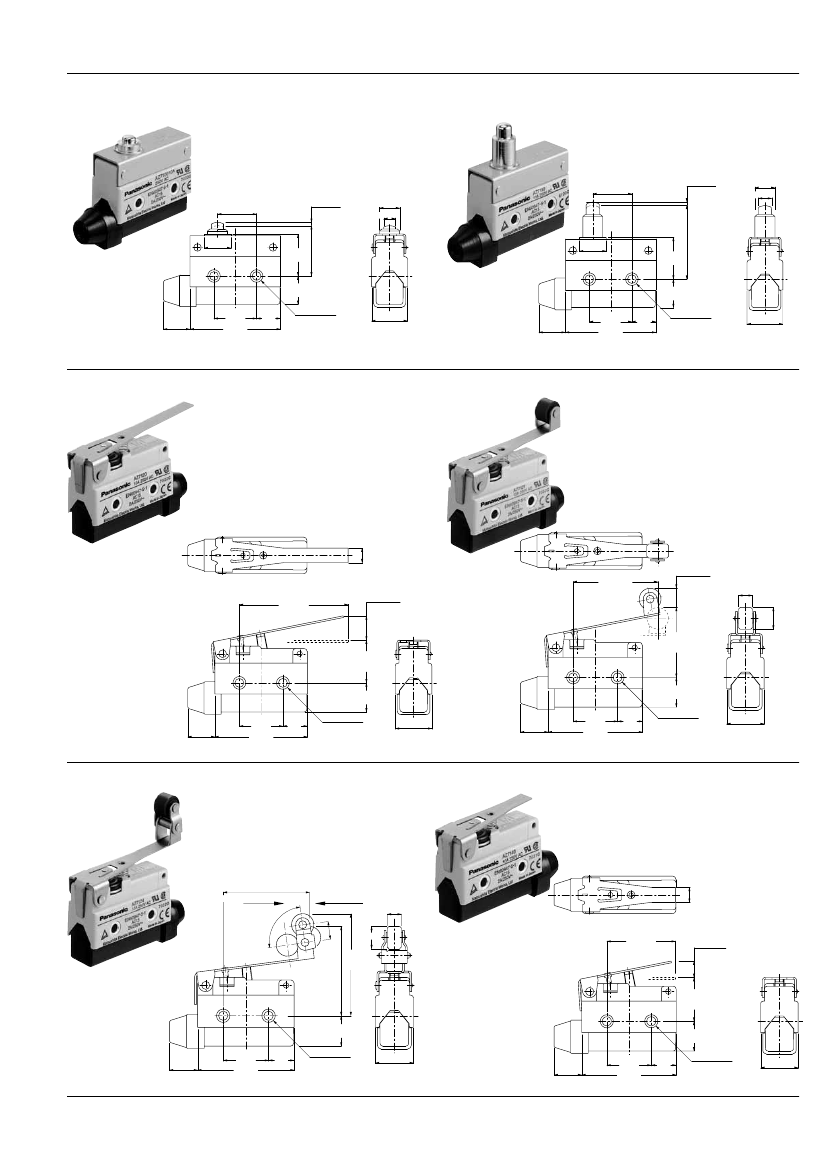

• Short push plunger
• Push plunger
AZ7100
AZ7110
23.3±0.3
.917±.012
23.3±0.3
.917±.012
(P.T.) 2 max.
.079
12 dia.
.472
7 dia.
.276
(O.P.)
44±1.2
1.732±.047
(P.T.) 2 max.
.079
12 dia.
.472
8 dia.
.315
mm
inch
16 dia.
.630
(O.P.)
(25) 30±0.8
(.984) 1.181±.031
16 dia.
.630
(25)
(.984)
17±0.8
.669±.031
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
4.2±0.2 dia.
21.4
.843
25.4±0.15
1 inch
54±0.2
2.126±.008
17±0.8
.669±.031
14.3
.563
4.2±0.2 dia.
21.4
.843
16.5 max.
.650
16.5 max.
.650
General tolerance: ±0.4
±.016
• Hinge lever
• Roller lever
AZ7120
AZ7121
8.5±0.1
.335±.004
48.35±1.0
1.904±.039
63.5±1.0
2.500±.039
(P.T.) 13.5 max.
.531
(P.T.) 11.0 max.
.433
8.0
.315
12.5 dia.
.492
(O.P.)
40±1.9
1.575±.075
(O.P.)
25±2.0
.984±.079
17±0.8
.669±.031
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
4.2±0.2 dia.
21.4
.843
16.5 max.
.650
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
17±0.8
.669±.031
4.2±0.2 dia.
21.4
.843
16.5 max.
.650
General tolerance: ±0.4
±.016
• One-way roller lever
• Hinge short lever
AZ7124
AZ7140
48.35±1.0
1.904±.039
OPERATING DIRECTION
m
S
wi
v
e
a
n
gl
e
l
ax
UNOPERATING
DIRECTION
8.0
.315
8.5±0.1
.335±.004
90
°
12.5 dia.
.492
10
4
(
.39
F.P.)
57±2.0
(O.P.)
2.244±.079
50±2.0
1.969±.079
39.2±1.0
1.543±.039
(P.T.) 8.5 max.
.335
(O.P.)
25±1.3
.984±.051
17±0.8
.669±.031
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
4.2±0.2 dia.
21.4
.843
17±0.8
.669±.031
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
4.2±0.2 dia.
21.4
.843
16.5 max.
.650
16.5 max.
.650
General tolerance: ±0.4
±.016
35
ML (AZ7)
• Short roller lever
• One-way short roller lever
mm
inch
AZ7141
AZ7144
30.2±1.0
1.189±.039
(P.T.) 6.5 max.
.256
OPERATING DIRECTION
x
ma
S
wi
v
e
a
n
gl
e
l
UNOPERATING
DIRECTION
8.0
.315
30.2±1.0
1.189±.039
8.0
.315
90
°
12.5 dia.
.492
(O.P.)
40±1.6
1.575±.063
12.5 dia.
.492
10
(F.P.)
.394
55±1.6
2.165±.063
(O.P.)
50±1.6
1.969±.063
17±0.8
.669±.031
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
4.2±0.2 dia.
21.4
.843
16.5 max.
.650
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
17±0.8
.669±.031
4.2±0.2 dia.
21.4
.843
16.5 max.
.650
General tolerance: ±0.4
±.016

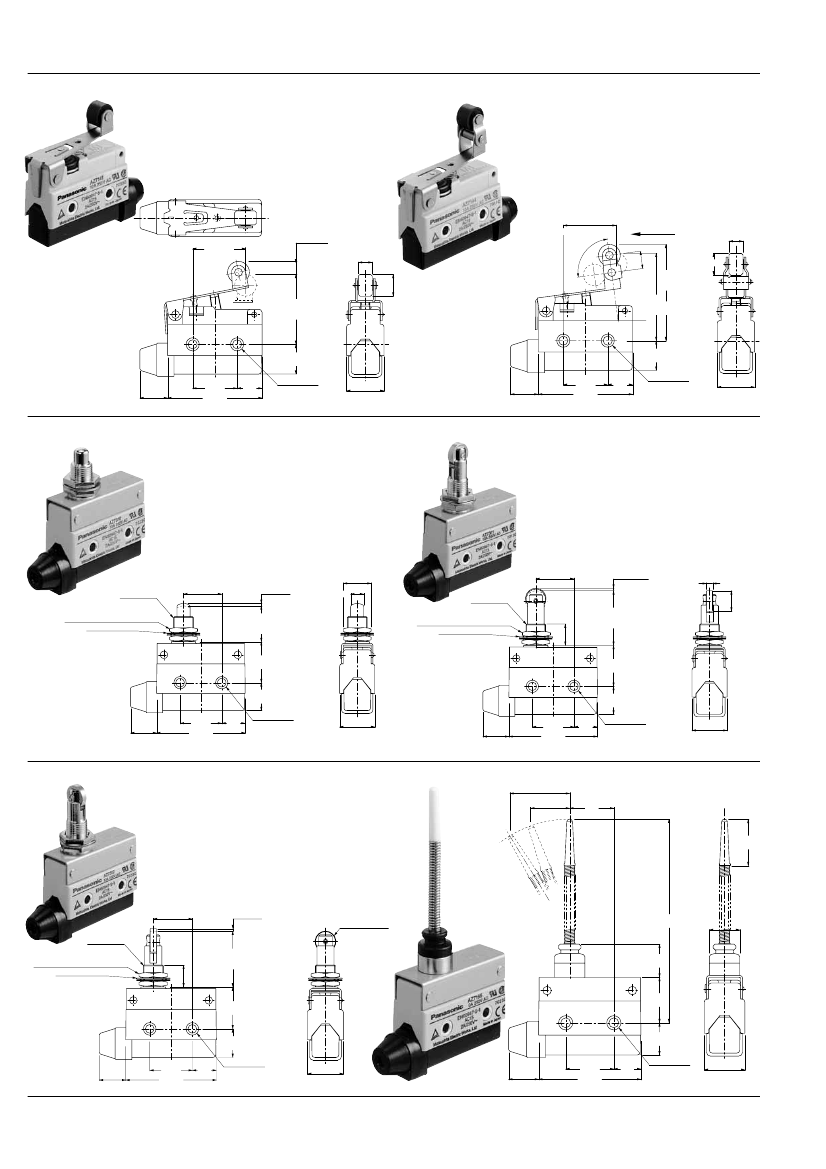

• Panel mount push plunger
• Panel mount roller planger
AZ7310
AZ7311
M12(P=1.0)
2-panel mounting nut
Thickness 3.2
.126
Length of opposite side 17
.669
Teethed washer
23.3±0.5
.917±.020
17
.669
(P.T.) 2 max.
.079
(O.P.)
21.8±0.8
.858±.031
8 dia.
.315
M12(P=1.0)
2-panel mounting nut
Thickness 3.2
.126
Length of opposite side 17
.669
Teethed washer
23.3±0.5
.917±.020
(P.T.) 2 max.
.079
3.8
.150
12.5 dia.
.492
15.3
.602
(O.P.)
33.3±1.2
1.311±.047
(25)
(.984)
(25)
(.984)
17±0.8
.669±.031
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
4.2±0.2 dia.
21.4
.843
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
17±0.8
.669±.031
4.2±0.2 dia.
21.4
.843
16.5 max.
.650
16.5 max.
.650
General tolerance: ±0.4
±.016
• Panel mount cross roller planger
• Flexible rod
Total travel (36)
(1.417)
Pretravel (25)
(.984)
23.3
.917
24.5
.965
(Range of
operating
position)
AZ7312
23.3±0.5
.917±.020
(P.T.) 2 max.
.079
12.5 dia. 3.8
.492 dia.
.150
107.5±1.5
4.232±.059
M12(P=1.0)
2-panel mounting nut
Thickness 3.2
.126
Length of opposite side 17
.669
Teethed washer
16 dia.
.630
15.3
.602
(O.P.)
33.3±1.2
1.311±.047
17.5
.689
(25)
(.984)
24
.945
17±0.8
.669±.031
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
4.2±0.2 dia.
21.4
.843
25.4±0.15
1 inch
54±0.2
2.126±.008
14.3
.563
17±0.8
.669±.031
4.2±0.2 dia.
21.4
.843
AZ7166
16.5 max.
.650
16.5 max.
.650
General tolerance: ±0.4
±.016
36
京公网安备 11010802033920号
EEWORLD
