SURFACE MOUNT DISPLAY
APDC04-41VGKWA
GREEN
Features
!
0.4INCH
Description
The Green source color devices are made with InGaN
on SiC Light Emitting Diode.
DIGIT HEIGHT.
!
LOW CURRENT OPERATION.
!
EXCELLENT
CHARACTER APPEARANCE.
!
I.C. COMPATIBLE
!
MECHANICALLY RUGGED.
!
GRAY FACE,WHITE SEGMENT.
!
PACKAGE:500PCS/REEL.

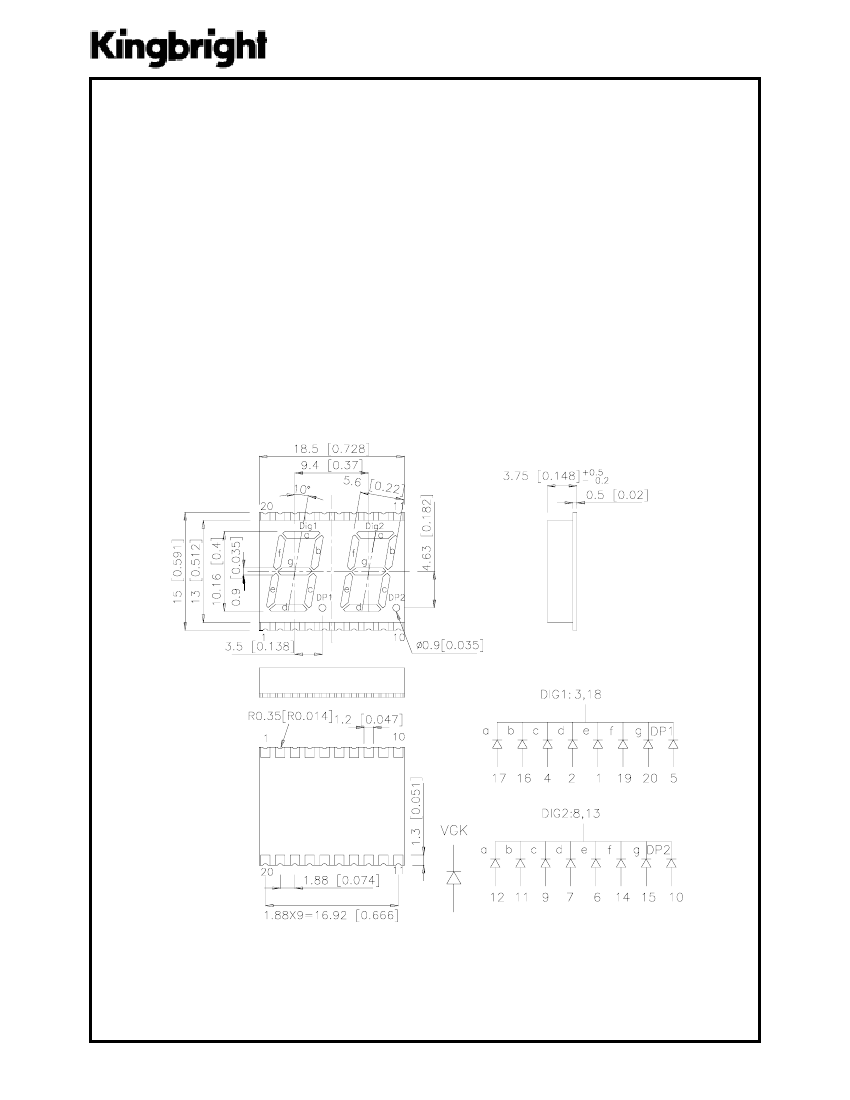

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change whitout notice.
SPEC NO: DSAC1688
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/15/2002
DRAWN: S.J.HOU
PAGE: 1 OF 5
Selection Guide
Iv (u c d )
@ 10 m A
Min .
APDC04-41VGKWA
GREEN(InGaN)
WHITE DIFFUSED
12000
Ty p .
47000
Common Cathode,Rt.
Hand Decimal
P ar t N o .
Dic e
L en s Ty p e
D es c r i p t i o n
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
Green
Green
D ev i c e
Ty p .
515
525
30
45
4.2
4.8
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Spectral Line Half-width Green
Capacitance
Forward Voltage
Reverse Current
Green
Green
Green
°
Absolute Maximum Ratings at T
A
=25°C
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Gr een
105
25
130
5
-40
°
C To +85
°C
Un its
mW
mA
mA
V
SPEC NO: DSAC1688
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/15/2002
DRAWN: S.J.HOU
PAGE: 2 OF 5

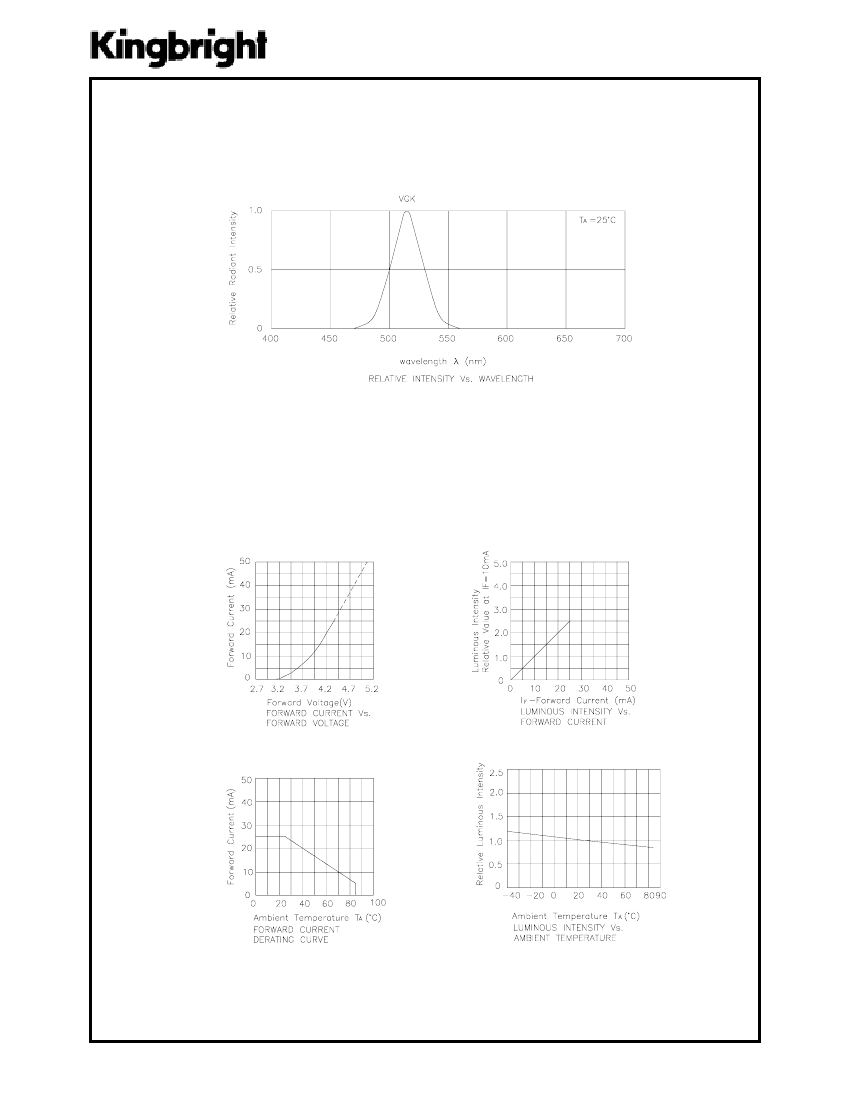

Green APDC04-41VGKWA
SPEC NO: DSAC1688
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/15/2002
DRAWN: S.J.HOU
PAGE: 3 OF 5
APDC04-41VGKWA
SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
SPEC NO: DSAC1688
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/15/2002
DRAWN: S.J.HOU
PAGE: 4 OF 5

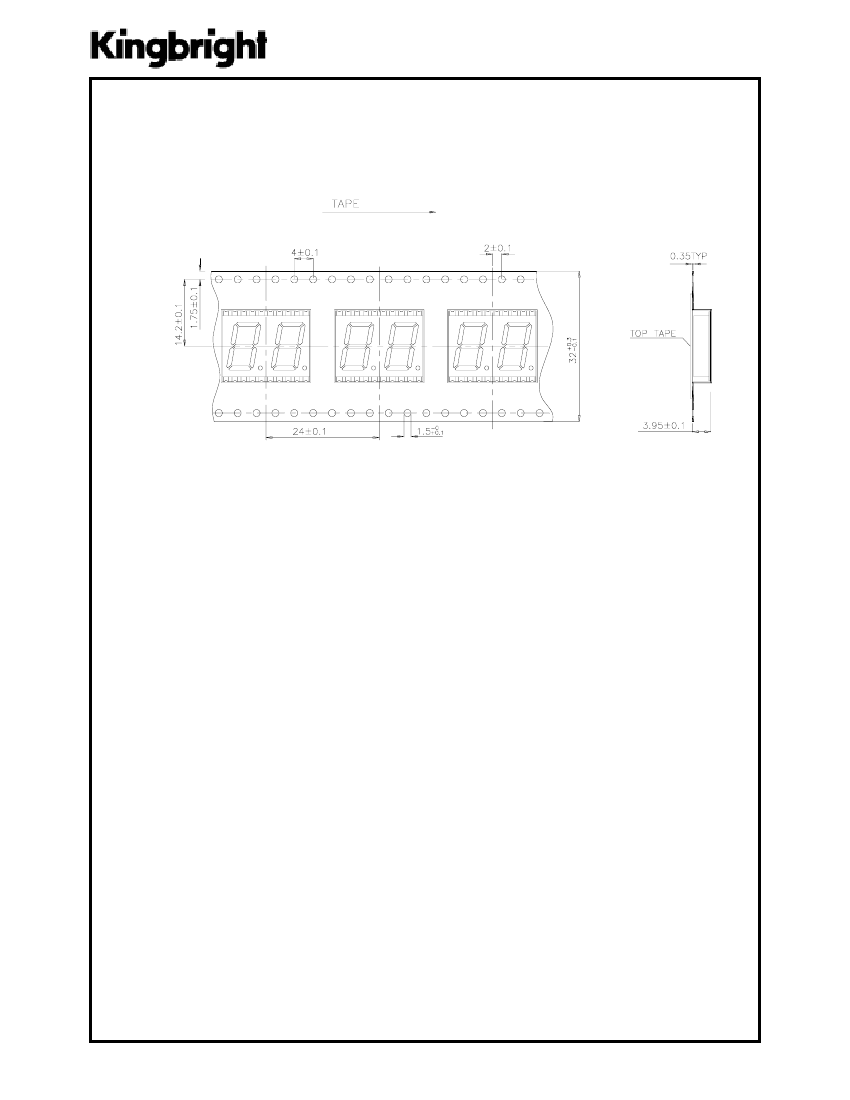

Tape Specifications
(Units : mm)
SPEC NO: DSAC1688
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/15/2002
DRAWN: S.J.HOU
PAGE: 5 OF 5
