Crimp
VH
CONNECTOR
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Proven box contact
This connector was developed with the same box-shaped
contact design used successfully in the NH connectors. The
reliable VH connector can be used in a wide variety of
applications, from low-voltage, low-current signal circuits to
power supply circuits having a relatively large capacity.
3.96mm
(.156") pitch
• Compact connector with a large capacity
Even though this connector has a large current carrying
capacity (10A), it is compact, with a mounting height of 16.5mm
(.650").
• Secure contact and mounting
The housing has a lock mechanism which prevents the
connector from coming loose due to vibration. The mechanism
also prevents misinsertion (misalignment or reverse insertion).

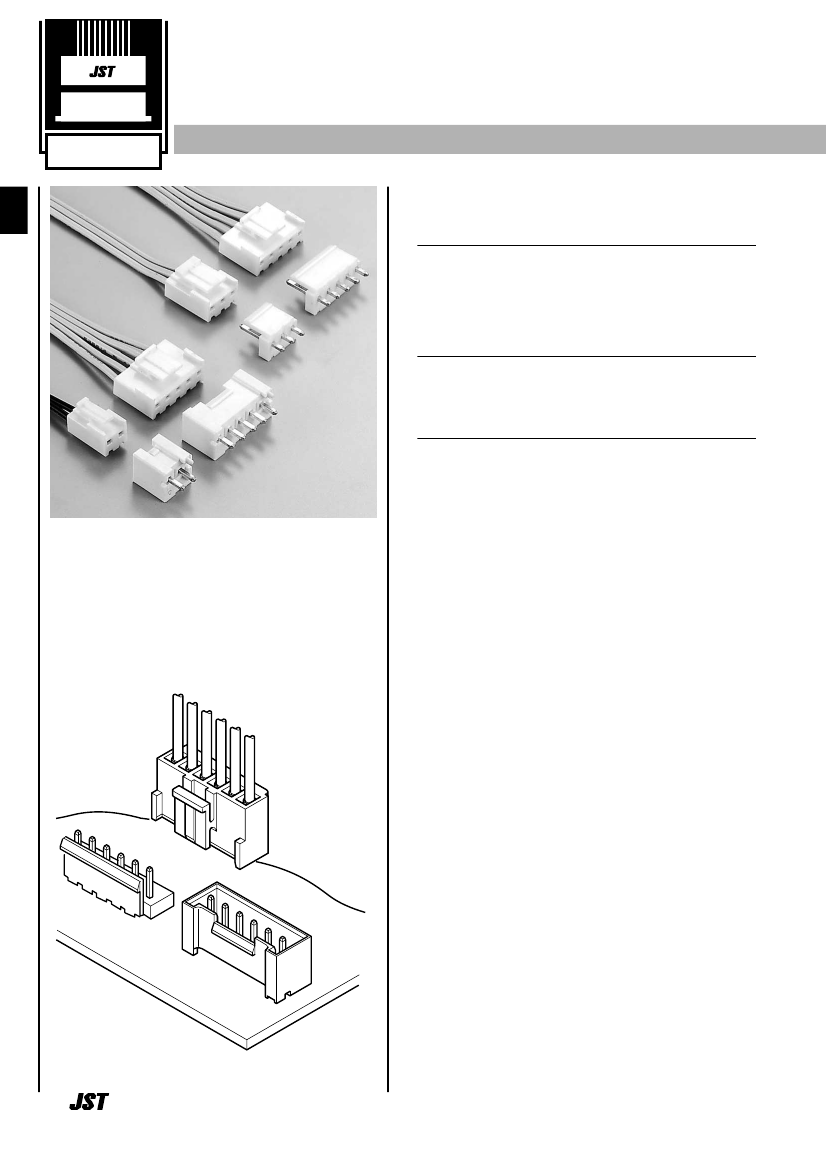

This small, field-proven connector for
printed circuit boards is reliable and has a
large current carrying capacity. It can be
used with a wide variety of signal, power
supply, and output circuits that appear in
consumer electronic products.
Specifications –––––––––––––––––––
• Current rating: 10A AC, DC (AWG#16)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #22 to #16
• Applicable PC board thickness: 1.6mm(.063")
Note:
Do not branch in parallel current which exceeds the rated current. If branched in
parallel, current imbalance or other problems may develop. If it is absolutely
necessary to branch such a large current in parallel, be sure to use contacts
made of phosphor bronze. Design the circuits without causing imbalance and
provide an extra margin for each circuit.
6
5
4
3
2
6
JS
T
1
* Contact JST if Lead-Free product is required.
* Temperature Range:
The aforementioned temperature range of this connector is
described in JST Standard Product Specification.
Maximum temperature registered in UL is 105˚C.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
1
2
190
Certified LR20812
R75122
VH
CONNECTOR

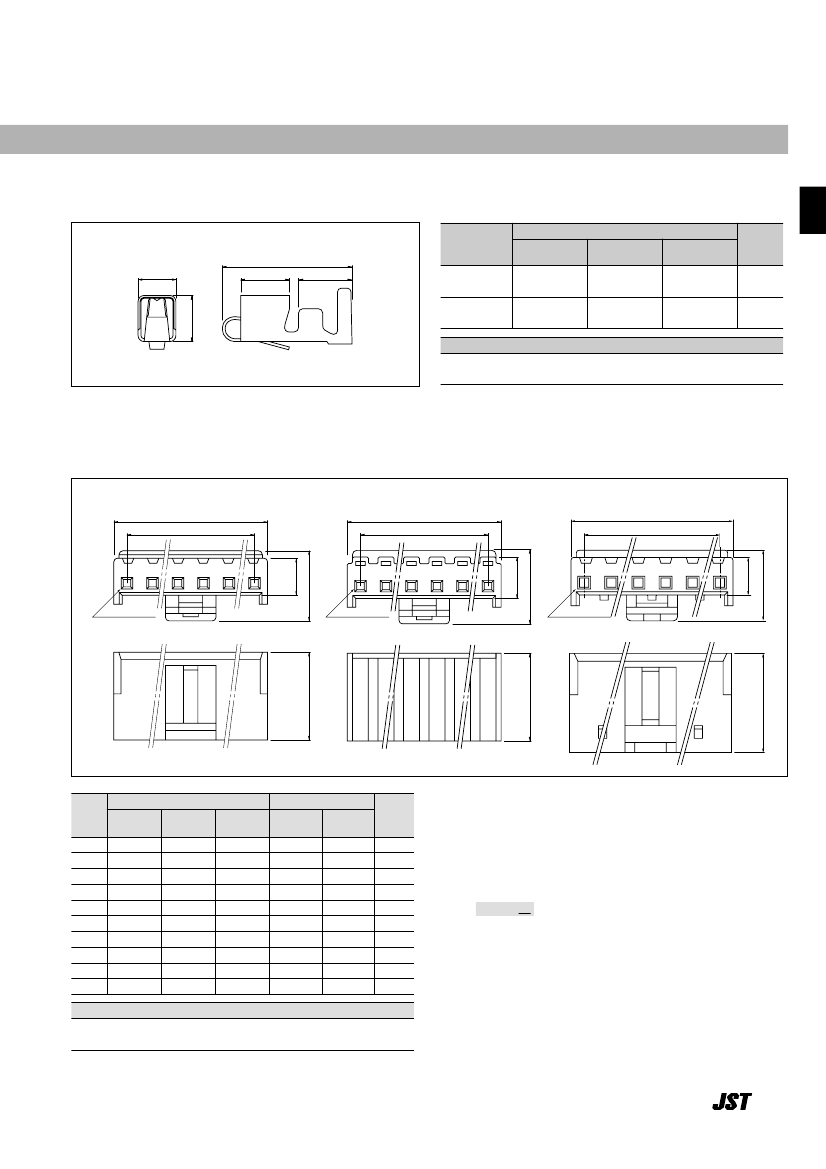

Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Applicable wire
Model No.
mm
2
0.33 to 0.83
3.0(.118)
3.8(.150)
10.6(.417)
4.0(.157)
4.2(.165)
AWG #
22 to 18
Insulation O.D.
mm(in.)
1.7 to 3.0
(.067 to .118)
1.7 to 3.0
(.067 to .118)
Q'ty /
reel
4,500
SVH-21T-P1.1
SVH-41T-P1.1
0.5 to 1.25
20 to 16
3,500
Material and Finish
Phosphor bronze, tin-plated
Note: 1. Contact JST if you require contacts made of brass.
2. When using retainer mountable type housing, applicable wire's
insulation O. D. shall be 1.7 to 2.2mm(.067" to .087").
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
N type
B
A
M type
B
A
6.2(.244)
10.6(.417)
Retainer mountable type
B
A
5.7
(.224)
10.5(.413)
5.7(.224)
Circuit No.1
Circuit No.1
Circuit No.1
13.3(.524)
13.3(.524)
Cir-
cuits
2
3
4
5
6
7
8
9
10
11
Model No.
N type
VHR-2N
VHR-3N
VHR-4N
VHR-5N
VHR-6N
VHR-7N
VHR- 8N
VHR- 9N
VHR-10N
VHR-11N
M type
VHR-2M
VHR-3M
VHR-4M
VHR-5M
VHR-6M
VHR-7M
–
VHR-9M
–
–
Retainer
mountable
type
Dimensions mm(in.)
A
3.96( .156)
B
7.86( .309)
Q'ty /
bag
1,000
1,000
1,000
1,000
500
500
500
500
500
500
VHRR-2N
VHRR-3N
–
–
Note: 1. Models identified as VHR-( ) M incorporate measures to prevent
electric shock and are thus safer in regard to high voltages.
2. The applicable housing for 2-circuits shrouded header is "VHR-2N"
only. "VHRR-2N" is not applicable.
¨
3. Models VHR-11N and VHRR-(
)N are not TUV approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
VHR-2N-oo-
(blank)…natural (white)
BK…black R…red BL…blue M…green D…orange Y…yellow
PK…pink H…gray
7.92( .312) 11.82( .465)
11.88( .468) 15.78( .621)
VHRR-5N
15.84( .624) 19.74( .777)
19.80( .780) 23.70( .933)
VHRR-7N
23.76( .935) 27.66(1.089)
VHRR-8N
27.72(1.091) 31.62(1.245)
VHRR-9N
31.68(1.247) 35.58(1.401)
–
–
Material
35.64(1.403) 39.54(1.557)
39.60(1.559) 43.50(1.713)
Nylon 6, UL94V-0, natural (white)
14.8(.583)
10.5(.413)
191
VH
CONNECTOR
Retainer –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2 circuits : 2.6(.102)
3 to 9 circuits : 4.2(.165)
Model No.
VHS-2V
VHS-3V
VHS-5V
VHS-7V
VHS-8V
VHS-9V
Material
A
3.70(1.146)
7.52(1.296)
15.44(1.608)
23.36(1.920)
27.32(1.076)
31.28(1.231)
Q'ty / bag
1,000
1,000
1,000
1,000
1,000
1,000
2
3
5
7
8
9
A
Glass-filled nylon 66, UL94V-0, natural (ivory)
¨
Note: Not TUV approved.
7.1(.280)
Locking header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
2.0(.079)
Model No.
Dimensions mm(in.)
A
3.96( .156)
7.92( .312)
11.88( .468)
15.84( .624)
19.80( .780)
23.76( .935)
27.72(1.091)
31.68(1.247)
35.64(1.403)
Q’ty / box
Top
entry
type
1,000
1,000
500
500
250
250
200
200
200
Circuit No.1
8.5(.335)
[9.4(.370)]
1.14(.045)
Cir-
cuits
2
3
4
5
Top entry
type
B 2P-VH
B 3P-VH
B 4P-VH
B 5P-VH
B 6P-VH
B 7P-VH
B 8P-VH
B 9P-VH
B10P-VH
Side entry
type
B 2PS-VH
B 3PS-VH
B 4PS-VH
B 5PS-VH
B 6PS-VH
B 7PS-VH
B 8PS-VH
B 9PS-VH
B10PS-VH
B
7.86( .309)
11.82( .465)
15.78( .621)
19.74( .777)
23.70( .933)
27.66(1.089)
31.62(1.245)
35.58(1.401)
39.54(1.557)
Side
entry
type
1,000
500
500
250
250
250
200
200
200
A
B
7.7
3.2
(.303)
(.126)
14.6(.575)
6
7
8
9
10
Material and Finish
Side entry type
2.0(.079)
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, natural (white)
Circuit No.1
8.5(.335)
[9.4(.370)]
Note: Headers with a reduced number of posts are also available.
Contact JST for details.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B2P(S)-VH-oo-
(blank)…natural (white)
BK…black R…red TR…tomato red BL…blue M…green
O…orange Y…yellow PK…pink H…gray
1.14
3.96
(.045) (.156)
A
B
7.7
3.2
(.303) (.126)
14.9(.587)
192
VH
CONNECTOR
Locking header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type of PBT
[1.95
(.077)]
Model No.
Cir-
cuits
Top entry
type of
PBT
B 2P-VH-B
B 3P-VH-B
B 4P-VH-B
B 5P-VH-B
B 6P-VH-B
B 7P-VH-B
B 8P-VH-B
B 9P-VH-B
B10P-VH-B
B11P-VH-B
Side entry
type with
PCB stabilizer
S2P-VH
S3P-VH
S4P-VH
S5P-VH
-
Dimensions mm(in.)
A
3.96( .156)
7.92( .312)
11.88( .468)
15.84( .624)
19.80( .780)
23.76( .935)
27.72(1.091)
31.68(1.247)
35.64(1.403)
39.60(1.559)
Q'ty / box
Top
entry
type
1,000
500
500
250
250
250
200
200
200
-
B
A
[1.95
(.077)]
6.8
1.7
(.268) (.067)
8.5(.335)
[9.4(.370)]
2
3
4
B
7.86( .309)
11.82( .465)
15.78( .621)
19.74( .777)
23.70( .933)
27.66(1.089)
31.62(1.245)
35.58(1.401)
39.54(1.557)
43.50(1.713)
Side
entry
type
1,000
500
500
250
-
250
-
-
-
-
1.14(.045)
5
6
Circuit No.1
7.7
3.2
(.303) (.126)
[14.6(.575)]
7
8
9
10
11
S7P-VH
-
-
-
-
Side entry type with PCB stabilizer
B
4.5
[9.4(.370)]
(.177)
Material and Finish
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Top entry type of PBT: Glass-filled PBT, UL94V-0, natural (ivory)
Side entry type with PCB stabilizer: Nylon 66, UL94V-0, natural (white)
4.8(.189)
1.14
(.045)
Circuit No.1
A
7.7
(.303)
13.4(.528)
¨
Note : B11P-VH-B is not TUV approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
<Top entry type of PBT>
ex.
B2P-VH-B-oo-
(blank)…natural (ivory)
C…black R…red E…blue M…green Y…yellow
S2P-VH-oo-
(blank)…natural (white)
BK…black R…red BL…blue Y…yellow M…green
3.6
(.142)
<Side entry type with PCB stabilizer>
ex.
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(2 , 3 circuits)
B
9.7(.382)
Circuits
2
3
4
5
11.0(.433)
1.5(.059)
Model No.
B 2P-VH-FB-B
B 3P-VH-FB-B
B 4P-VH-FB-B
B 5P-VH-FB-B
B 6P-VH-FB-B
B 7P-VH-FB-B
B 8P-VH-FB-B
B 9P-VH-FB-B
B10P-VH-FB-B
Dimensions mm(in.)
A
B
3.96( .156)
7.92( .312)
11.88( .468)
15.84( .624)
19.80( .780)
23.76( .935)
27.72(1.091)
31.68(1.247)
35.64(1.403)
9.80( .386)
13.76( .542)
17.72( .698)
21.68( .854)
25.64(1.009)
29.60(1.165)
33.56(1.321)
37.52(1.477)
41.48(1.633)
Q'ty / box
250
200
150
200
200
100
100
100
125
6
7
8
3.7
(.146)
9
10
1.14(.045)
A
Circuit No.1
Material and Finish
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Glass-filled PBT, UL94V-0, natural (white)
(4 to 10 circuits)
B
9.7(.382)
1.5(.059)
11.0(.433)
Note : The applicable housing for 2-circuits shrouded header is "VHR-2N" only.
"VHRR-2N" is not applicable.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
3.7
(.146)
3.96
(.156)
A
Circuit No.1
1.14(.045)
B2P-VH-FB-B-oo-
(blank)…natural (white)
R…red C…black E…blue M…green Y…yellow O…orange
H…gray PK…pink
193
VH
CONNECTOR
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Locking header
Top entry type
3.96
±
0.05
(.156
±
.002)
10.5(.413)
Locking header
Side entry type
3.96
±
0.05
(.156
±
.002)
*7.2
(.283)
min.
20.5(.807)
8.0
(.315)
10.5
(.413)
*7.2
(.283)
min.
10.5(.413)
0.1
1.65
+ 0
.004
(.065
+ 0
)dia.
16.5(.650)
0.1
1.65
+ 0
.004
(.065
+ 0
)dia.
*11.0(.433) max. when used with the VR connector receptacle.
Locking header
Side entry type with PCB stabilizer
3.96
±
0.05
(.156
±
.002)
21.0(.827)
Shrouded header
3.96
±
0.05
(.156
±
.002) 1.5(.059)
Circuit No.1
0.1
1.4
+ 0
(.055
+ .004
)dia.
0
10.5
(.413)
3.4±0.05
(.134.002)
0.1
1.65
+ 0
.004
(.065
+ 0
)dia.
19.0(.748)
1.65
+ 0.1
0
(.065
+ .004
)dia.
0
Note:
1. Tolerances are non-cumulative:
±
0.05mm(
±
.002) for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SVH-21T-P1.1
SVT-41T-P1.1
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SVH21-11
APLMK SVT41-11
APLNC SVH21-11
APLNC SVT41-11
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
–
–
Strip-crimp applicator MKS-SC
with safety cover
APLSC SVH21-11
–
194
16.5(.650)
京公网安备 11010802033920号
EEWORLD
