DTA024X series
PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
l
Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
Value
-50V
-100mA
22kΩ
47kΩ
VMT3
EMT3F
DTA024XM
(SC-105AA)
UMT3F
DTA024XEB
(SC-89)
l
Features
1) Built-In Biasing Resistors, R
1
= 22kΩ,
R
2
= 47kΩ
2) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see inner circuit) .
3) The bias resistors consist of thin-film resistors
with complete isolation to allow negative biasing
of the input. They also have the advantage of
completely eliminating parasitic effects.
4) Only the on/off conditions need to be set
for operation, making the circuit design easy.
5) Complementary NPN Types: DTC024X series
6) Lead Free/RoHS Compliant.
DTA024XUB
(SC-85)
l
Inner circuit
l
Application
Switching circuit, Inverter circuit, Interface circuit,
Driver circuit
l
Packaging specifications
Part No.
DTA024XM
DTA024XEB
DTA024XUB
Package
Package
size
VMT3
EMT3F
UMT3F
1212
1616
2021
Taping
code
T2L
TL
TL
Reel size Tape width
(mm)
(mm)
180
180
180
8
8
8
Basic
ordering
unit.(pcs)
8000
3000
3000
Marking
59
59
59
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
1/7
20130828 - Rev.002
DTA024X series
Datasheet
l
Absolute maximum ratings
(T
a
= 25°C)
Parameter
Supply voltage
Input voltage
Output current
Collector current
DTA024XM
Power dissipation
DTA024XEB
DTA024XUB
Junction temperature
Range of storage temperature
Symbol
V
CC
V
IN
I
O
I
C(MAX)*1
Values
-50
-40 to 7
-50
-100
150
Unit
V
V
mA
mA
P
D*2
150
200
mW
T
j
T
stg
150
-55 to +150
℃
℃
l
Electrical characteristics
(T
a
= 25°C)
Values
Parameter
Symbol
V
I(off)
Input voltage
V
I(on)
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T*1
Conditions
Min.
V
CC
= -5V, I
O
= -100μA
V
O
= -0.3V, I
O
= -5mA
I
O
/ I
I
= -5mA / -0.5mA
V
I
= -5V
V
CC
= -50V, V
I
= 0V
V
O
= -10V, I
O
= -5mA
-
-
V
CE
= -10V, I
E
= 5mA,
f = 100MHz
-
-2.5
-
-
-
80
15.4
1.7
-
Typ.
-
-
-0.07
-
-
-
22
2.1
250
Max.
-0.5
V
-
-0.15
-0.36
-500
-
28.6
2.6
-
V
mA
nA
-
kΩ
-
MHz
Unit
*1 Characteristics of built-in transistor
*2 Each terminal mounted on a reference footprint
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2/7
20130828 - Rev.002
DTA024X series
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

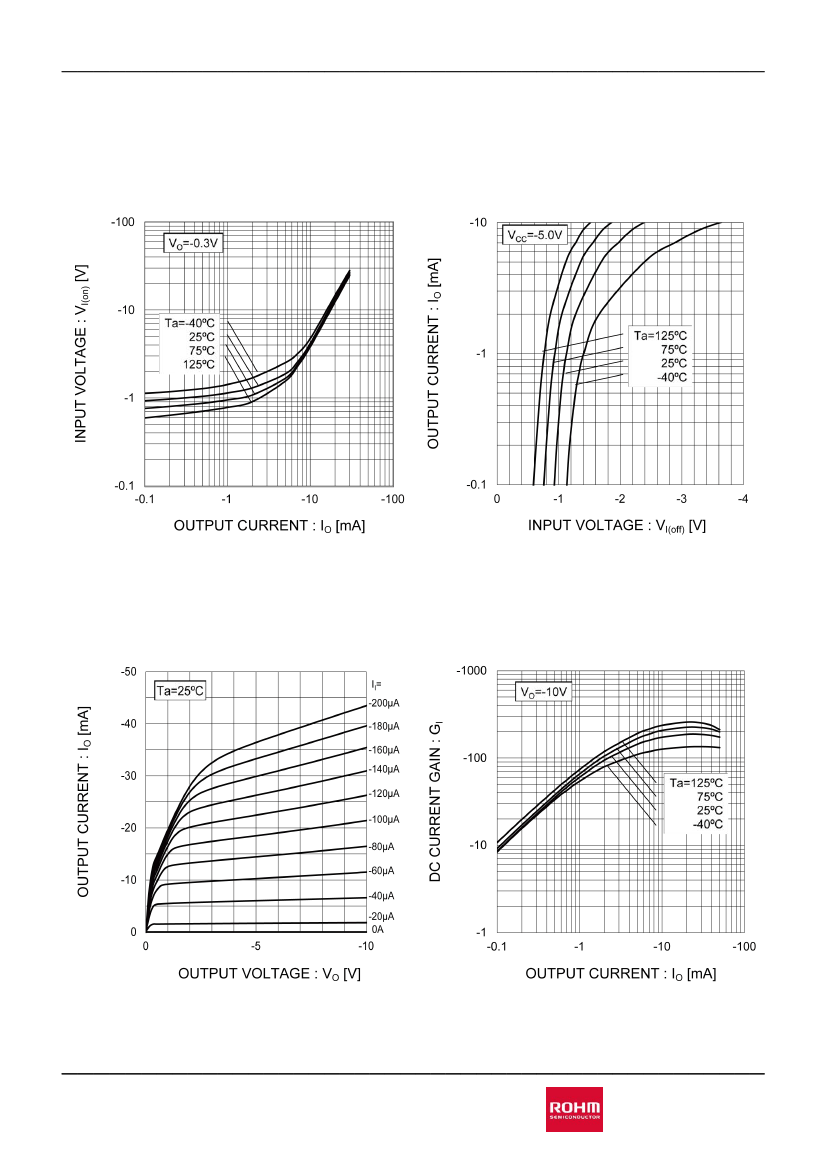

Fig.1 Input voltage vs. output current
(ON characteristics)
Fig.2 Output current vs. input voltage
(OFF characteristics)
Fig.3 Output current vs. output voltage
Fig.4 DC current gain vs. output current
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
3/7
20130828 - Rev.002
DTA024X series
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

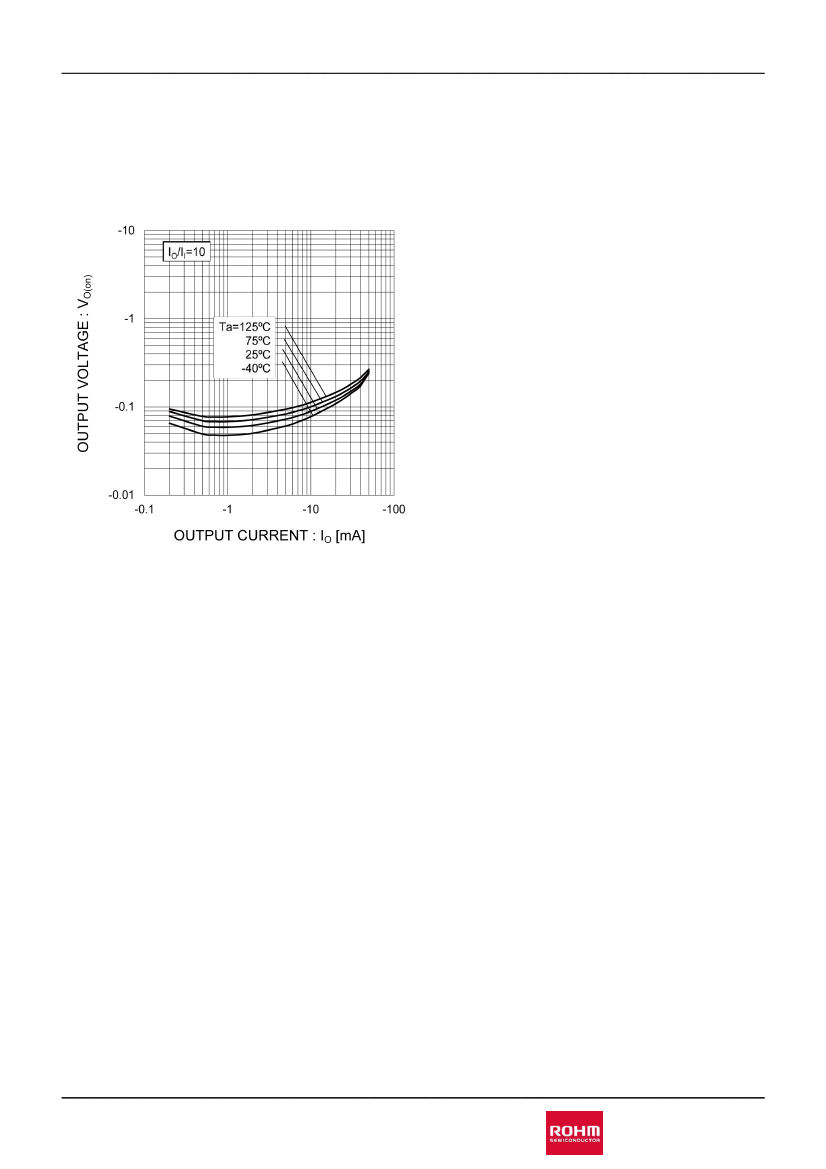

Fig.5 Output voltage vs. output current
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
4/7
20130828 - Rev.002
