DATASHEET

ISL62882, ISL62882B

Multiphase PWM Regulator for IMVP-6.5™ Mobile CPUs and GPUs

The ISL62882 is a multiphase PWM buck regulator for

miroprocessor or graphics processor core power supply. The

multiphase buck converter uses interleaved phases to reduce the

total output voltage ripple with each phase carrying a portion of

the total load current, providing better system performance,

superior thermal management, lower component cost, reduced

power dissipation, and smaller implementation area. The

ISL62882 uses two integrated gate drivers to provide a complete

solution. The PWM modulator is based on Intersil's Robust Ripple

Regulator (R

) technology™. Compared with traditional

modulators, the R

™ modulator commands variable switching

frequency during load transients, achieving faster transient

response. With the same modulator, the switching frequency is

reduced at light load, increasing the regulator efficiency.

The ISL62882 can be configured as CPU or graphics Vcore

controller and is fully compliant with IMVP-6.5™ specifications. It

responds to PSI# and DPRSLPVR signals by adding or dropping

Phase 2, adjusting overcurrent protection threshold accordingly,

and entering/exiting diode emulation mode. It reports the

regulator output current through the IMON pin. It senses the

current by using either discrete resistor or inductor DCR whose

variation over temperature can be thermally compensated by a

single NTC thermistor. It uses differential remote voltage sensing

to accurately regulate the processor die voltage. The unique split

LGATE function further increases light load efficiency. The

adaptive body diode conduction time reduction function

minimizes the body diode conduction loss in diode emulation

mode. User-selectable overshoot reduction function offers an

option to aggressively reduce the output capacitors as well as the

option to disable it for users concerned about increased system

thermal stress. The ISL62882 offers the FB2 function to optimize

1-phase performance.

The ISL62882B has the same functions as the ISL62882, but

comes in a different package.

FN6890

Rev 4.00

June 21, 2011

Features

• Programmable 1- or 2-Phase CPU Mode Operation or

1-Phase GPU Mode Operation

• Precision Multiphase Core Voltage Regulation

- 0.5% System Accuracy Over-Temperature

- Enhanced Load Line Accuracy

• Microprocessor Voltage Identification Input

- 7-Bit VID Input, 0V to 1.500V in 12.5mV Steps

- Supports VID Changes On-The-Fly

• Supports Multiple Current Sensing Methods

- Lossless Inductor DCR Current Sensing

- Precision Resistor Current Sensing

• Supports PSI# and DPRSLPVR modes

• Superior Noise Immunity and Transient Response

• Current Monitor and Thermal Monitor

• Differential Remote Voltage Sensing

• High Efficiency Across Entire Load Range

• Programmable 1- or 2-Phase Operation

• Two Integrated Gate Drivers

• Excellent Dynamic Current Balance Between Phases

• Split LGATE1 Drivers Increases Light Load Efficiency

• FB2 Function Optimizes 1-Phase Mode Performance

• Adaptive Body Diode Conduction Time Reduction

• User-selectable Overshoot Reduction Function

• Small Footprint 40 Ld 5x5 or 48 Ld 6x6 TQFN Packages

• Pb-Free (RoHS Compliant)

Applications

• Notebook Core Voltage Regulator

• Notebook GPU Voltage Regulator

Ordering Information

PART NUMBER

(Notes 1, 2, 3)

ISL62882IRTZ

ISL62882HRTZ

ISL62882BHRTZ

NOTES:

1. Add “-T*” suffix for tape and reel. Please refer to

TB347

for details on reel specifications.

2. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte

tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil

Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

3. For Moisture Sensitivity Level (MSL), please see device information page for

ISL62882, ISL62882B.

For more information on MSL please see techbrief

TB363.

PART MARKING

62882 IRTZ

62882 HRTZ

62882 BHRTZ

TEMP. RANGE

(°C)

-40 to +100

-10 to +100

PACKAGE

(Pb-Free)

40 Ld 5x5 TQFN

48 Ld 6x6 TQFN

PKG.

DWG. #

L40.5x5

L48.6x6

FN6890 Rev 4.00

June 21, 2011

Page 1 of 41

ISL62882, ISL62882B

Pin Configurations

ISL62882

(40 LD TQFN)

TOP VIEW

DPRSLPVR

CLK_EN#

ISL62882B

(48 LD TQFN)

TOP VIEW

DPRSLPVR

CLK_EN#

VR_ON

VID5

VID4

VID6

VID2

VID1

VID3

VID6

VID5

VID3

VID4

VID2

VID1

VID0

40 39 38 37 36 35 34 33 32 31

PGOOD 1

PSI# 2

RBIAS 3

VR_TT# 4

NTC 5

GND PAD

(BOTTOM)

30 BOOT2

29 UGATE2

28 PHASE2

27 VSSP2

26 LGATE2

25 VCCP

24 LGATE1b

23 LGATE1a

22 VSSP1

21 PHASE1

11 12 13 14 15 16 17 18 19 20

ISUM+

UGATE1

BOOT1

VDD

ISEN1

VSEN

IMON

RTN

ISUM-

VIN

NC 1

PGOOD 2

PSI# 3

RBIAS 4

VR_TT# 5

NTC 6

GND 7

COMP 9

FB 10

FB2 11

NC 12

48 47 46 45 44 43 42 41 40 39 38 37

36 BOOT2

35 UGATE2

34 PHASE2

33 VSSP2

32 LGATE2

(BOTTOM)

31 NC

30 VCCP

29 LGATE1b

28 LGATE1a

27 VSSP1

26 PHASE1

25 UGATE1

13 14 15 16 17 18 19 20 21 22 23 24

VSEN

ISUM+

IMON

RTN

ISEN2

ISEN1

VDD

BOOT1

ISUM-

VIN

COMP 7

FB2

ISEN2 10

Functional Pin Descriptions

ISL62882

ISL62882B

SYMBOL

GND

PGOOD

PSI#

RBIAS

DESCRIPTION

Signal common of the IC. Unless otherwise stated, signals are referenced to the GND pin.

Power-Good open-drain output indicating when the regulator is able to supply regulated voltage.

Pull-up externally with a 680 resistor to VCCP or 1.9k to 3.3V.

Low load current indicator input. When asserted low, indicates a reduced load current condition.

A resistor to GND sets internal current reference. Use 147k or 47k. The choice of Rbias value,

together with the ISEN2 pin configuration and the external resistance from the COMP pin to GND,

programs the controller to enable/disable the overshoot reduction function and to select the

CPU/GPU mode.

Thermal overload output indicator.

Thermistor input to VR_TT# circuit.

A resistor from this pin to COMP programs the switching frequency (8k gives approximately

300kHz).

This pin is the output of the error amplifier. Also, a resistor across this pin and GND adjusts the

overcurrent threshold.

This pin is the inverting input of the error amplifier.

There is a switch between the FB2 pin and the FB pin. The switch is on in 2-phase mode and is

off in 1-phase mode. The components connecting to FB2 are used to adjust the compensation

in 1-phase mode to achieve optimum performance.

Individual current sensing for Phase 2. When ISEN2 is pulled to 5V VDD, the controller will

disable Phase 2.

Individual current sensing for phase 1.

Remote core voltage sense input. Connect to microprocessor die.

VR_TT#

NTC

COMP

FB2

ISEN2

ISEN1

VSEN

FN6890 Rev 4.00

June 21, 2011

Page 2 of 41

ISL62882, ISL62882B

Functional Pin Descriptions

(Continued)

ISL62882

14, 15

ISL62882B

17, 18

SYMBOL

RTN

ISUM- and ISUM+

VDD

VIN

IMON

BOOT1

DESCRIPTION

Remote voltage sensing return. Connect to ground at microprocessor die.

Droop current sense input.

5V bias power.

Battery supply voltage, used for feed-forward.

An analog output. IMON outputs a current proportional to the regulator output current.

Connect an MLCC capacitor across the BOOT1 and the PHASE1 pins. The boot capacitor is

charged through an internal boot diode connected from the VCCP pin to the BOOT1 pin, each

time the PHASE1 pin drops below VCCP minus the voltage dropped across the internal boot

diode.

Output of the Phase-1 high-side MOSFET gate driver. Connect the UGATE1 pin to the gate of the

Phase-1 high-side MOSFET.

Current return path for the Phase-1 high-side MOSFET gate driver. Connect the PHASE1 pin to the

node consisting of the high-side MOSFET source, the low-side MOSFET drain, and the output

inductor of Phase-1.

Current return path for the Phase-1 low-side MOSFET gate driver. Connect the VSSP1 pin to the

source of the Phase-1 low-side MOSFET through a low impedance path, preferably in parallel

with the traces connecting the LGATE1a and the LGATE1b pins to the gates of the Phase-1

low-side MOSFETs.

Output of the Phase-1 low-side MOSFET gate driver that is always active. Connect the LGATE1a

pin to the gate of the Phase-1 low-side MOSFET that is active all the time.

Another output of the Phase-1 low-side MOSFET gate driver. This gate driver will be pulled low

when the DPRSLPVR pin logic is high. Connect the LGATE1b pin to the gate of the Phase-1

low-side MOSFET that is idle in deeper sleep mode.

Output of the Phase-1 low-side MOSFET gate driver. Connect the LGATE1 pin to the gate of the

Phase-1 low-side MOSFET.

Input voltage bias for the internal gate drivers. Connect +5V to the VCCP pin. Decouple with at

least 1µF of an MLCC capacitor to VSSP1 and VSSP2 pins respectively.

Output of the Phase-2 low-side MOSFET gate driver. Connect the LGATE2 pin to the gate of the

Phase-2 low-side MOSFET.

Current return path for the Phase-2 converter low-side MOSFET gate driver. Connect the VSSP2

pin to the source of the Phase-2 low-side MOSFET through a low impedance path, preferably in

parallel with the trace connecting the LGATE2 pin to the gate of the Phase-2 low-side MOSFET.

Current return path for the Phase-2 high-side MOSFET gate driver. Connect the PHASE2 pin to the

node consisting of the high-side MOSFET source, the low-side MOSFET drain, and the output

inductor of Phase-2.

Output of the Phase-2 high-side MOSFET gate driver. Connect the UGATE2 pin to the gate of the

Phase-2 high-side MOSFET.

Connect an MLCC capacitor across the BOOT2 and the PHASE2 pins. The boot capacitor is

charged through an internal boot diode connected from the VCCP pin to the BOOT2 pin, each

time the PHASE2 pin drops below VCCP minus the voltage dropped across the internal boot

diode.

VID input with VID0 = LSB and VID6 = MSB.

Voltage regulator enable input. A high level logic signal on this pin enables the regulator.

Deeper sleep enable signal. A high level logic signal on this pin indicates that the microprocessor

is in deeper sleep mode.

Open drain output to enable system PLL clock. It goes low 13 switching cycles after Vcore is

within 10% of Vboot.

No connect.

The bottom pad of ISL62882B is electrically connected to the GND pin inside the IC.

UGATE1

PHASE1

VSSP1

LGATE1a

LGATE1b

LGATE1

VCCP

LGATE2

VSSP2

PHASE2

UGATE2

BOOT2

31 thru 37

pad

38 thru 44

pad

VID0 thru VID6

VR_ON

DPRSLPVR

CLK_EN#

BOTTOM

FN6890 Rev 4.00

June 21, 2011

Page 3 of 41

ISL62882, ISL62882B

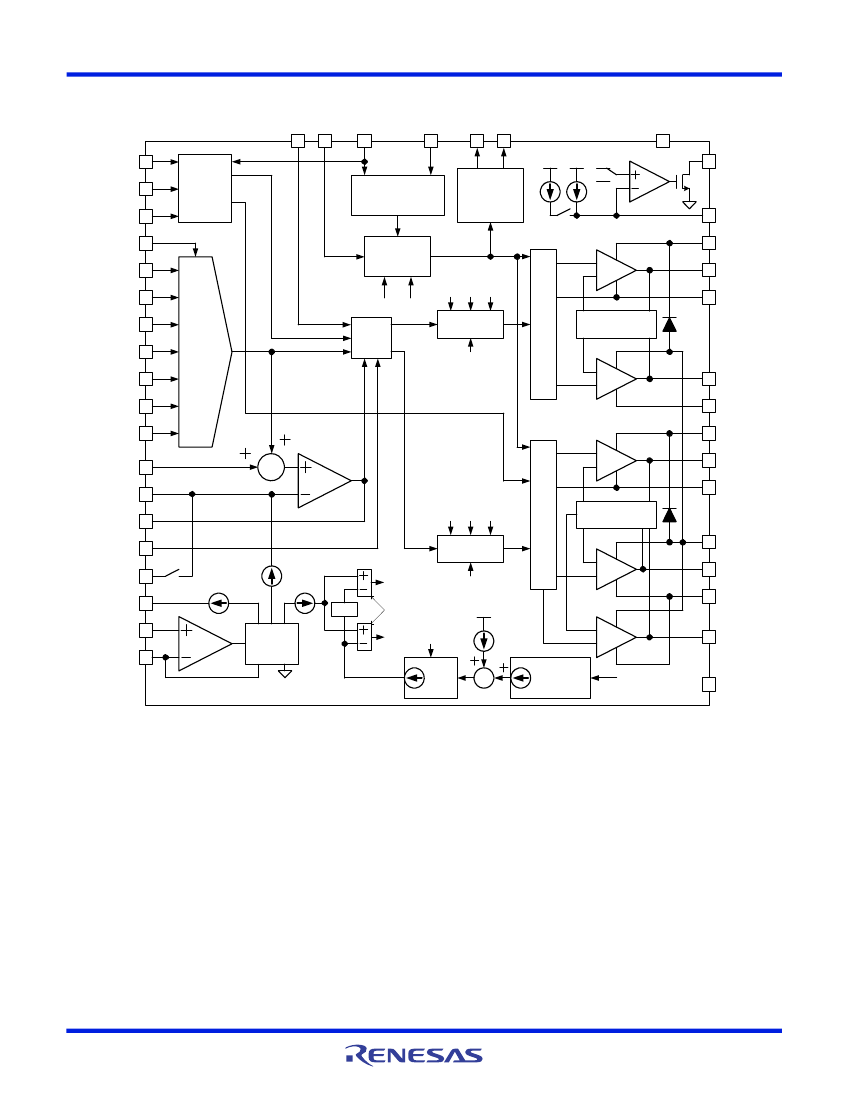

Block Diagram

VIN

VSEN

ISEN2

ISEN1

PGOOD

CLK_EN#

VDD

VR_ON

PSI#

DPRSLPVR

IBAL

RBIAS

PROTECTION

VID0

VID1

VIN

VID2

VID3

VID4

VID5

VID6

DAC

AND

SOFT-

START

MODULATOR

CLOCK

VDAC

COMP

IBAL

WOC

VIN VDAC

PWM CONTROL LOGIC

FLT

DRIVER

BOOT2

UGATE2

PHASE2

SHOOT THROUGH

PROTECTION

MODE

CONTROL

CURRENT

BALANCE

PGOOD &

CLK_EN#

LOGIC

6µA

54µA 1.20V

1.24V

NTC

VR_TT#

DRIVER

LGATE2

VSSP2

BOOT1

E/A

PWM CONTROL LOGIC

RTN

COMP



DRIVER

UGATE1

PHASE1

IBAL

VIN VDAC

SHOOT THROUGH

PROTECTION

VCCP

DRIVER

LGATE1A

VSSP1

MODULATOR

IDROOP

FB2

IMON

ISUM+

ISUM-

IMON

2.5X

CURRENT

SENSE

WOC

CURRENT

COMPARATORS

NUMBER OF

PHASES

COMP

60µA

DRIVER

LGATE1B

GAIN

SELECT



ADJ. OCP

THRESHOLD

COMP

GND

FN6890 Rev 4.00

June 21, 2011

Page 4 of 41

ISL62882, ISL62882B

Absolute Maximum Ratings

Supply Voltage, VDD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +7V

Battery Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +28V

Boot Voltage (BOOT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +33V

Boot to Phase Voltage (BOOT-PHASE) . . . . . . . . . . . . . . . . -0.3V to +7V(DC)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +9V(<10ns)

Phase Voltage (PHASE) . . . . . . . . . . . . . . . . -7V (<20ns Pulse Width, 10µJ)

UGATE Voltage (UGATE) . . . . . . . . . . . . . . . . . . . . PHASE-0.3V (DC) to BOOT

. . . . . . . . . . . . . . . . . . . . . PHASE-5V (<20ns Pulse Width, 10µJ) to BOOT

LGATE1a and 1b and LGATE2 Voltage

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V (DC) to VDD+0.3V

LGATE1a and 1b

. . . . . . . . . . . . . . . . . . . . . . -2.5V (<20ns Pulse Width, 2.5µJ) to VDD+0.3V

LGATE1a and 1b

. . . . . . . . . . . . . . . . . . . . . . . . -2.5V (<20ns Pulse Width, 5µJ) to VDD+0.3V

All Other Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to (VDD +0.3V)

Open Drain Outputs, PGOOD, VR_TT#,

CLK_EN# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +7V

Thermal Information

Thermal Resistance (Typical)



(°C/W)



(°C/W)

40 Ld TQFN Package (Notes 4, 5) . . . . . . .

48 Ld TQFN Package (Notes 4, 5) . . . . . . .

Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . .+150°C

Maximum Storage Temperature Range . . . . . . . . . . . . . .-65°C to +150°C

Maximum Junction Temperature (Plastic Package) . . . . . . . . . . . .+150°C

Storage Temperature Range. . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C

Pb-Free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

Recommended Operating Conditions

Supply Voltage, VDD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5V ±5%

Battery Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +4.5V to 25V

Ambient Temperature

ISL62882HRTZ, ISL62882BHRTZ . . . . . . . . . . . . . . . . .-10°C to +100°C

ISL62882IRTZ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-40°C to +100°C

Junction Temperature

ISL62882HRTZ, ISL62882BHRTZ . . . . . . . . . . . . . . . . .-10°C to +125°C

ISL62882IRTZ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-40°C to +125°C

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product

reliability and result in failures not covered by warranty.

NOTE:



is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See Tech

Brief TB379.

5. For



, the “case temp” location is the center of the exposed metal pad on the package underside.

Electrical Specifications

PARAMETER

Boldface limits apply over the operating temperature range, -40°C to +100°C.

SYMBOL

Operating Conditions: VDD = 5V, T

= -40°C to +100°C, f

= 300kHz, unless otherwise noted.

MIN

(Note 6)

MAX

(Note 6)

TEST CONDITIONS

TYP

UNITS

INPUT POWER SUPPLY

+5V Supply Current

VDD

VIN

POR

VR_ON = 3.3V

VR_ON = 0V

Battery Supply Current

Input Resistance

Power-On-Reset Threshold

VR_ON = 0V

VR_ON = 3.3V

rising

falling

4.00

900

4.35

4.15

4.5

4.6

µA

k

SYSTEM AND REFERENCES

System Accuracy

HRTZ

No load; closed loop, active mode range

%Error (V

CC_CORE

) VID = 0.75V to 1.50V,

VID = 0.5V to 0.7375V

VID = 0.3V to 0.4875V

IRTZ

No load; closed loop, active mode range

%Error (V

CC_CORE

) VID = 0.75V to 1.50V

VID = 0.5V to 0.7375V

VID = 0.3V to 0.4875V

BOOT

Maximum Output Voltage

Minimum Output Voltage

BIAS

Voltage

CC_CORE(max)

CC_CORE(min)

VID = [0000000]

VID = [1100000]

BIAS

= 147k

1.45

-0.5

-8

-15

-0.8

-10

-18

1.0945

1.100

1.500

0.300

1.47

1.49

+0.5

+15

+0.8

+10

+18

1.1055

FN6890 Rev 4.00

June 21, 2011

Page 5 of 41

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ISL62882IRTZ-T Related Products

	ISL62882IRTZ-T	ISL62882IRTZ	ISL62882IRTZ-T13	ISL62882IRTZ-T7	ISL62882HRTZ-T13	ISL62882HRTZ-T7
Description	Multiphase PWM Regulator for IMVP-6.5™ Mobile CPUs and GPUs; TQFN40; Temp Range: See Datasheet	Multiphase PWM Regulator for IMVP-6.5™ Mobile CPUs and GPUs; TQFN40; Temp Range: See Datasheet	Switching Controller	Switching Controller	Switching Controller	Switching Controller
package instruction	HQCCN, LCC40,.2SQ,16	HQCCN, LCC40,.2SQ,16	TQFN-40	TQFN-40	TQFN-40	TQFN-40
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ALSO HAS PWM CONTROL TECHNIQUE	ALSO HAS PWM CONTROL TECHNIQUE	BATTERY VOLTAGE=(4.5-25 VOLT)	BATTERY VOLTAGE=(4.5-25 VOLT)	BATTERY VOLTAGE=(4.5-25 VOLT)	BATTERY VOLTAGE=(4.5-25 VOLT)
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
Control Technology	HYSTERETIC CURRENT MODE	HYSTERETIC CURRENT MODE	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum input voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal input voltage	5 V	5 V	5 V	5 V	5 V	5 V
JESD-30 code	S-PQCC-N40	S-PQCC-N40	S-PQCC-N40	S-PQCC-N40	S-PQCC-N40	S-PQCC-N40
JESD-609 code	e3	e3	e3	e3	e3	e3
length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Number of functions	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HQCCN	HQCCN	HVQCCN	HVQCCN	HVQCCN	HVQCCN
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	1 mm	1 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
surface mount	YES	YES	YES	YES	YES	YES
Switch configuration	PHASE-SHIFT	PHASE-SHIFT	BUCK	BUCK	BUCK	BUCK
Maximum switching frequency	500 kHz	500 kHz	300 kHz	300 kHz	300 kHz	300 kHz
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	OTHER	OTHER
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	MATTE TIN	MATTE TIN	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Humidity sensitivity level	3	3	-	-	3	3
Is it Rohs certified?	-	-	conform to	conform to	conform to	conform to
Objectid	-	-	8294641686	8294641687	8294641683	8294641684
Date Of Intro	-	-	2017-11-15	2017-11-15	2017-11-15	2017-11-15

Recommended Resources

3 and 1/2 digit digital thermometer using PTC thermistor

Current positive feedback circuit

Hefei Sunshine SN Power Special Inverter Power Supply

CNC capacitor network

DC adjustable regulated power supply with current limiting

Computer motherboard circuit diagram 440LX2_12

MSP430G2553 MCU serial communication: [p=25, null, left][font=宋体, arial][size=3][color=#000000] The serial communication working mode of different models of MSP430 is the same. Take MSP430G2553 as an example. MSP430G2553 is a 16-bit micro...; fish001 Microcontroller MCU

Can the 6410 development board (ARM1176JZF-S core) + camera capture video in real time and perform image processing?: The main purpose is to perform real-time image processing on the collected video, such as edge detection, binarization, etc. Please give me some advice, thank you....; sukit_bbs ARM Technology

CE5.0 power properties system timed hang issue: In WINCE5.0 system, Control Panel--Power--Power Properties--Scheme. When I select battery power in the power scheme, the time to switch the status to suspend is inaccurate (that is, the system schedul...; pilot Embedded System

Please help urgently!!!!: I have an internal testing machine system with two meters: an electric energy meter and a heat energy meter. The heat energy meter has an RS232 interface and has software support. After connecting to ...; succeedzcs Embedded System

Are you against the standard breadboard method of learning?: Teach you to learn single-chip microcomputer from scratch - against the learning method of using standard experimental board? geyin I have nothing to do, so I am going to learn single-chip microcomput...; geyin MCU

[PCB design post-processing] How to use CAM350 for silk screen printing and steel mesh inspection: [b][color=#5E7384]This content is originally created by EEWORLD forum user [size=3]kdyhdl[/size]. If you need to reprint or use it for commercial purposes, you must obtain the author's consent and ind...; kdyhdl PCB Design

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
