8
LIGHTED ON/OFF
POWER SWITCH
D
IEC 320 - C14
INLET
7
6
5
4
3
2
1
5 X IEC 320
SHEET F OUTLET
300.08 mm
[11.814 in]
D
53.98 mm
[2.125 in]
52.32 mm
[2.060 in]
113.23 mm
[4.458 in]
40.64 mm TYP
[1.600 in]

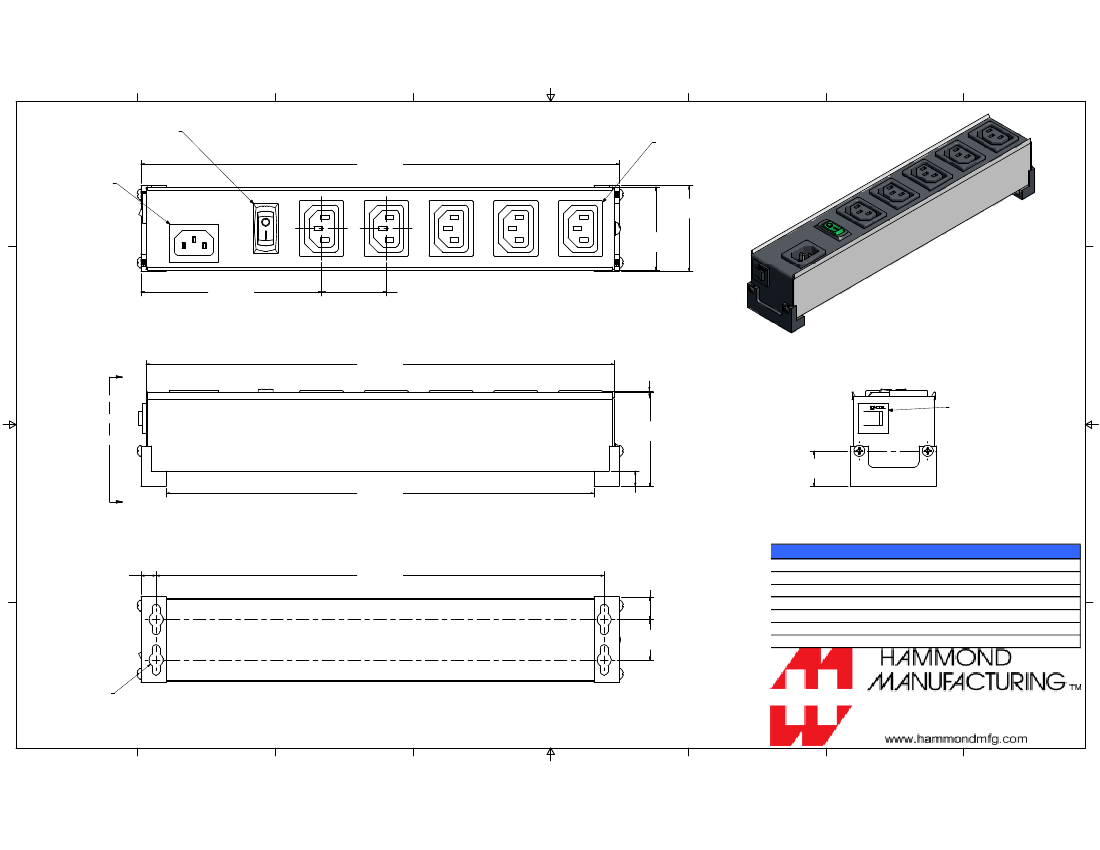

ASSEMBLY - VIEW FROM TOP
C
C
ISOMETRIC VIEW
A
293.73 mm
[11.564 in]
0.73 mm
[0.029 in]
RESTABLE
CIRCUIT
BREAKER
59.28 mm
[2.334 in]
22.23 mm
[0.875 in]
268.33 mm
[10.564 in]
B
9.53 mm
[0.375 in]
A
ASSEMBLY - VIEW FROM SIDE
VIEW A-A
1581H5
B
9.53 mm
[0.375 in]
281.03 mm
[11.064 in]
14.29 mm
[0.563 in]
25.40 mm
[1.000 in]
Finish - Top - Black Painted Steel
Bottom - Aluminum Extrusion
Rated - 230 VAC, 50/60 Hz, 10 Amps
Approvals - CSA Certified Standards C22.2 (No. 21-95, 42-99)
- cULus Listed Standards UL60950 & CSA C22.2 No. 60950
- TÜV-GS Certified Standard EN60950-1
- CE Certified Registration #: AN 72031916 0001
A
R4.37 mm
[0.172 in]
A
ASSEMBLY - VIEW FROM BOTTOM
8
7
6
5
4
3
2
1581H5
1
