Data sheet
SAIL-M8BG-3-10U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

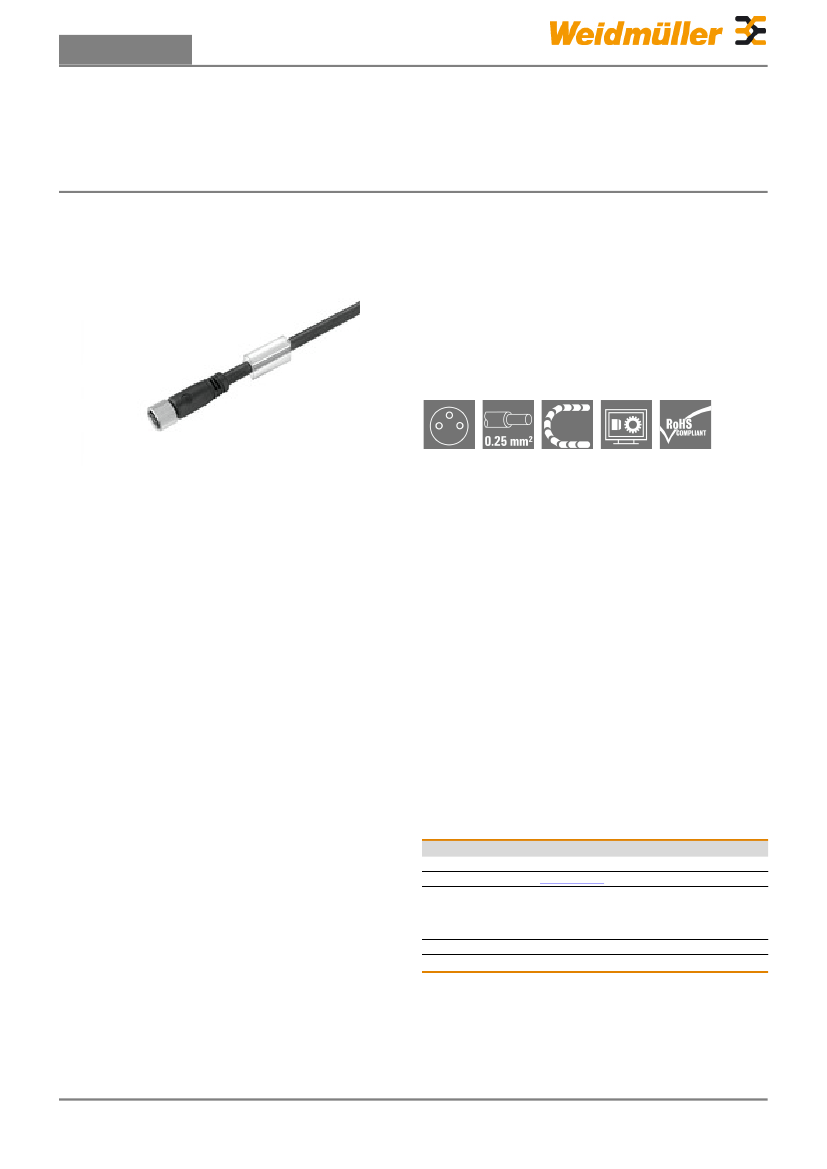

Sensor/actuator cables are used for wiring sensors and
actuators and for transmitting data or power in various
applications. The moulded cable offers connected and
tested connection of the plug-in connector to the cable
ex-works. The cables may be exposed to a wide range of
conditions, such as humidity, dust, heat, cold, shock or
vibration.
Our developers have focused specifically on this issue and
designed a host of different M8 and M12 sensor-actuator
cables so you are bound to find the solution you need for
your application.
Is there something you have not managed to find or you
feel needs explanation? Talk to us!
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
SAIL-M8BG-3-10U
9457451000
Sensor/actuator line, One end without connector,
M8, Number of poles : 3, 10 m, Female socket,
straight, Shielded: No, LED: No, Sheath material:
PUR, Halogen: No
4032248228270
1 pc(s).
Creation date October 4, 2018 6:45:21 PM CEST
Catalogue status 28.09.2018 / We reserve the right to make technical changes.
1
Data sheet
SAIL-M8BG-3-10U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
217 g
Dimensions and weights
Net weight
Temperatures
Operating temperature, max.
REACH SVHC
80 °C
Operating temperature, min.
-25 °C
Environmental Product Compliance
Lead 7439-92-1
Technical specifications for cable
Number of poles
Outside diameter
Shielded
Colour coding
Sheathing colour
Temperature range, moving
Core in acc. with UL AWM style
Suitable for cable carriers
Bending radius, min., stationary
Acceleration
Bending cycles
Hybridleitung
Konfigurierbare Kabellänge
3
4.1 ± 0.2 mm
No
brown, blue, black
Black
-25...80 °C
10493 (80 °C / 300 V)
Yes
5 x cable diameter
5 m/s²
2 Mio
No
No
Core cross-section
Cable length
Insulation
Sheath material
Halogen
Temperature range, stationary
Jacket in acc. with UL AWM style
Torsion resistance
Bending radius, min., moving
Speed
Resistant to welding beads
Strahlenvernetzt
0.25 mm²
10 m
PP
PUR
No
-40...80 °C
20233/21198 (80 °C /
300 V)
0 °/m
10 x cable diameter
5 m/s
No
No
General technical data
Version
Housing main material
Coding
Contact surface
Rated voltage
Insulation resistance
Tightening torque
Pollution severity
Female socket, straight
PUR
none
Gold-plated
60 V
Connection thread
Threaded ring material
Protection degree
LED
Rated current
Temperature range of housing
Plugging cycles
jumpered
10
8
Ω
M8: 0.5 - 0.6 Nm
3
M8
Brass, nickel-plated
IP65, IP66, IP67, IP68,
when screwed in
No
4A
-25…+85 °C
≥ 100
No
Standards
Connector standard
IEC 61076-2-104
Certificate no. (cULus)
E307231
Classifications
ETIM 3.0
ETIM 5.0
UNSPSC
eClass 6.2
eClass 8.1
eClass 9.1
EC001855
EC001855
26-12-16-13
27-27-92-18
27-06-91-90
27-06-03-11
ETIM 4.0
ETIM 6.0
eClass 5.1
eClass 7.1
eClass 9.0
EC001855
EC001855
27-06-91-90
27-06-91-90
27-06-91-90
Creation date October 4, 2018 6:45:21 PM CEST
Catalogue status 28.09.2018 / We reserve the right to make technical changes.
2
Data sheet
SAIL-M8BG-3-10U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Product information
Descriptive text ordering data
Descriptive text technical data
Other versions on request
Chapter W includes additional technical specifications for the cable
Approvals
Approvals
ROHS
Conform
Downloads
Brochure/Catalogue
Engineering Data
CAT 8 SAI 15/16 EN
FL FIELDWIRING EN
EPLAN, WSCAD, Zuken E3.S
Creation date October 4, 2018 6:45:21 PM CEST
Catalogue status 28.09.2018 / We reserve the right to make technical changes.
3
Data sheet
SAIL-M8BG-3-10U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

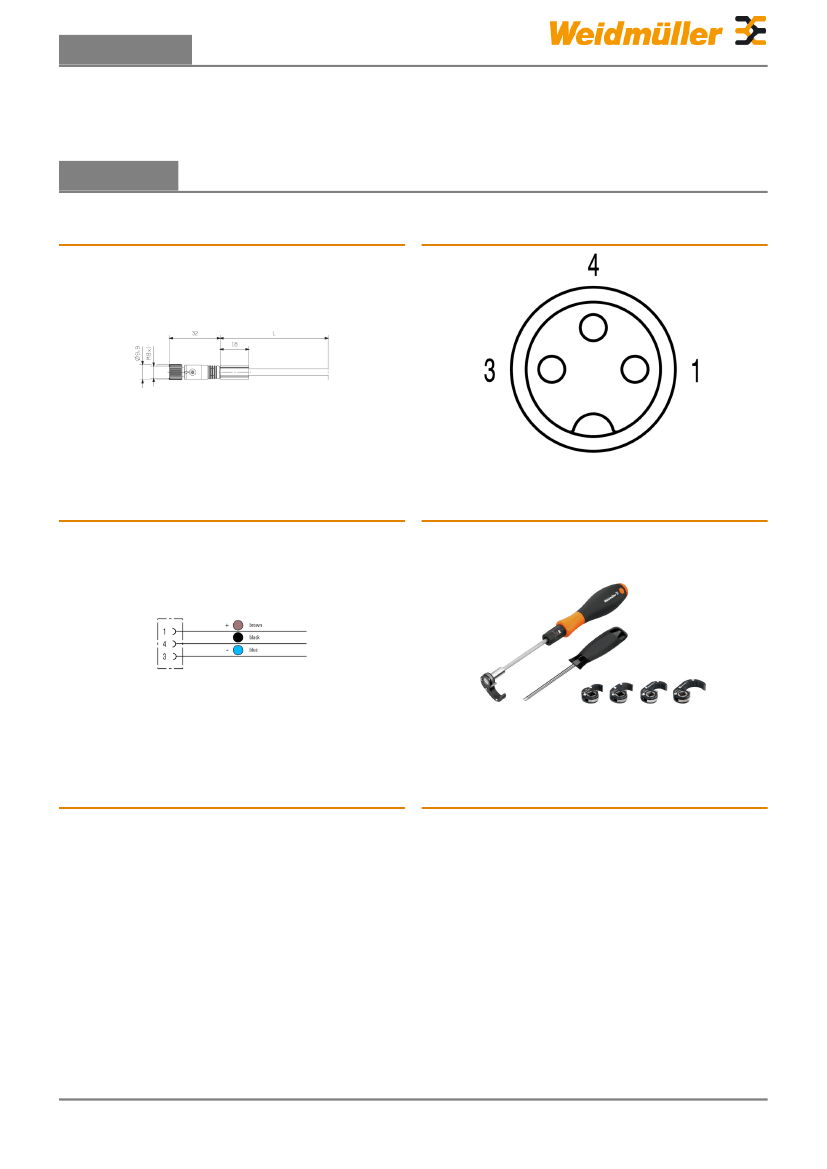

Drawings
Pole scheme
Dimensioned drawing
Wiring diagram
Straight socket
Socket
The ideal tool, the Screwty
® with torque function
Light, securely screwed-in round plug-in
connectors. Screwty set DM / VPE: 1 / Order No.:
1920000000 Adapters: M12, M12 F, M8, M8 F
Creation date October 4, 2018 6:45:22 PM CEST
Catalogue status 28.09.2018 / We reserve the right to make technical changes.
4
