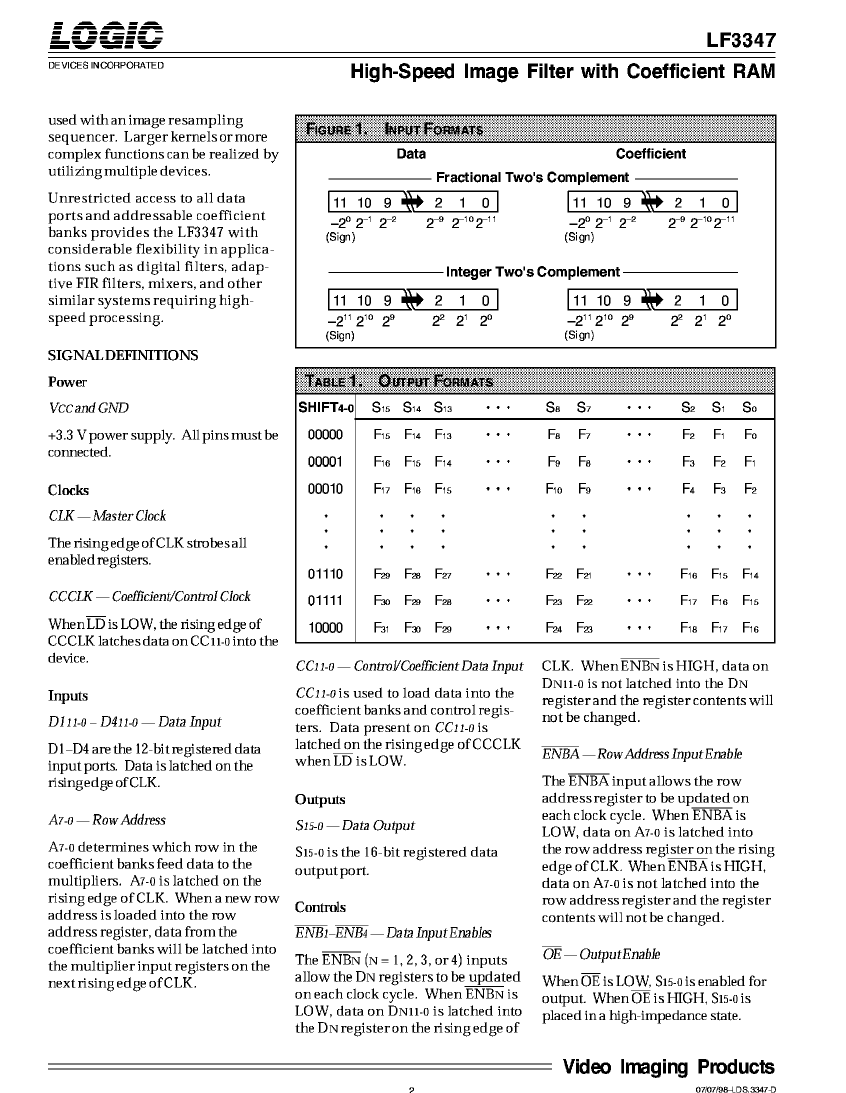

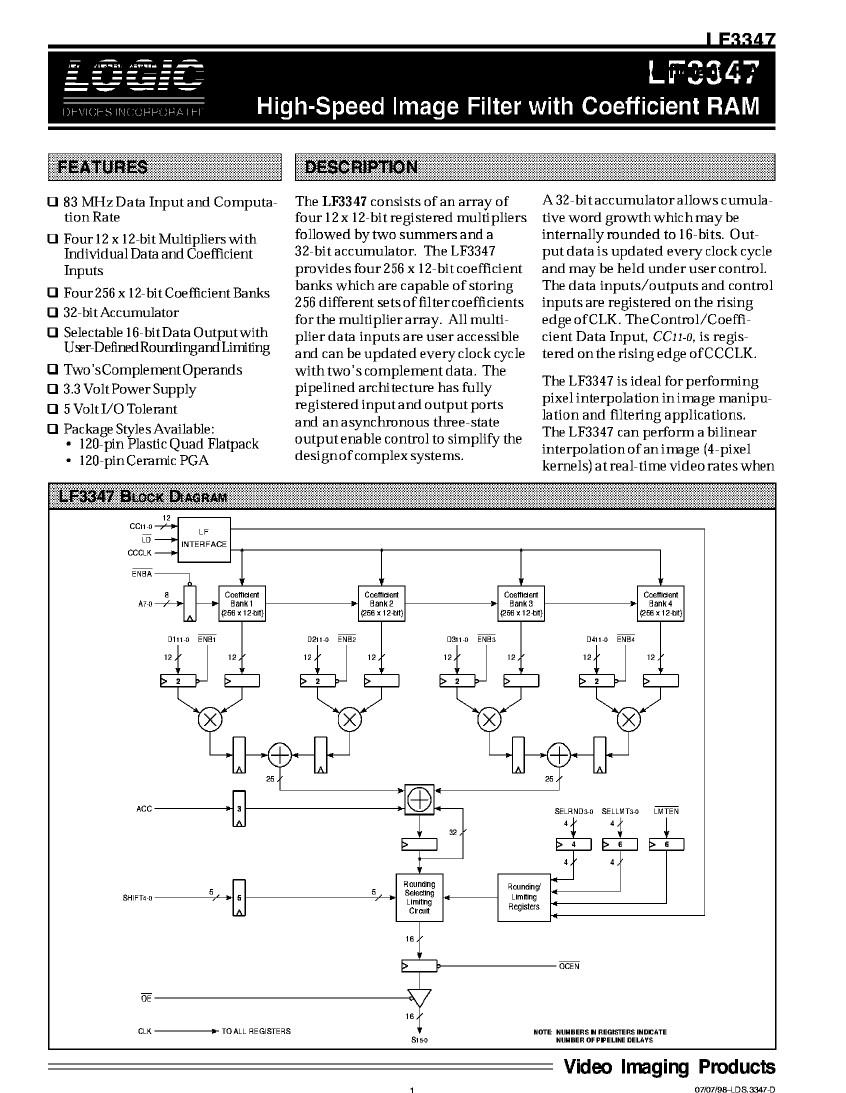

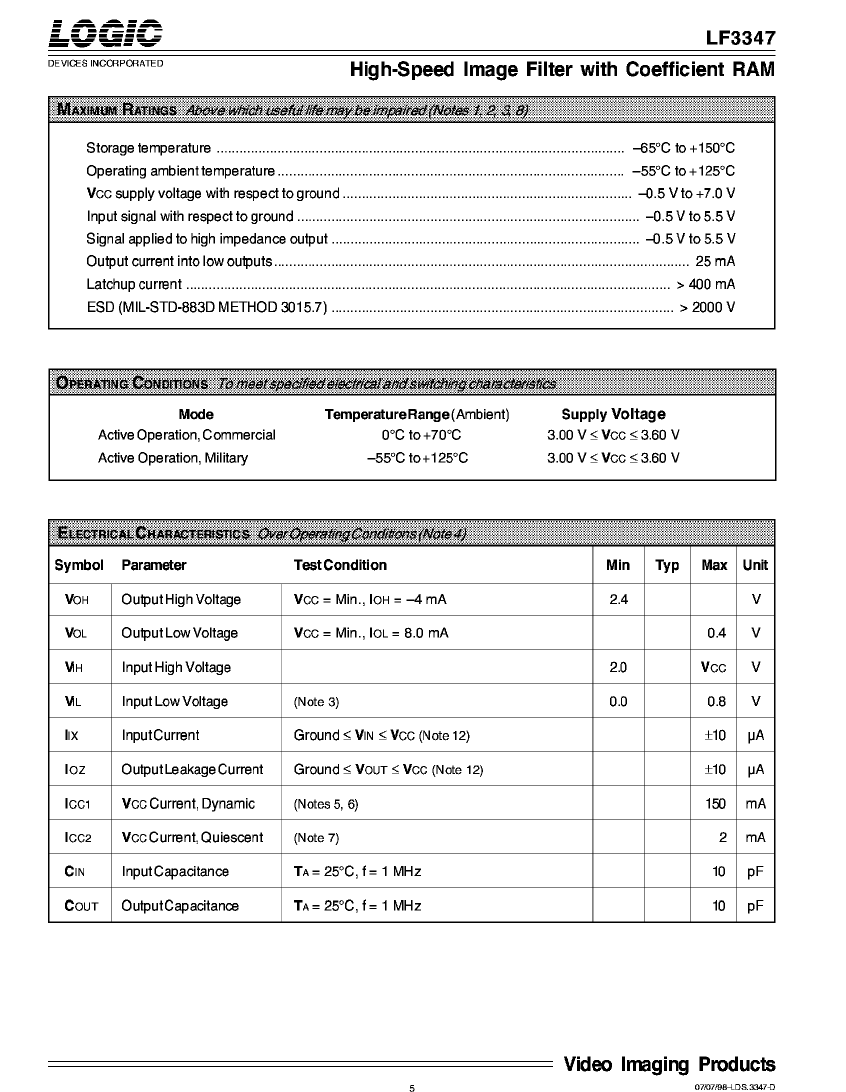

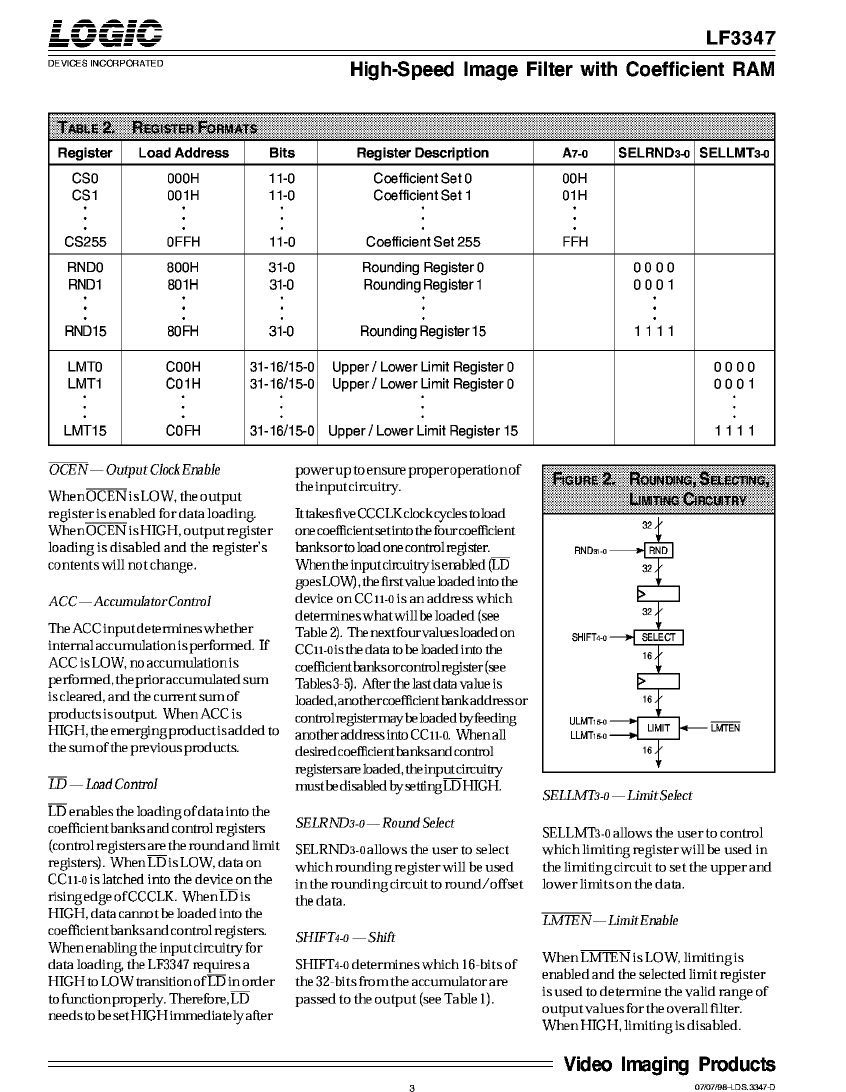

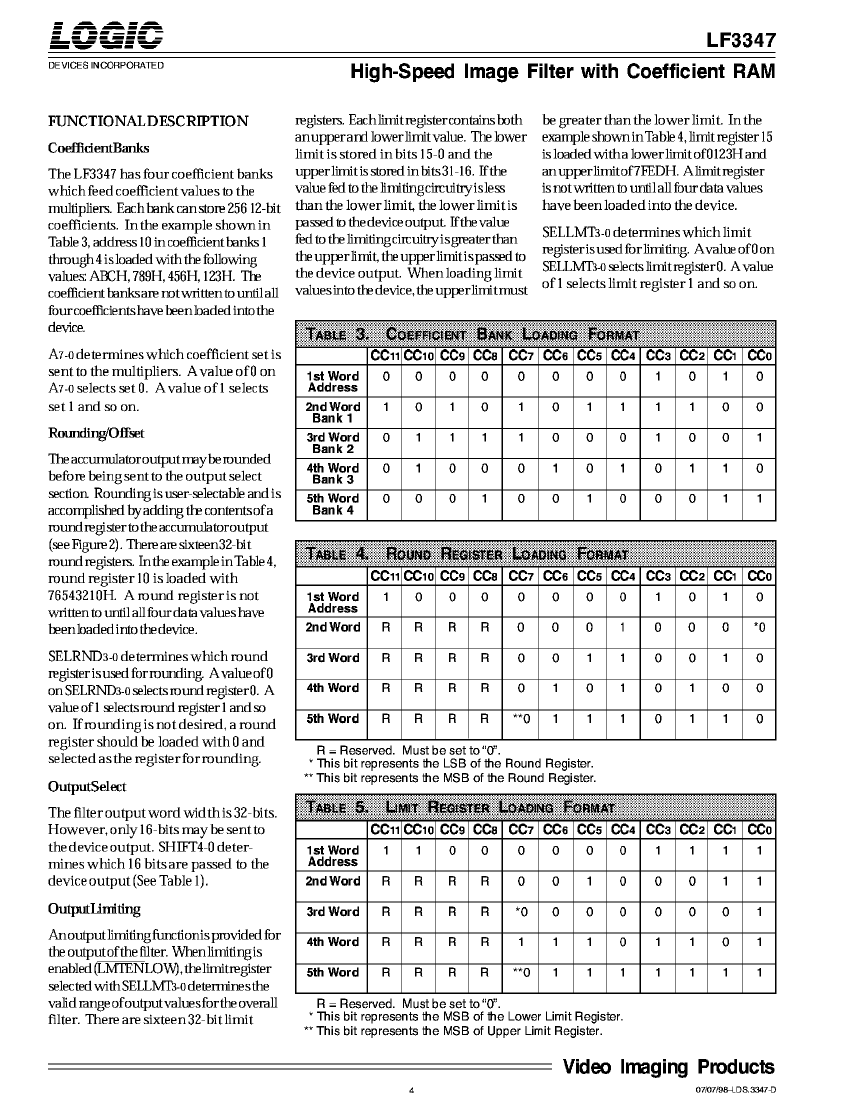

LF3347GC15: DescriptionDigital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120; CategoryThe embedded processor and controller Microcontrollers and processors; File Size517KB，10 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

LF3347GC15 Overview

Digital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120

LF3347GC15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	PGA
package instruction	PGA, PGA121,13X13
Contacts	120
Reach Compliance Code	unknown
ECCN code	3A001.A.3
boundary scan	NO
maximum clock frequency	66.6666 MHz
External data bus width	12
JESD-30 code	S-CPGA-P120
JESD-609 code	e0
length	33.4899 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	120
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	16
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA121,13X13
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	4.4196 mm
Maximum slew rate	150 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	33.4899 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER

Preview

Download Datasheet

View All

LF3347GC15 Related Products

	LF3347GC15	LF3347GMB15	LF3347GMB25	LF3347QC25	LF3347GC12	LF3347GC25	LF3347GMB12
Description	Digital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120	Digital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120	Digital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120	Digital Filter, 12-Bit, CMOS, PQFP120, PLASTIC, QFP-120	Digital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120	Digital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120	Digital Filter, 12-Bit, CMOS, CPGA120, CERAMIC, PGA-120
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	PGA	PGA	PGA	QFP	PGA	PGA	PGA
package instruction	PGA, PGA121,13X13	PGA, PGA121,13X13	PGA, PGA121,13X13	QFP, QFP120,1.2SQ,32	PGA, PGA121,13X13	PGA, PGA121,13X13	PGA, PGA121,13X13
Contacts	120	120	120	120	120	120	120
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.3	3A001.A.2.C	3A001.A.2.C	3A991.A.2	3A001.A.3	3A991.A.2	3A001.A.2.C
boundary scan	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	66.6666 MHz	66.6666 MHz	40 MHz	40 MHz	83.3333 MHz	40 MHz	83.3333 MHz
External data bus width	12	12	12	12	12	12	12
JESD-30 code	S-CPGA-P120	S-CPGA-P120	S-CPGA-P120	S-PQFP-G120	S-CPGA-P120	S-CPGA-P120	S-CPGA-P120
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	33.4899 mm	33.4899 mm	33.4899 mm	28 mm	33.4899 mm	33.4899 mm	33.4899 mm
low power mode	NO	NO	NO	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3	3	3	3
Number of terminals	120	120	120	120	120	120	120
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	125 °C
Output data bus width	16	16	16	16	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	QFP	PGA	PGA	PGA
Encapsulate equivalent code	PGA121,13X13	PGA121,13X13	PGA121,13X13	QFP120,1.2SQ,32	PGA121,13X13	PGA121,13X13	PGA121,13X13
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	FLATPACK	GRID ARRAY	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	225	225	225	225	225	225	225
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.4196 mm	4.4196 mm	4.4196 mm	4.1 mm	4.4196 mm	4.4196 mm	4.4196 mm
Maximum slew rate	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	GULL WING	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	0.8 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	QUAD	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	33.4899 mm	33.4899 mm	33.4899 mm	28 mm	33.4899 mm	33.4899 mm	33.4899 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER
Maker	LOGIC Devices	-	-	-	LOGIC Devices	LOGIC Devices	LOGIC Devices
