WS512K32-85H2QE datasheet, PDF

WS512K32-85H2QE: DescriptionSRAM Module, 2MX8, 85ns, CMOS, CPGA66, 1.385 X 1.385 INCH, HERMETIC SEALED, CERAMIC, HIP-66; Categorystorage storage; File Size325KB，12 Pages; ManufacturerWhite Electronic Designs Corporation; Websitehttp://www.wedc.com/

Download Datasheet Parametric View All

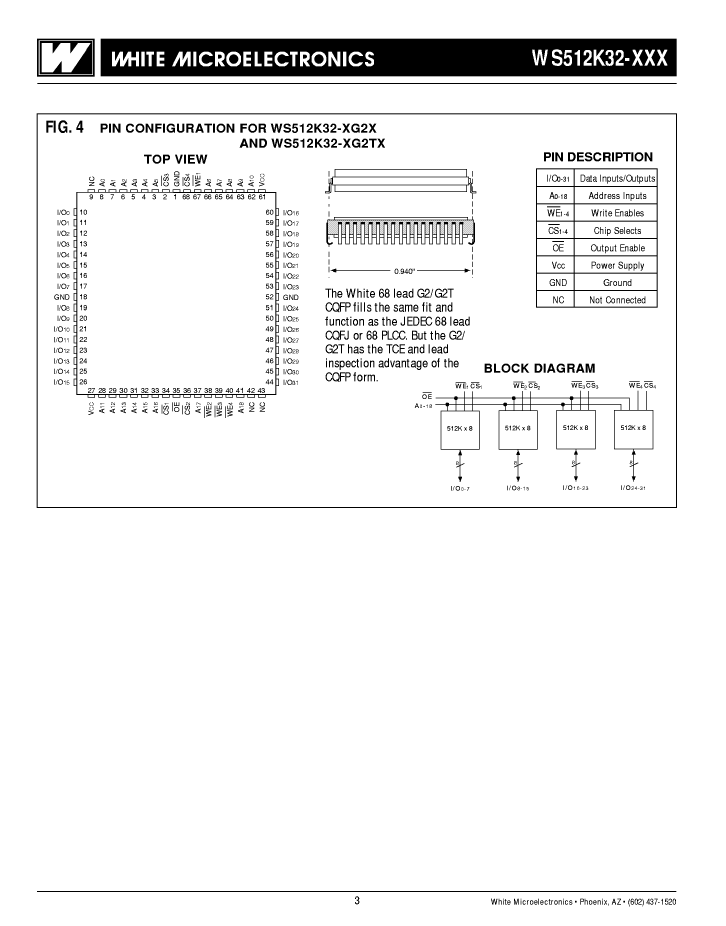

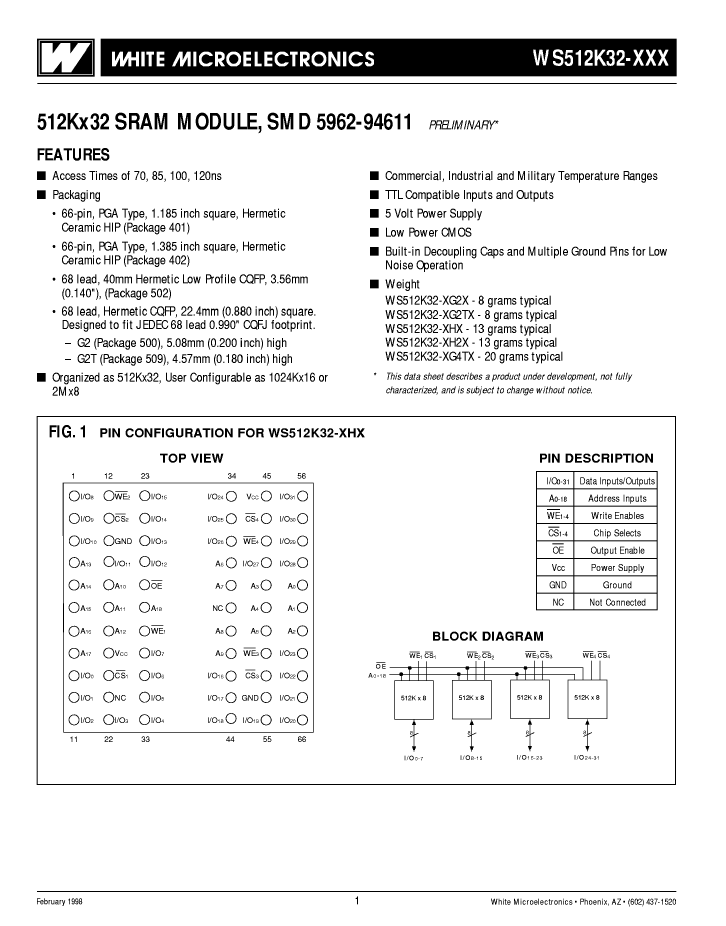

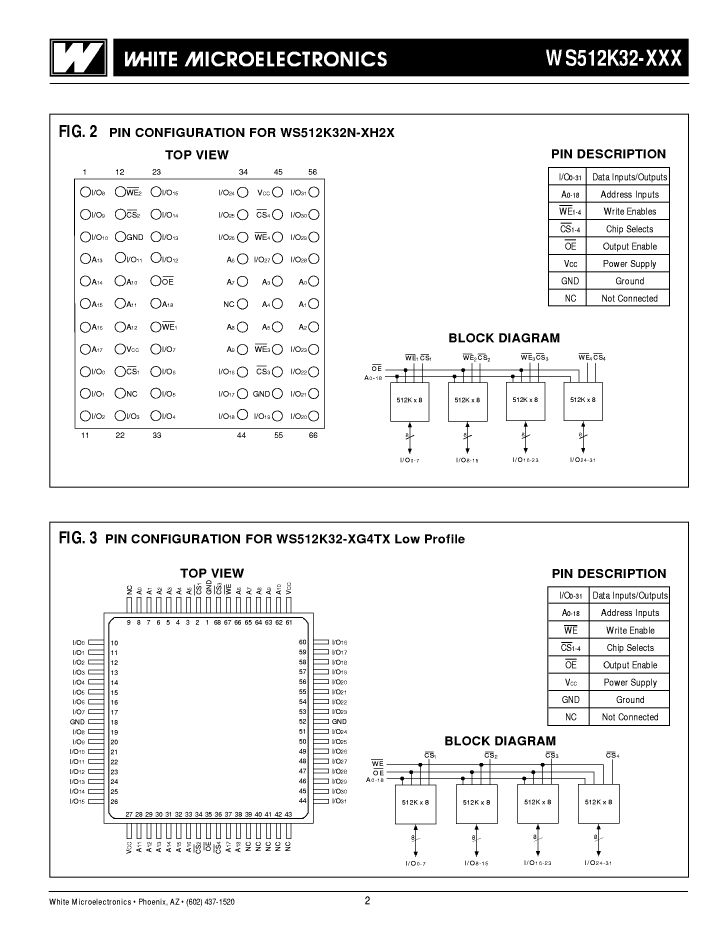

WS512K32-85H2QE Overview

SRAM Module, 2MX8, 85ns, CMOS, CPGA66, 1.385 X 1.385 INCH, HERMETIC SEALED, CERAMIC, HIP-66

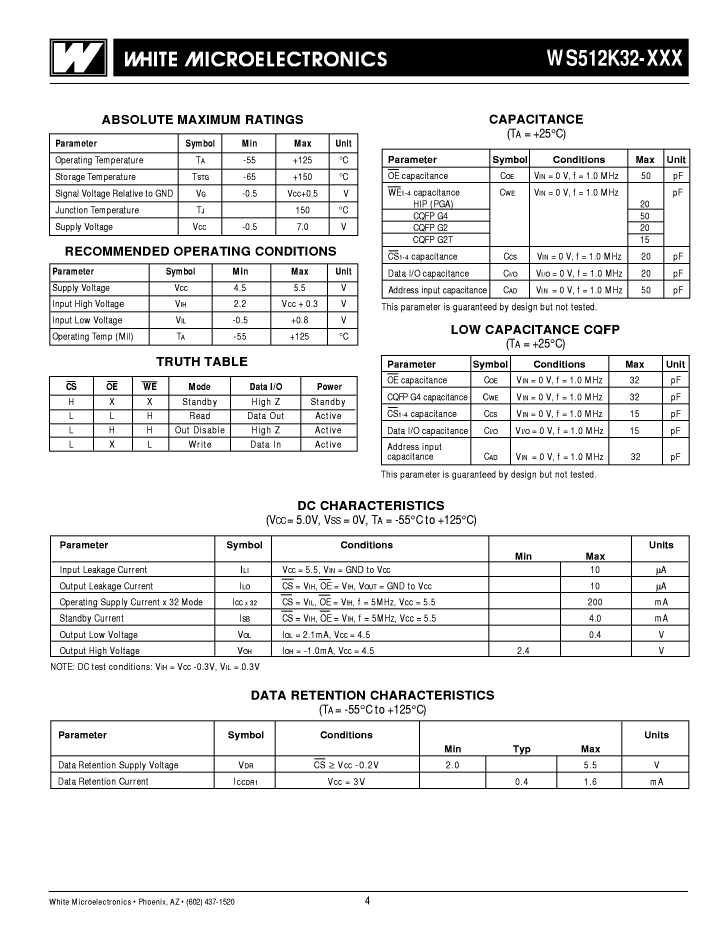

Parameter Name	Attribute value
Maker	White Electronic Designs Corporation
package instruction	1.385 X 1.385 INCH, HERMETIC SEALED, CERAMIC, HIP-66
Reach Compliance Code	unknown

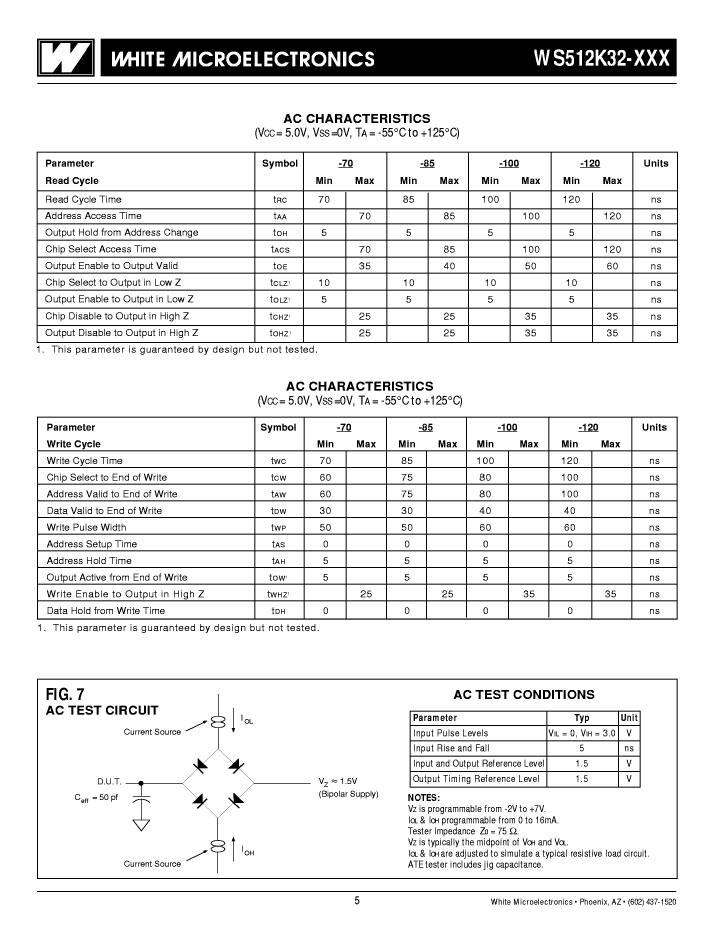

Maximum access time	85 ns
Other features	CONFIGURABLE AS 512K X 32 OR 1024K X 16
JESD-30 code	S-CPGA-P66
length	35.2 mm
memory density	16777216 bit
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	66
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2MX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.7 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	35.2 mm
