CDRH103RNP-330NC-B datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH103RNP-330NC-B

CDRH103RNP-330NC-B: Description1 ELEMENT, 33 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size185KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance; Related ProductsFound1parts with similar functions to CDRH103RNP-330NC-B

Download Datasheet Parametric View All

CDRH103RNP-330NC-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH103RNP-330NC-B	-	-	View	Buy Now

CDRH103RNP-330NC-B Overview

1 ELEMENT, 33 uH, GENERAL PURPOSE INDUCTOR, SMD

CDRH103RNP-330NC-B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	4039
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	14 weeks
uppercase and lowercase codes	4039
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.202 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	2.8 mm
Package length	10.2 mm
Package form	SMT
Package width	10 mm
method of packing	TR
Maximum rated current	1.35 A
series	CDRH103R
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

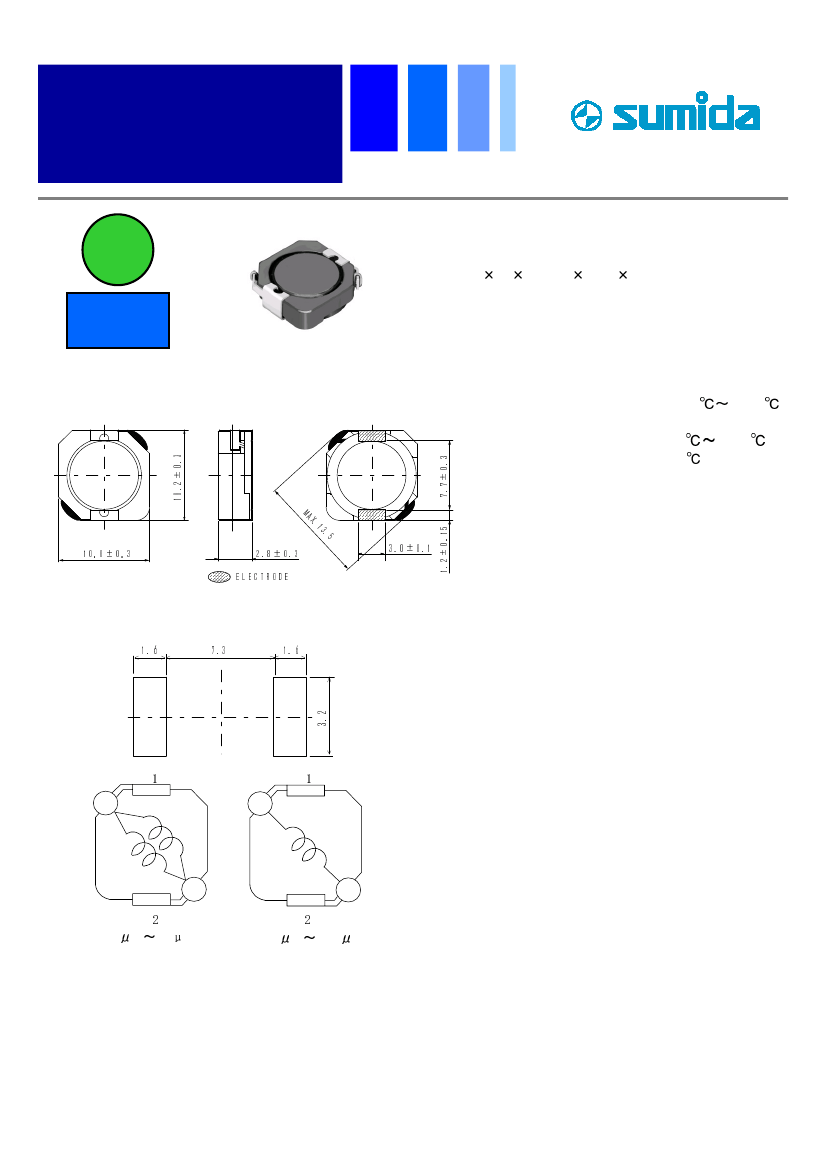

SMD Power Inductor

CDRH103R

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H:10.5 10.3 3.1mm Max.

• Product weight: 1.0g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40

+100

(including coil’s self temperature rise)

+100

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging.

•12.9”diameter reel.

• 1000pcs per reel.

RoHS

Halogen

Free

Dimension - [mm]

Land pattern and Schematics - [mm]

6 .1

3.7

6 .1

Applications

• Ideally used in Notebook PC, LCD TV,DVD,

Game machine, STB ,Projector etc as DC-DC

converter inductors.

μ ½μ

0.8 H

15 H

22 H

150 H

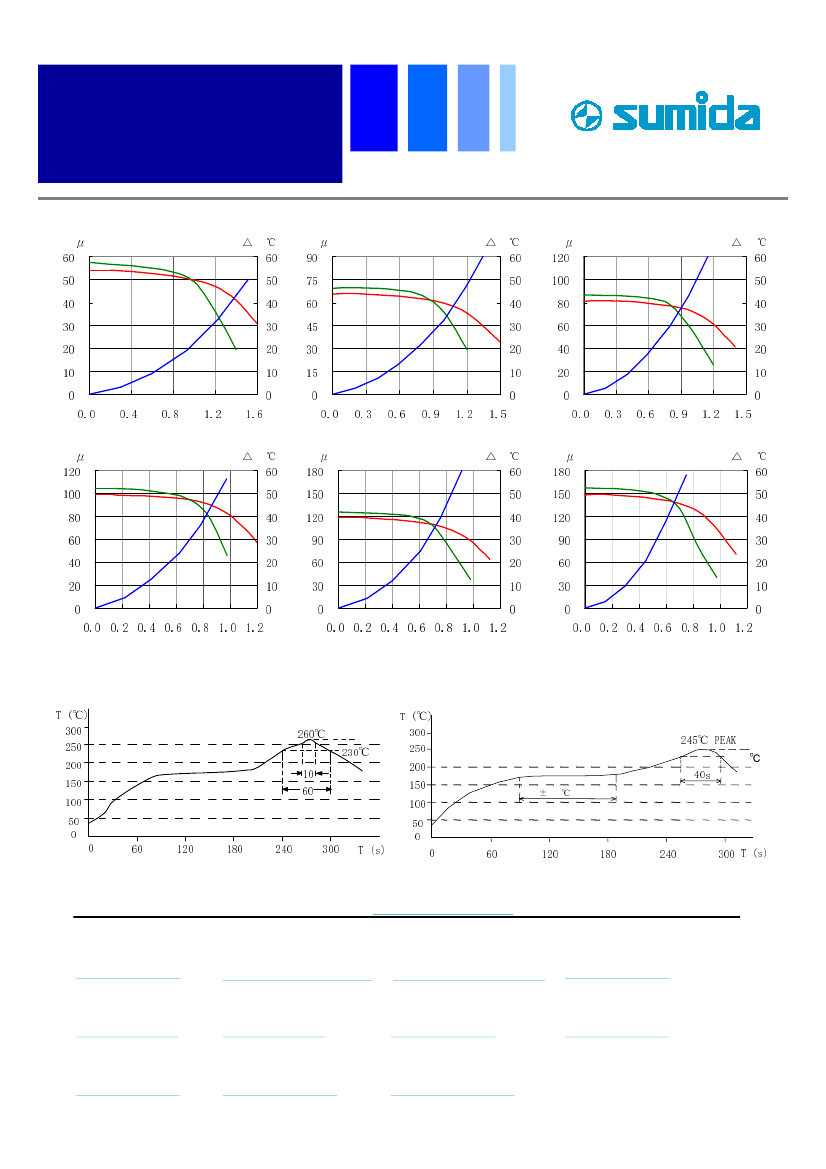

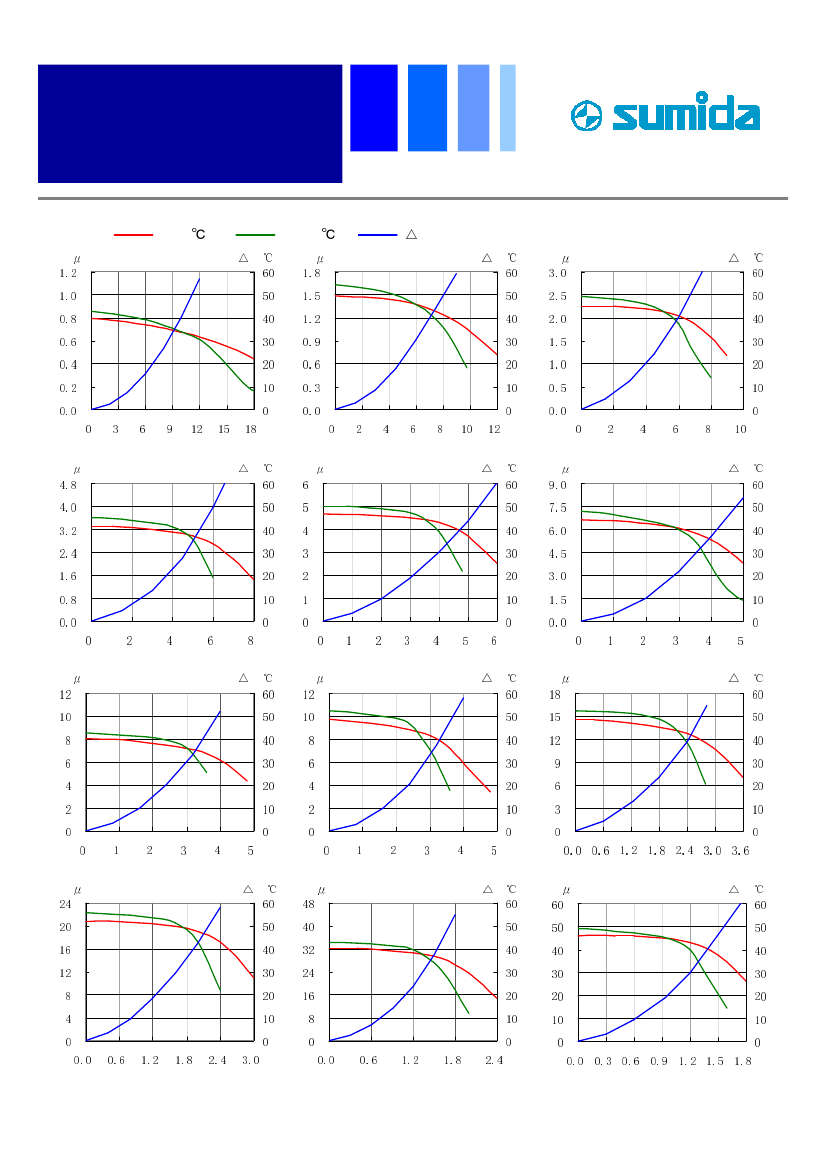

Page 1 of 4

Revised: 7-Jan-14

℃

℃ ½℃

× ×

1.0±0.3

3.0±8.2

E DO RT CE LE

3.0±0.01

Recommended Resources

Common collector amplifier circuit b

DC-RRS application circuit b

Second-order high-frequency active filter circuit

YYH27/28 decoding circuit

Carrier signal oscillation circuit of ultrasonic transmitter

Improved capacitive feedback oscillation circuit

CDRH103RNP-330NC-B Similar Products

Part Number	Manufacturer	Description
CDRH103RNP-330NB-B	SUMIDA	General Purpose Inductor, 33uH, 30%, 1 Element, Ferrite-Core, SMD, 4039, ROHS COMPLIANT
