PI5C16209AE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PI5C16209AE

PI5C16209AE: DescriptionBus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48; Categorylogic logic; File Size122KB，3 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PI5C16209AE Overview

Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48

PI5C16209AE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	48
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TTL COMPATIBLE BUS SWITCH
series	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-G48
JESD-609 code	e3
length	12.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS EXCHANGER
Humidity sensitivity level	1
Number of digits	9
Number of functions	2
Number of ports	4
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	0.25 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.1 mm

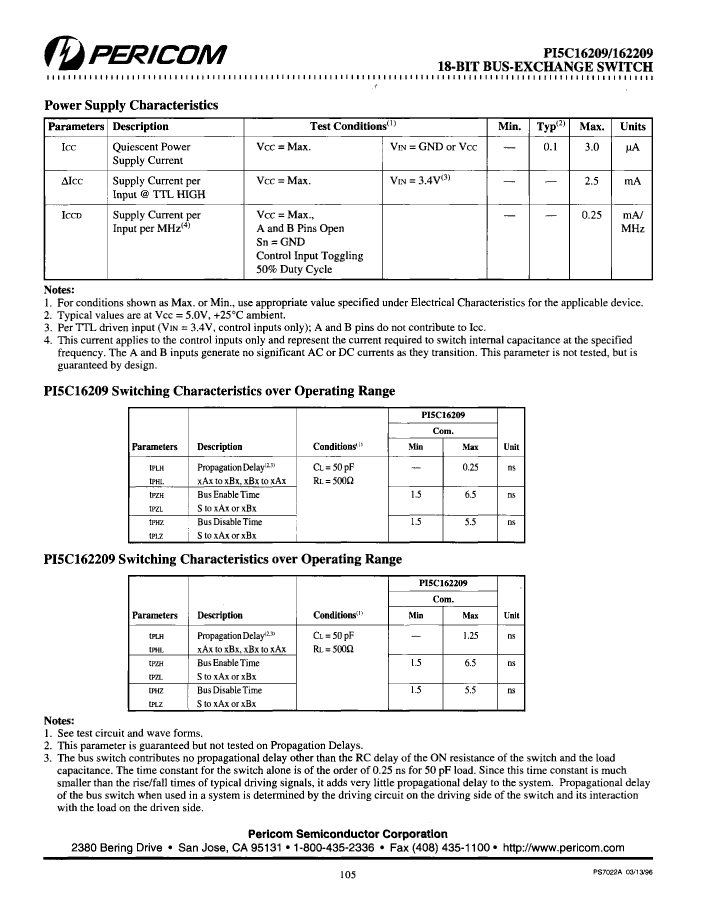

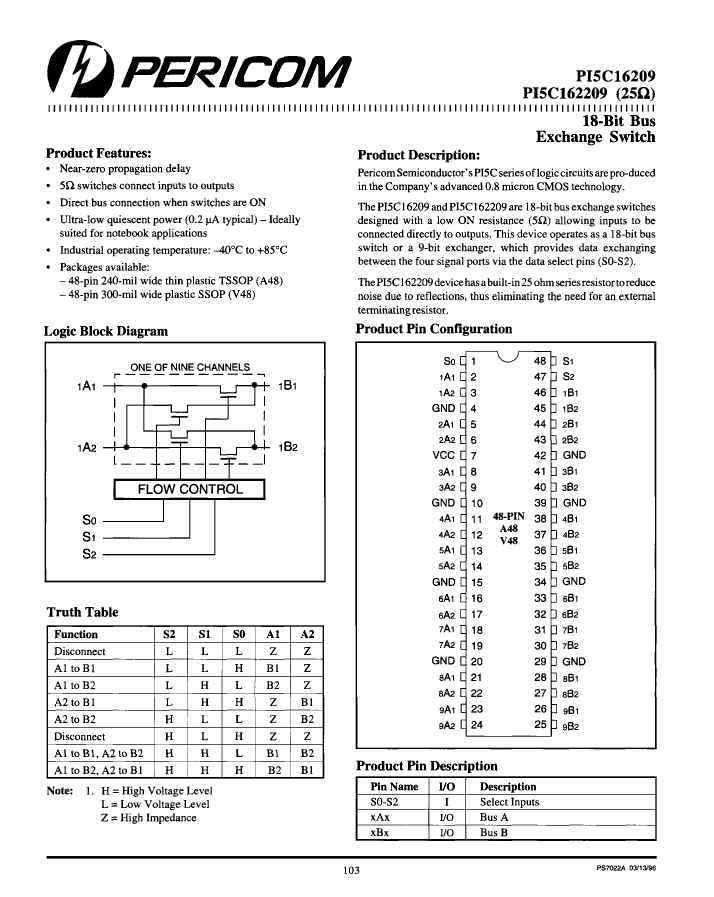

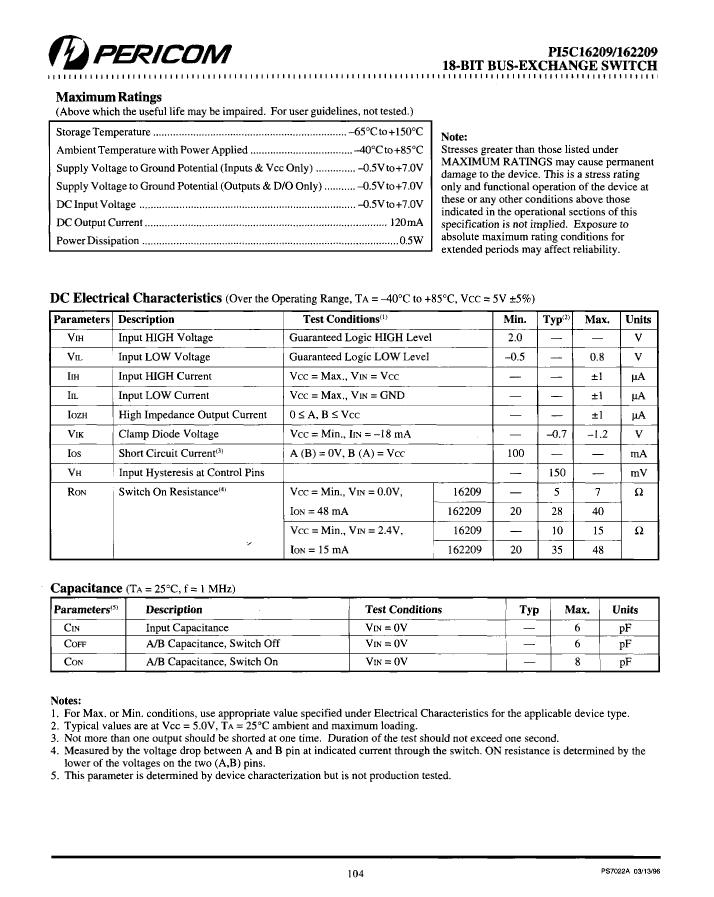

Preview

Download Datasheet

View All

PI5C16209AE Related Products

	PI5C16209AE	PI5C162209VX	PI5C16209AEX	PI5C16209AX	PI5C16209VEX	PI5C16209VE	PI5C16209VX	PI5C162209AX
Description	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Bus Exchanger, CBT/FST/QS/5C/B Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48
Parts packaging code	TSSOP	SSOP	TSSOP	TSSOP	SSOP	SSOP	SSOP	TSSOP
package instruction	TSSOP,	SSOP,	TSSOP,	TSSOP,	SSOP,	SSOP,	SSOP,	TSSOP,
Contacts	48	48	48	48	48	48	48	48
Reach Compliance Code	compliant	unknow	compliant	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
length	12.5 mm	15.875 mm	12.5 mm	12.5 mm	15.875 mm	15.875 mm	15.875 mm	12.5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER
Number of digits	9	9	9	9	9	9	9	9
Number of functions	2	2	2	2	2	2	2	2
Number of ports	4	4	4	4	4	4	4	4
Number of terminals	48	48	48	48	48	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	TSSOP	TSSOP	SSOP	SSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	0.25 ns	1.25 ns	0.25 ns	0.25 ns	0.25 ns	0.25 ns	0.25 ns	1.25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.794 mm	1.2 mm	1.2 mm	2.794 mm	2.794 mm	2.794 mm	1.2 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	7.5 mm	6.1 mm	6.1 mm	7.5 mm	7.5 mm	7.5 mm	6.1 mm
Is it Rohs certified?	conform to	-	conform to	incompatible	conform to	conform to	incompatible	-
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	-	-	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Other features	TTL COMPATIBLE BUS SWITCH	-	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	-
Peak Reflow Temperature (Celsius)	260	-	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
