NAS0615T-2R2M-N: DescriptionGeneral Purpose Inductor, 2.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size87KB，1 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

NAS0615T-2R2M-N Overview

General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT

NAS0615T-2R2M-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.065 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	2 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Pure Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

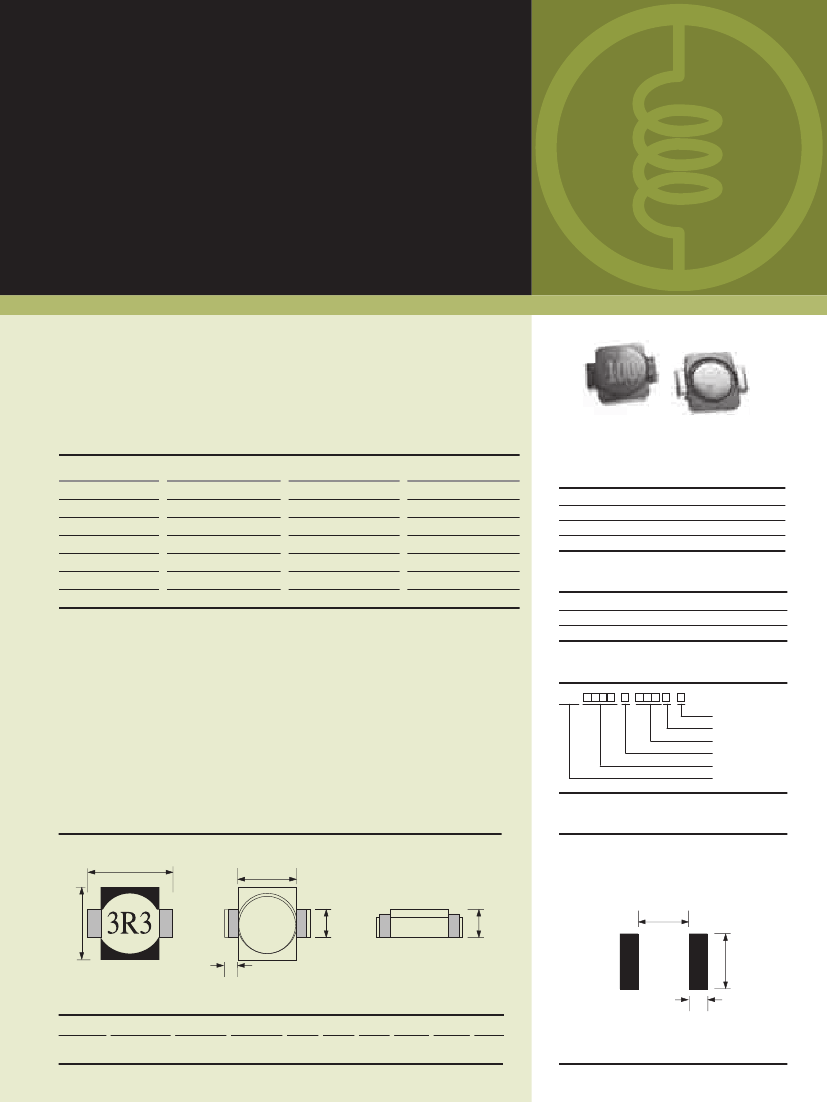

NAS0615T-2R2M-N Preview

YAGEO CORPORATION

SMD INDUCTOR / BEADS

NAS Series

SMD Power Inductors

electrical characteristics : lead-free & rOhs cOmpliance

tYpe

NAS0615T-1R6M-N

NAS0615T-2R2M-N

NAS0615T-2R6M-N

NAS0615T-3R0M-N

NAS0615T-3R3M-N

NAS0615T-3R6M-N

NAS0615T-4R7M-N

inductance l(µh)±20

1

1.6

2.2

2.6

3.0

3.3

3.6

4.7

dcr (Ω)

MAX.

0.045

0.065

0.075

0.085

0.096

0.110

0.130

IDC (A) MAX.

2

2.5

2.0

1.8

1.7

1.6

1.5

2.0

(NAS0615)

features

Magentically shielded and low radiation

Very low DCR & better Q factor

Flat bottom for reliable surface mounting

Density design, small size, and low cost

applicatiOns

Mobile telephone.

Step-up or step-down converters.

Flash memory.

1. Test Frequency 100KHZ / 0.1Vrms.

2. Inductance drops 20%(typ) at rated lsat.

3. Operating Temperature Range -40°C to 85°C

4. Inductance : M : ±20%

prOduct identificatiOn

NAS

-

International No.

Tolerance

Inductance

Packaging Style

Dimensions

Product Symbol

shape and dimensiOns

A

B

Dimensions : mm

land patterns pcB

F

C

E

G

C

I

B

E

D

tYpe

NAS0615

a

6.50MAX

B

5.3±0.3

c

1.5MAX

d

0.9

e

2.6

f

4.5

G

4.06

h

1.40

i

3.56

H

I

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
