SE025M0470B5S-1015 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SE025M0470B5S-1015

SE025M0470B5S-1015: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size56KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SE025M0470B5S-1015 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED

SE025M0470B5S-1015 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10.5 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.3625 mA
length	17.5 mm
Manufacturer's serial number	SE-K
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	470 mA
series	SE-K
surface mount	NO
Delta tangent	0.16
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

YAGEO CORPORATION

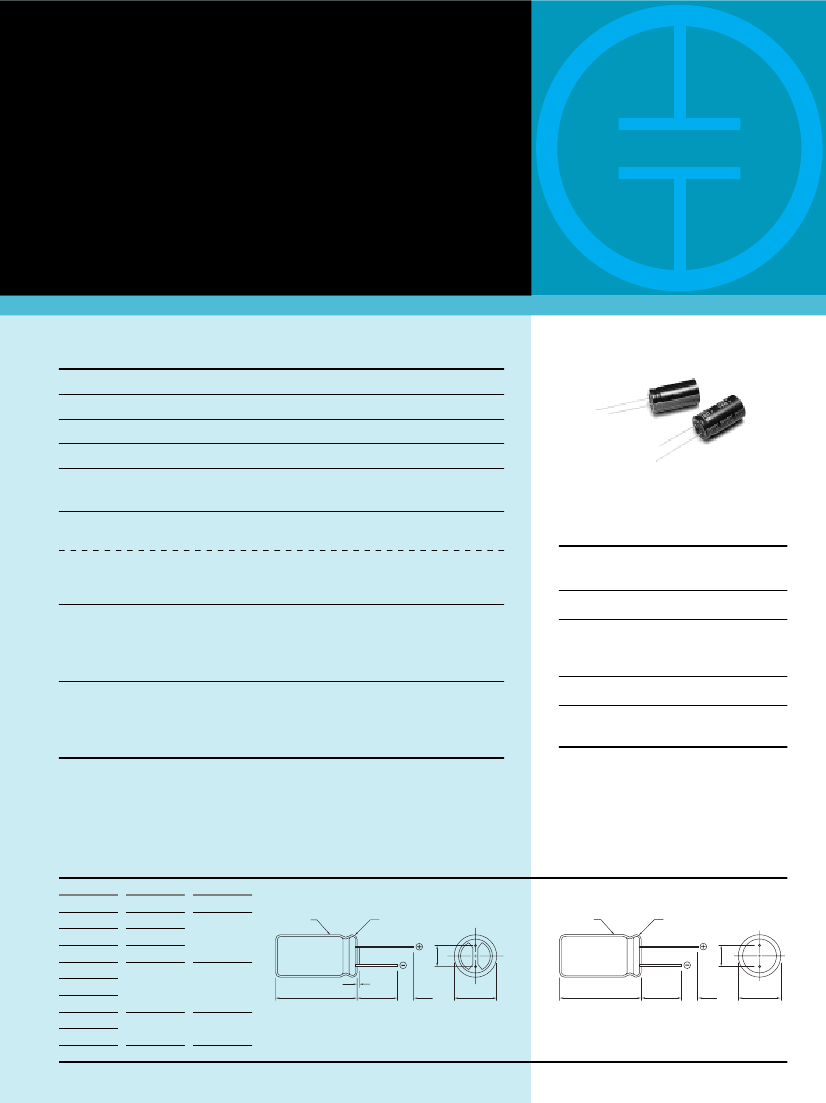

ALUMINUM ELECTROLYTIC CAPACITORS

SE-K

[ For General ]

105°C Single-Ended Lead Aluminum Electrolytic Capacitors Rated Voltage up to 450V

Miniature Size Aluminum

Electrolytic Capacitors

ELECTRICAL CHARACTERISTICS

Working Voltage : 6.3 ~ 100V / 160 ~ 250V / 350 ~ 450V

Operating Temperature : -40° ~ +105°C / -40º ~ +105ºC / -25° ~ +105°C

Rate Capacitance Range : 0.47 ~ 15000µF / 0.47 ~ 470µF / 0.47 ~ 150µF

Capacitance Tolerance : -20 ~ +20%

DC Leakage Current (µA) : I = 0.01CV + 3 / 0.03CV + 10

( After 2 Minutes Application of DC Working Voltage at 25°C )

Dissipation Factor : at 120 Hz, 25°C

W V (V) :

D.F (%) :

6.3

100

160 ~ 250 350 ~ 450

DESCRIPTION

Lower-cost capacitors expressly intended for

high density printed circuit board.

Very High Volumetric Efficiency

Ideally suited for general-purpose applications,

coupling, decoupling, by pass, and filtering

circuit in entertainment electronics.

Feature High CV Product with Moderate Cost

For Detail Specifications, Please Refer to

Engineering Bulletin No. 2030

For capacitor whose capacitance excceds 1000

µF.

The value of DF(%) is increased by 2% for every

addition of 1000

µF.

Load Life : 1000 Hours at Assured with Full Rated Maximum Ripple Current Applied

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

Shelf Life : 500 Hours, No Voltage Applied

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

DIAGRAM OF DIMENSIONS

Dimensions : mm

Dø

4.0

5.0

6.0

8.0

10.0

12.0

13.0

16.0

18.0

22.0

1.5

2.0

2.5

3.5

5.0

dø

0.45

0.5

Rubber Stand-off

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Vinyl Sleeve

(P.V.C)

Rubber End Seal

F±0.5

0.6

0.4Max.

15Min.

5Min.

D±0.5

15Min.

5Min.

D±0.5

7.5

10.0

0.8

≤

13≤ L

≤

≥

L + 1.5Max.

+1.0

-0.5

L + 2.0Max.
