MPU-600E
Series
Single Output 600W
Power Factor Corrected
AC/DC Power Supplies
Electrical Specifications

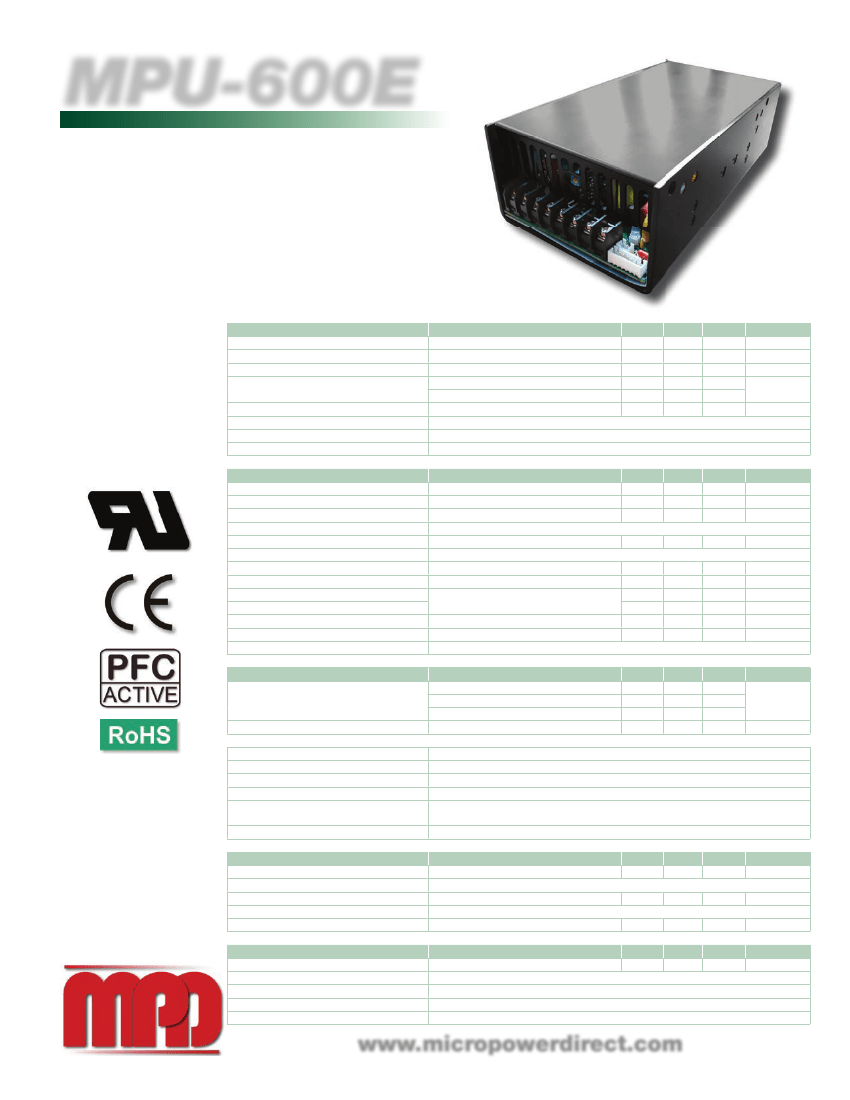

Key Features:
•
Compact 600W Supply
•
PFC to EN 61000-3-2 “D”
•
EN 60950 Approved (UL)
•
CE Certified
•
FCC Class B Emissions
•
Universal AC Input
•
Current Share Option
•
Compact Case w/End Fan
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Input
Parameter
Input Voltage Range
Input Frequency
Input Current, Full Load
Inrush Current, Cold Start
Leakage Current
Power Factor Correction
Input Protection
Input Undervoltage Protection
Conditions
Universal
Min.
90
47
Typ.
Max.
264
63
Units
VAC
Hz
A
90 VAC
10.0
110 VAC
35
A
220 VAC
70
264 VAC
2.0
mA
Meets EN 61000-3-2 Class D
T10A/250V Fuse
Under 80 VAC ±5 VAC Unit Shuts Down; Unit Recovers Over 86 VAC
Conditions
By Trim Pot
Min.
Typ.
±5.0
±1.0
Max.
Output
Parameter
Output Voltage Adjustment
Output Regulation, See Note 1
Hold Time
Ripple & Noise (20 MHz), See Note 2
Overload Protection
Over Voltage Protection
Over Temperature Protection
Temperature Coefficient
Transient Recovery Time, See Note 4
Transient Response Deviation
Overshoot/Undershoot
Turn On Delay
Output Short Circuit
Units
%
%
mSec
%
ºC
%/ºC
mS
%
%
S
120 VAC, 80% Load
20
See Model Selection Guide
Foldback Circuit, Autorecovery
110
140
>130% of Rated Output Voltage. Recycle AC Input.
Autorecovery
+85
±0.04
2.5
50% Load Change
5.0
At Turn On/Off
±5.0
230 VAC
1.0
Continuous With Autorecovery
Conditions
Input - Output
Input - FG (Frame Ground)
Primary - Core
Fixed
Min.
3,000
1,500
1,500
Typ.
Max.
General
Parameter
Isolation Voltage, See Note 5
Switching Frequency
Units
VAC
24
kHz
Interface Signals
LED Power Supply On
Current Monitor
Current Share
Remote Sense
Power Good Signal
Bi-color LED Is Green For Power On; Orange When Protection Enabled
A 0.5 to 3.0V Output That Represents 0% to 100% Output Current
Optional For Sharing Up To Four Units. Contact The Factory For Details
Compensates For Up To A 0.5V Line Drop
Goes TTL high 100 to 500 mS after regulation. Goes low at least 1 mS
before the loss of regulation. Will sink 100 mA.
A TTL low signal inhibits the output. Hiccup mode.
Conditions
Min.
Typ.
Max.
Units
Ambient
0
+25
+70
ºC
2.5%/ ºC from +50 ºC to + 70 ºC
-20
+85
ºC
See Model Selection Guide
RH, Non-condensing
90
%
MicroPower Direct
292 Page Street
Suite D
Stoughton, MA 02072
USA
T:
(781) 344-8226
F:
(781) 344-8481
E:
sales@micropowerdirect.com
W:
www.micropowerdirect.com
Remote On/Off
Environmental
Parameter
Operating Temperature Range
Output Derating
Storage Temperature Range
Cooling
Operating Humidity
Reliability Specifications
Parameter
MTBF
Safety Standards
EMI Compliance
EMS Immunity Compliance
Vibration
Conditions
Min.
Typ.
Max.
Units
MIL HDBK 217F, 30ºC, Gnd Benign
100
kHours
UL 60950, EN 60950
Compliance to EN 55022 (CISPR22) Class B; EN 61000-3-2,3
EN 6100-4-2,3,4,5,6,11; EN 55024, CE Marked (LVD)
Sinusoidal 5~50 Hz, Acceleration ±7.35 m/s
2
on X, Y & Z Axis
www.micropowerdirect.com
Model Selection Guide
Model
Number
MPU-600S-12
YYEI
MPU-600S-24
YYEI
MPU-600S-48
YYEI
Output Voltage
(VDC)
PreSet
Range
Output
Current
(Max A)
www.micropowerdirect.com
Max.
Output
Power
(W)
Ripple
& Noise Efficiency
(%)
(% p-p)
±1%
±1%
±1%
80%
83%
83%
12 VDC 12.0 - 15.0
24 VDC 22.0 - 30.0
48 VDC 48.0 - 56.0
50.00
30.00
12.50
600
600
600
Models with other output voltage levels
are available (i.e. 15 VDC, 36 VDC, etc)
Contact the factory for details at:
sales@micropowerdirect.com
Model Number
Notes:
1. Output regulation includes line & load.
2. Ripple & noise is measured from 10 Hz to 20 MHz. Connection to the unit is made with a 0.1 µF ceramic capacitor & a
22 µF electrolytic capacitor connected in parallel.
3. A 1% minimum load is required to maintain regulation & ripple specifications.
4. Transient recovery is measured to within a 1% error band for a load step change of 50% to 100%.
5. Isolation specifications are production HI-Pot tested for 3 seconds.
6. The full output range (see table) is covered in the safety agency certification. Standard models are factory set to the Preset
voltage, but may be set to other levels within the range without affecting the agency certification. For more information,
contact the factory.
7. Output power is given for the factory preset voltage. The maximum continuous output power level is 600W. All models
provide a peak power level of 900W for a maximum duration of 500
µS.
For more information, contact the factory.
8. Each unit includes an input fuse (250V/12A). Since this fuse is not field replaceable, it is recommended that an external
fuse of the same size be used on the input of the power supply for protection.

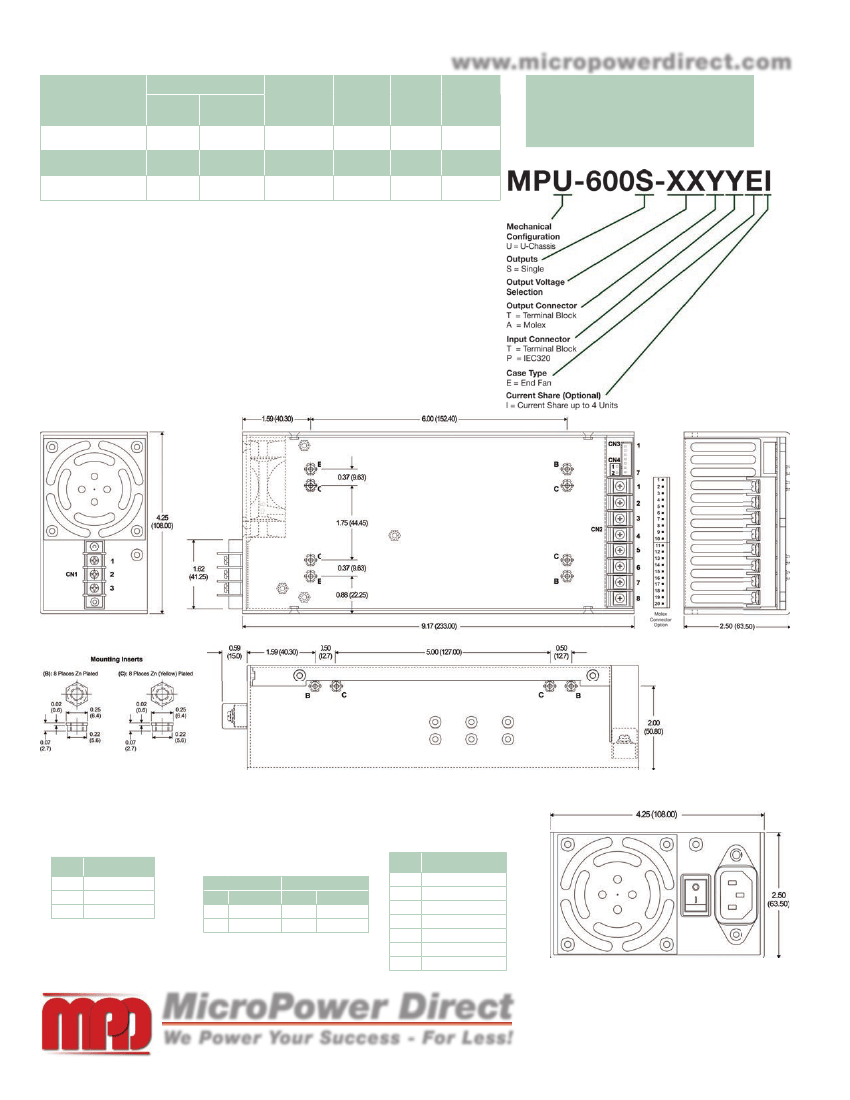

Mechanical Dimensions
Connections
Input Connector (CN1):
•
Terminal Block:
Dinkle DT-35-A02W-03 (3Pin)
M3 Screws, 8.25 mm Centers
•
IEC320 or equivalent
Pin
1
2
3
Function
AC-Line
AC-Neutral
Field Ground
Output Connector (CN2):
•
Terminal Block:
Howder HD-121-8P: M3.5 Screws
8 pins, 9.5 mm Centers
•
Molex Mating Part No:
Molex 09-91-2000 or equivalent
Howder
Pin
Function
Pin
Logic Signal Connector (CN3):
•
Mating Part No:
JST XHP-7 or equivalent
(CHYAO SHIUNN JS-2001-07)
Pin
1
2
3
4
5
6
7
Function
+ Remote Sense
- Remote Sense
Remote On/Off
Power Good
Common
Current Share
Current Monitor
Input IEC320 Connector
(Optional)
Molex
Function
1-4
5-8
-V
OUT
+V
OUT
1-10
11-20
-V
OUT
+V
OUT
MicroPower Direct
We Power Your Success - For Less!
292 Page Street Ste D Stoughton, MA 02072
•
Notes:
•
All dimensions are typical in inches (mm)
•
Tolerance x.xx =
±
0.02 (
±
0.50)
FAX: (781) 344-8481
•
TEL: (781) 344-8226
•
E-Mail: sales@micropowerdirect.com
