Z86C3112VSC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C3112VSC

Preview

Z86C3112VSC: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, CMOS, PQCC28, PLASTIC, LCC-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size606KB，19 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C3112VSC Overview

Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQCC28, PLASTIC, LCC-28

Z86C3112VSC Parametric

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	8
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQCC-J28
length	11.505 mm
Number of I/O lines	24
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	4.57 mm
speed	12 MHz
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.505 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

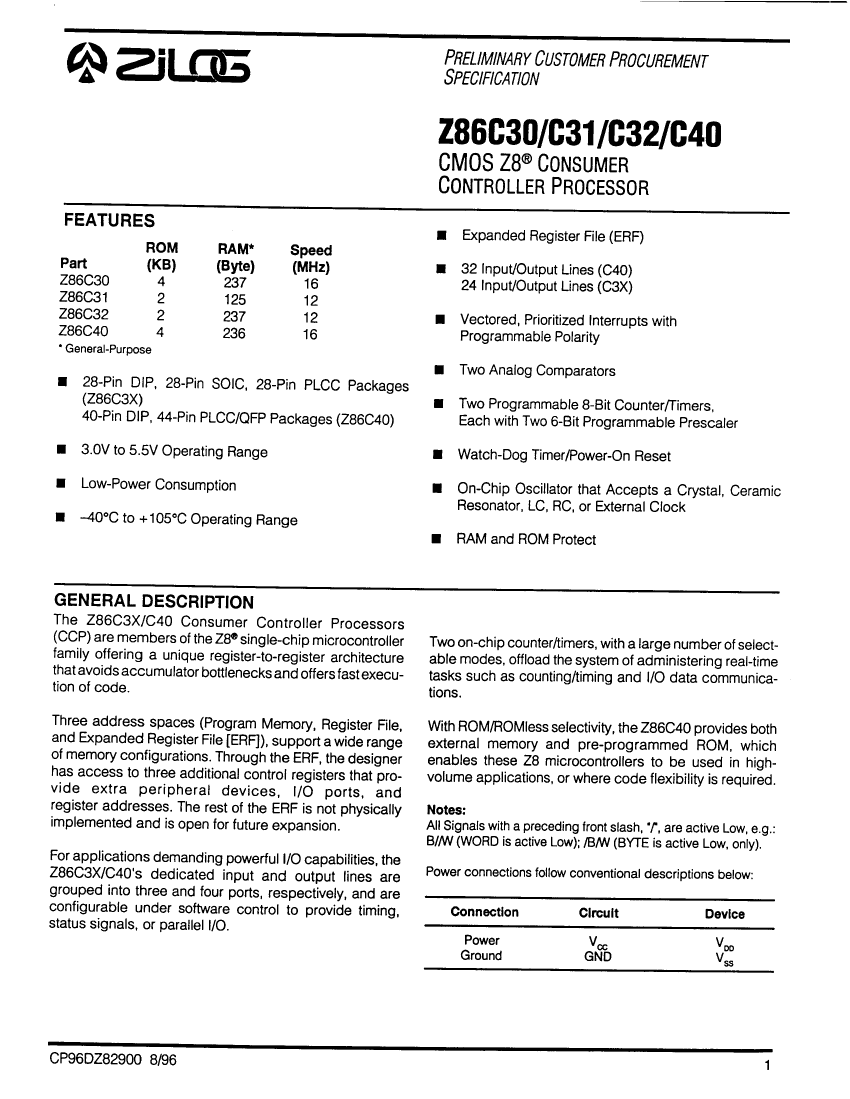

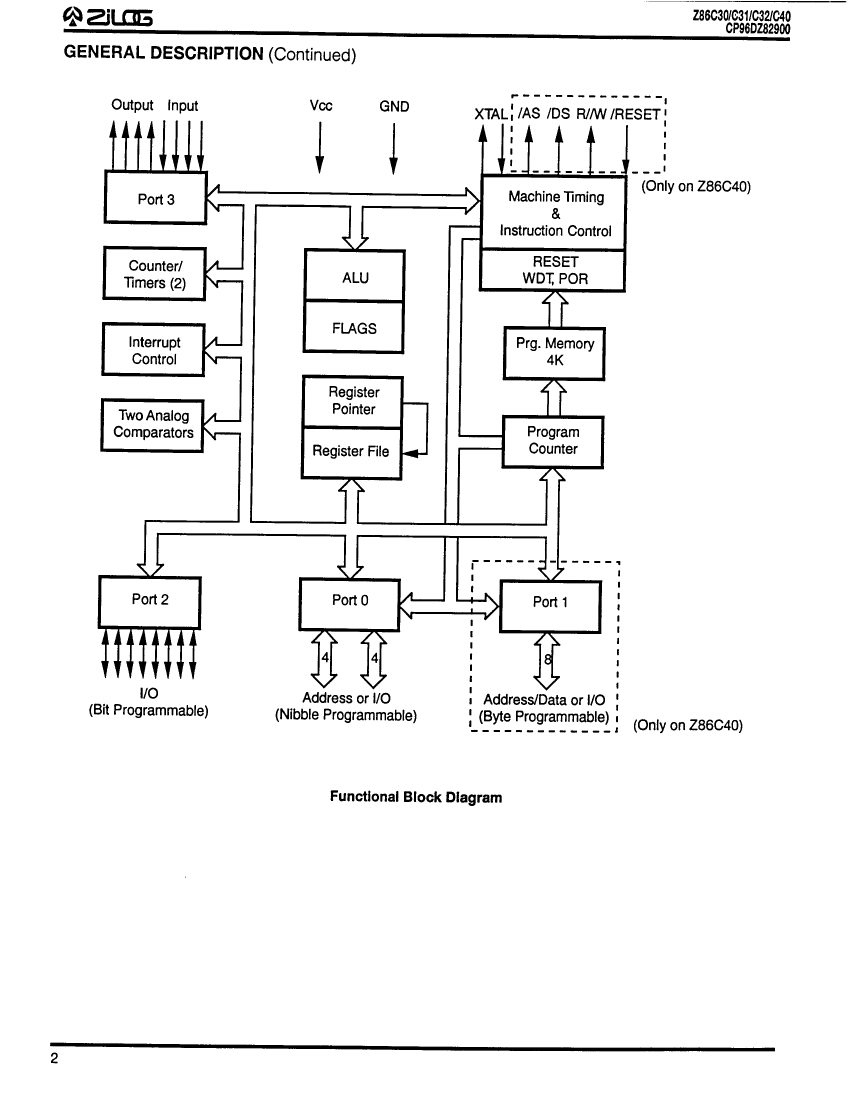

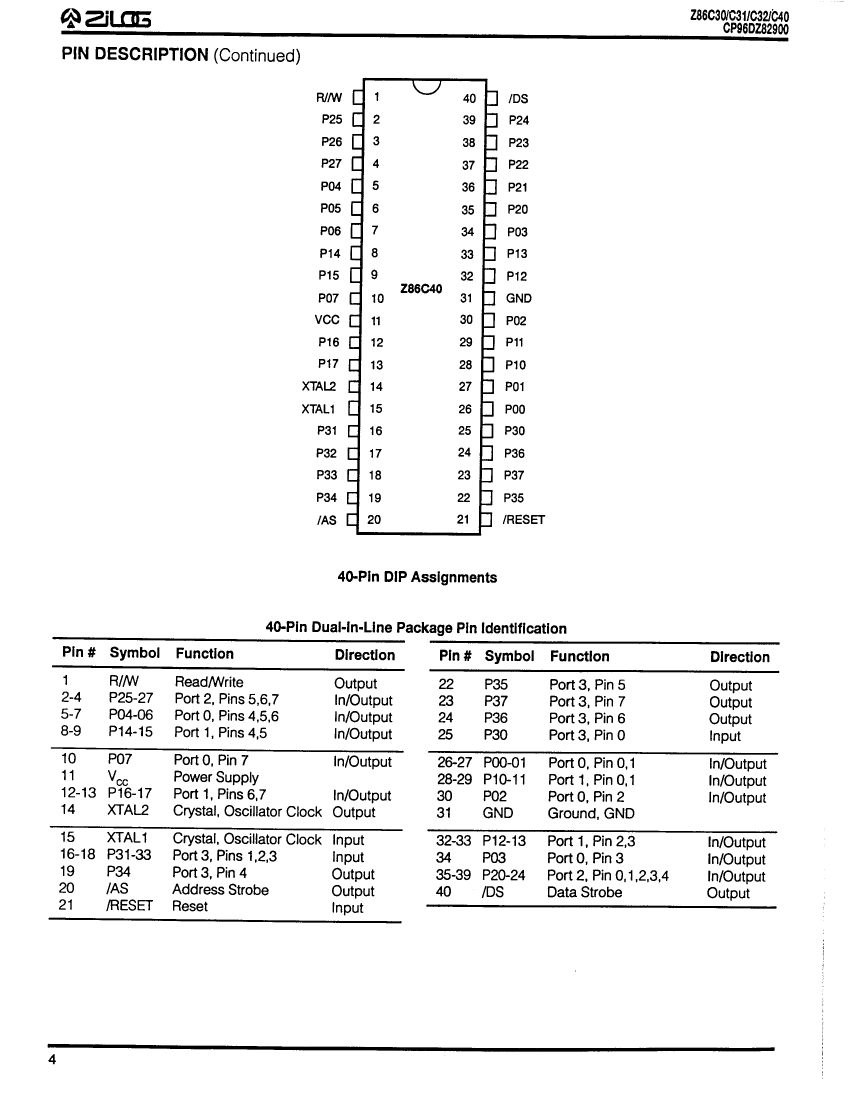

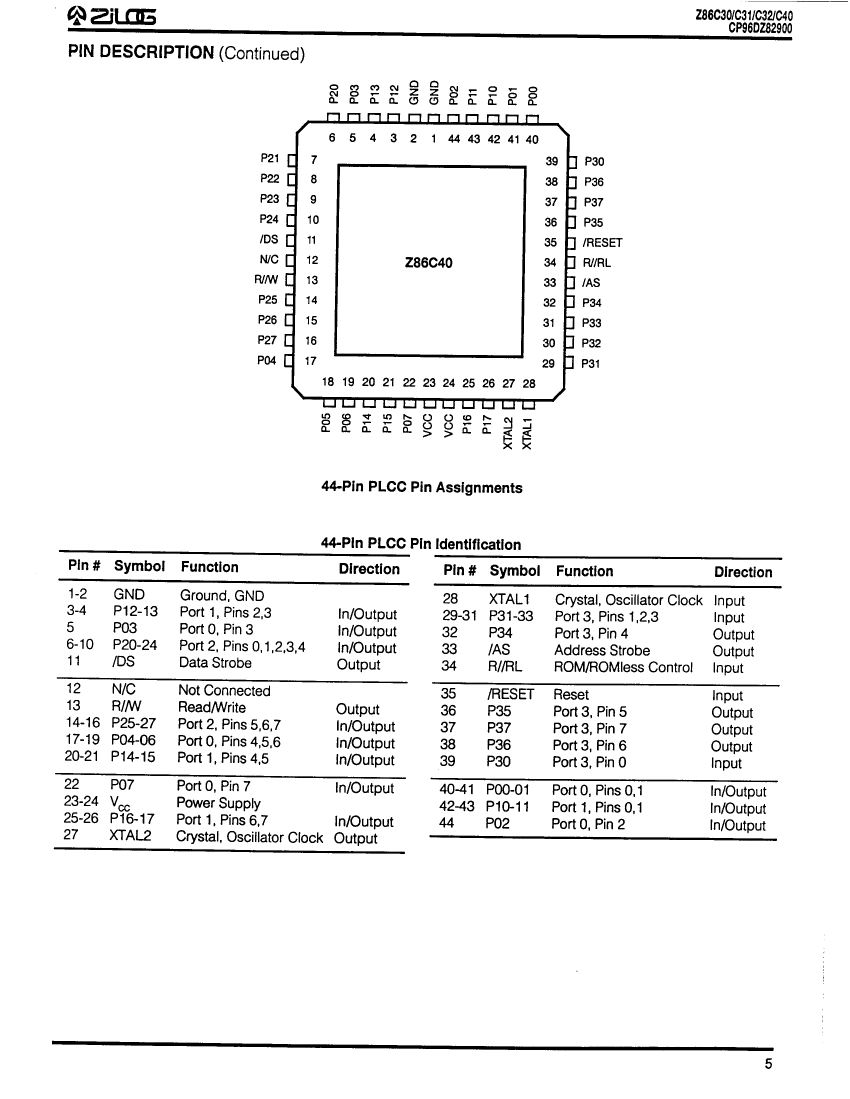

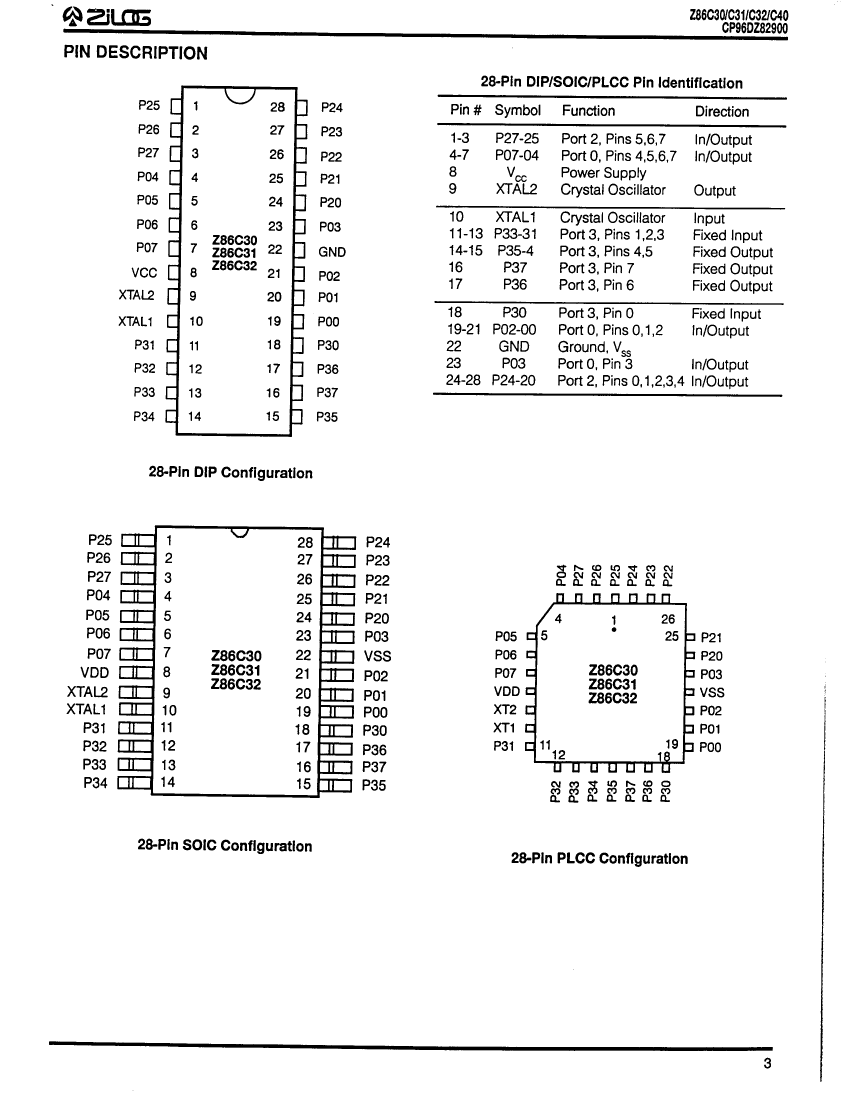

Z86C3112VSC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z86C3112VSC Related Products

	Z86C3112VSC	Z86C3112PSC	Z86C4016VEC	Z86C4016FSC	Z86C4016VSC
Description	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQCC28, PLASTIC, LCC-28	IC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PDIP28, DIP-28, Microcontroller	Microcontroller, 8-Bit, MROM, Z8 CPU, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PQFP44, QFP-44	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QLCC	DIP	LCC	QFP	LCC
package instruction	QCCJ,	DIP,	PLASTIC, LCC-44	QFP-44	PLASTIC, LCC-44
Contacts	28	28	44	44	44
Reach Compliance Code	unknown	unknown	unknow	unknow	unknow
Has ADC	NO	NO	NO	NO	NO
Address bus width	8	8	16	16	16
bit size	8	8	8	8	8
maximum clock frequency	12 MHz	12 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
External data bus width	-	-	8	8	8
JESD-30 code	S-PQCC-J28	R-PDIP-T28	S-PQCC-J44	S-PQFP-G44	S-PQCC-J44
length	11.505 mm	36.96 mm	16.5862 mm	10 mm	16.5862 mm
Number of I/O lines	24	24	32	32	32
Number of terminals	28	28	44	44	44
Maximum operating temperature	70 °C	70 °C	105 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ	QFP	QCCJ
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM
Maximum seat height	4.57 mm	4.96 mm	4.57 mm	2.5 mm	4.57 mm
speed	12 MHz	12 MHz	16 MHz	16 MHz	16 MHz
Maximum slew rate	20 mA	20 mA	25 mA	25 mA	25 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	THROUGH-HOLE	J BEND	GULL WING	J BEND
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	0.8 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	QUAD	QUAD
width	11.505 mm	15.24 mm	16.5862 mm	10 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Other features	-	-	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES
boundary scan	-	-	NO	NO	NO
Format	-	-	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	-	-	NO	NO	NO
low power mode	-	-	YES	YES	YES
Number of external interrupt devices	-	-	6	6	6
Number of timers	-	-	2	2	2
On-chip data RAM width	-	-	8	8	8
On-chip program ROM width	-	-	8	8	8
RAM (number of words)	-	-	236	236	236
rom(word)	-	-	4096	4096	4096
