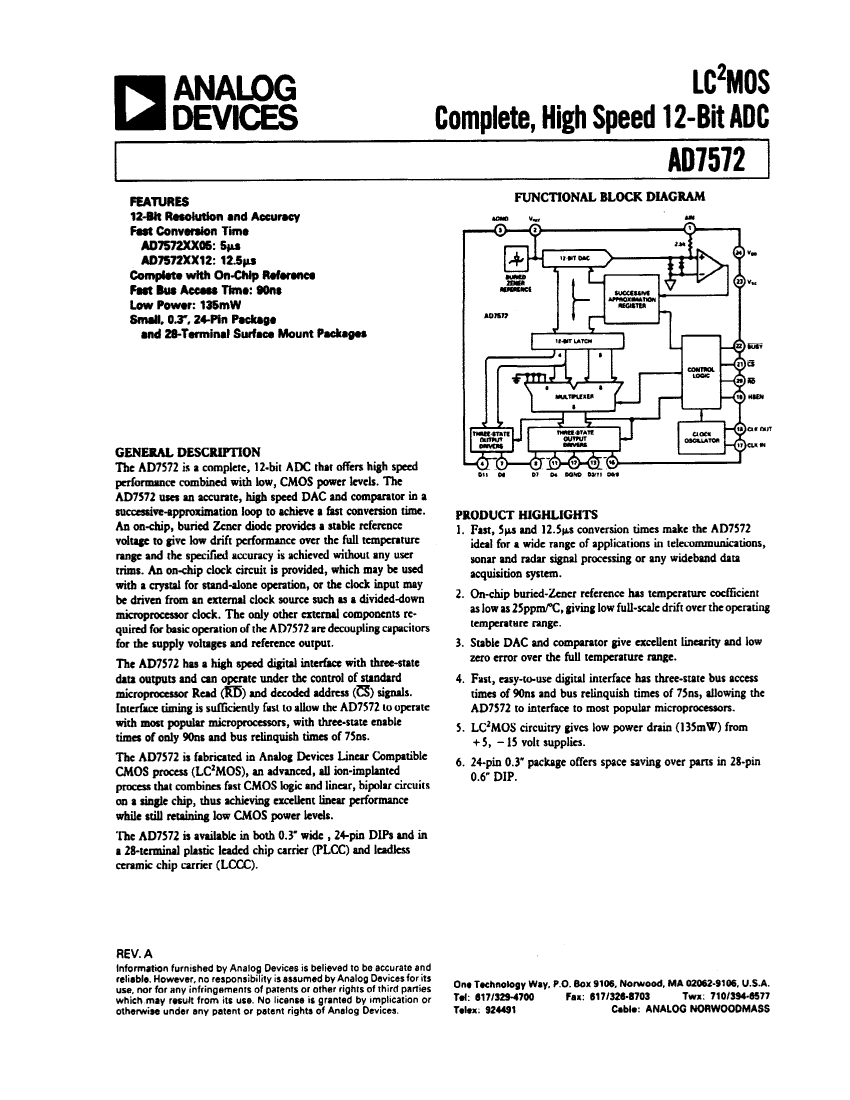

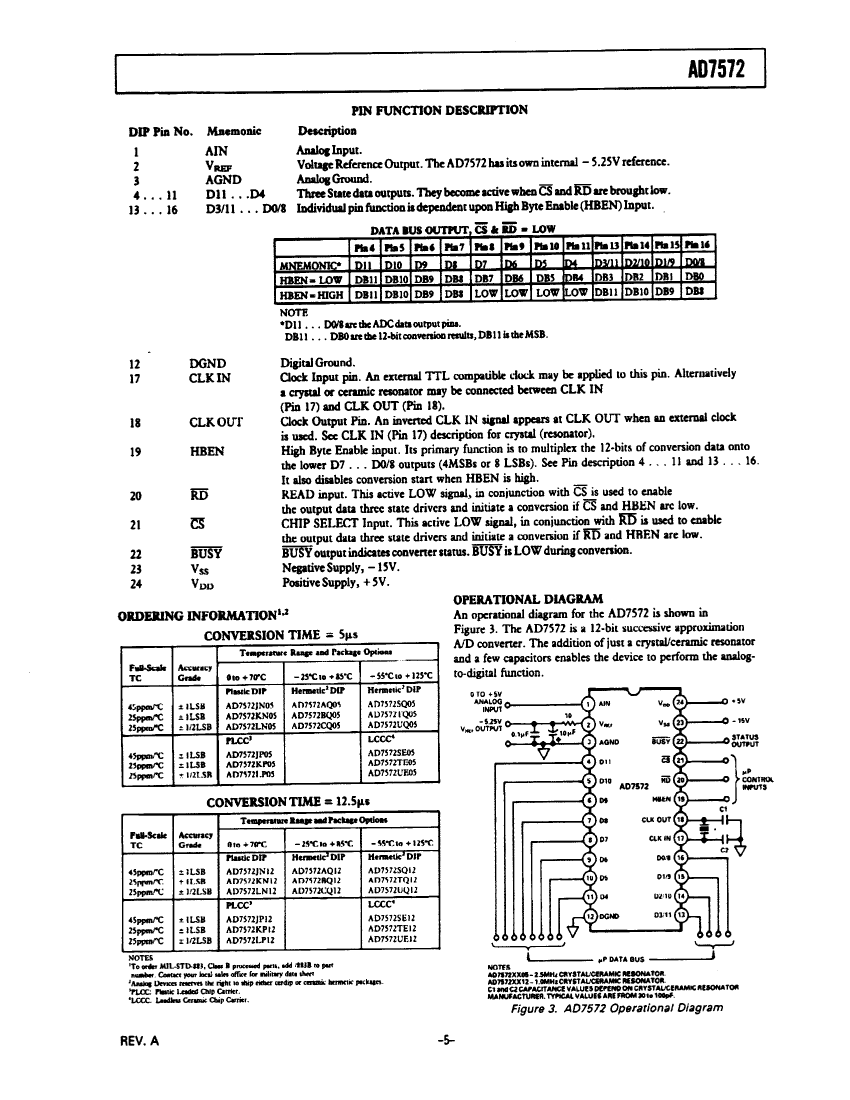

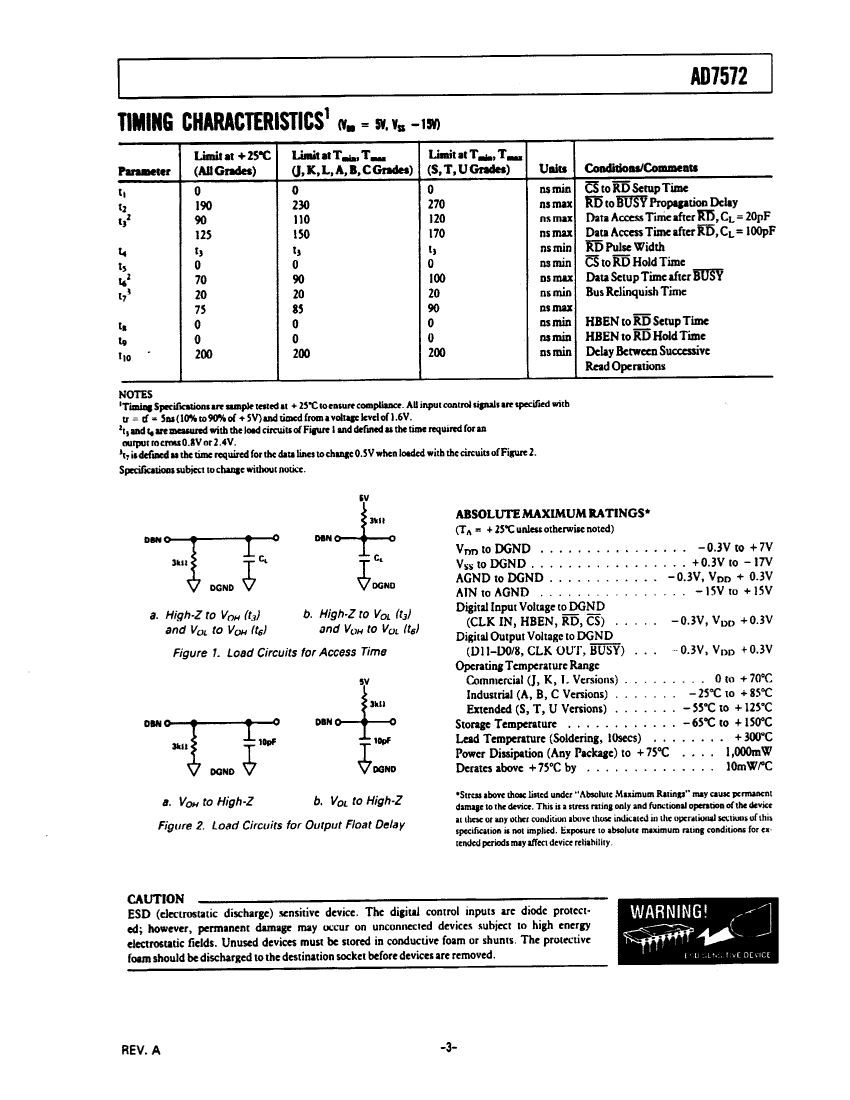

IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 0.300 INCH, CERDIP-24, Analog to Digital Converter

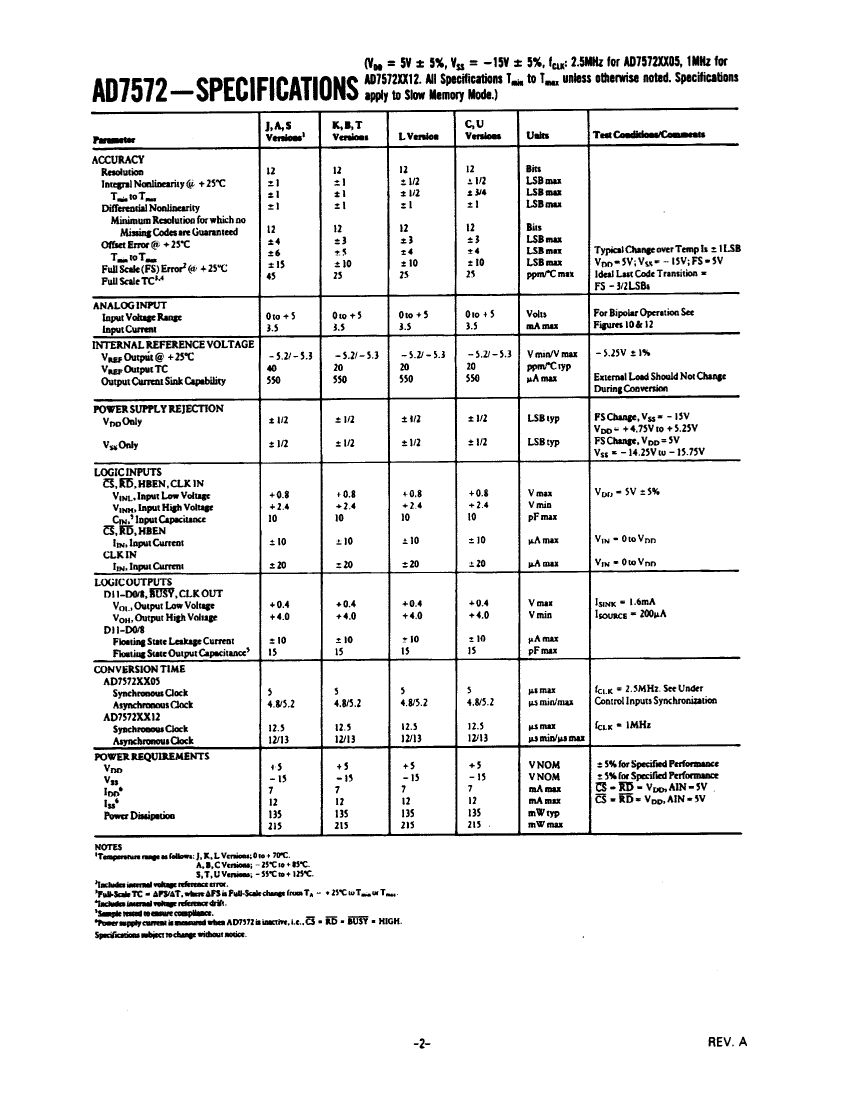

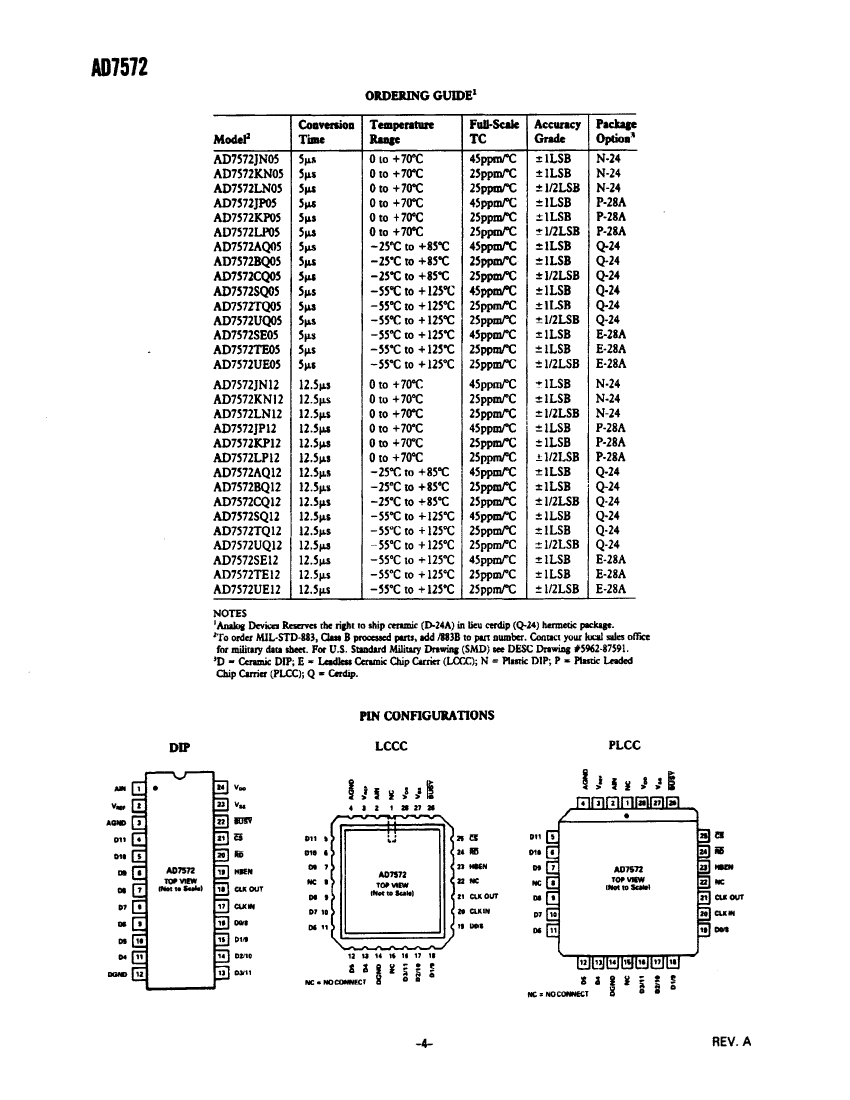

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | ADI |
| Parts packaging code | DIP |
| package instruction | 0.300 INCH, CERDIP-24 |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum analog input voltage | 5 V |
| Minimum analog input voltage | |
| Maximum conversion time | 13 µs |
| Converter type | ADC, SUCCESSIVE APPROXIMATION |
| JESD-30 code | R-GDIP-T24 |
| JESD-609 code | e0 |
| Maximum linear error (EL) | 0.0244% |
| Nominal negative supply voltage | -15 V |
| Number of analog input channels | 1 |
| Number of digits | 12 |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Output bit code | BINARY |
| Output format | PARALLEL, WORD |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5,-12/-15 V |
| Certification status | Not Qualified |
| Sample and hold/Track and hold | SAMPLE |
| Maximum seat height | 5.715 mm |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| AD7572AQ12 | AD7572TE05 | AD7572TQ05 | AD7572UQ12 | AD7572UQ05 | AD7572KN12 | |
|---|---|---|---|---|---|---|
| Description | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 0.300 INCH, CERDIP-24, Analog to Digital Converter | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 0.300 INCH, CERDIP-24, Analog to Digital Converter | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 0.300 INCH, CERDIP-24, Analog to Digital Converter | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 0.300 INCH, CERDIP-24, Analog to Digital Converter | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24, 0.300 INCH, PLASTIC, DIP-24, Analog to Digital Converter |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | ADI | ADI | ADI | ADI | ADI | ADI |
| Parts packaging code | DIP | QLCC | DIP | DIP | DIP | DIP |
| package instruction | 0.300 INCH, CERDIP-24 | CERAMIC, LCC-28 | 0.300 INCH, CERDIP-24 | 0.300 INCH, CERDIP-24 | DIP, DIP24,.3 | DIP, DIP24,.3 |
| Contacts | 24 | 28 | 24 | 24 | 24 | 24 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | not_compliant |
| ECCN code | EAR99 | EAR99 | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | EAR99 |
| Maximum analog input voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Maximum conversion time | 13 µs | 5.2 µs | 5.2 µs | 13 µs | 5.2 µs | 13 µs |
| Converter type | ADC, SUCCESSIVE APPROXIMATION | ADC, SUCCESSIVE APPROXIMATION | ADC, SUCCESSIVE APPROXIMATION | ADC, SUCCESSIVE APPROXIMATION | ADC, SUCCESSIVE APPROXIMATION | ADC, SUCCESSIVE APPROXIMATION |
| JESD-30 code | R-GDIP-T24 | S-CQCC-N28 | R-GDIP-T24 | R-GDIP-T24 | R-GDIP-T24 | R-PDIP-T24 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum linear error (EL) | 0.0244% | 0.0244% | 0.0244% | 0.0122% | 0.0122% | 0.0244% |
| Nominal negative supply voltage | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of analog input channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of digits | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 28 | 24 | 24 | 24 | 24 |
| Maximum operating temperature | 85 °C | 125 °C | 125 °C | 125 °C | 125 °C | 70 °C |
| Minimum operating temperature | -25 °C | -55 °C | -55 °C | -55 °C | -55 °C | - |
| Output bit code | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY |
| Output format | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY |
| encapsulated code | DIP | QCCN | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP24,.3 | LCC28,.45SQ | DIP24,.3 | DIP24,.3 | DIP24,.3 | DIP24,.3 |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT APPLICABLE |
| power supply | 5,-12/-15 V | 5,-15 V | 5,-15 V | 5,-15 V | 5,-15 V | 5,-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Sample and hold/Track and hold | SAMPLE | SAMPLE | SAMPLE | SAMPLE | SAMPLE | SAMPLE |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | OTHER | MILITARY | MILITARY | MILITARY | MILITARY | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn85Pb15) |
| Terminal form | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT APPLICABLE |
| width | 7.62 mm | 11.43 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Maximum seat height | 5.715 mm | 2.54 mm | 5.715 mm | 5.715 mm | 5.715 mm | - |
