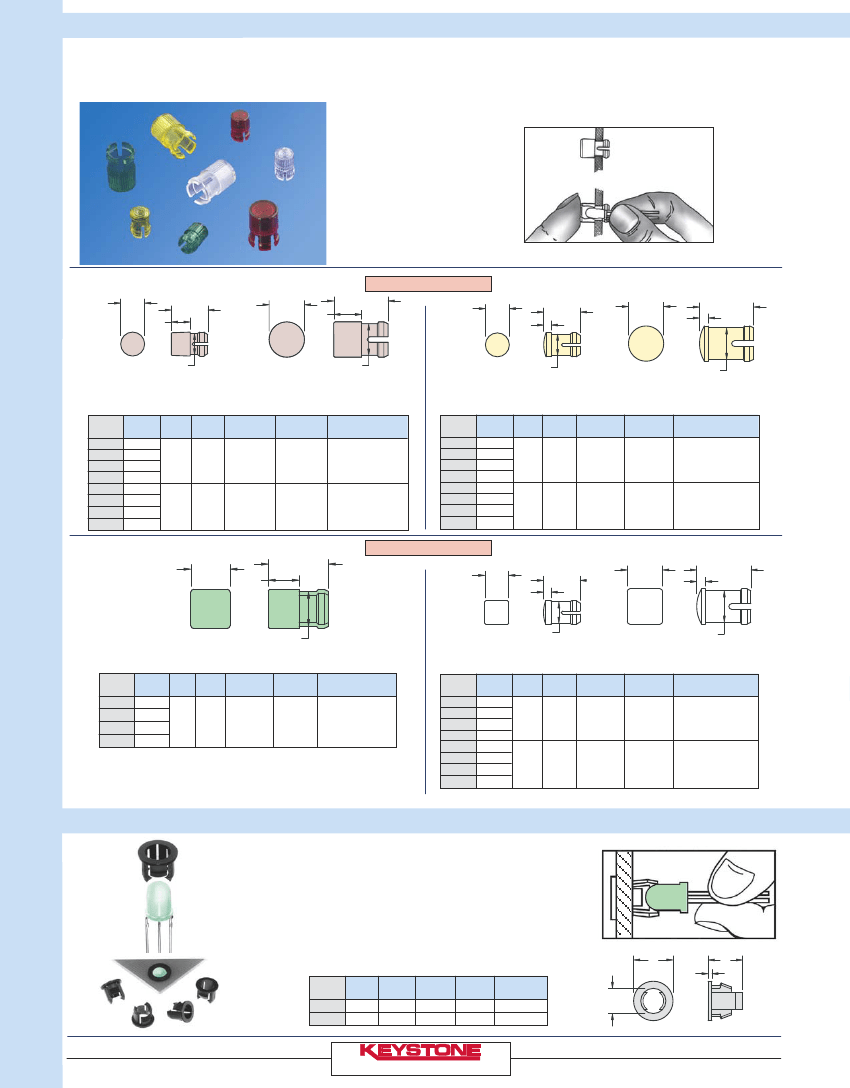

LED LENS CAPS
Designed for use with T-1 or T-1 3/4 LEDs, these Lens Caps are available in round
or square configurations. They snap-mount through the front panel for easy, light-finger pres-
sure, intsallation. The LED is inserted into the cap from behind the panel and held securely
in place.
The Lens Cap protects the LED from physical damage while guarding the components from
electrostatic discharge (ESD), up to 16KV. More economical than indicator light assemblies,
the caps feature striated lines and fresnel rings which permit up to 180 viewing angles with
either diffused or non-diffused LED’s. They provide exceptionally high contrast and visibility.
MATERIAL:
Polycarbonate
Available in Red, Green, Yellow and Clear
ROUND CAPS
LED LENS CAPS & HOLDERS
.190
[4.9]
DIA.
.150
[3.8]
.290 [7.4]
.280 [7.1]
DIA.
.430 [10.9]
.220
[5.6]
.190
[4.9]
DIA.
.290 [7.4]
.060
[1.52]
.280 [7.1]
DIA.
.430 [10.9]
.070
[1.78]
.171 [4.4] DIA.
.250 [6.4] DIA.
.171 [4.4] DIA.
.250 [6.4] DIA.
FIG. 1
STANDARD HEIGHT
CAT.
NO.
COLOR
8650
RED
8651
GREEN
8652
YELLOW
8653
CLEAR
8662
RED
8663
GREEN
8664
YELLOW
8665
CLEAR
T-1
FIG.
NO.
1
LED
SIZE
T-1
FIG. 2
T-1 3/4
MTG. HOLE MIN. MTG.
SIZE
CENTERS
.171 (4.3)
.250 (6.4)
PANEL
THICKNESS
.031 - .062 (.79/1.57)
LOW PROFILE
CAT.
NO.
COLOR
8656
RED
8657
GREEN
8658
YELLOW
8659
CLEAR
8668
RED
8669
GREEN
8670
YELLOW
8671
CLEAR
FIG. 3
T-1
FIG.
NO.
3
FIG. 4
T-1 3/4
PANEL
THICKNESS
LED MTG. HOLE MIN. MTG.
SIZE
SIZE
CENTERS
T-1
.171 (4.3)
.250 (6.4) .062 - .125 (1.57/3.18)
2
T-1 3/4
.250 (6.4)
.375 (9.5)
.062 - .125 (1.57/3.18)
4
T-1 3/4 .250 (6.4)
.375 (9.5)
.031 - .250 (.79/6.4)
(See Note)
SQUARE CAPS
.280 [7.1]
SQ.
.430 [10.9]
.220
[5.6]
.190
[4.9]
SQ.
.290 [7.4]
.060
[1.52]
.280 [7.1]
SQ.
.430 [10.9]
.070
[1.78]
.250 [6.4] SQ.
.171 [4.4] DIA.
.250 [6.4] DIA.
FIG. 5
T-1 3/4
STANDARD HEIGHT
CAT.
FIG. LED MTG. HOLE MIN. MTG.
PANEL
NO.
COLOR NO. SIZE
SIZE
CENTERS
THICKNESS
8680
RED
.250
8681
GREEN
5 T-1 3/4 (6.4)
.375 (9.5) .062 - .125 (1.57/3.18)
8682
YELLOW
SQUARE
8683
CLEAR
FIG. 6
T-1
FIG. 7
T-1 3/4
LOW PROFILE
CAT.
FIG.
LED MTG. HOLE MIN. MTG.
PANEL
NO.
COLOR NO.
SIZE
SIZE
CENTERS
THICKNESS
8674
RED
8675
GREEN
6
T-1
.171 (4.3) .250 (6.4) .062 - .125 (1.57/3.18)
8676
YELLOW
8677
CLEAR
8686
RED
8687
GREEN
7
T-1 3/4 .250 (6.4) .375 (9.5) .031 - .250 (.79/6.4)
8688
YELLOW
(See Note)
8689
CLEAR
Note: When mounting
T-1 3/4 Low Profile Caps (Fig. 4 or Fig. 7) in panels .125 (3.2) thick or less a spacer must be used.
Spacer
CAT. NO. 8692
MATERIAL:
White Nylon .360 (9.1) O.D.
×
1/4 I.D.
×
1/8 Lg.
“SNAP-IN” T-1 & T-1 3/4 LED HOLDERS
Designed for use with T-1 or T-1 3/4 LED’s in .060 (1.52) - .070 (1.78) thick panels. The
holder snaps into the front panel with easy, light-finger pressure. The LED snaps into the
holder from behind the panel and is held securely in place.
MATERIAL:
Nylon 6/6, Black
CAT.
LED
MTG. HOLE
NO.
SIZE
A
B
C
SIZE
8309
T-1 .114 (2.9) .232 (5.9) .188 (4.8) .171 (4.3)
8310
T-1 3/4 .200 (5.0) .315 (8.0) .274 (6.9) .250 (6.4)
B
DIA.
.030
[0.76]
C
A
DIA.
90
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
®
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
