9011, 9012 & 9117 Miniature SIP Relays
Miniature Molded SIP Reed Relays
The 9012 package dimensions are 47% smaller than standard 9000 SIPs,
yet the relay retains the 10W switch ratings of its larger counterparts.
The 9011 package dimensions are 65% smaller than the standard 9000
SIPs and incorporates Coto’s 7mm switch rated at 3W. The 9117 goes
one step further, reducing package size by 65% from standard 9000
SIPs. This is the smallest SIP footprint with a 3W rating. These minia-
ture SIP relays are ideal for use in ATE applications and other high
reliability test, measurement and telecommunications applications
where high board density and long life are key requirements.
Series Features
9012 is a 10W SIP relay (.400” x .150” x .400”)
9011 is a 3W SIP relay (.400” x .150” x .265”)
9117 is the smallest 3W SIP relay (.270” x .150” x .385”)
Magnetic shielding reduces interaction
Optional coil suppression diode protects coil drive circuits
UL File # E67117
(9117 UL Pending)
High insulation resistance 10
12
Ω
minimum.
High speed switching
Molded thermoset body on integral lead frame design
High reliability, hermetically sealed contacts for long life

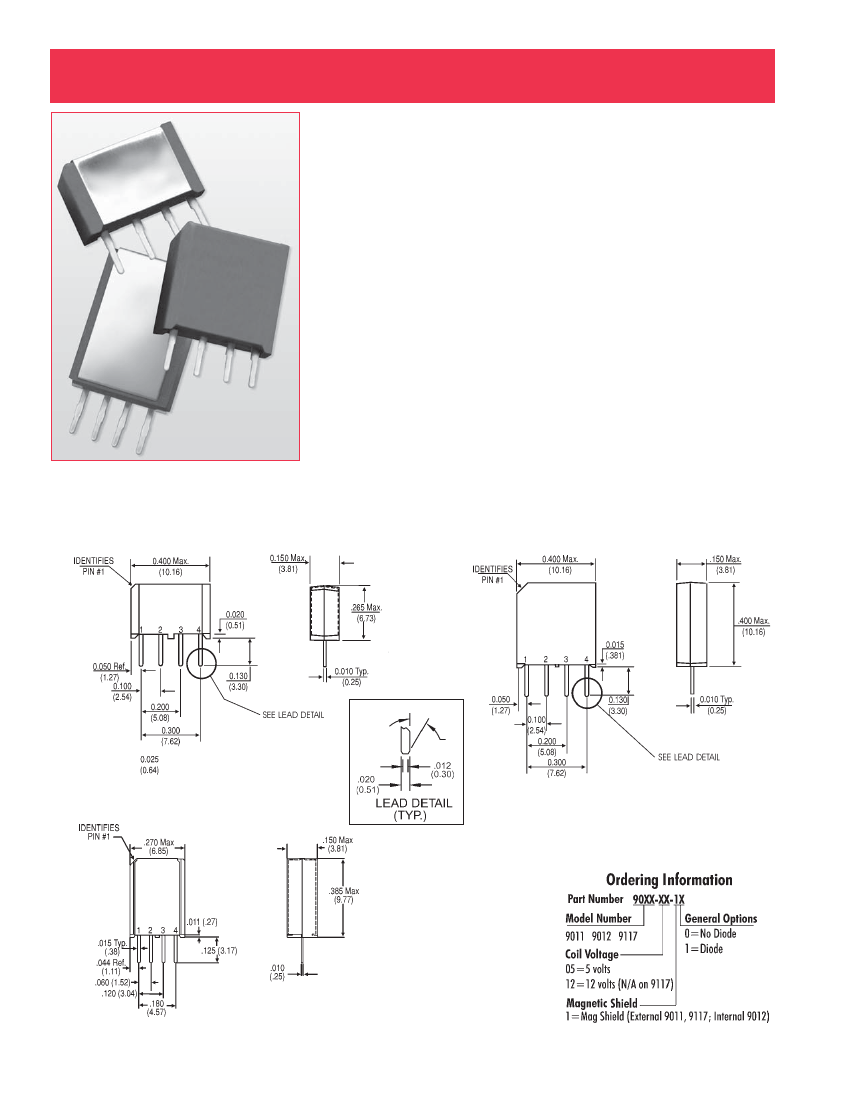

Model 9011
Dimensions in Inches (Millimeters)
Model 9012
30
o
Model 9117
2
28
COTO TECHNOLOGY (USA)
Tel:
(401) 943-2686 / Fax (401) 942-0920
6
(Europe) Tel: +31-45-5439343 / Fax +31-45-5427216
9011, 9012 & 9117 Miniature SIP Relays
Top View:
Grid = .1"x.1"
(2.54mm x 2.54mm)
Notes:
1
Consult factory for life expectancy at other switching
loads. Resistance >0.5Ω defines end of life or failure
to open.
2
Optional diode is connected to pin #2 (+) and pin
#3(-) for 9011 & 9012; pin #1(+) and pin #2(-)
for 9117. Correct coil polarity must be observed.
3
Consists of 20V Zener-diode and 1N1002 diode
in series, connected in parallel with coil.
4
9011 & 9117 external mag shield. 9012 internal mag
shield.
Environmental Ratings:
Storage Temp: -35°C to +100°C; Operating Temp: -20°C to +85°C
Solder Temp: 270°C max; 10 sec. max

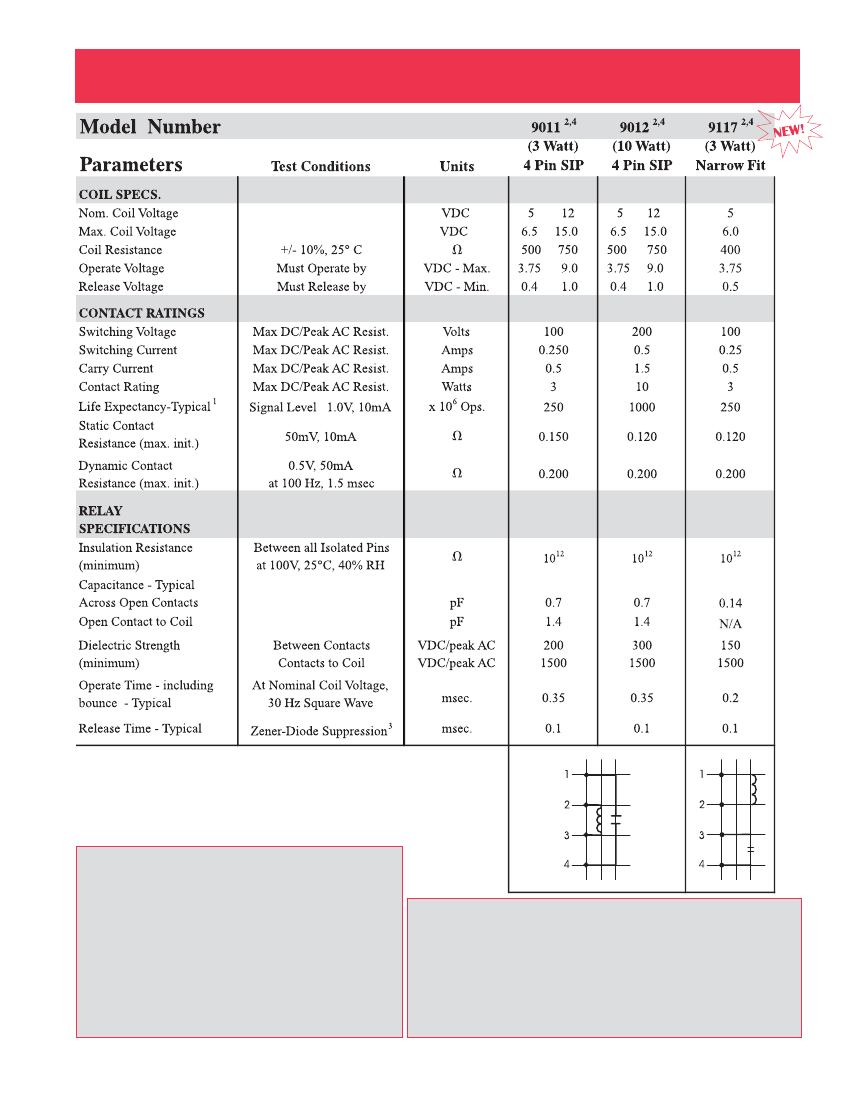

The operate and release voltage and the coil resistance are
specified at 25°C. These values vary by approximately
0.4%/ °C as the ambient temperature varies.
Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s
6
E-mail: sales@cotorelay.com
For Most Recent Data, Consult the Coto Technology Website:
www.cotorelay.com
