DAC20G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC20G

DAC20G: DescriptionIC PARALLEL, 8 BITS INPUT LOADING, 0.085 us SETTLING TIME, 8-BIT DAC, UUC16, 0.086 X 0.064 INCH, DIE-16, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size334KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

DAC20G Overview

IC PARALLEL, 8 BITS INPUT LOADING, 0.085 us SETTLING TIME, 8-BIT DAC, UUC16, 0.086 X 0.064 INCH, DIE-16, Digital to Analog Converter

DAC20G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIE
package instruction	0.086 X 0.064 INCH, DIE-16
Contacts	16
Reach Compliance Code	compliant
Maximum analog output voltage	18 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY CODED DECIMAL
Input format	PARALLEL, 8 BITS
JESD-30 code	R-XUUC-N16
JESD-609 code	e0
Maximum linear error (EL)	0.195%
Nominal negative supply voltage	-15 V
Number of digits	8
Number of functions	1
Number of terminals	16
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Nominal settling time (tstl)	0.085 µs
Maximum slew rate	9.1 mA
Nominal supply voltage	15 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

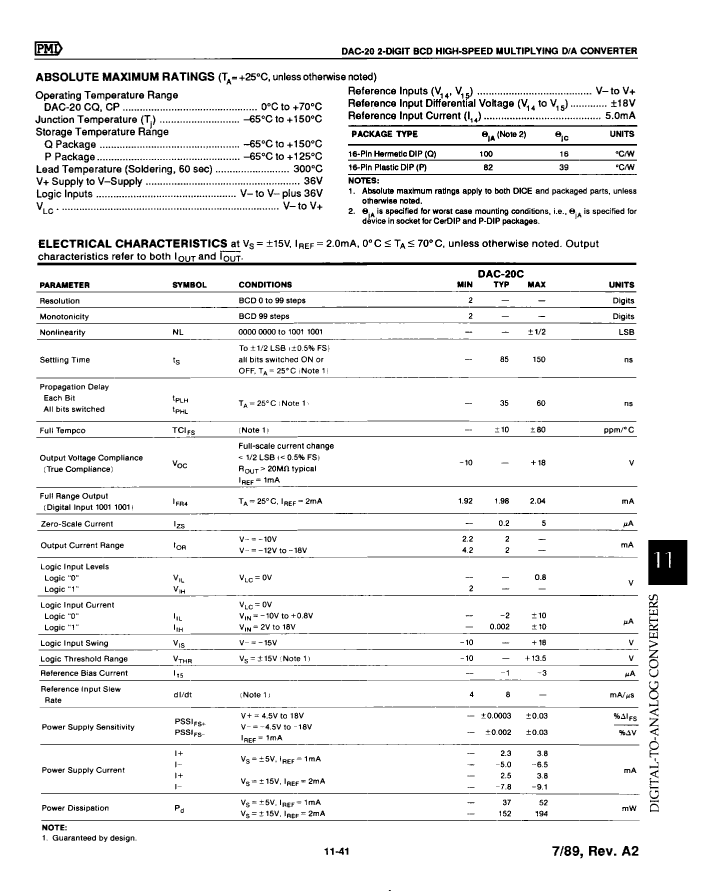

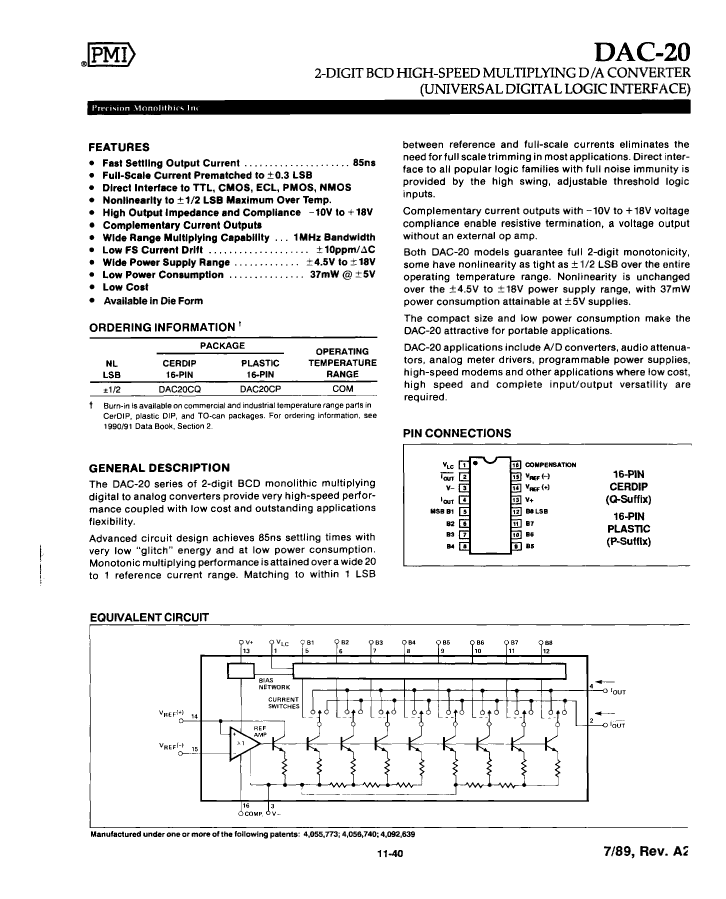

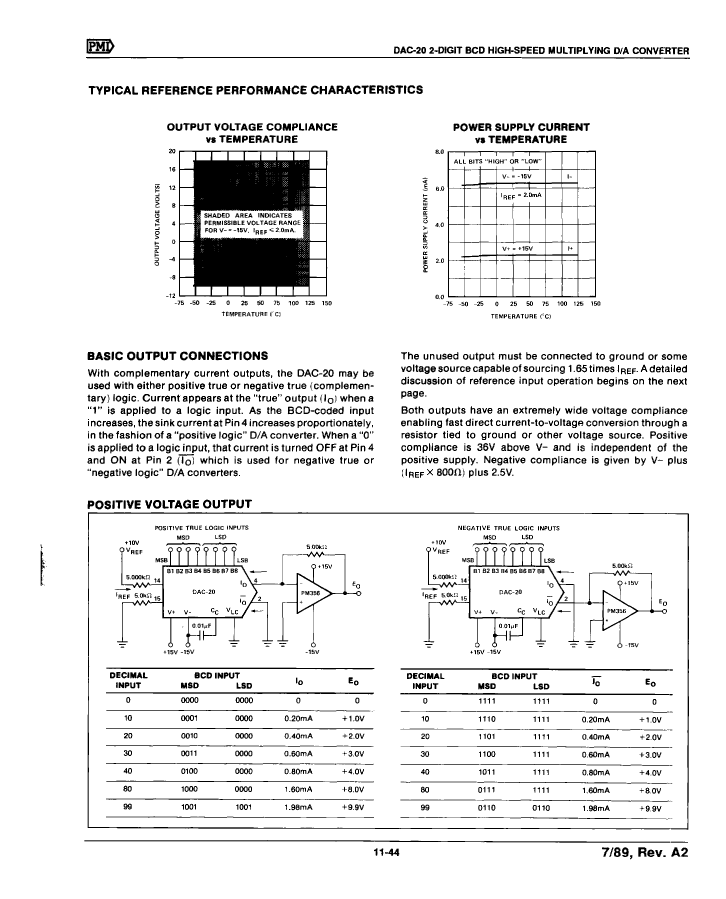

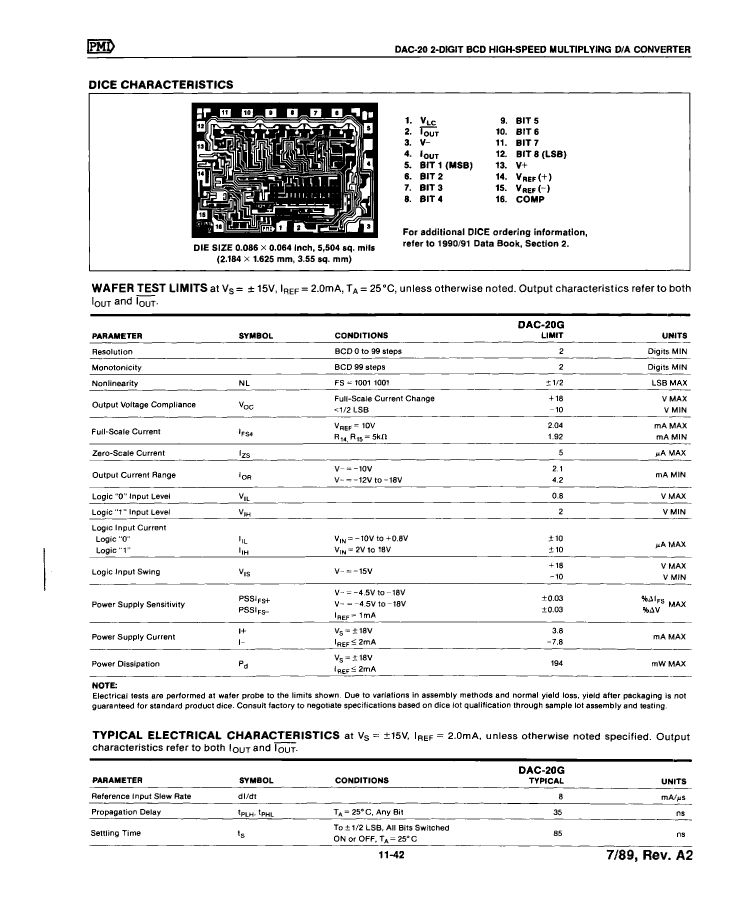

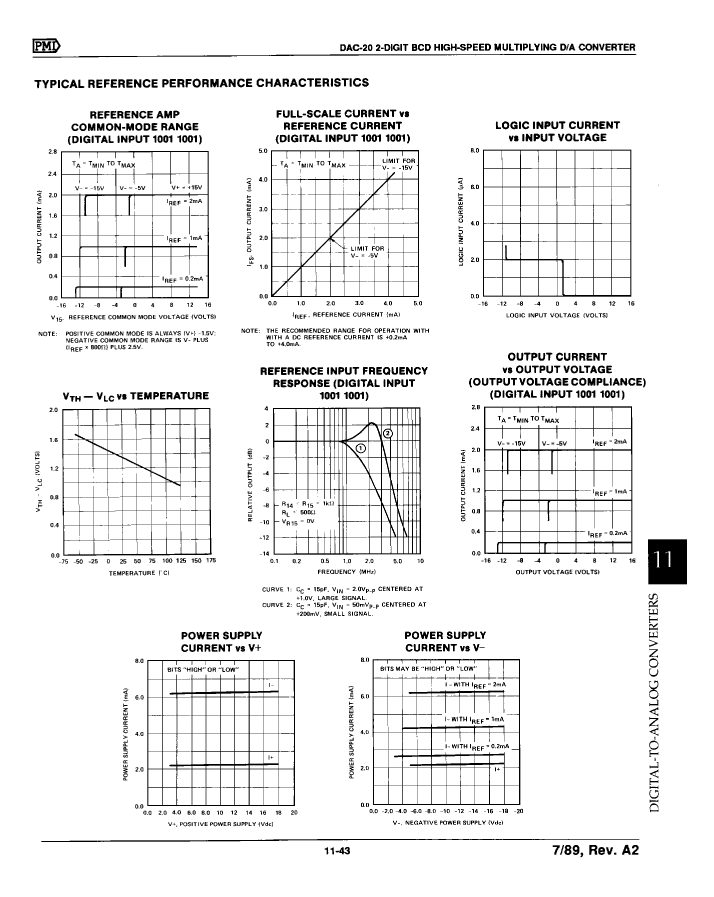

Preview

Download Datasheet

View All

DAC20G Related Products

	DAC20G	DAC20CP	DAC20CQ
Description	IC PARALLEL, 8 BITS INPUT LOADING, 0.085 us SETTLING TIME, 8-BIT DAC, UUC16, 0.086 X 0.064 INCH, DIE-16, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 0.085 us SETTLING TIME, 8-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 0.085 us SETTLING TIME, 8-BIT DAC, CDIP16, CERDIP-16, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIE	DIP	DIP
package instruction	0.086 X 0.064 INCH, DIE-16	PLASTIC, DIP-16	CERDIP-16
Contacts	16	16	16
Reach Compliance Code	compliant	not_compliant	unknown
Maximum analog output voltage	18 V	18 V	18 V
Minimum analog output voltage	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY CODED DECIMAL	BINARY CODED DECIMAL	BINARY CODED DECIMAL
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-XUUC-N16	R-PDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0
Maximum linear error (EL)	0.195%	0.195%	0.195%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	16	16	16
Package body material	UNSPECIFIED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIE	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal settling time (tstl)	0.085 µs	0.085 µs	0.085 µs
Maximum slew rate	9.1 mA	9.1 mA	9.1 mA
Nominal supply voltage	15 V	15 V	15 V
surface mount	YES	NO	NO
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	UPPER	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	ADI	-	ADI
length	-	20.13 mm	19.05 mm
Maximum operating temperature	-	70 °C	70 °C
Encapsulate equivalent code	-	DIP16,.3	DIP16,.3
power supply	-	+-15 V	+-15 V
Maximum seat height	-	5.33 mm	5.08 mm
technology	-	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL	COMMERCIAL
Terminal pitch	-	2.54 mm	2.54 mm
width	-	7.62 mm	7.62 mm
