Datasheet of 2.30 inch 8x8 Dot Matrix LED Display
LM23088C/D Series – 2.30 inch 8x8 Dot Matrix LED Display
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
60.20 mm (2.30 inch) matrix height
Dot size: Diameter 5.00 mm
Pitch: 7.62 mm
Wide viewing angle
Range of emitted colors
I.C. compatible
Low power consumption
White dot, grey or black face
RoHS compliant
Available options
Alternative emitting luminosity:
Standard or high brightness version
Alternative emitted color
Alternative dot color
Alternative face color
Both CA or CC versions are available
Cropped terminal pins
Package Dimensions

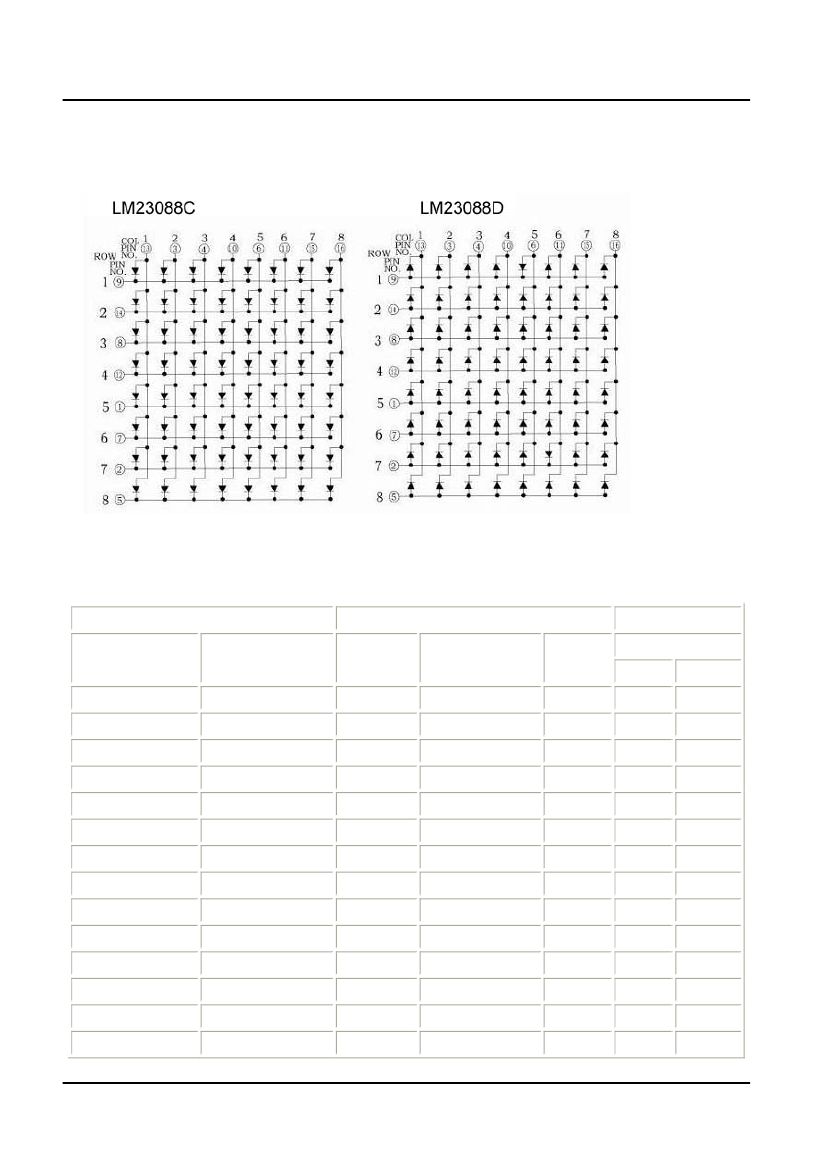

COL. 1
2
3
4
5
6
7
8
ROW
1
2
7.62*7=53.34
3
60.20
4
5
6
7
8
PIN 1
7.62*7=53.34
60.20
5.
00
9.20
0.50
0.60
46.4
2.54*7=17.78
Notes:
1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm (0.01inch) unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DS10121838
REV: A.4
5.10
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 1/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey
Electrical
Characteristics
Color
V
F
@
I
F
=20mA
[2]
Typ.
Super Red
Hi-Red
Orange
Yellow
Green
Ultra Red
Ultra Orange
Ultra Amber
Ultra Yellow
Ultra Green
Pure Green
Ultra Blue
Ultra White
Unit:
Notes:
1. At Ta = 25 °C.
2. Forward voltage at forward current = 20mA.
3. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
[1]
Datasheet of 2.30 inch 8x8 Dot Matrix LED Display
Electrical Characteristics & Absolute Maximum Ratings
Absolute Maximum Ratings
[1]
DC
Forward
Current
25
25
30
30
30
30
30
30
30
30
30
30
30
mA
Peak
Forward
Current
[3]
100
100
100
100
100
100
100
100
100
100
100
100
100
mA
Reverse
Current
VR=5V
30
30
30
30
30
30
30
30
30
30
30
30
30
uA
Power
Dissipation
60
60
80
80
80
60
65
65
65
75
110
120
120
mW
Max.
2.2
2.2
2.5
2.5
2.5
2.6
2.6
2.6
2.6
2.6
4.0
4.0
4.0
V
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
\
1.8
1.8
2.1
2.1
2.2
1.9
2.0
2.0
2.0
2.1
3.5
3.5
3.5
V
SPEC NO: DS10121838
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 3/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
