MB1500ERW
Low Cost, 1 x 2 Inch
15W, 2:1 Input Range
DC/DC Converters
Electrical Specifications
Key Features:
•
15W Output Power
•
2:1 Input Voltage Range
•
1,500 VDC Isolation
•
Single & Dual Outputs
•
Efficiency to 90%
•
Compact 1 x 2 Inch Case
•
-40°C to +85°C Operation
•
Industry Standard Pin-Out
•
Low Cost
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Input
Parameter
Input Voltage Range
Input Start Voltage
Under Voltage Shutdown
Input Filter
Start-Up Time
Conditions
Min.
12 VDC Input
9.0
24 VDC Input 18.0
48 VDC Input 36.0
12 VDC Input
24 VDC Input
48 VDC Input
12 VDC Input
7.5
24 VDC Input 16.0
48 VDC Input 32.0
(Pi)
Filter
See Note 1
Conditions
Dual Outputs, Balanced Loads
V
IN
= Min to Max
I
OUT
= 10% to 100%
See Note 2
See Note 3
Min.
Typ.
12.0
24.0
48.0
Max.
18.0
36.0
75.0
9.0
17.8
35.8
Units
VDC
VDC
VDC
10
Typ.
±1.0
±0.5
±10
±0.2
±0.5
Max.
±3.0
±1.0
±0.5
±1.0
±5.0
100
mS
Units
%
%
%
%
%
mV P - P
%
%/°C
Output
Parameter
Output Voltage Accuracy
Output Voltage Balance
Output Trim Range
Line Regulation
Load Regulation
Cross Regulation
Ripple & Noise (20 MHz)
Output Power Protection
Temperature Coefficient
Output Short Circuit, See Note 4
70
150
±0.02
Continuous (Autorecovery)
Min.
1,500
1,000
Typ.
General
Parameter
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
Conditions
60 Seconds
500 VDC
See Note 5
Max.
Units
VDC
M
pF
kHz
Units
°C
°C
°C
%
1,000
300
Min.
-40
Typ.
+25
Max.
+85
+105
+125
95
Environmental
Parameter
Operating Temperature Range
Operating Temperature Range
Storage Temperature Range
Cooling
Humidity
Physical
Case Size
Case Material
Weight
Conditions
Ambient
Case
-55
Free Air Convection
RH, Non-condensing
2.0 x 1.0 x 0.465 Inches (50.8 x 25.4 x 11.8 mm)
Aluminum Alloy With Non-Conductive Base (UL94-V0)
0.99 Oz (28g)
Conditions
See Note 6
See Note 6
Min.
2.5
0
Typ.
Max.
12.0
1.2
Units
VDC
VDC
mA
Units
MHours
Units
VDC
°C
MicroPower Direct
292 Page Street
Suite D
Stoughton, MA 02072
USA
T:
(781) 344-8226
F:
(781) 344-8481
E:
sales@micropowerdirect.com
W:
www.micropowerdirect.com
Remote On/Off
Parameter
Unit On
Unit Off
Off Idle Current
1.0
Conditions
MIL HDBK 217F, 25°C, Gnd Benign
Conditions
12 VDC Input
24 VDC Input
48 VDC Input
1.5 mm From Case for 10 Sec
Min.
1.0
Min.
-0.7
-0.7
-0.7
Typ.
Max.
Reliability Specifications
Parameter
MTBF
Absolute Maximum Ratings
Parameter
Input Voltage Surge (1 Sec)
Lead Temperature
Typ.
Max.
25.0
50.0
100.0
300
Caution: Exceeding Absolute Maximum Ratings may damage the module. These are not continuous operating ratings.
www.micropowerdirect.com
Model Selection Guide
Input
Model
Number
MB1512S-03ERW
MB1512S-05ERW
MB1512S-12ERW
MB1512S-15ERW
MB1512S-24ERW
MB1512D-05ERW
MB1512D-12ERW
MB1512D-15ERW
MB1512D-24ERW
MB1524S-03ERW
MB1524S-05ERW
MB1524S-12ERW
MB1524S-15ERW
MB1524S-24ERW
MB1524D-05ERW
MB1524D-12ERW
MB1524D-15ERW
MB1524D-24ERW
MB1548S-03ERW
MB1548S-05ERW
MB1548S-12ERW
MB1548S-15ERW
MB1548S-24ERW
MB1548D-05ERW
MB1548D-12ERW
MB1548D-15ERW
MB1548D-24ERW
Voltage
(VDC)
Nominal
Range
12
9.0 - 18.0
12
9.0 - 18.0
12
9.0 - 18.0
12
9.0 - 18.0
12
9.0 - 18.0
12
9.0 - 18.0
9.0 - 18.0
12
12
9.0 - 18.0
12
9.0 - 18.0
24
18.0 - 36.0
24
18.0 - 36.0
24
18.0 - 36.0
24
18.0 - 36.0
24
18.0 - 36.0
18.0 - 36.0
24
24
18.0 - 36.0
24
18.0 - 36.0
18.0 - 36.0
24
48
36.0 - 75.0
48
36.0 - 75.0
48
36.0 - 75.0
48
36.0 - 75.0
48
36.0 - 75.0
48
36.0 - 75.0
48
36.0 - 75.0
48
36.0 - 75.0
48
36.0 - 75.0
www.micropowerdirect.com
Fuse
Over
Capacitive
Rating
Efficiency Voltage
Current (mA)
Load
Voltage Current
Current
(%, Typ) Protection (µF, Max) Slow-Blow
(VDC) (mA, Max) (mA, Min)
(VDC Typ)
Full-Load No-Load
(mA)
1,465
65
3.3
4,000
200
87
3.9
10,500
3,000
1,405
60
5.0
3,000
150
89
6.2
4,020
3,000
1,405
25
12.0
1,250
63
89
15.0
1,035
3,000
1,405
25
15.0
1,000
50
89
18.0
705
3,000
1,389
30
24.0
625
32
90
30.0
250
3,000
1,453
30
±5.0
±1,500
±75
86
±6.2
±1,020
3,000
1,420
25
±12.0
±625
±32
88
±15.0
±495
3,000
1,420
25
±15.0
±500
±25
88
±18.0
±165
3,000
1,420
20
±24.0
±313
±16
88
±30.0
±200
3,000
625
35
3.3
4,000
200
88
3.9
10,500
1,500
695
35
5.0
3,000
150
90
6.2
4,020
1,500
703
20
12.0
1,250
63
89
15.0
1,035
1,500
695
20
15.0
1,000
50
90
18.0
705
1,500
695
25
24.0
625
32
90
30.0
250
1,500
727
25
±5.0
±1,500
±75
86
±6.2
±1,020
1,500
710
20
±12.0
±625
±32
88
±15.0
±495
1,500
710
20
±15.0
±500
±25
88
±18.0
±165
1,500
710
20
±24.0
±313
±16
88
±30.0
±200
1,500
316
35
3.3
4,000
200
87
3.9
10,500
1,000
360
35
5.0
3,000
150
87
6.2
4,020
1,000
352
25
12.0
1,250
63
89
15.0
1,035
1,000
348
15
15.0
1,000
50
90
18.0
705
1,000
352
15
24.0
625
32
89
30.0
250
1,000
363
20
±5.0
±1,500
±75
86
±6.2
±1,020
1,000
355
15
±12.0
±625
±32
88
±15.0
±495
1,000
355
15
±15.0
±500
±25
88
±18.0
±165
1,000
355
15
±24.0
±313
±16
88
±30.0
±200
1,000
Output
Notes:
1. Start up time is measured at nominal input and with a constant resistive load.
2. Cross regulation is measured with the output being tested at 50% load. The second output is varied
from 10% to 100% load.
3. When measuring output ripple, it is recommended that an external ceramic capacitor (approx
1 µF to 10 µF) be placed from the +V
OUT
to the -V
OUT
pins.
4. Short circuit protection is provided by a “hiccup mode” circuit.
5. Isolation capacitance for 24 VDC output models is 2,000 pF. Isolation capacitance is measured from
input to output at 100 kHz/0.1V.
6. The maximum control current at the on/off pin (pin 6) during a logic high is 50
µA.
The maximum
control current to the on/off pin at logic low (-0.7V to 0.8V) is 1 mA. If the on/off pin is left open, the
unit operates. If it is grounded, the unit will shut off.
7. These units should not be operated with a load under 10% of full load. Operation at no-load will not
damage the unit, but they may not meet all specifications.
8. These units should not be operated over +85°C. Exceeding +85°C may damage the unit.
9. It is recommended that a fuse be used on the input of a power supply for protection. See the Model
Selection table above for the correct rating.

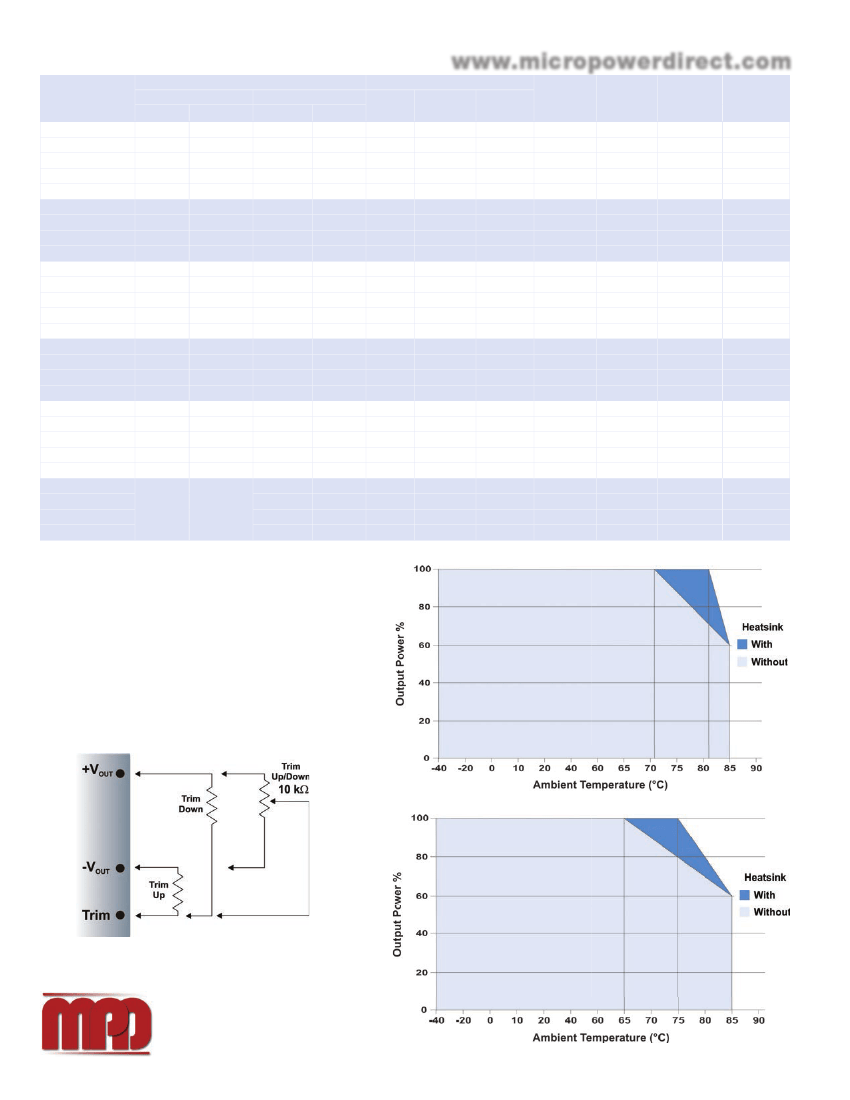

Derating Curve
Output Over 5VDC
External Trim
Derating Curve
Output 5VDC & 3.3VDC
On single output units, a simple external circuit may be used to adjust the converter output.
To adjust the output DOWN, connect a 5%, 3W resistor between the plus output pin and
the Vout trim pin. To adjust the output UP, connect a 5%, 3W resistor between the minus
output pin and the Vout trim pin.
For UP/Down trimming capability, connect a 10 kW potentiom-
eter between the plus and minus outputs with the wiper arm
connected to the Vout trim pin.
292 Page Street Ste D Stoughton, MA 02072
•
TEL: (781) 344-8226
•
FAX: (781) 344-8481
•
E-Mail: sales@micropowerdirect.com
EMC Specifications
Parameter
Radiated Emissions
Conducted Emissions
ESD
RS
EFT
Surge
CS
Voltage Dips
Standard
See Note 1
EN 55022
See Note 1
EN 55022
EN 61000-4-2
EN 61000-4-3
See Note 2
EN 61000-4-4
See Note 3
EN 61000-4-5
EN 61000-4-6
EN 61000-4-29
www.micropowerdirect.com
Class A
Class A
Criteria B; ±4 kV Contact
Criteria A; 10V/m
Criteria B; ±2 kV
Criteria B; ±2 kV
Criteria A; 3 Vrms
Criteria B; 0% - 70%
Notes:
1. All units are rated for EN 55022 (CE/RE) class A without external components.
They will meet class B with the addition of the
DCFM-0x
(or a similar discrete
filter circuit). Contact the factory for more information.
2. To meet the requirements of EN 61000-4-4 (±2 kV), external components are
needed. This can be done discretely, or with the addition of the
DCFM-0x.
Contact the factory for more information.
3. To meet the requirements of EN 61000-4-5 (±2 kV), external components are
needed. This can be done discretely, or with the addition of the
DCFM-0x.
Contact
the factory for more information.

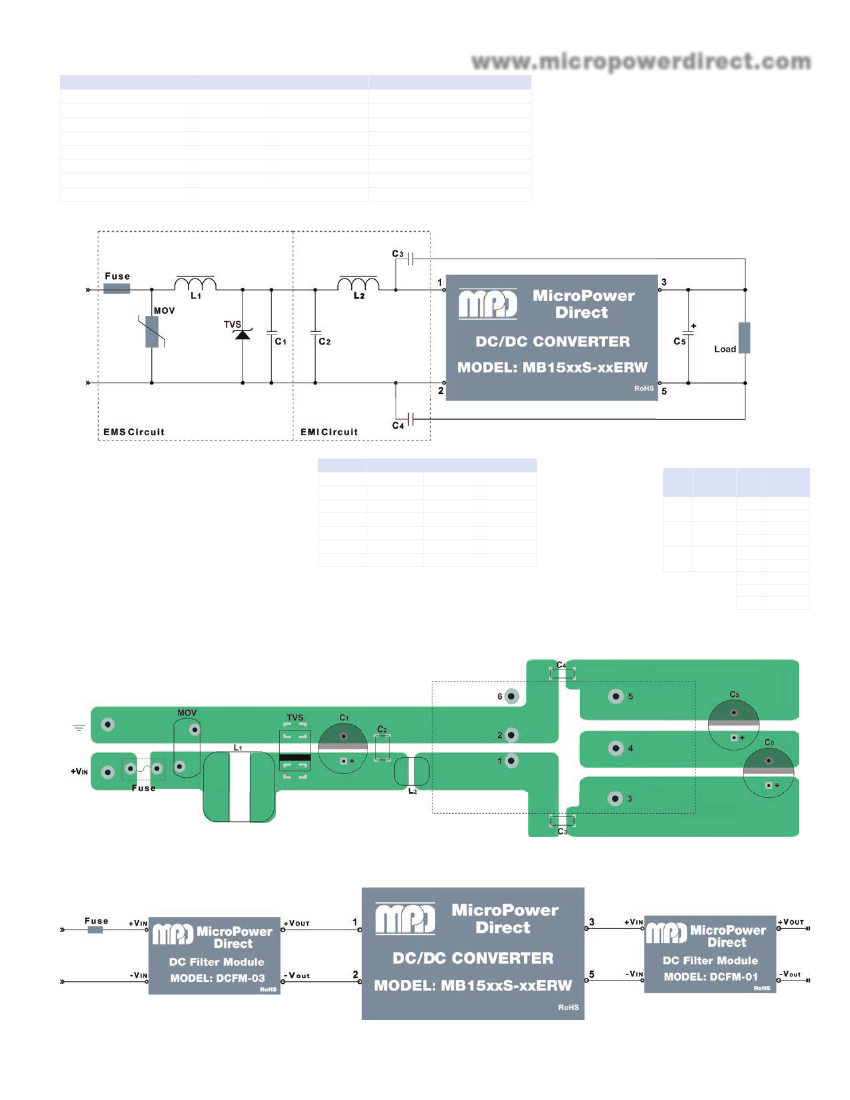

Typical Connection
For pricing or full technical information on these modules (DCFM-01,
The diagram above illustrates a typical connection of the
MB1500ERW
5. Recommended values for components are:
DCFM-02 and
DCFM-03)
please contact the factory.
series for applications that require meeting EMC standards. The units do not Component
24 V
IN
48 V
IN
12 V
IN
7. In many applications simply
require external components to operate as specified. Some notes on this
Vin
Input
Vout
Output
MOV
10D560
10D101
adding input/output capaci-
diagram (starting with the input circuit) are:
(VDC)
Capacitor
(VDC)
Capacitor
L
1
56
µH
56
µH
tors will enhance the input
1. It is recommended that an external fuse be used. The recommended fuse
3.3
470
µF
surge protection and reduce
is shown in the model chart on page 2.
TVS
SMCJ28A
SMCJ48A
SMCJ90A
12
100
µF
5
470
µF
output ripple sufficiently. The
2. An external MOV is recommended on the input to protect the unit in the
C
1
680
µF/25V
120
µF/25V
120
µF/100V
input capacitor C
1
and output
event of a surge. A recommended value is given in the table at right.
12
220
µF
C
2
1.0
µF/50V
1.0
µF/50V
1.0
µF/100V
24
100
µF
capacitors C
5
and C
6
shown
3. An external TVS is recommended on the input to protect the unit in the
15
220
µF
L
2
4.7
µH
4.7
µH
4.7
µH
in the typical connection dia-
event of a voltage spike. A recommended value is given in the table at
24
100
µF
100
µF
C
3,
C
4
1,000 pF/2 kV 1,000 pF/2 kV 1,000 pF/2 kV
gram above, and board layout 48
right.
±5
±220
µF
drawing below illustrate their
4. The output filtering capacitor (C
5
) is a high frequency, low resistance
±100
µF
connection in this case, recommended capacitor ±12
electrolytic capacitor. Care must be taken in choosing this capacitor not 6. Input noise and surge suppression modules are available for
±15
±100
µF
a number of
MPD
DC/DC power supplies. An
MB1500ERW
values are given in the table at right.
to exceed the capacitive load specification for the unit. The board layout
connection with the DCFM-03 (surge suppression) module
±24
±47
µF
illustration below shows a connection for dual output units. Voltage derating
connected to the input and the DCFM-03 EMS module.
of capacitors should be 80% or above.
Typical Board Layout
: With External Filter/Surge Components for Dual Output Unit
Typical Connection
: With DCFM-0x ISurge Suppression and Filter Modules
MicroPower Direct
•
292 Page Street Ste D Stoughton, MA 02072
•
TEL: (781) 344-8226
•
FAX: (781) 344-8481
•
E-Mail: sales@micropowerdirect.com
Mechanical Dimensions
www.micropowerdirect.com
Pin Connections
Pin
1
2
3
4
5
6
Pin
1
2
3
4
5
6
Single Output
+Vin
-Vin
+Vout
Trim
-Vout
Remote On/Off
Dual Output
+Vin
-Vin
+Vout
Common
-Vout
Remote On/Off

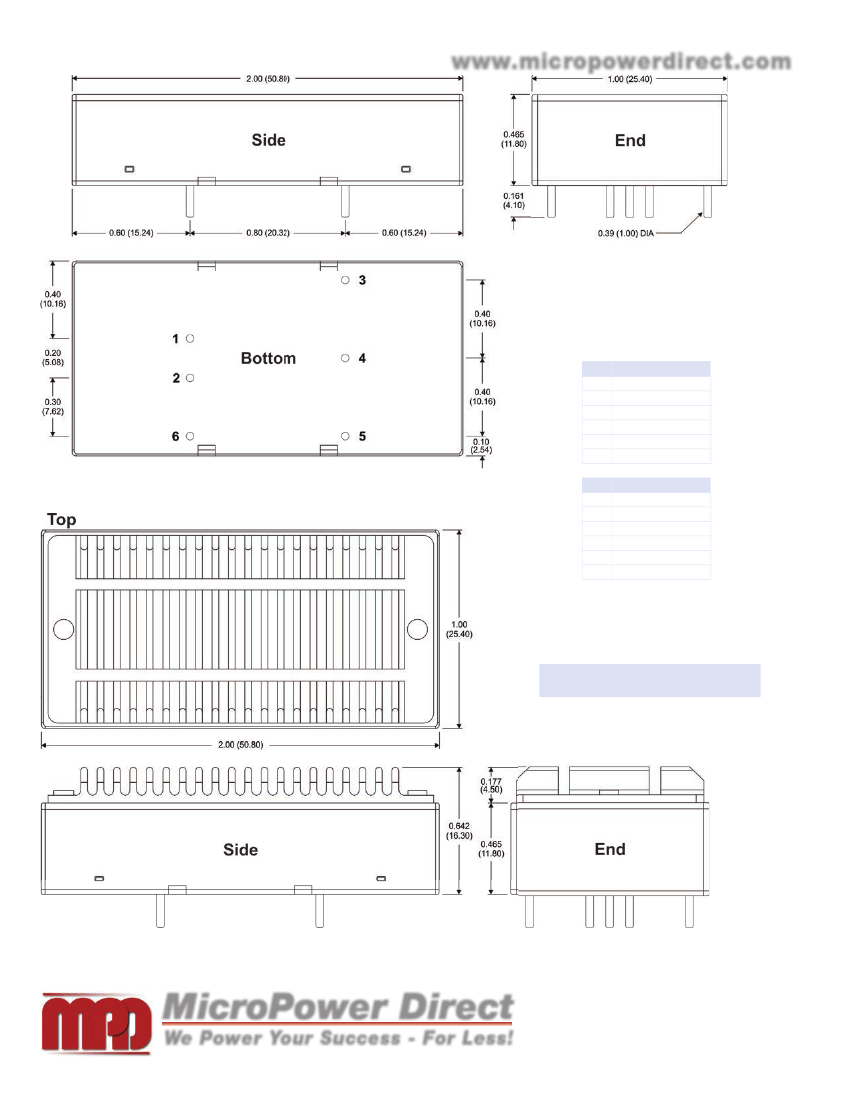

Mechanical Dimensions:
With Optional Heatsink
For the heatsink option, add suffix “H” to the
model number (i.e.
MB1524S-05ERW-H)
Notes:
MicroPower Direct
We Power Your Success - For Less!
292 Page Street Ste D Stoughton, MA 02072
•
•
All dimensions are typical in inches (mm)
•
Tolerance x.xx = ±0.02 (±0.50)
•
Pin 1 is marked by a “dot” or indentation on the top of the unit
TEL: (781) 344-8226
•
FAX: (781) 344-8481
•
E-Mail: sales@micropowerdirect.com
京公网安备 11010802033920号
EEWORLD
