P8052AH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P8052AH

P8052AH: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, NMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，22 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

P8052AH Overview

Microcontroller, 8-Bit, MROM, 12MHz, NMOS, PDIP40, PLASTIC, DIP-40

P8052AH Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	PLASTIC, DIP-40
Reach Compliance Code	unknown
Has ADC	NO
Other features	BOOLEAN PROCESSOR
Address bus width	16
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
length	52.26 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
ROM programmability	MROM
Maximum seat height	5.08 mm
speed	12 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

REI Datasheet

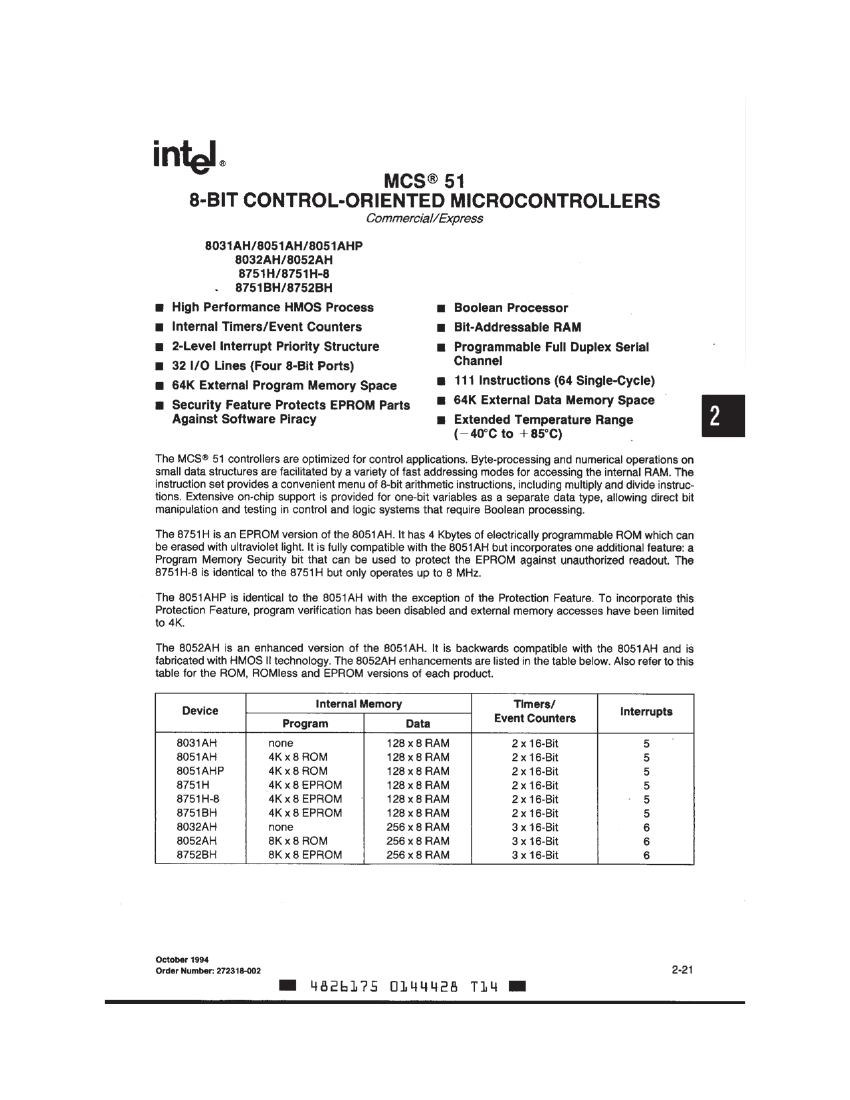

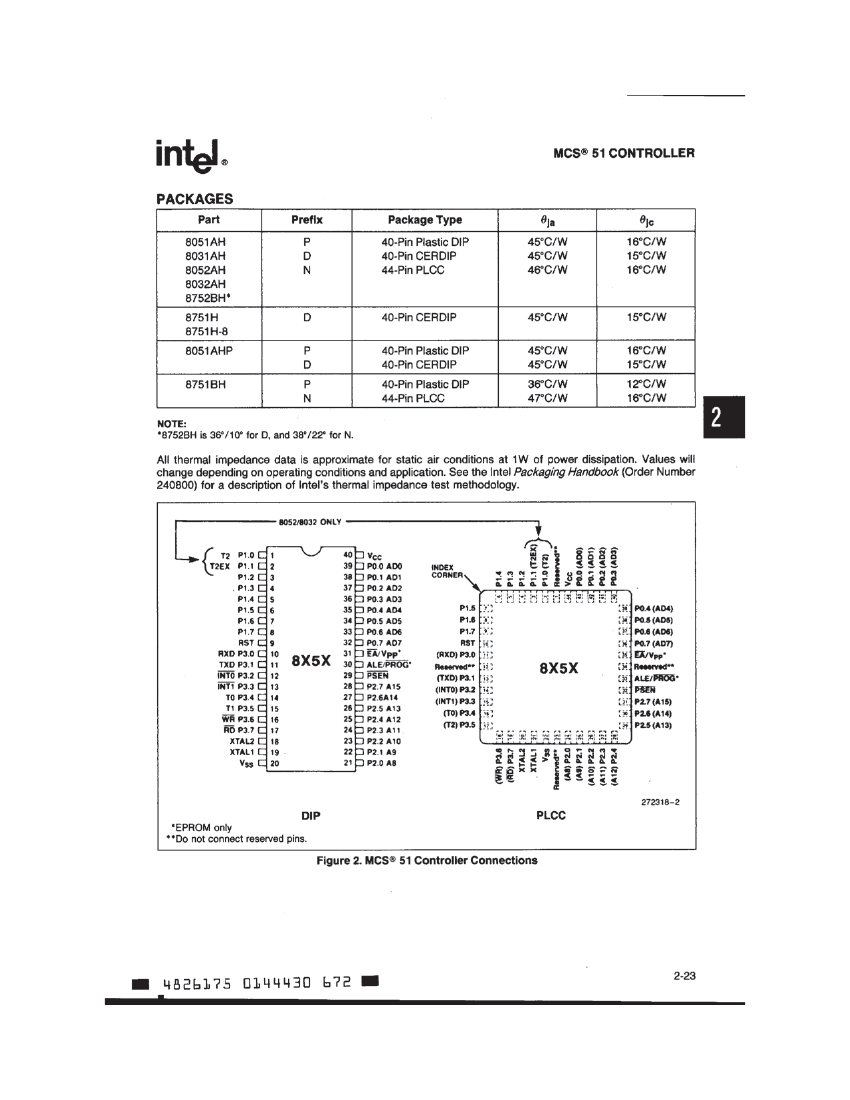

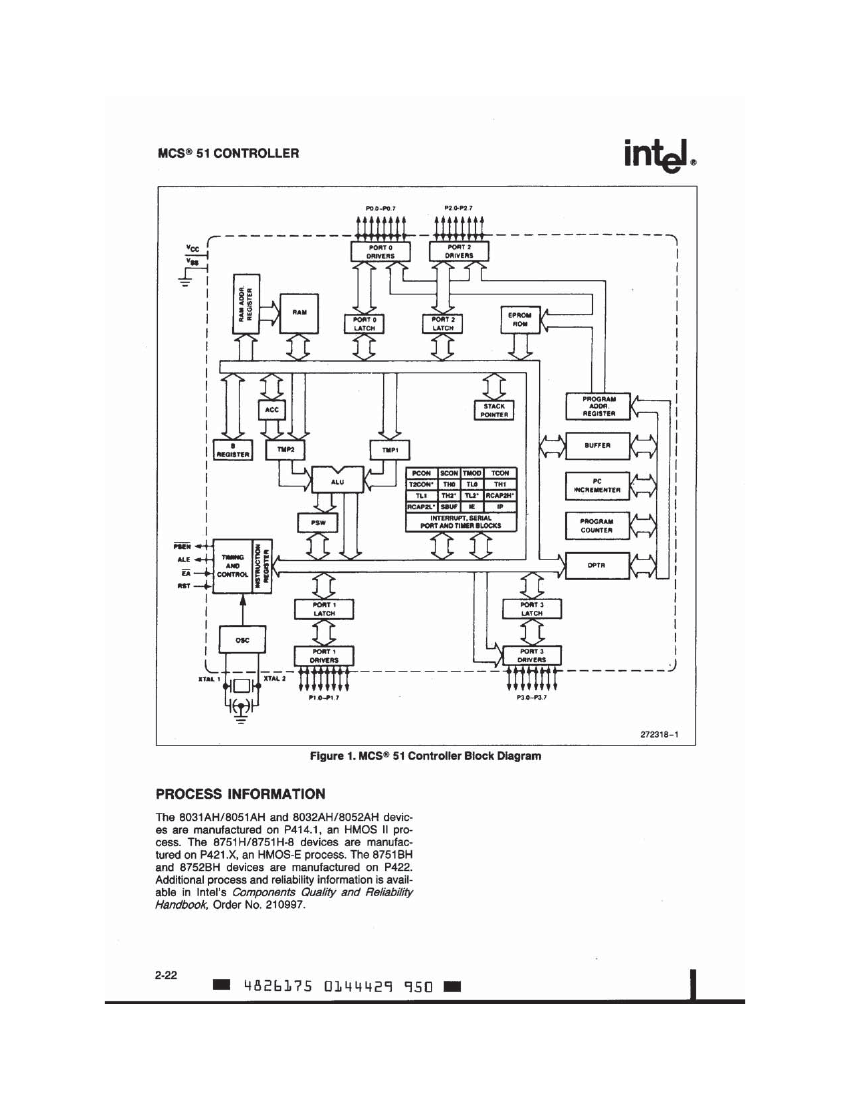

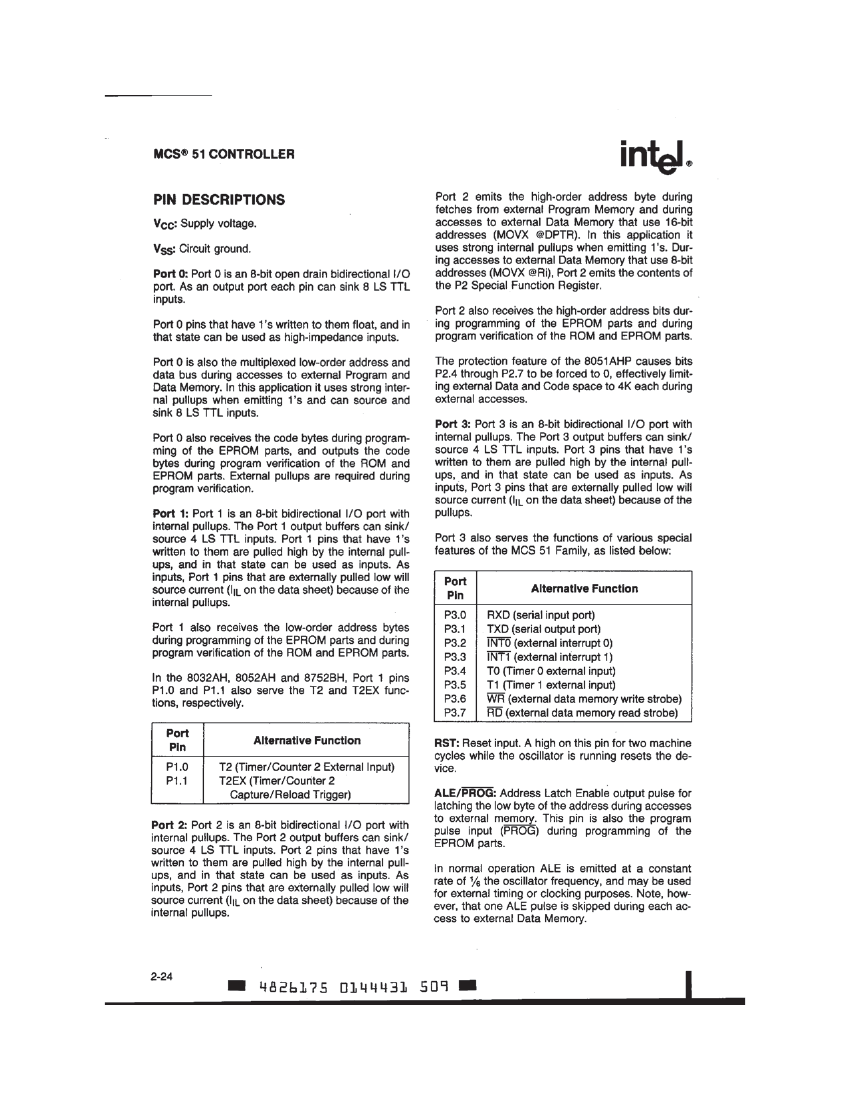

8031AH, ‘51AH, ‘51AHP, ‘32AH, ‘52AH,

8751H, 8751H-8, 8751BH, 8752BH

8-Bit Control-Oriented Microcontrollers

The MCS-51 controllers are optimized for control applications. Byte-processing and numerical

operations on small data structures are facilitated by a variety of fast addressing modes for accessing

the internal RAM. The instruction set provides a convenient menu of 8-bit arithmetic instructions,

including multiply and divide instructions. Extensive on-chip support is provided for one-bit variables

as a separate data type, allowing direct bit manipulation and testing in control and logic systems that

require Boolean Processing.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com
