24FLZ-SM2-TB: DescriptionFLZ CONNECTOR 0.5mm pitch/Connectors for FFC and FPC; File Size76KB，2 Pages; ManufacturerETC2

Download Datasheet View All

24FLZ-SM2-TB Overview

FLZ CONNECTOR 0.5mm pitch/Connectors for FFC and FPC

Preview

Download Datasheet

View All

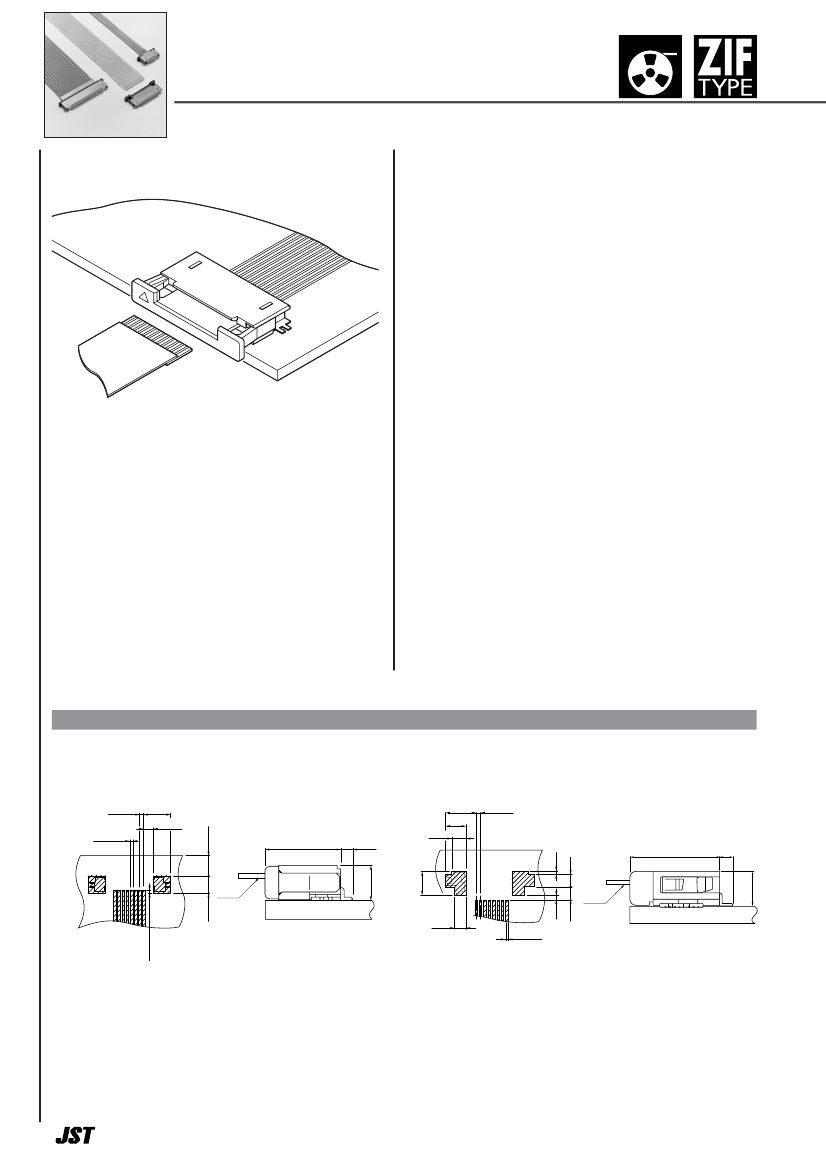

FLZ

CONNECTOR

Emboss Tape

0.5mm pitch/Connectors for FFC and FPC

Specifications –––––––––––––––––––

This extremely small 0.5mm pitch

connector with a height of only 2.0mm

above the PCB surface allows

interconnection in extremely small spaces

and is an example of JST's leading edge

technology.

• Zero insertion force mechanism

• Heat resisting design suitable for surface

mounting

• In-line surface mount tails

• Two types of connections

• Embossed tape for automatic mounting

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/40m

Ω

max.

After environmental testing/60m

Ω

max.

• Insulation resistance:

800M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FFC and FPC: Conductor pitch/0.5mm

Conductor width/0.35mm

Mating part thickness/0.3±0.03mm

Note

: FFC and

FPC to be actually used should be checked for applicability.

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

PC board layout (viewed from component side) and Assembly layout

Inner lock type

0.5

±0.03

±0.05

3.3

±0.1

2.5

min

1.2

±0.1

2.05

3.75

2.85

0.5

±0.03

0.35

4.6

（0.7）

0.4

5.1

1.5

0.7

（2.95）

FPC

2.1

±0.1

FPC

1.55

0.3

±0.05

1.65

0.6

Note: 1. Tolerances are non-cumulative:

0.03mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

0.35

±0.1
