PI74ALVC162334VX datasheet, PDF

Datasheet> All Categories > logic> logic> PI74ALVC162334VX

PI74ALVC162334VX: DescriptionBus Driver, ALVC/VCX/A Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48; Categorylogic logic; File Size127KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74ALVC162334VX Overview

Bus Driver, ALVC/VCX/A Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48

PI74ALVC162334VX Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	15.875 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	16
Number of functions	1
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	5.4 ns
Certification status	Not Qualified
Maximum seat height	2.794 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm

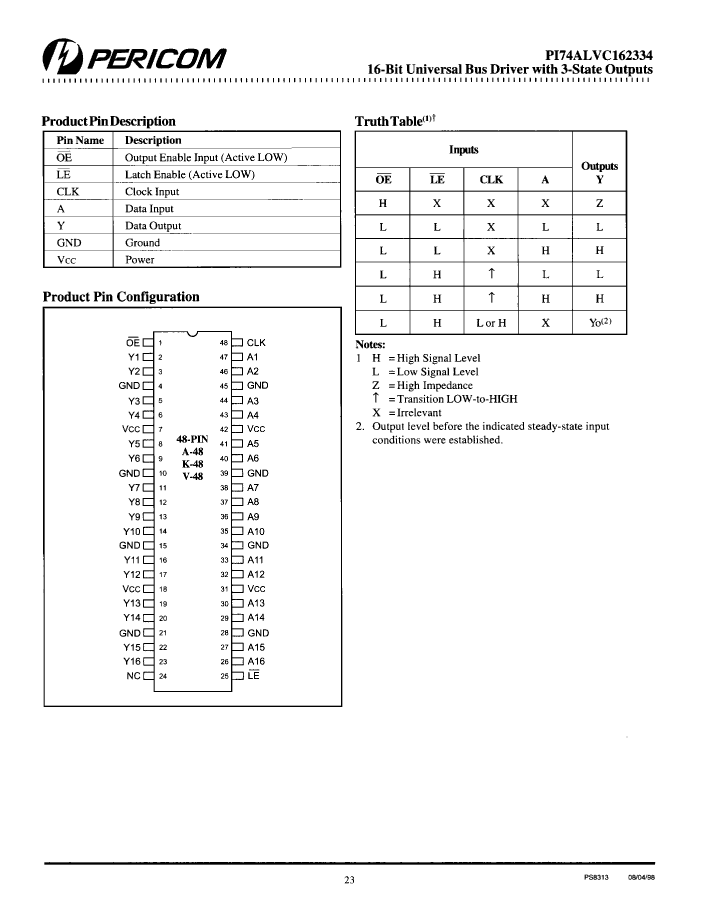

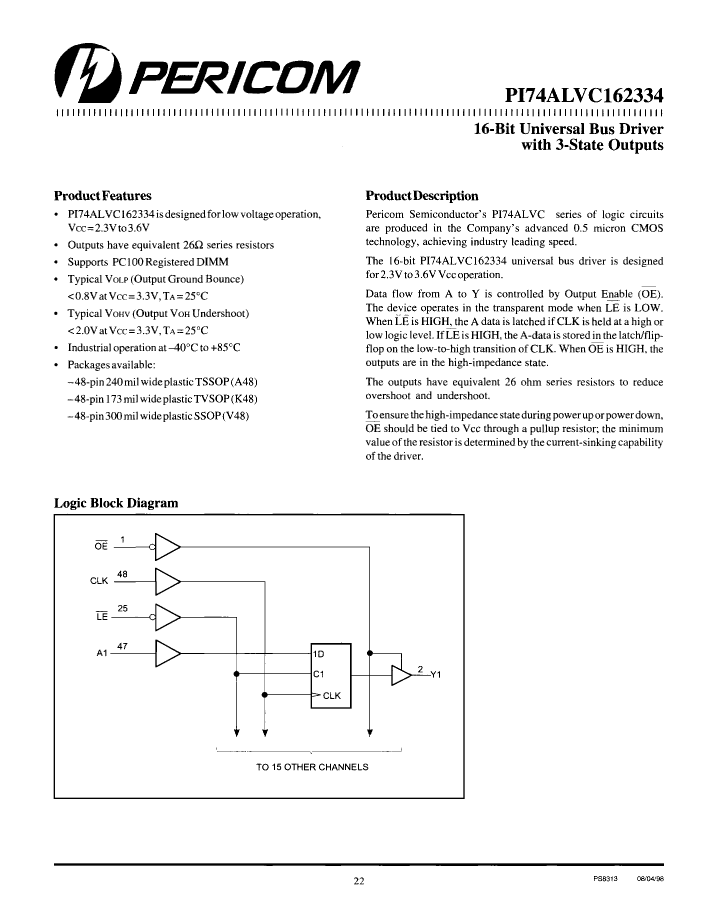

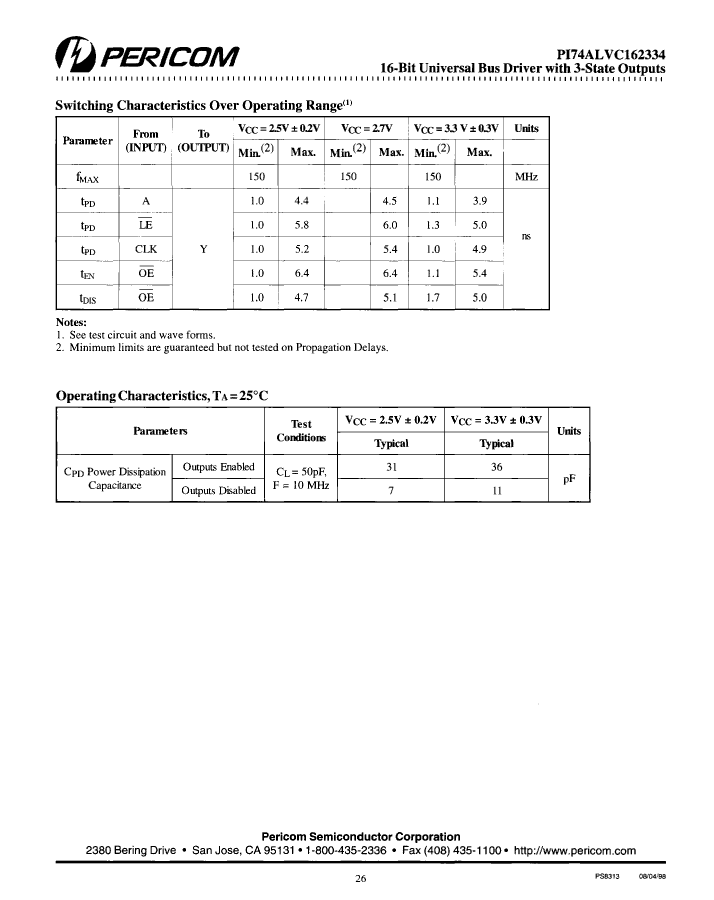

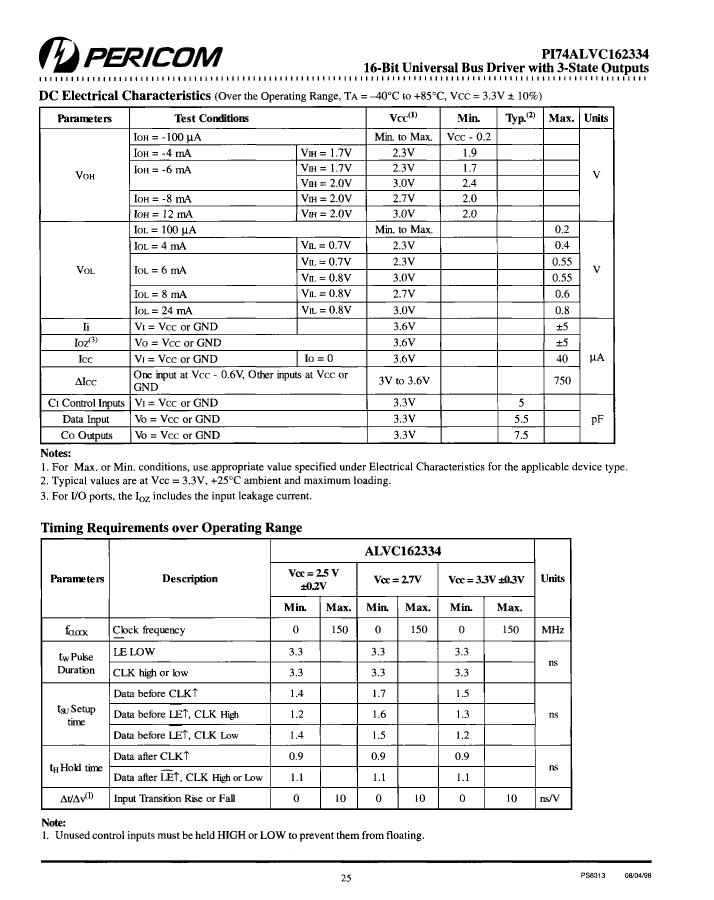

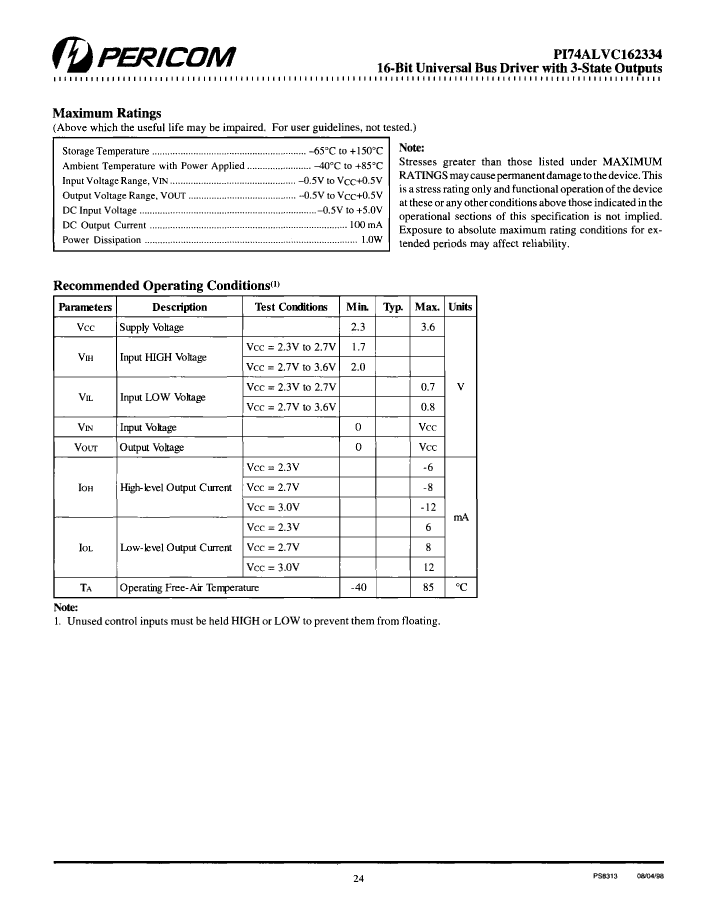

Preview

Download Datasheet

View All

PI74ALVC162334VX Related Products

	PI74ALVC162334VX	PI74ALVC162334KX	PI74ALVC162334AX
Description	Bus Driver, ALVC/VCX/A Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48	Bus Driver, ALVC/VCX/A Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.173 INCH, 1.10 MM HEIGHT, 0.40 MM PITCH, PLASTIC, TVSOP-48	Bus Driver, ALVC/VCX/A Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48
Parts packaging code	SSOP	SOIC	TSSOP
package instruction	SSOP,	TSSOP,	TSSOP,
Contacts	48	48	48
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
series	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	e0
length	15.875 mm	9.7 mm	12.5 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	16	16	16
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.4 ns	5.4 ns	5.4 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.4 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL
width	7.5 mm	4.4 mm	6.1 mm
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	-	Pericom Semiconductor Corporation (Diodes Incorporated)
