DMP2240UWQ
P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Product Summary
V
(BR)DSS
R
DS(ON)
max
150mΩ @ V
GS
= -4.5V
-20V
200mΩ @ V
GS
= -2.5V
240mΩ @ V
GS
= -1.8V
I
D
max
T
A
= 25°C
-1.5A
-1A
-0.9A
Features
Low On-Resistance
Very Low Gate Threshold Voltage V
GS(th)
≤ 1V
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
NEW PRODUCT
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Backlighting
Power Management Functions
DC-DC Converters
Mechanical Data
D ra in
Case: SOT-323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram Below
Terminals: Finish
Matte Tin Annealed over Alloy 42
Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
SOT-323
D
G a te
G
S o u rc e
S
Top View
Internal Schematic
Top View
Ordering Information
(Note 5)
Part Number
DMP2240UWQ-7
Notes:
Case
SOT-323
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
DMV
DMV = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2014
B
Jan
1
Feb
2
2015
C
Mar
3
2016
D
Apr
4
May
5
YM
2017
E
Jun
6
2018
F
Jul
7
Aug
8
2019
G
Sep
9
2020
H
Oct
O
Nov
N
2021
I
Dec
D
DMP2240UWQ
Document number: DS37585 Rev. 1 - 2
1 of 5
www.diodes.com
November 2014
© Diodes Incorporated
DMP2240UWQ

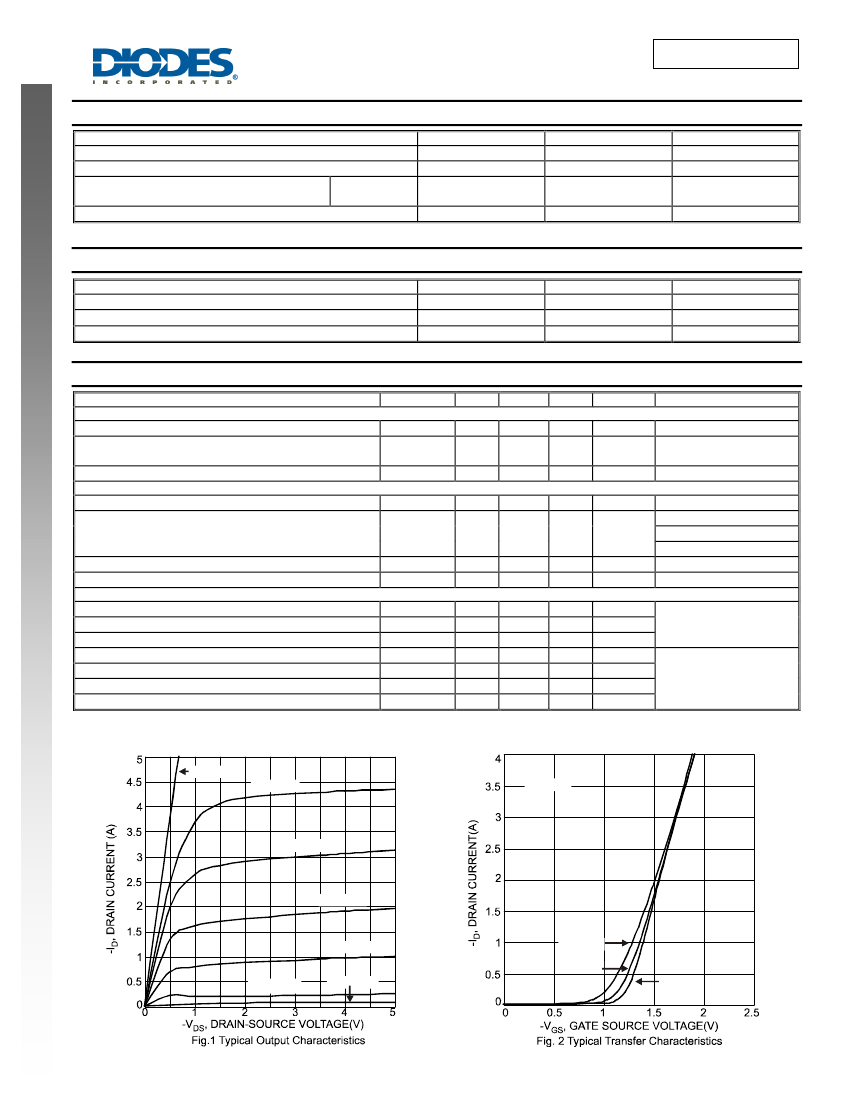

Maximum Ratings
(@T
A
= +25°C unless otherwise specified.)
Characteristic
Drain-Source Voltage
Gate-Source Voltage
Drain Current (Note 6)
Pulsed Drain Current
T
A
= +25°C
T
A
= +70°C
Symbol
V
DSS
V
GSS
I
D
I
DM
Value
-20
±12
-1.5
-1.0
-5
Units
V
V
A
A
Thermal Characteristics
NEW PRODUCT
Characteristic
Total Power Dissipation (Note 6)
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
Symbol
P
D
R
JA
T
J,
T
STG
Value
250
500
-55 to +150
Units
mW
°C/W
°C
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 7)
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Source Leakage
ON CHARACTERISTICS (Note 7)
Gate Threshold Voltage
Static Drain-Source On-Resistance
Forward Transconductance
Diode Forward Voltage (Note 7)
DYNAMIC CHARACTERISTICS
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-On Delay Time
Turn-On Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Notes:
(@T
A
= +25°C unless otherwise specified.)
Symbol
BV
DSS
T
J
= +25°C
T
J
= +125°C
I
DSS
I
GSS
V
GS(th)
R
DS (ON)
g
FS
V
SD
C
iss
C
oss
C
rss
t
D(on)
t
r
t
D(off)
t
f
Min
-20
-0.45
Typ
92
134
180
3.1
320
80
60
12.5
10.3
46.5
22.2
Max
-1.0
-5.0
100
-1.0
150
200
240
-0.9
Unit
V
A
nA
V
m
S
V
pF
pF
pF
ns
ns
ns
ns
Test Condition
V
GS
= 0V, I
D
= -250A
V
DS
= -20V, V
GS
= 0V
V
GS
=
12V,
V
DS
= 0V
V
DS
= V
GS
, I
D
= -250A
V
GS
= -4.5V, I
D
= -2.0A
V
GS
= -2.5V, I
D
= -1.5A
V
GS
= -1.8V, I
D
= -0.5A
V
DS
= -10V, I
D
= -810mA
V
GS
= 0V, I
S
= -0.5A
V
DS
= -16V, V
GS
= 0V
f = 1.0MHz
V
DS
= -10V, V
GS
= -4.5V,
R
L
= 10Ω, R
G
= 1.0Ω
6. Device mounted on FR-4 substrate PC board, 2oz. Copper, with minimum recommended pad layout.
7. Short duration pulse test used to minimize self-heating effect.
V
GS
= -3.0V
V
GS
= -2.0V
V
DS
= -10V
V
GS
= -1.8V
V
GS
= -1.6V
V
GS
= -1.4V
T
A
= 125°C
T
A
= 25°C
V
GS
= -1.2V
V
GS
= -1.0V
T
A
= -55°C
DMP2240UWQ
Document number: DS37585 Rev. 1 - 2
2 of 5
www.diodes.com
November 2014
© Diodes Incorporated
DMP2240UWQ

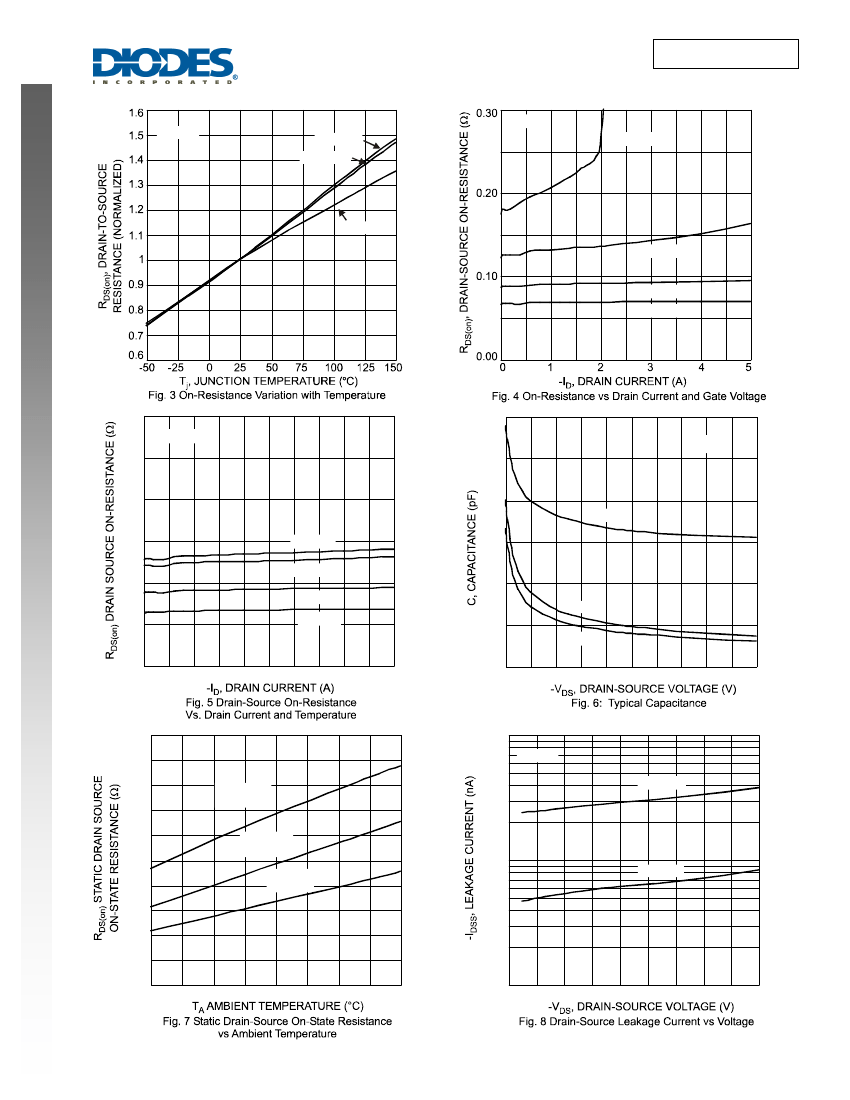

T
A
= 25°C
I
D
= 1.0A
V
GS
= -2.5V
V
GS
= -4.5V
V
GS
= -1.8V
V
GS
= -1.8V
V
GS
= -2.5V
NEW PRODUCT
V
GS
= -4.5V
V
GS
= -10V
0.30
V
GS
= -4.5V
600
f = 1MHz
500
0.20
400
C
iss
T
A
= 150°C
T
A
= 125°C
300
0.10
T
A
= 25°C
T
A
= -55°C
200
C
oss
100
C
rss
0.00
0
1
2
3
4
5
0
0
2
4
6
8
10
12
14
16
18 20
0.3
0.27
0.24
0.21
0.18
0.15
0.12
0.09
0.06
0.03
0
-50
-25
0
25
50
75
100
125 150
V
GS
= -1.8V
I
D
= -200mA
10,000
V
GS
= 0V
T
j
= 150°C
V
GS
= -2.5V
I
D
= -670mA
V
GS
= -4.5V
I
D
= -950mA
1,000
T
j
= 125°C
100
2
4
6
8
10
12
14
16
18
20
DMP2240UWQ
Document number: DS37585 Rev. 1 - 2
3 of 5
www.diodes.com
November 2014
© Diodes Incorporated
DMP2240UWQ
1
0.8
V
GS
= 0V
T
j
= 25°C
0.6
0.4
NEW PRODUCT
0.2
0
0
0.2
0.4
0.6
0.8
1

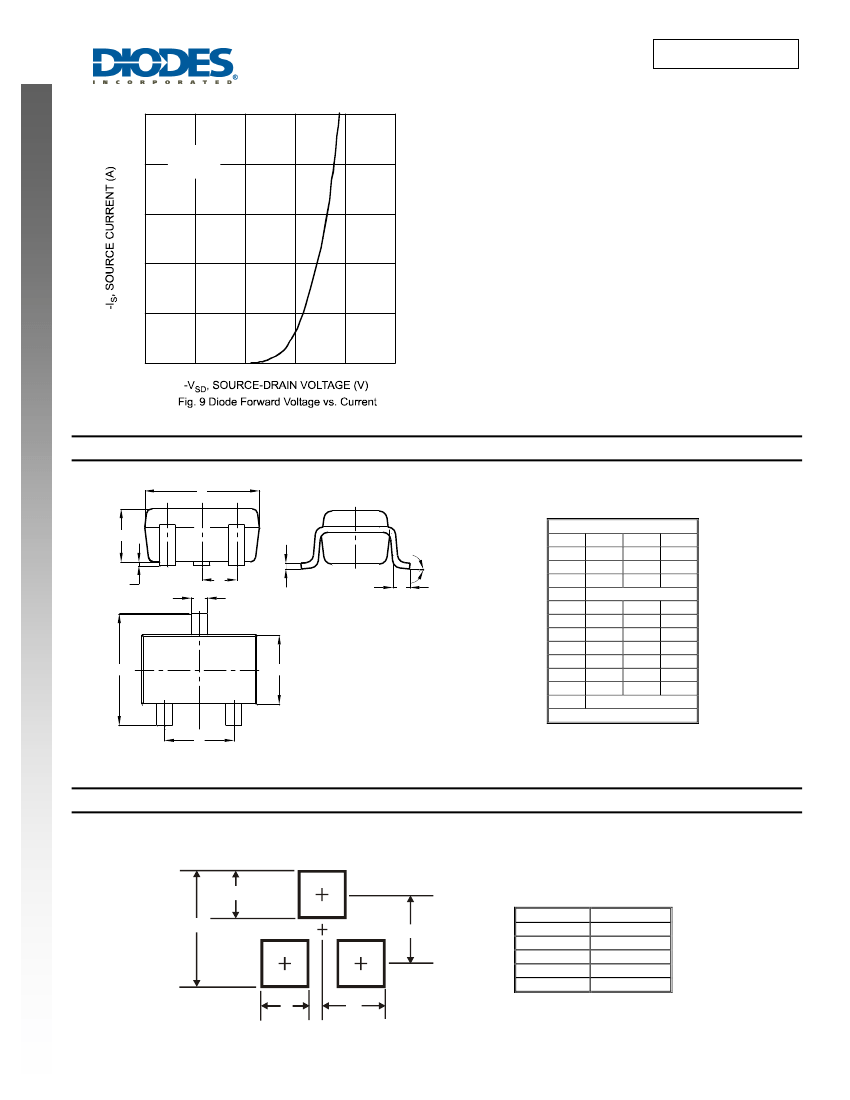

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
H
K
M
J
A
D
L
a
C
B
SOT323
Dim
Min
Max Typ
A
0.25 0.40 0.30
B
1.15 1.35 1.30
C
2.00 2.20 2.10
D
0.650 BSC
F
0.375 0.475 0.425
G
1.20 1.40 1.30
H
1.80 2.20 2.15
J
0.00 0.10 0.05
K
0.90 1.00 0.95
L
0.25 0.40 0.30
M
0.10 0.18 0.11
a
8°C
All Dimensions in mm
G
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Z
C
Dimensions Value (in mm)
Z
2.8
X
0.7
Y
0.9
C
1.9
E
1.0
X
E
DMP2240UWQ
Document number: DS37585 Rev. 1 - 2
4 of 5
www.diodes.com
November 2014
© Diodes Incorporated
