21PCT120CR4(5): DescriptionSingle Color LED Array, High Efficiency Red, Clear Red, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size930KB，2 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

21PCT120CR4(5) Overview

Single Color LED Array, High Efficiency Red, Clear Red, T-1, 3mm,

21PCT120CR4(5) Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
color	HIGH EFFICIENCY RED
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.02 A
Lens type	CLEAR RED
Nominal luminous intensity	100.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	9.7 mm
method of packing	BULK
peak wavelength	635 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	30 deg
Base Number Matches	1

Preview

Download Datasheet

View All

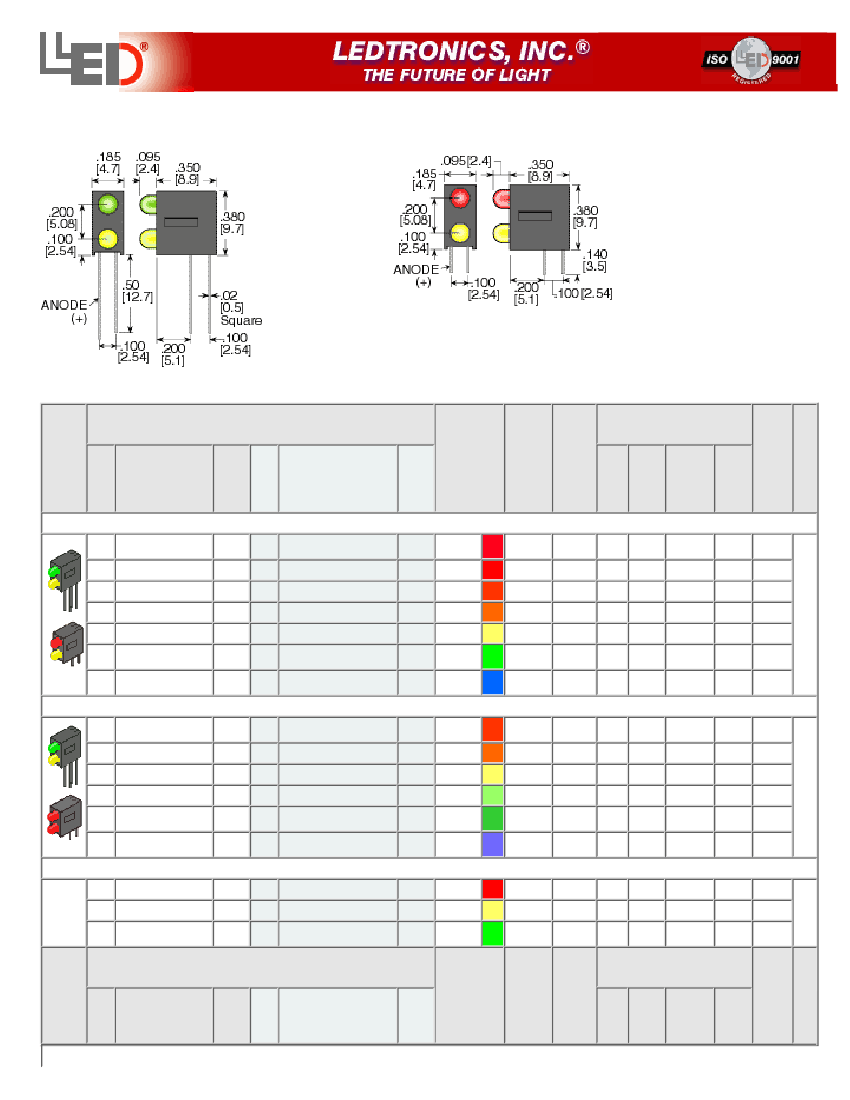

3mm Right-Angle Bilevel PCB LEDs; Series 21PCT120

Series 21PCT120

Figure 1. Standard Projection

3mm Right-Angle Bilevel PCB LEDs

Figure 2. Standard Projection

PN Example:

21PCT120G/Y4

PN Example:

21PCT120TR/Y4-140

Custom Options:

Contact factory for all custom inquiries.

Retail Price;

*Volume

Discount Available

Part Number

Iso-

metric


Ord.

Mk.

Lens Color/Type:

Dif. =

Diffused,

Wtr-Clr

= Water Clear

Electrical-Optical

Characteristics

(Ta = 25ºC)

Ι

v

Vf (V)

Ι

f

(mcd) typ/max

(mA)

typ

λ

p

(nm)

Long Lead

(0.5" Min.)

Retail

Ord.

Price

Mk.

(*)

Short Lead

(0.14")

Retail

Price

(*)

Emitted

Color

Lens

Color/

Type

Projec-

tion

Type

View

Angle Fig.

(2θ½)

T1 (3mm) High-Efficiency (Diffused) LEDs

21PCT120TR6

21PCT120TR4 (5)

21PCT120TR1

21PCT120TO4 (5)

21PCT120TY4 (5)

21PCT120TG4 (5)

21PCT120TUB5

21PCT120TR6-140

21PCT120TR4-140

21PCT120TR1-140

21PCT120TO4-140

21PCT120TY4-140

21PCT120TG4-140

21PCT120TUB5-140

Ultra

Red

HE Red

Std Red

Orange

Yellow

HE

Green

Ultra

Blue

Ultra

Red

Orange

Yellow

Lime Grn

Aqua

Grn

Pure

Blue

HE Red

Yellow

HE

Green

Red Dif.

Orn Dif.

Yel Dif.

Grn Dif.

Blu Dif.

Std.

Std

20

100

30

3

14

24

12

30

1.7/2.6

2.0/2.8

1.7/2.0

2.1/2.8

3.8/5.0

660

635

665

610

585

565

430

45º

1

T1 (3mm) Sunlight-Visible (Diffused) LEDs

21PCT120T-0R

21PCT120T-0O

21PCT120T-0Y

21PCT120T-0G

21PCT120T-1AG

21PCT120T-1PB

21PCT120T-0R-140

21PCT120T-0O-140

21PCT120T-0Y-140

21PCT120T-0G-140

21PCT120T-1AG-140

21PCT120T-1PB-140

Red Dif.

Orn Dif.

Yel Dif.

Grn Dif.

Blu Dif.

Std.

Std

20

700

1000

480

300

120

2.0/2.6

3.5/4.0

3.6/4.0

660

610

592

570

523

470

45º

1

T1 (3mm) 2mA Low-Current (Diffused) LEDs

21PCT120TR5N-LC

see

above

21PCT120TY5N-LC

21PCT120TG5N-LC

21PCT120TR5N-140/LC

21PCT120TY5N-140/LC

21PCT120TG5N-140/LC

Part Number

Iso-

metric


Ord.

Mk.

Retail

Ord.

Price

Mk.

(*)

Retail

Price

(*)

Emitted

Color

Lens

Color/

Type

Projec-

tion

Type

Red Dif.

Yel Dif.

Grn Dif.

Std

20

2.2

2.3

2.2

1.8/2.2

1.9/2.7

1.8/2.2

635

585

568

45º

1

Electrical-Optical

Characteristics

(Ta = 25ºC)

Ι

v

Vf (V)

Ι

f

(mcd) typ/max

(mA)

typ

λ

p

(nm)

Long Lead

(0.5" Min.)

Short Lead

(0.14")

View

Angle Fig.

(2θ½)

Custom Options:

Contact factory for all custom inquiries.

Retail Price;

*

Volume Discount Available

21PCT120CR4(5) Related Products

	21PCT120CR4(5)	21PCT120CG4(5)	21PCT120CY4(5)
Description	Single Color LED Array, High Efficiency Red, Clear Red, T-1, 3mm,	Single Color LED Array, High Efficiency Green, Clear Green, T-1, 3mm,	Single Color LED Array, Yellow, Clear, T-1, 3mm,
Reach Compliance Code	unknow	unknow	unknow
color	HIGH EFFICIENCY RED	HIGH EFFICIENCY GREEN	YELLOW
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.02 A	0.02 A	0.02 A
Lens type	CLEAR RED	CLEAR GREEN	CLEAR
Nominal luminous intensity	100.0 mcd	110.0 mcd	90.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	2	2	2
Number of terminals	4	4	4
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	9.7 mm	9.7 mm	9.7 mm
method of packing	BULK	BULK	BULK
peak wavelength	635 nm	568 nm	585 nm
shape	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm
surface mount	NO	NO	NO
T code	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
perspective	30 deg	30 deg	30 deg
Base Number Matches	1	1	1
